Summary of Contents for Erbauer ERB371GRD

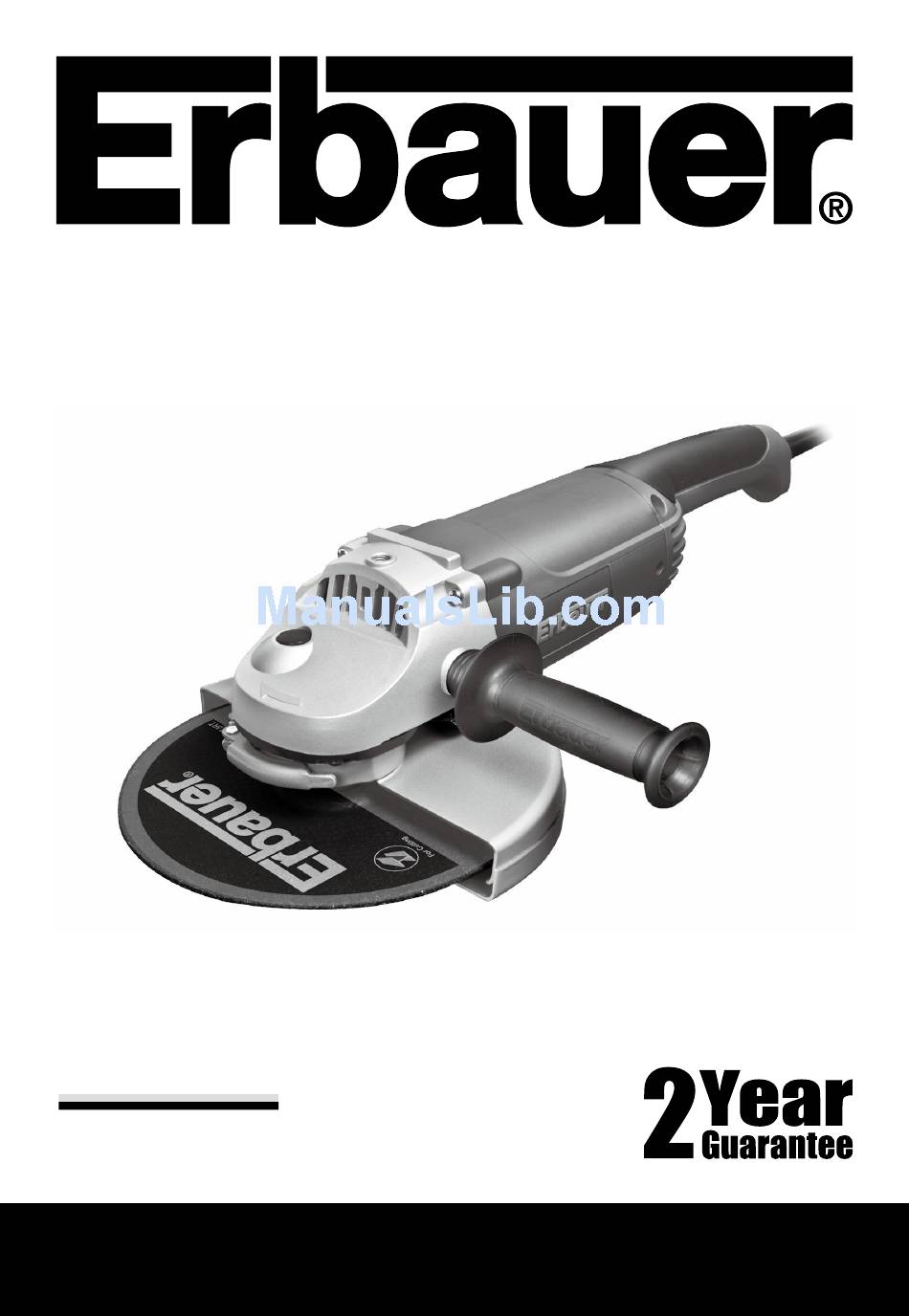

- Page 1 ERB371GRD 2300W 230MM ANGLE GRINDER...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery- operated (cordless) power tool. - Page 5 clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Page 6 5. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. 6. The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
- Page 7 Further safety instructions for all operations Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.
- Page 8 Additional safety instructions for cutting-off operations Additional Safety Warnings Specific for Abrasive Cutting-Off Operations: 1. Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
- Page 9 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 10 Avoid using tools in temperatures of 10ºC or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 11 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 13 LOCK-OFF SWITCH HAND GRIP AREA ANTI-VIBRATION AUXILIARY HANDLE SPINDLE LOCK BUTTON INNER FLANGE SPINDLE OUTER FLANGE GUARD CLAMPING LEVER CLAMP ADJUSTMENT NUT SPANNER MOTOR BRUSH COVERS DISC WHEEL GUARD FOR GRINDING WHEEL GUARD FOR CUTTING COMMUTATOR (See Fig 7-1) RESIN INSULATING TIP (See Fig 7-1) CARBON BRUSHES (See Fig 7-1) 2300W 230MM ANGLE GRINDER...
-
Page 14: Technical Data
TECHNICAL DATA Voltage 230-240V~50Hz Power input 2300W Rated speed 6500/min Protection class Spindle thread Disc size 230mm Disc bore 22.2mm Machine weight 6.8 kg NOISE INFORMATION A weighted sound pressure: : 101 dB (A) =3.0 dB (A) A weighted sound power: : 112 dB (A) =3.0 dB (A) Wear ear protection when sound pressure is over... -
Page 15: Spindle Lock Button
OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting ( accessory) must be used. Fig. -
Page 16: Removing The Guard
6. ADJUSTABLE OUTER FLANGE CLAMPING The outer flange (7) should be adjusted to suit different disc thickness. For thinner cutting discs the raised part of the outer flange is fitted facing away from the disc (See Fig.5-2). For thicker grinding discs the raised part of the outer flange is fitted facing towards the disc to provide improved support for the disc hole (See Fig.5-1). - Page 17 9. TO USE THE GRINDER Attention: Do not switch the grinder on whilst the disc is in contact with the workpiece. Allow the disc to reach full speed before starting to grind. Hold your angle grinder with one hand on the main handle and other hand firmly around the auxiliary handle.
- Page 18 11. AUTO-STOP CARBON BRUSH (See Fig.7-1) When the resin insulating tip(16) inside the carbon brush(17) is exposed to contact the commutator(15), it will automatically shut off the motor. When this occurs, both carbon brushes(17) should be replaced. Keep the carbon brushes clean and free to slip in the holders.
- Page 19 WORKING HINTS FOR YOUR ANGLE GRINDER 1. Always start at no load to achieve maximum speed then start working. 2. Do not force the disc to work faster, reducing the Disc’s moving speed means longer working time. 3. Always work with a 15 angle between disc and workpiece.
-
Page 20: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. -
Page 21: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. -
Page 22: Declaration Of Conformity
Standards conform to: EN 55014-1 EN 55014-2 EN 60745-1 EN 60745-2-3 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 11/06/14 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT... - Page 23 2300W 230MM ANGLE GRINDER...
