Summary of Contents for Erbauer ERB612GRD

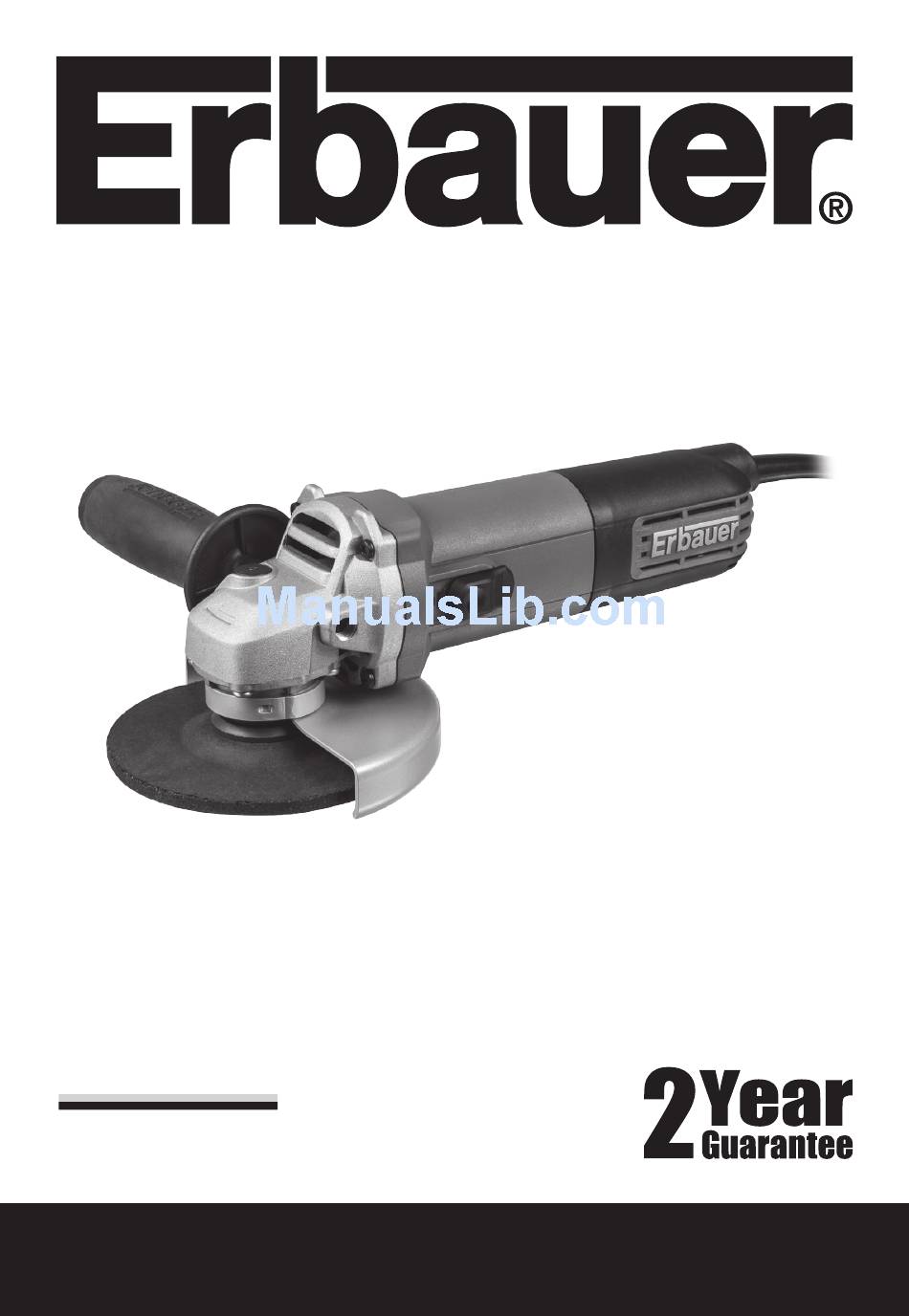

- Page 1 ERB612GRD 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. -
Page 5: Personal Safety
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch 850W 125mm ANGLE GRINDER ERB612GRD... -
Page 6: Safety Warnings Common For Grinding Or Abrasive Cutting-Off Operations
is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. - Page 7 The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 8 9. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. 10. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
- Page 9 Such blades create frequent kickback and loss of control. Additional safety instructions for grinding and cutting-off operations Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations: 1. Use only wheel types that are recommended for your power 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 10 tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. 2. The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.
- Page 11 6. Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 12 ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
- Page 13 The use of other tools will reduce the users’ total working period on this tool. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 14 Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. Health surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 15 Wear eye protection Wear dust mask Wear protective gloves Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. 850W 125mm ANGLE GRINDER ERB612GRD...
- Page 17 7. SPINDLE 8. GRINDING DISC* 9. SPANNER 10. WHEEL GUARD FOR GRINDING 11. CLAMPING SCREW 12. CODED PROJECTION 13. WHEEL GUARD FOR CUTTING * Not all the accessories illustrated or described are included in standard delivery. 850W 125mm ANGLE GRINDER ERB612GRD...
-
Page 18: Technical Data
TECHNICAL DATA Rated voltage 230-240V~ 50Hz Rated input power 850W Rated speed 12000/min Protection class Spindle thread Disc size 125mm Disc bore 22.23mm Diameter of grinding and cutting wheels 125mm Thickness of grinding wheels Machine weight 1.6Kg NOISE INFORMATION A weighted sound pressure : 96dB(A) A weighted sound power : 107dB(A) -
Page 19: Intended Use
When using a diamond cutting disc, take care that the direction-of-rotation arrow on the diamond cutting disc and the direction of rotation of the machine (direction-of-rotation arrow on the Fig. 3-2 machine head) agree. 850W 125mm ANGLE GRINDER ERB612GRD... -
Page 20: Operation
Fig. 2 For mounting, see the Component list illustration page. Screw on the outer flange (5) and tighten with the two-pin spanner (9). 3. ADJUSTABLE OUTER FLANGE CLAMPING The outer flange (5) should be adjusted to suit different disc thickness. For thinner cutting or diamond discs the raised part of the outer flange is fitted facing away from the disc (See Fig. - Page 21 WORKING HINTS FOR YOUR ANGLE GRINDER If your power tool becomes too hot, run no load for 2-3 minutes to cool the motor. Never start your angle grinder with the disc/ accessory in contact with the workpiece. 850W 125mm ANGLE GRINDER ERB612GRD...
-
Page 22: Maintenance
Always start at no load to achieve maximum speed then start working. Do not force the disc to work faster, reducing the Disc’s moving speed means longer working time. When grinding, always work with a 30° to 40° angle between disc and workpiece. Larger angles will cut ridges into the workpiece and affect the surface finish. -
Page 23: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk. 850W 125mm ANGLE GRINDER ERB612GRD... -
Page 24: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. - Page 25 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-3 Authorised Signatory and technical file holder Date: 12/01/2015 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 850W 125mm ANGLE GRINDER ERB612GRD...
