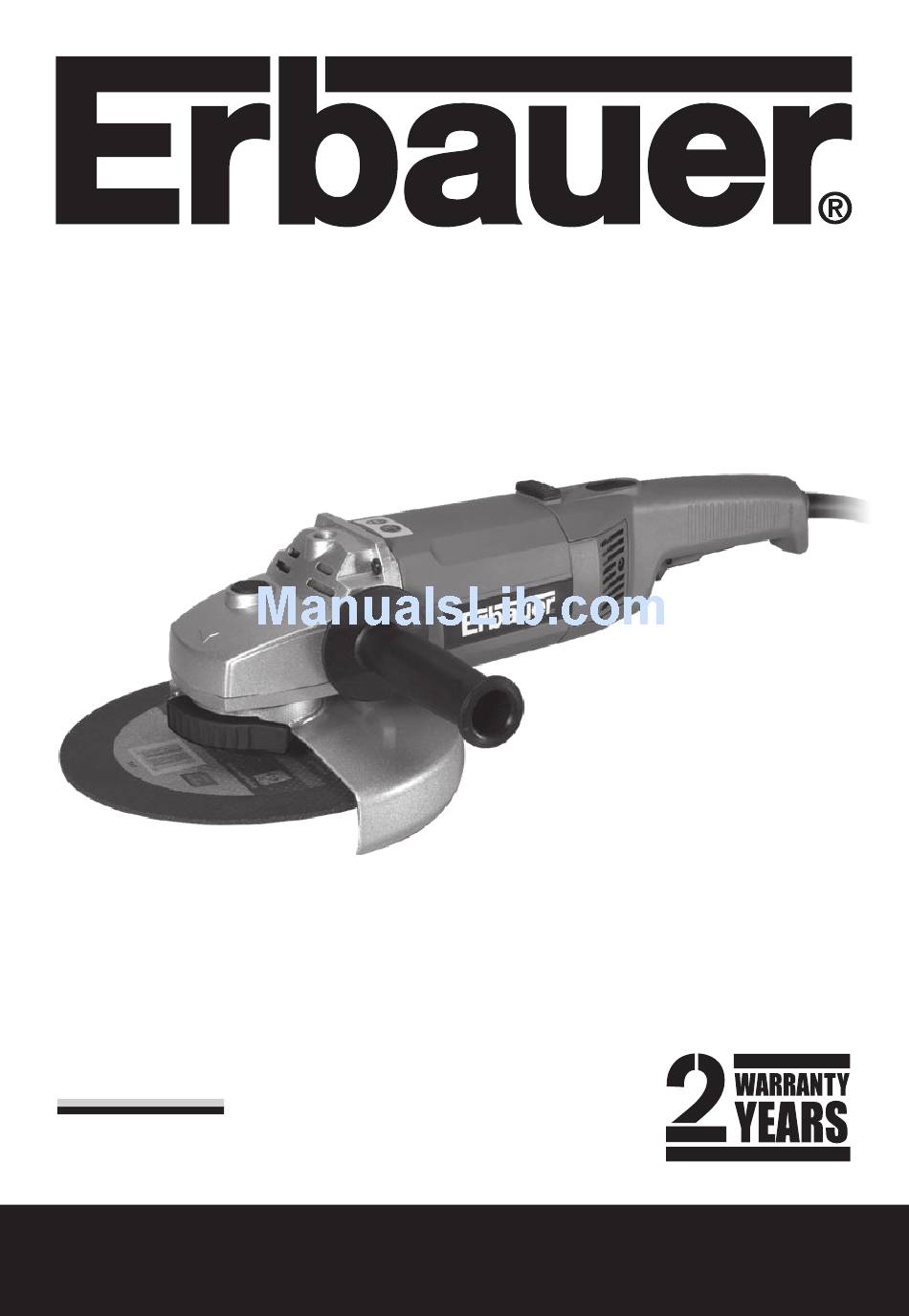

  • Page 1 ERB2002 230mm Angle Grinder...
  • Page 3 Congratulations on your purchase of a quality power tool. This product should give you reliable service but for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are de- tailed below. If this product develops a fault within the guarantee period contact your retailer.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed be- low may result in electric shock, fire and/or serious injury. SAVE THESE INSTRUCTIONS Work area a. Keep work area clean and well lit. Cluttered and dark areas invite acci- dents.
  • Page 5 d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
  • Page 6 HEALTH ADVICE WARNING! When drilling, sanding, sawing or grinding, dust particles will be produced. In some instances, depending on the materials you are working with, this dust can be particularly harmful to you (e.g. lead from old gloss paint). You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure.

  • Page 7: Double Insulation

    17. Always check walls to avoid hidden power cables and pipes in internal walls. A metal detector can be obtained from any good DIY store for this purpose. 18. Do not touch the work piece immediately after grinding, as it will be very hot. 19.
  • Page 8 1. SPINDLE (not included) 2. DISC 3. DISC GUARD 4. INNER FLANGE 5. LOCKING NUT 6. AUXILIARY HANDLE 7. ON/OFF SWITCH 8. SPINDLE LOCK BUTTON 9. CARBON BRUSH COVER 10. LOCK-ON BUTTON 11. SPANNER...

  • Page 9: Technical Data

    TECHNICAL DATA Voltage 230V~50Hz / 110V~50Hz Power input 2000W No load speed 6600 min Ø230 mm x 10 mm x Ø22 mm Maximum disc diameter Spindle thread M 14 Double insulation (EN 50144 – II) Weight 4.3 kg NOISE AND VIbRATION DATA Sound pressure level 91 dB (A) Sound power level...

  • Page 10: General Description

    GENERAL DESCRIPTION This ANGLE GRINDER can be used for cutting, grinding and polishing metal and stone material without using water. For cutting stone, a cutting guide is required. The machine uses a single phase alternating cur- rent 110V or 230V, 50Hz motor, its compact and robust format makes it versatile and efficient for uses described in the specific safety instruc- Fig.
  • Page 11 3. FITTING THE DISCS (See Fig. 3a, Fig. 3b, Fig. 3c) Put the Inner flange (4) onto the spindle (1). En- sure it is located on the two flats of spindle (See Fig. 3a). Place the grinding disc (2) on the spindle (1) and disc flange.
  • Page 12 mum overloading, maintain an angle between the disc and work surface of approximately 15º– 30º when grinding and 10º–15º when sanding. Exert light pressure on abrasive discs for effi- cient operation. Pushing too hard will cause a drop in speed and may result in motor overload and damage.

  • Page 13: Working Hints For Your Angle Grinder

    WORkING HINTS FOR YOUR ANGLE GRINDER 1. Your angle grinder is useful for both cutting through metals, i.e. for removing screw heads, and also for cleaning / preparing surfaces, i.e. before and after welding operations. 2. Different types of wheel/cutter will allow the grinder to meet various needs.

  • Page 14: Troubleshooting

    inside the tool. Never immerse any part of the tool into a liquid. 3. Your angle grinder requires no additional lu- brication. With the exception of the carbon brushes, there are no user serviceable parts in your power tool. 4. Always store your power tool in a dry place. 5.

  • Page 15: Plug Replacement

    PLUG REPLACEmENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug fol- lows the instruction below.

  • Page 17: Declaration Of Conformity

    Declaration of Conformity We, Importer Erbauer (UK) Ltd. BA 22 8RT Declare that the product 230mm Angle Grinder ERB2002 Complies with the essential health and safety requirements of the following directives: 89/366/EEC – EMC Directive. 2006/95/EC – Low Voltage Directive 98/37/EC –...
