Summary of Contents for Erbauer EAG18-Li

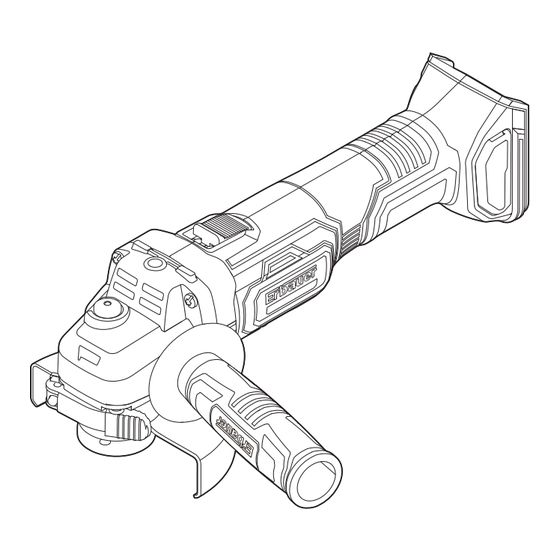

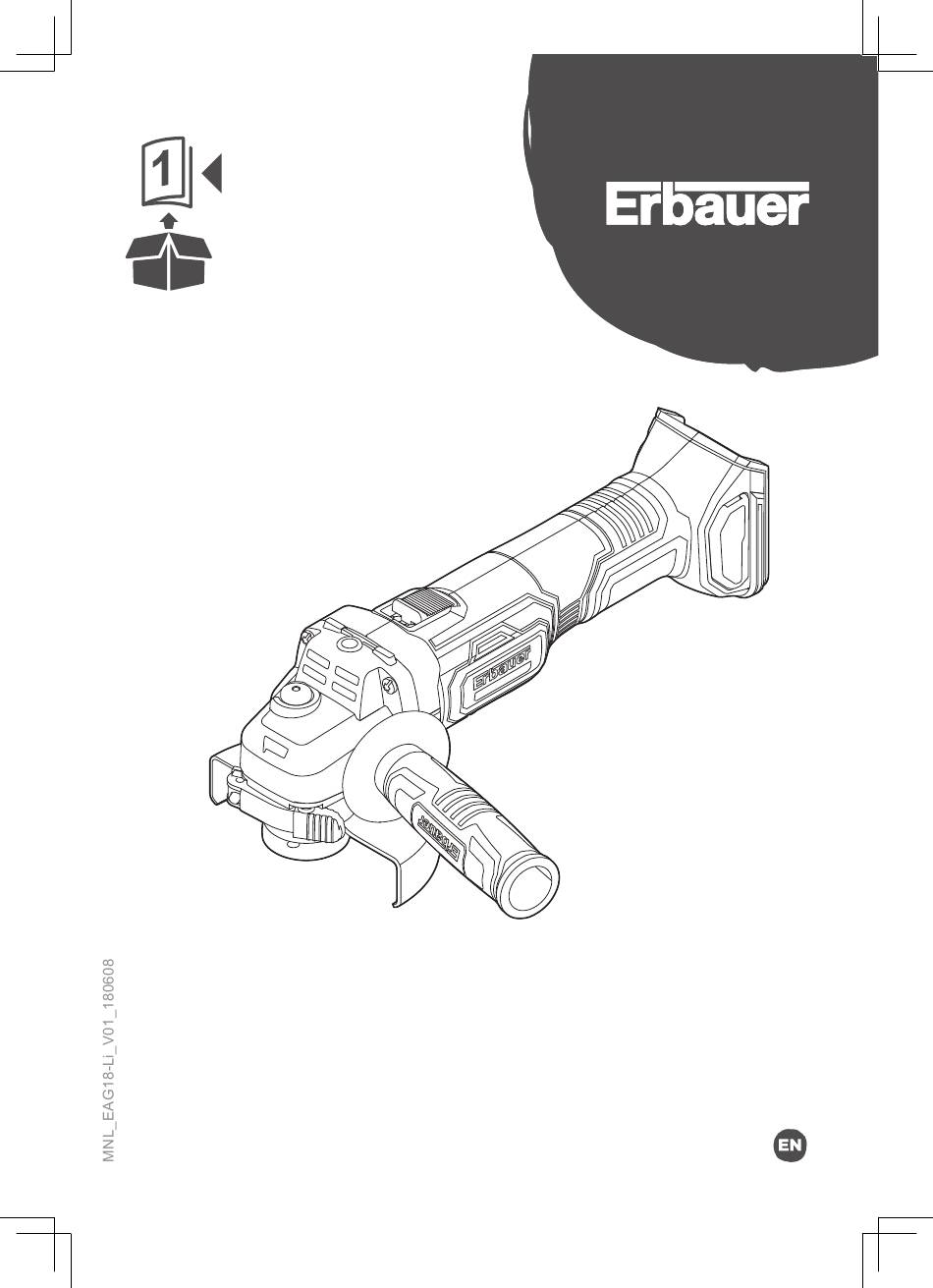

- Page 1 EAN. 3663602799191 EAG18-Li ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions WARNING! Please read all safety warnings carefully and be sure Product description that they are fully understood before handling the tool. Assembly Care & maintenance Guarantee Declaration of Conformity...
-
Page 3: Product Description
PRODUCT DESCRIPTION... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this 15° -30° power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 5: Personal Safety
c. Do n ot expose power tools to rain or wet conditions. Water f. Dre ss properly. Do not wear loose clothing or jewellery. entering a power tool will increase the risk of electric shock. Keep your hair, clothing away from moving parts. Loose clothes, jewellery or longhair can be caught in moving parts. - Page 6 f. K eep cutting tools sharp and clean. Properly maintained f. Do not expose a battery pack or tool to fire or excessive cutting tools with sharp cutting edges are less likely to bind and temperature. Exposure to fire or temperature above 130 °C are easier to control.
- Page 7 d The rated speed of the accessory must be at least equal to Keep bystanders a safe distance away from work area. the maximum speed marked on the power tool. Accessories Anyone entering the work area must wear personal running faster than their rated speed can break and fly apart. protective equipment.
-
Page 8: Kickback And Related Warnings
KICKBACK AND RELATED WARNINGS SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS: Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or a Use only wheel types that are recommended for your power tool and the specific guard designed for the selected snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the... - Page 9 b Do not position your body in line with and behind the Do not expose battery to water or salt water, or allow the rotating wheel. When the wheel, at the point of operation, is battery to get wet. moving away from your body, the possible kickback may propel Do not disassemble or modify the battery.
- Page 10 To protect the lung, the COSHH Regulations sets a limit on the WARNING! Some dust particles created by power amount of these dusts that you can breathe (called a Workplace sanding, sawing, grinding, drill and other construction Exposure Limit or WEL) when averaged over a normal working jobs contain chemicals known to cause cancer, birth day.
-
Page 11: Residual Risks
The declared vibration emission been measured in accordance Avoid using tools in temperatures of 10ºC or less. Plan your work with EN60745-1,EN60745-2-3 and may be used to compare one schedule to spread any high vibration tool use across a number of tool with another tool. -
Page 12: Technical Specifications
RATING LABEL EXPLANATION EAG18-Li=MODEL NUMBER E=Erbauer PRODUCT DESCRIPTION AG=Angle Grinder 18 = 18V d.c. 1. Spindle lock button 10. Grinding safety guard Li = LITHIUM ION 2. Mounting threads (×3) 11. Guard clamping lever 3. ON /OFF switch 12. Clamp adjustment screw 4. - Page 13 UNPACKING ASSEMBLY Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 14 AUXILIARY HANDLE ( B). To fasten the safety guard (10), close the clamping lever and loosen the clamp adjustment screw (12), if necessary. The closed side of the safety guard (10) must For all work with the machine, the auxiliary handle (9) must be mounted. Screw the always point to the operator.
-
Page 15: Intended Use
Cutting (I) When cutting, do not press, tilt or oscillate the machine. Work with moderate feed, adapted to the material being cut. Do not reduce the speed of running down cutting discs by applying sideward pressure. The direction in which the cutting is performed is important. The machine must always INTENDED USE work in an up-grinding motion. -
Page 16: Care And Maintenance
OVERLOAD, TEMPERATURE AND CHARGING PROBLEM Problem Tool/ Battery Status Possible cause Solution CARE & MAINTENANCE Overload Product suddenly Extremely high Relieve the load protection Stops; The LED torque, binding and immediately, reset the work light (if fitted) is stalling situations, tool by switching off and MAINTENANCE flashing... -
Page 17: Declaration Of Conformity
GUARANTEE DECLARATION OF CONFORMITY At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year trade guarantee against manufacturing defects on our Erbauer power tool products. - Page 19 Manufacturer • Fabricant • Producent • Hersteller • Producator • Fabricante: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products DISTRIBUTOR: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com To view instruction manuals online,...
