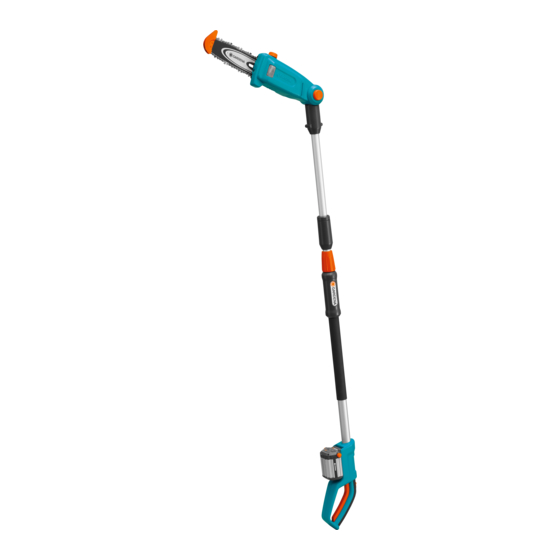

Battery pole pruner
Hide thumbs Also See for TCS Li-18:
Table of Contents

Advertisement

Quick Links

D
Betriebsanleitung
Accu-Hochentaster
GB
Operating Instructions
Battery Pole Pruner
F
Mode d'emploi
Élagueuse sur perche sur accu
NL
Gebruiksaanwijzing
Accu-telescoopkettingzaag
S
Bruksanvisning
Batteridriven Kvistsåg
DK
Brugsanvisning
Akku-grensav til højtsiddende grene
FI
Käyttöohje
Accu-raivaussaha
N
Bruksanvisning
Accu-beskjæringssaks
I
Istruzioni per l'uso
Potatore telescopico a batteria
E
Instrucciones de empleo
Sierra de pértiga telescópica
con accu
P
Manual de instruções
Serra accu para poda em altura
PL
Instrukcja obsługi
Akumulatorowa pilarka łańcuchowa
z trzonkiem teleskopowym
H
Használati utasítás
Akkumulátoros magassági ágvágó
CZ
Návod k obsluze
Akumulátorová teleskopická
vyvětvovací pilka
SK
Návod na obsluhu
Akumulátorový teleskopický
odvetvovač
TCS Li-18/20 Art. 8866
GR
Οδηγίες χρήσης
Τηλεσκοπικό αλυσοπρίονο
μπαταρίας
RUS
Инструкция по эксплуатации
Аккумуляторный высоторез
SLO
Navodilo za uporabo
Akumulatorski obrezovalnik
za veje
HR
Upute za uporabu
Akumulatorska teleskopska pila
SRB
Uputstvo za rad
BIH
Akumulatorska teleskopska
testera
UA
Інструкція з експлуатації
Акумуляторного телескопічного
сучкоріза-пилки
RO
Instrucţiuni de utilizare
Foarfecă cu acumulator pentru
rărirea crengilor copacilor înalţi
TR
Kullanma Kılavuzu
Accu High Kesici
BG
Инструкция за експлоатация
Телескопична акумулаторна
кастрачка
AL
Manual përdorimi
Sharrë degësh me bateri
EST
Kasutusjuhend
Akuga kõrglõikur
LT
Eksploatavimo instrukcija
Akumuliatorinė aukštapjovė
LV
Lietošanas instrukcija
Atzarotājs ar akumulatoru un
teleskopisko kātu

Advertisement

Table of Contents
loading

Related Manuals for Gardena TCS Li-18

Summary of Contents for Gardena TCS Li-18

  • Page 1 TCS Li-18/20 Art. 8866 Betriebsanleitung Οδηγίες χρήσης Accu-Hochentaster Τηλεσκοπικό αλυσοπρίονο μπαταρίας Operating Instructions Battery Pole Pruner Инструкция по эксплуатации Аккумуляторный высоторез Mode d’emploi Élagueuse sur perche sur accu Navodilo za uporabo Akumulatorski obrezovalnik Gebruiksaanwijzing za veje Accu-telescoopkettingzaag Upute za uporabu...

  • Page 2: Table Of Contents

    11. Service / Warranty ........26 1. Area of applications of your GARDENA Battery Pole Pruner...
  • Page 3 Explanation of Symbols on your product. Always wear non-slip safety shoes. WARNING! Read the user instructions carefully Always wear a hard hat. to make sure you understand all the controls and what they do. Always wear eye and ear protection. Risk of fatal injury due to electric shock! Keep at least 10 m away from electricity lines.
  • Page 4 b) Do not use the power tool if the switch does not turning. Only remove blocked material when the turn it on and off. device is switched off. Any power tool that cannot be controlled with the switch One moment of negligence when handling the Pole is dangerous and must be repaired.

  • Page 5: Assembly

    The Pole Pruner must not be exposed to direct sunlight while in storage. Only use the GARDENA Battery Charger supplied. The use of other battery chargers may damage the Do not store the Pole Pruner in places with static batteries irreparably and even cause a fire.

  • Page 6: Initial Operation

    4. Initial Operation Charging the battery: WARNING! Overvoltage damages batteries and the battery charger. v E nsure the correct mains voltage. Before using for the first time, the battery must be fully charged. Charging time (for uncharged battery) see 10. Technical Data. The lithium-ion battery can be charged in any state of charge, and the charging process can be interrupted at any time without harming the battery (no memory effect).

  • Page 7: Operation

    C heck whether sufficient quantities of chain oil are delivered prior to each use. We recommend to use Art. 6006 GARDENA Oil or an equivalent mineral chain oil from a specialist supplier. 1. Unscrew lid of oil tank 2.
  • Page 8 Tilting the motor unit: The motor unit can be tilted in 15° increments from 60° to – 60°. -60° -45° 1. Remove the battery from the handle (see 4. Initial Operation). -30° 2. Keep both orange buttons pressed. 3. Tilt motor unit in the required direction.

  • Page 9: Putting Into Storage

    Li-ion Important: Please return the lithium-ion batteries to your GARDENA dealer or dispose of them properly at a public recycling centre. 1. Discharge lithium-ion batteries completely. 2. Dispose of lithium-ion batteries properly.
  • Page 10 When the cutting performance reduces significantly (dull chain), the chain must be replaced. The Allen key for the screws situated inside the protective cover . Only the original GARDENA Spare Chain and Bar Art. 4048 or Spare Chain Art. 4049 may be used.

  • Page 11: Troubleshooting

    (Art. 9840). Only the original GARDENA Replacement Battery BLi 18 (Art. 9840) may be used. This can be obtained from your GARDENA dealer or directly from GARDENA Service. For any other malfunctions please contact the GARDENA service department.

  • Page 12: Available Accessories

    Bar GARDENA Replacement Chain Chain for replacement. Art. 4049 GARDENA Chainsaw Oil For lubricating the chain. Art. 6006 10. Technical Data TCS Li-18/20 (Art. 8866) Chain speed 3.8 m/s Bar length 20 cm Chain type 90 px Oil tank volume...

  • Page 13: Service / Warranty

    Service or return the defective unit together with a short description of the problem – in case of guarantee, with a copy of the receipt – postage paid to one of the GARDENA Service Centres listed on the back of this leaflet.
  • Page 14 We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist.
