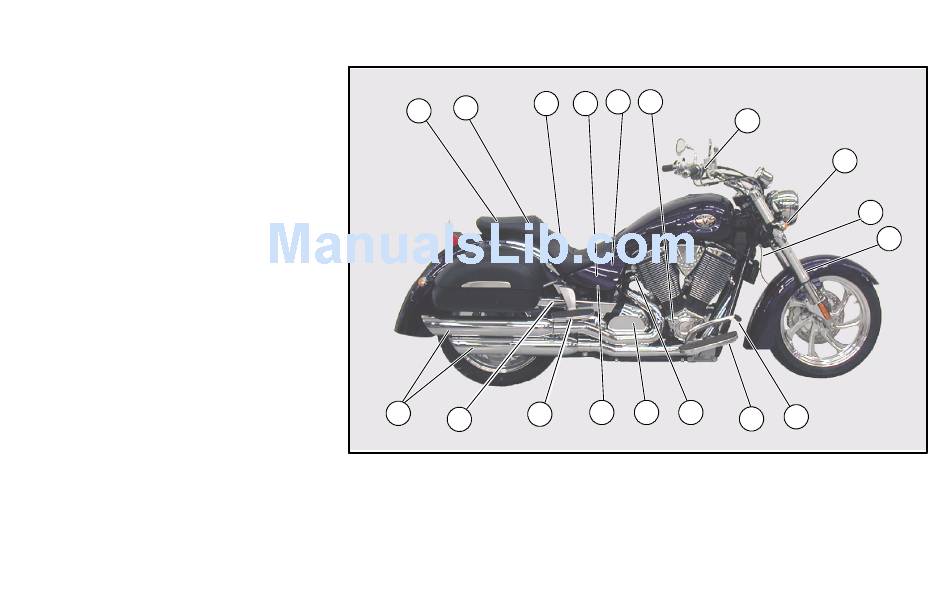

COMPONENT IDENTIFICATION
Components
1. Passenger's Seat
2. Seat Strap
5 6
3 4
2
1
3. Operator's Seat
7
4. Rear Shock Absorber
(access through RH side cover)
8
5. Side Cover
6. Engine Oil Fill Cap/Dipstick
7. Front Brake Lever
9
8. Front Turn Signal
10
9. Horn
10. Front Fork
11. Rear Brake Pedal
12. Operator's Foot Rest
13. Rear Brake Fluid Reservoir
14. Drive Sprocket (under cover)
15. Fuses (under side cover)
16. Passenger Foot Rest
17. Drive Belt (under guard)
18 14 13
16 15
11
12
17
18. Exhaust Muffler (2)
32
