11.11 Completion
The user control door is designed for left or right hand
hinging. If required the hinge can be moved to the other
side to that supplied, as follows:
Remove the hinge pin bracket securing screw then
remove the hinge pin retaining bracket and holding the
door, remove the hinge pin. Prise out the hinge pin
bushes and fit on to the opposite side of the door, see
diagram 11.7.
Remove the screw and nut and fit to the opposite side of
the case. After removing the other hinge pin retaining
bracket refit the door and hinge pin. Refit the hinge pin
retaining bracket and fit the securing screw.
Adjust the fit of the door using the hinge side bracket
securing screw.
Fit the catch assembly, supplied in the loose items pack,
see diagram 11.7.
If required, fit the plastic covers to hide the bracket
securing screws.
Change the position of the "Push" label to suit the new
door opening.
Clock/timer, if fitted, remove the plastic retaining clips
to release the cover plate. Fit the new plastic plugs, see
diagram 11.7.
Stick the casing label to the right hand side of the clock/
timer.
Note. Some adjustment of the clock/timer bracket may
be required to allow for a satisfactory alignment of the
outer casing.
Fit the outer case, secure with the two screws, see
diagram 6.1
Set the boiler and any remote heating control to the
desired settings, then close the door.
11.12 Instruct the User
Instruct and demonstrate the lighting procedure and
advise the user on the safe and efficient operation of the
boiler.
Instruct on and demonstrate the operation of any heating
system controls.
Advise the user on the use and maintenance of any scale
reducer and pass on any relevant instructional
documents.
Advise that to ensure the continued efficient and safe
operation of the boiler it is recommended that it is
checked and serviced at regular intervals. The frequency
of servicing will depend upon the installation conditions
and usage, but in general, once a year should be enough.
Advise the user of the precautions necessary to prevent
damage to the system, boiler and the building, in the
event of the heating system being out of use during frost
or freezing conditions.
220674B
Supplied By www.heating spares.co Tel. 0161 620 6677
1 1 C o m m i s s i o n i n g
26
HINGE PIN RETAINING
BRACKET
BRACKET
SECURING SCREW
HINGE PIN
COVER
PLATE
PLASTIC
PLUGS (2)
HINGE
PIN
PLASTIC
BUSH (2)
CATCH
ASSEMBLY
Advise the user that the permanent mains electrical
supply must not be switched off whilst the pilot flame is
alight.
Leave the Installation and Servicing Instructions with the
user.
PLASTIC COVERS
SPACER
SECURING
NUT

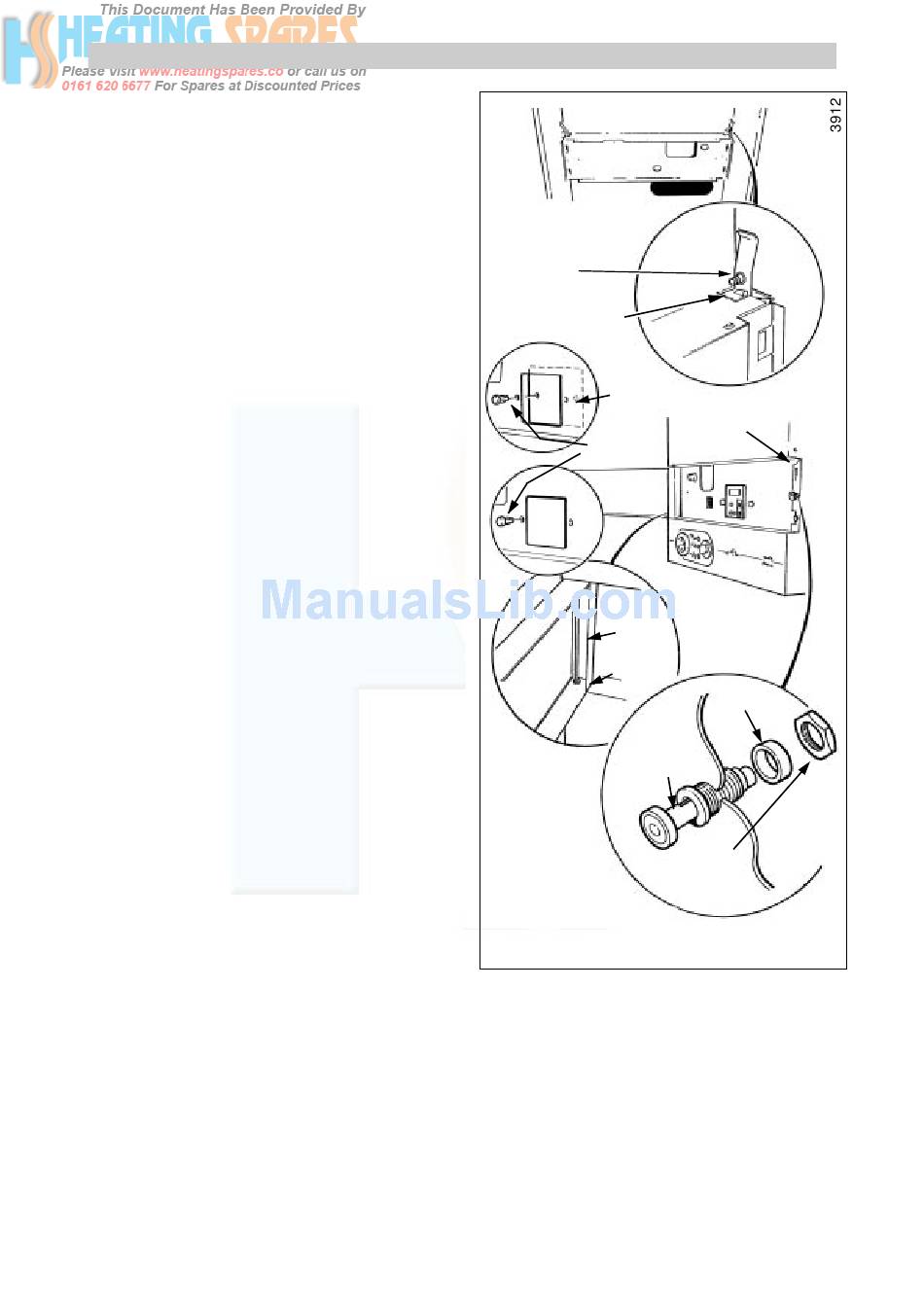

Diagram 11.7
