6 A p p l i a n c e
6.1 Unpacking
Remove the top carton and cut out the flue template from
the inner flap.
Open the control door, see diagram 6.1.
Remove the two screws securing the outer case and then
lift it at the top and pull it forwards and off, see diagram
6.1.
Remove the cover of the inner case, secured with four
screws, see diagram 6.2
Slacken flue collector thumb screws.
Remove the fan securing screws.
Disconnect the electrical plug connector and air pressure
tube from the fan, see diagram 6.3.
Pull the fan forwards, at the bottom and rotate to
disengage the fan outlet from rear bracket.
Take care not to damage the seal.
Tilt the fan and withdraw.
Disconnect the gas cock union and the front unions of
the isolation valves, see diagram 6.4.
Slightly loosen the clips of the gas service cock and the
isolating valves.
Remove the two boiler securing screws then remove the
boiler from the mounting frame, by pulling the studs
from the clips and unhooking it at the top.
DOOR
OUTER CASE
PLASTIC
PLUGS (2)
COVER
PLATE
SECURING
INNER CASE
SCREW (4)
COVER
VIEWING
WINDOW
DATA
LABEL
Supplied By www.heating spares.co Tel. 0161 620 6677
a n d F l u e
FAN SECURING
SCREWS
THUMB
SCREW
(2)
SELECTOR
SWITCH
OUTER CASE
SECURING
SCREW (2)

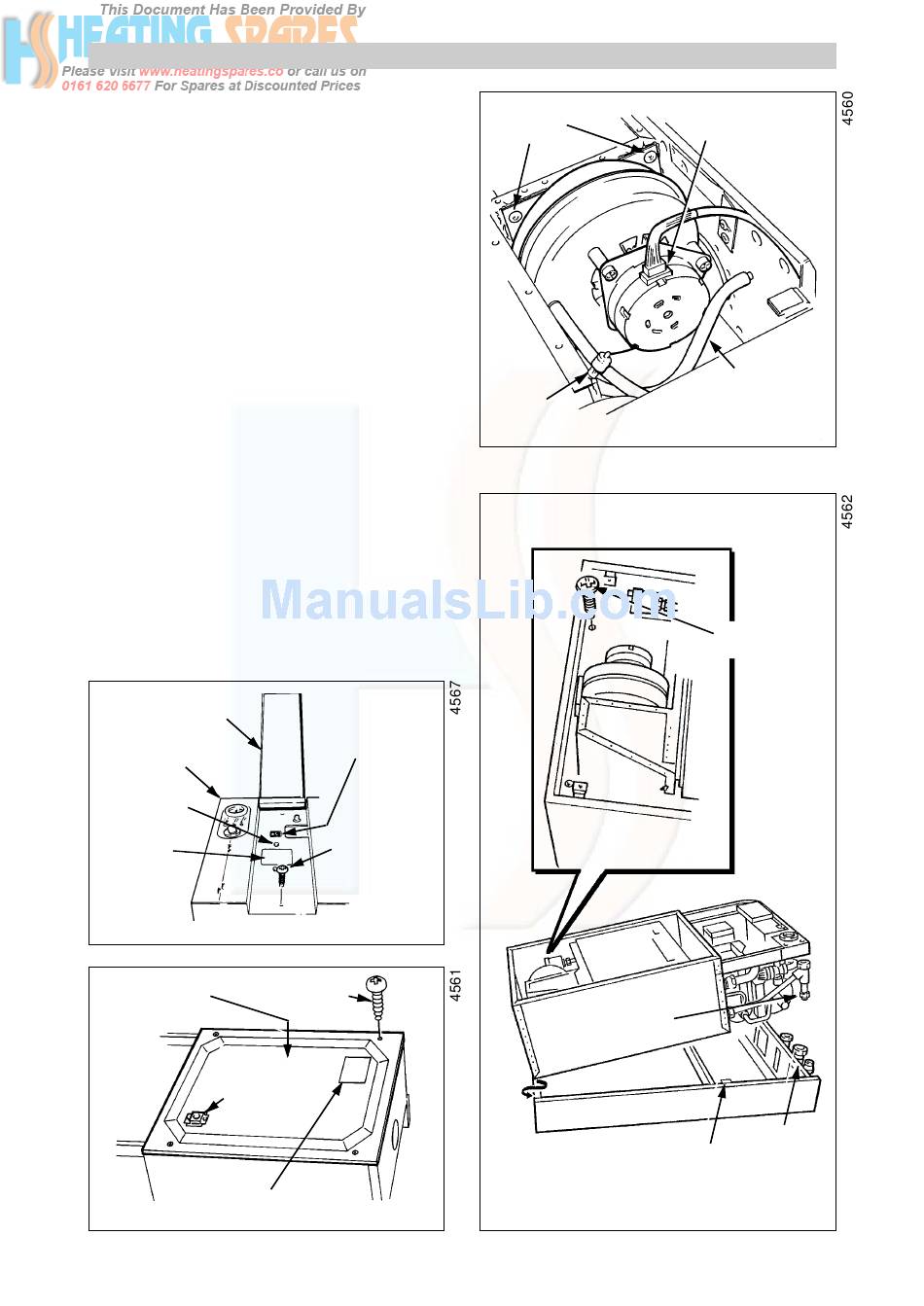

Diagram 6.1
