4.9 Filling Sealed Systems
Provision for filling the system at a low level must be
made. Three methods of filling are shown in diagram
4.3. There must be no permanent connection to the
mains water supply, even through a non-return valve.
4.10 Corrosion Inhibitor
If an inhibitor is to be used in the system, contact a
manufacturer so that they can recommend their most
suitable product.
When fitting the boiler into an existing system, special
care should be taken to drain the entire system, including
radiators, then thoroughly cleaning out before fitting the
boiler whether or not adding an inhibitor.
4.11 Draining Tap
A draining tap must be provided at the lowest points of
the system, which will allow the entire system to be
drained. An additional draining tap MUST be fitted
close to the boiler.
The flow and return isolation valves are provided with
drain points for boiler heat exchanger drainage.
Supplied By www.heating spares.co Tel. 0161 620 6677
4 H e a t i n g
11
S y s t e m
METHOD 1
COMBINED
CHECK VALVE
TEMPORARY
AND VACUUM
HOSE
BREAKER
SERVICING
HOSE
VALVE
UNIONS
SUPPLY STOP
SUPPLY VALVE
PIPE
METHOD 2
DOUBLE CHECK
TEMPORARY
VALVE ASSEMBLY
HOSE
SERVICING
HOSE
VALVE
UNIONS
SUPPLY STOP
VALVE
SUPPLY
PIPE
METHOD 3
CISTERN
OVERFLOW
SERVICING
VALVE
SUPPLY
STOP VALVE
HOSE
UNIONS
SUPPLY
PIPE
0051M
HEATING
SYSTEM
HEATING
SYSTEM
HEATING
SYSTEM
PRESSURE
REDUCING
VALVE
DOUBLE CHECK
VALVE ASSEMBLY

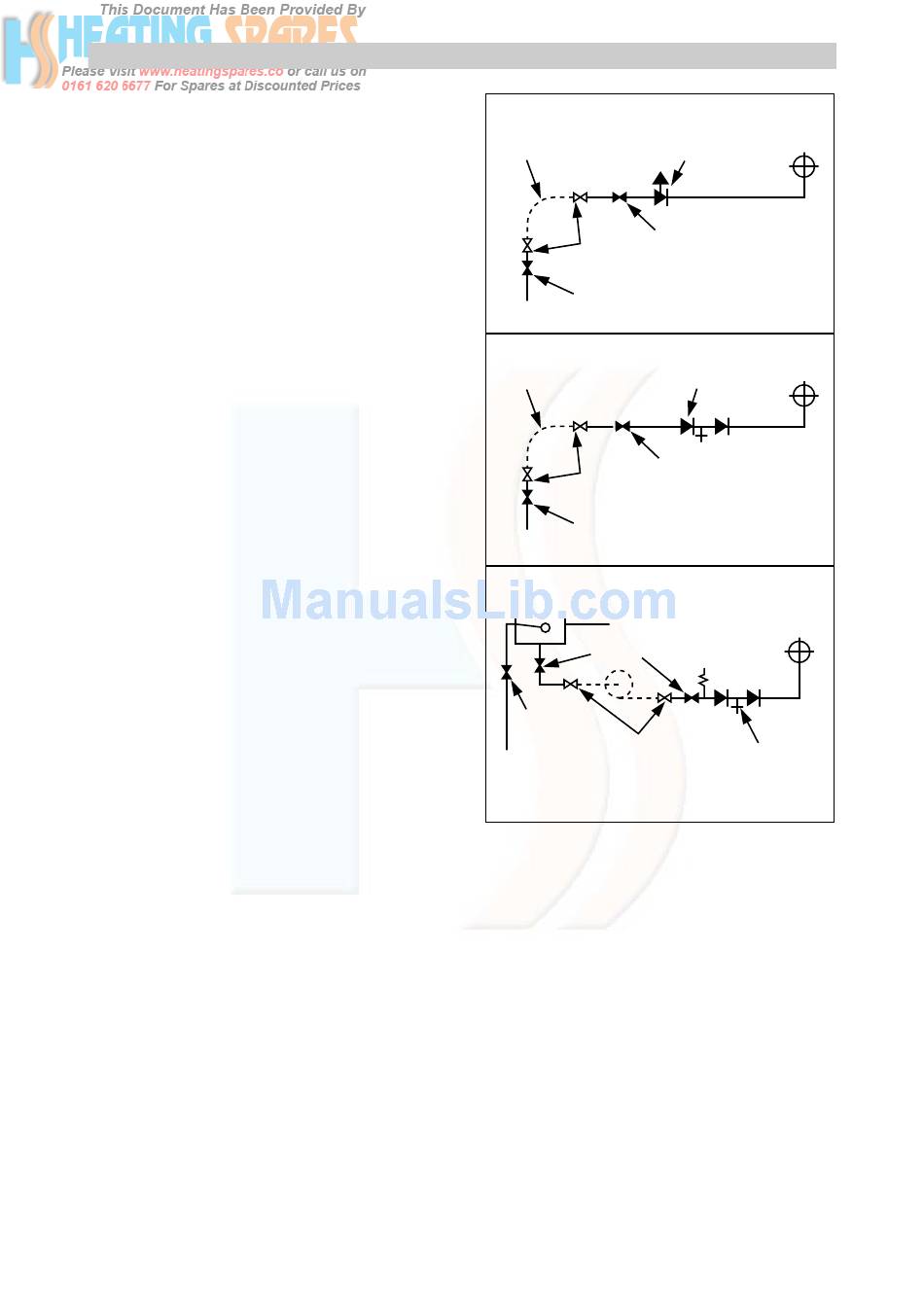

Diagram 4.3
