I I n n s s t t a a l l l l a a t t i i o o n n
These instructions assume that the display has at least one available input that uses a
DVI-I video signal, and that all the devices have their cables attached. You may need to
disconnect an existing device from the display to make an input available and re-connect
that device using the video scaler.

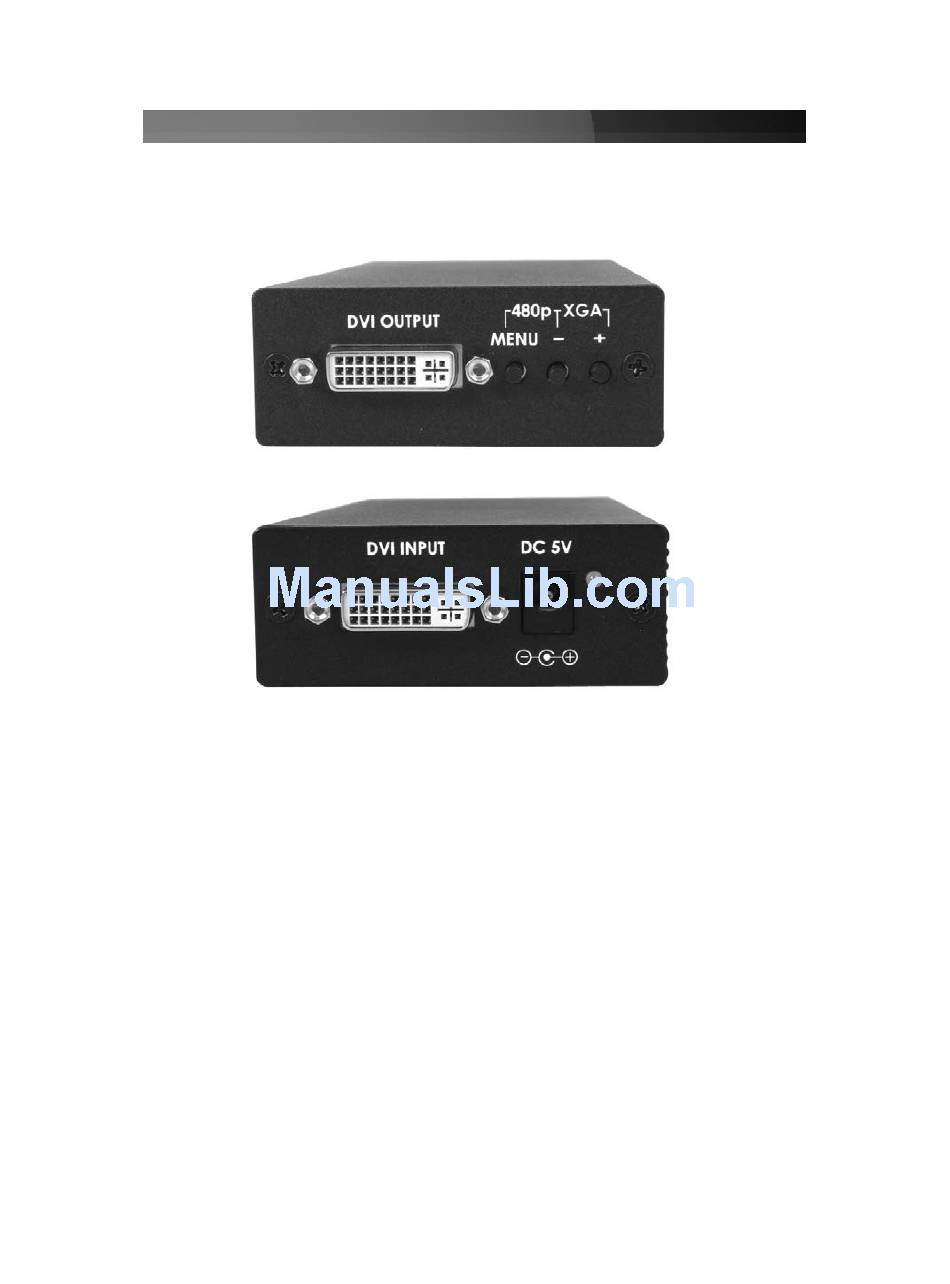

Front
Back

Connecting Devices to the Scaler

1. Place the scaler near the display and the devices you wish to use with the scaler.
2. Connect the input device (i.e. a DVD player) to the connector labeled DVI Input on the
back of the video scaler converter.
3. Connect the scaler to your display device, using the port marked DVI OUTPUT on the
front of the scaler. If you require a VGA resolution output, use a DVI to VGA adapter
and VGA to VGA cable to make this connection (see Accessory
Products available from StarTech.com).
4. Connect the power adapter (provided) to the port marked DC 5V on the back of the
video scaler. Connect the opposite end to a wall outlet or other suitable power source.
The red light located next to the DC 5V output will illuminate once the scaler is
powered.
5. If you are using a DVI-I display, the scaler converter is now ready to use. If you are
using an RGB (VGA) display, adjustments will be required from within the On-screen
menu (Please see Menu and Adjustments)
