Instruction Manual
40 Pin Female IDE to SATA Converter
IDE2SAT25
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Introduction
Thank you for purchasing a StarTech.com IDE2SAT25 IDE to Single
Port SATA Adapter. The IDE2SAT25 is a versatile solution, allowing
you to use newer 2.5'' or 3.5'' SATA hard drives with older IDE-only
motherboards. Its' low profile size allows the adapter to plug
directly into the motherboard, making it ideal for small form factor
systems and preserving space within larger systems.
Packaging Contents
• 1 x IDE to SATA Adapter
• 1 x Y Cable (LP4 to LP4 + SP4)
• 1 x SATA Cable
• 1 x Instruction Manual
Features
• Fully compatible with Ultra ATA 133 specifications
• Serial ATA 1.0 compliant
For the most up-to-date information, please visit: www.startech.com

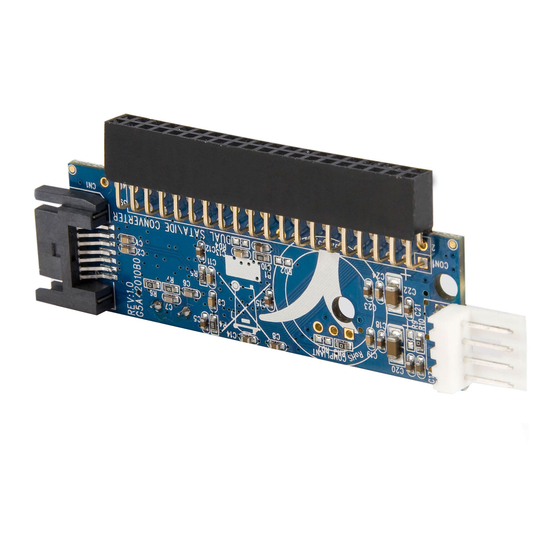

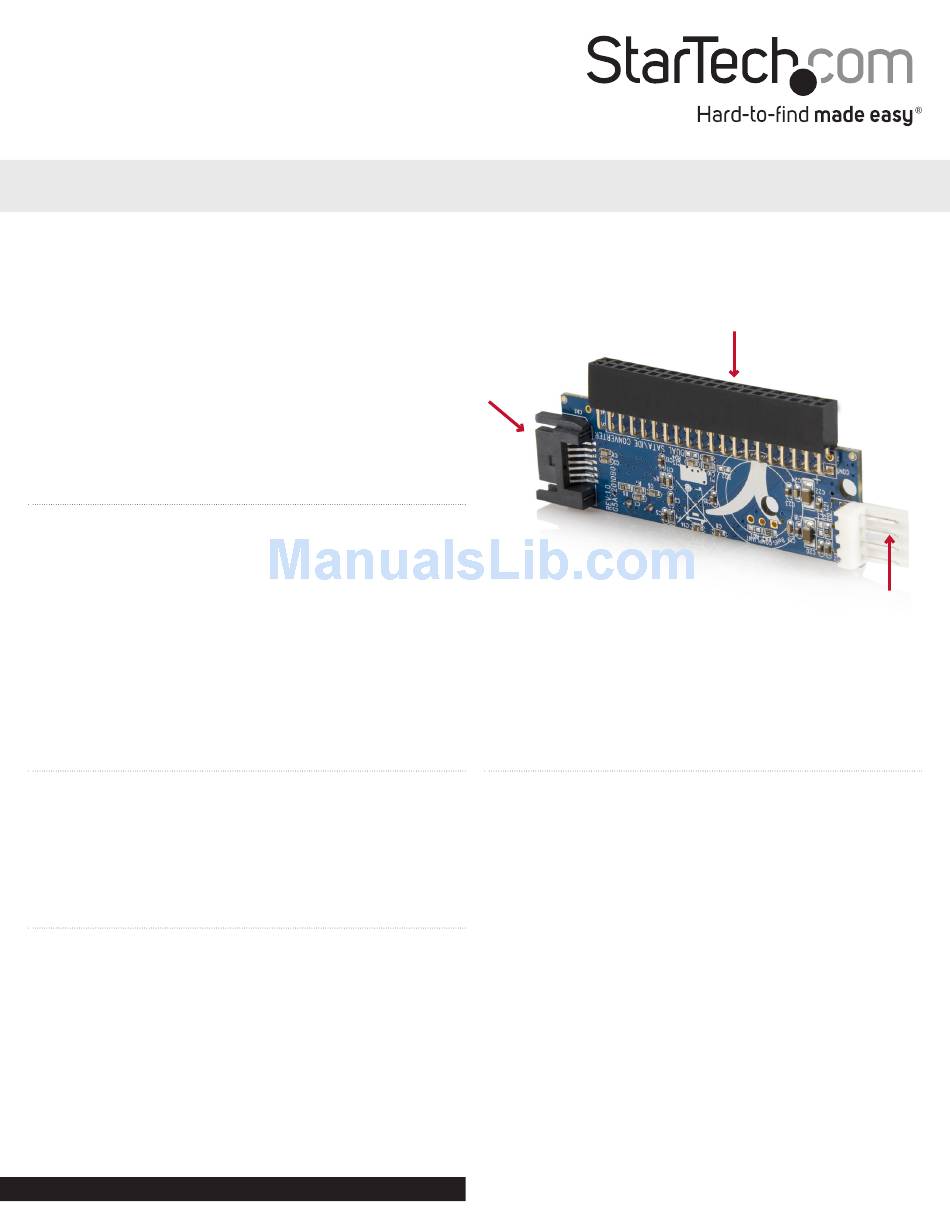

Serial ATA Data
Port
Installation
1. Connect the serial ATA cable and "Y" split cable to the IDE2SAT25.
2. Connect the Ultra ATA (40pin) to the Motherboard IDE connector.
3. Connect the other end of the Serial ATA cable to the Serial ATA
device.
4. Connect the other end of "Y" split power cable to the power
source.
5. Do not forget to connect a power cable to the hard disk.
Note: No driver is needed to install the IDE2SAT25. It only acts as a
bridge adapter between the Serial ATA and Ultra ATA interfaces.
Ultra ATA (40-pin)
Power (from Y-split cable)
*actual product may vary from photos
Manual Revision: 01/26/2012
