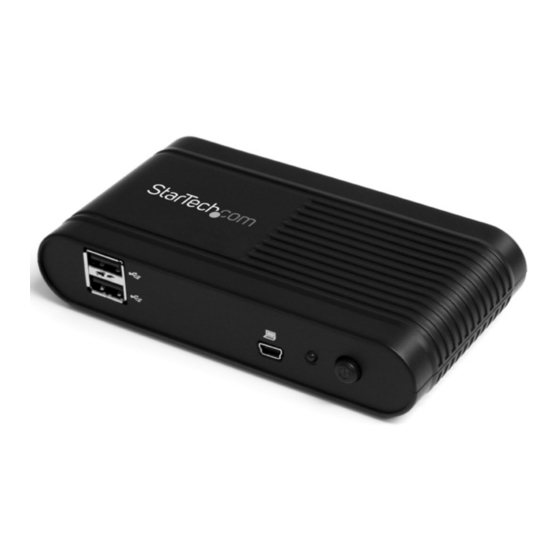

Ethernet to VGA over IP Converter
IPUSB2VGA
IPUSB2VGAUE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/15/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com IPUSB2VGA
Summary of Contents for StarTech.com IPUSB2VGA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/15/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Side 1 View ..............................2 Side 2 View ..............................2 Installation Diagram ..........................3 Installation ....................4 Software Installation for Windows 2000/XP/Vista/7 ..............4 Hardware Installation for USB ....................... 5 Hardware Installation for Ethernet ..................... -
Page 4: Introduction
Introduction The StarTech.com IPUSB2VGA Video Adapter offers versatile performance by providing either a USB-to-VGA connection or an IP/Ethernet-to-VGA connection between a PC and VGA-capable display device. The ideal solution for computers lacking a VGA video output or PCs that require an additional display at long distances/remote locations. -
Page 5: Side 1 View
Side 1 View RJ45 LAN 3.5mm mini-jack connector Speaker output Power Connector 3.5mm mini-jack DE-15 VGA MIC input connector (output) Side 2 View Power LED USB Hub connectors Power Button USB mini-B connector (Host) *actual product may vary from photos Instruction Manual... -
Page 6: Installation Diagram
Installation Diagram Instruction Manual... -
Page 7: Installation
“Autorun.exe”. If AutoPlay is not enabled on the computer, browse through the CD and locate the “Autorun.exe” file. 3. Select the “IPUSB2VGA” from the product menu, then select the option to install the Device Drivers, then the operating system. -
Page 8: Hardware Installation For Usb
Hardware Installation for USB 1. Connect the VGA display device to the Video Adapter and power on the Display Device. If using the audio features, connect external speakers and/or a microphone to the 3.5mm mini-jack connectors on the adapter. 2. Plug the power adapter into the VGA Video Adapter. The Power LED will light up steady. 3. - Page 9 1. If a DHCP server is available, the VGA Video Adapter will automatically obtain the IP address and network settings to be able to communicate with other devices on the network. If a DHCP server is not available, such as connecting directly to a computer system, the VGA Video Adapter will assume an IP of 192.168.1.50.
-
Page 10: Installation For Mac Os X
Installation for Mac OS X 1. Insert the Driver CD (included) into the CD/DVD-ROM drive. 2. Browse through the Driver CD and locate the “DisplayLink-OSX” .dmg file. Double- click on this file to begin the installation process: 3. Double Click the “DisplayLink Software Installer.pkg”... -
Page 11: Configuration
Configuration Windows 2000/XP/Vista/7 To configure the image being displayed by the monitor that is connected to the VGA Video Adapter, right-click on a blank section of the desktop, select Properties, then click on the Settings tab to display the following screen: For Vista, right-click on a blank section of the desktop and select Personalize, then select Screen Resolution on the next screen. - Page 12 Configure the secondary display by selecting it from the “Display” drop-down menu, then adjusting the desired settings: Using the Second Display in Extended Mode In Extended Mode, the monitor that is connected to the VGA Video Adapter creates an extension of the Windows Desktop displayed on the primary monitor. To set the display to function in this mode (once selected from the drop-down menu), check the box marked Extend my windows desktop onto this monitor, then arrange its position (virtually) with respect to the primary monitor by dragging the monitor icons (shown...
- Page 13 Similarly, the screen resolution, color quality, position of the screen and rotation of the screen can be adjusted from this menu. To disable the secondary display, select Off. Screen Rotation Will rotate the entire video output in 90 degree increments. Media Playback Please note that while operating in Extended Mode, the VGA Video Adapter can display media files and DVDs using a broad variety of media players, however in Clone Mode,...
-
Page 14: Mac Os X
Mac OS X To configure the display settings and monitor positions, bring up the Displays Preferences from the System Preferences menu: The Display settings for each display will appear on the individual monitors themselves. To configure them all from a single location, press the “Gather Windows” button and each screen’s Displays Preferences windows will appear on that display. - Page 15 To use both extended and mirrored displays simultaneously, turn off mirroring then in the “Arrangement” page press and hold the ‘cmd’ and ‘alt’ keys and drag and drop the display you wish to mirror over the primary display (shown with the white bar). Repeat this with each display you wish to mirror, all others will act as an extended display.
-
Page 16: Specifications
Specifications USB 2.0 Bus Interface TCP/IP Video Signal VGA (RGBHV) 1 x DE-15 VGA female 1 x USB mini-B female 2 x 3.5mm mini-jack female Connectors 1 x RJ45 female 2 x USB type A female 1 x DC Power 1 x Power LEDs 1 x RJ45 Link... -
Page 17: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 18 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
