Summary of Contents for StarTech.com DVI2HDMI

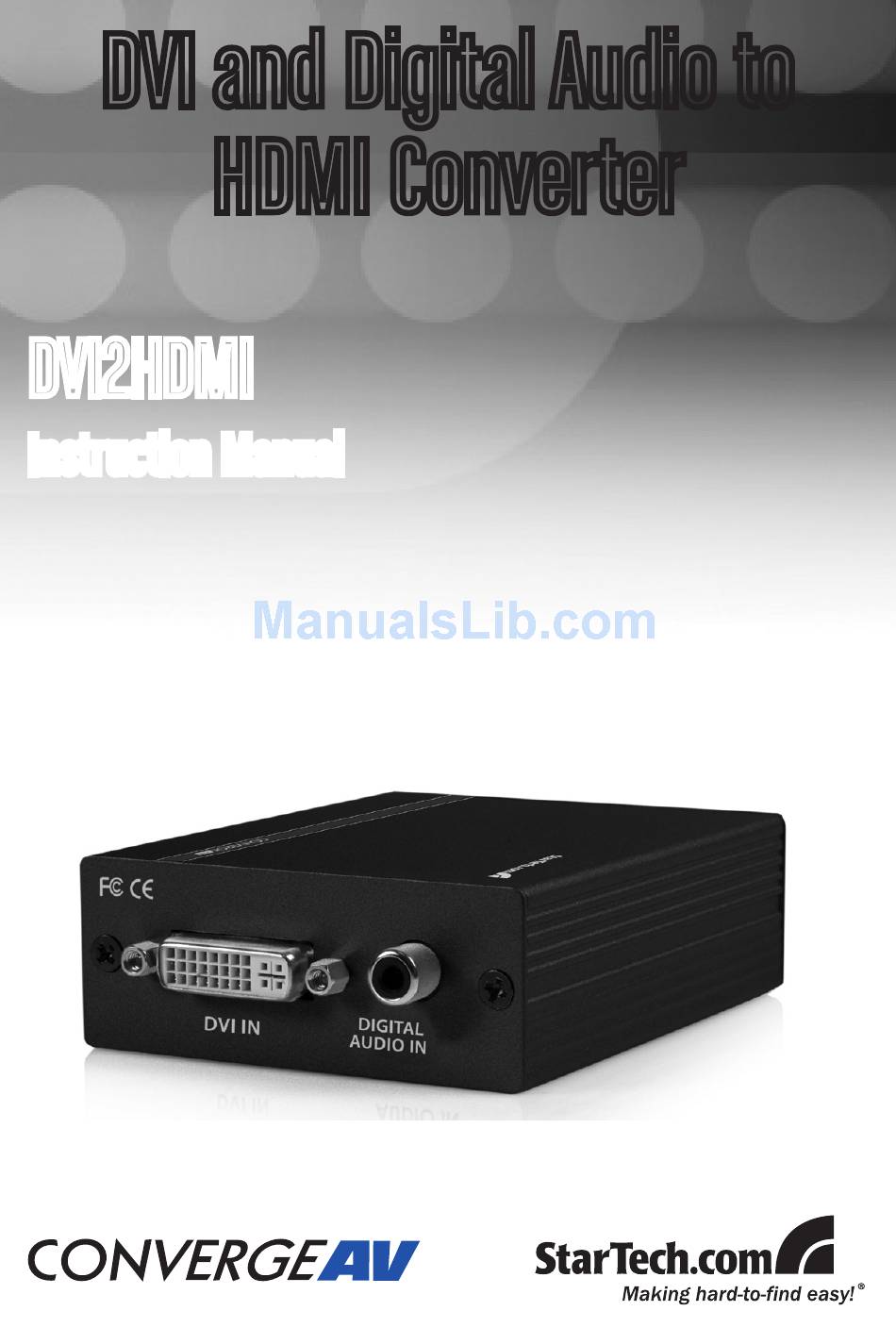

- Page 1 DVI and Digital Audio to HDMI Converter DVI2HDMI Instruction Manual...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Package Contents ...............1 Operating Controls & Functions ........2 Specifications ..............3 Pin Configuration ............4 Connection and Installation ........... 6 Technical Support ............7 Warranty Information ............7... -
Page 4: Introduction

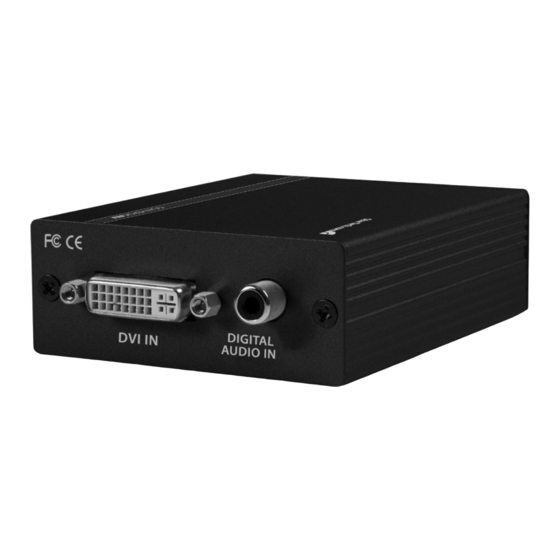

Instruction Manual Introduction Thank you for purchasing a StarTech.com DVI2HDMI DVI and Digital Audio to HDMI Converter. Offering convenient conversion of digital video (DVI) and digital audio (digital coaxial) to HDMI, this device eliminates cable clutter, while providing top quality digital content. -
Page 5: Operating Controls & Functions
Instruction Manual Operating Controls & Functions DVI Input: Connects to the DVI output connector of your source equipment. Digital Audio (SPDIF) input: Connects to the digital audio output of your source equipment. HDMI Output: Connects to the HDMI input connector of your HDMI Display or Switcher. -
Page 6: Specifications
Instruction Manual Specifications Digital Video Input DVI-I Connector (DVI-D input signal only) Digital Audio Input Coaxial (SPDIF) HDMI Output 19-pin HDMI Connector HDCP Version HDCP 1.1, 1.0 Operation Frequency Up to 165 Mhz Frequency Bandwidth 1.65Gbps (single-link) VGA@60/72/75/85Hz SVGA@60/72/75/85Hz XGA@60/70/75/85/87Hz SXGA@60/75/85Hz UXGA@60Hz, 1152@70/75/85Hz Input/Output... -
Page 7: Pin Configuration
Instruction Manual Pin Configuration DVI-D Input Pin Assignment DVI-Digital: Supports digital-only connections between the host computer and display. This interface is designed for a 12 or 24-pin connection to enable single or dual-link mode activation Digital Only Connector Pin Assignments Signal Signal Signal... - Page 8 Instruction Manual HDMI Output Pin Assignment Digital Only Connector Pin Assignments Function Function Assignment Assignment T.M.D.S Data 2+ T.M.D.S Data 2 Shield T.M.D.S Data 2- T.M.D.S Data 1+ T.M.D.S Data 1 Shield T.M.D.S Data 1- T.M.D.S Data 0+ T.M.D.S Data 0 Shield T.M.D.S Data 0- T.M.D.S Clock+ T.M.D.S Clock Shield...
-
Page 9: Connection And Installation
1 - Source Device (e.g. DVD Player, Computer) 2 - DVI Cable (from source to DVI2HDMI DVI IN port) 3 - SPDIF Cable (from source to DVI2HDMI Digital Audio In port) 4 - HDMI Cable (from DVI2HDMI HDMI OUT port) to Display... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
