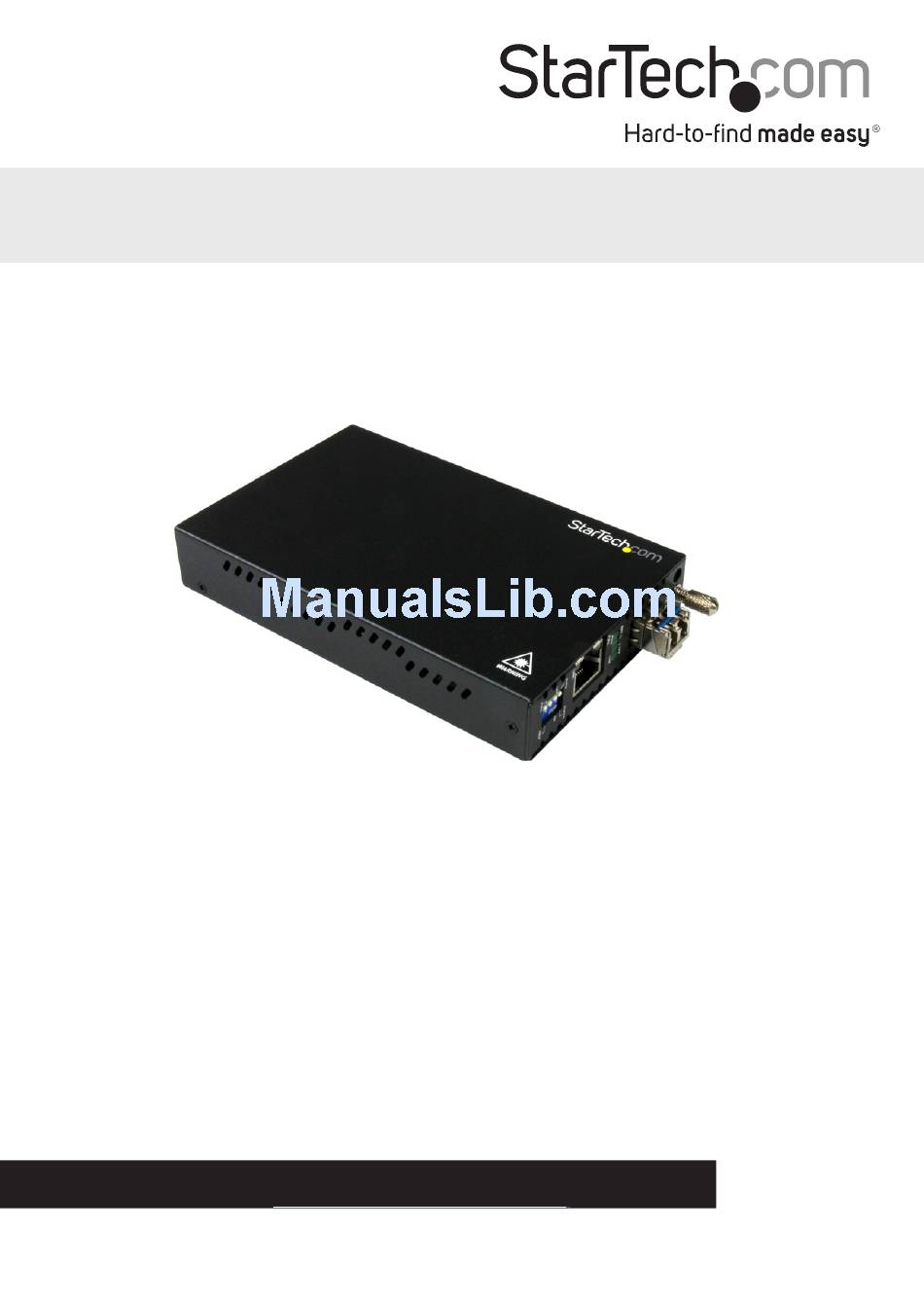

Gigabit Ethernet Fiber Media Converter -
SM LC - 20km
ET91000SM20
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit
Manual Revision: 03/17/2016
www.startech.com/ET91000SM20.

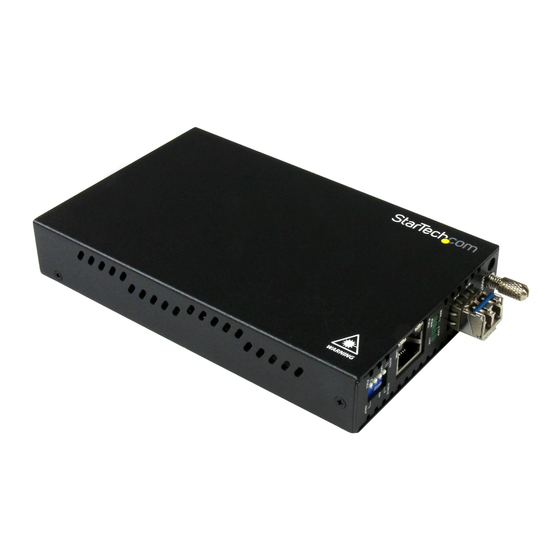

*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ET91000SM20
Summary of Contents for StarTech.com ET91000SM20
- Page 1 Gigabit Ethernet Fiber Media Converter - SM LC - 20km ET91000SM20 *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging contents ..........................1 System requirements ..........................1 Product diagram ..................2 Front view ..............................2 Rear view ..............................2 Install the media converter ..............3 LED indicators ..................4 DIP switch settings .................5 Link fault pass-through (LFP) ...............6 Enable LFP .............................. -
Page 4: Introduction
Introduction The ET91000SM20 converts a traditional copper Gigabit Ethernet connection (RJ45), into a Gigabit fiber connection. The media converter can then extend your network up to 20 km (12.4mi.) using single-mode LC fiber-optic cable. If needed, the included SFP module (LC fiber connector) can be removed from the media converter and be replaced with a transceiver module with different specifications. -
Page 5: Product Diagram
Product diagram Front view Thumbscrew DIP switch Gigabit RJ45 LEDs Gigabit SFP transceiver module - 1310nm - LC Rear view Grounding DC power point input Instruction manual... -
Page 6: Install The Media Converter
Install the media converter The media converter features a pre-installed 1000Base-LX (transparent conversion) (1310 nm) Gigabit SFP transceiver module with LC connectors. This module transmits signals up to 20 km (12.4 mi.). Ensure the DIP switches are set appropriately to match your network infrastructure. Check with your network administrator, or your network documentation, as well as the DIP switch settings topic for details. -
Page 7: Led Indicators
cause errors and signal degradation. • LED indicators Panel RJ45 Status Indication Solid The media converter is powered on The media converter is upgrading (rapid PWR (Green) Blinking blinking) The media converter is not powered on Solid Remote power failure RPF (Green) Remote power is normal Solid... -
Page 8: Dip Switch Settings
RJ45 UTP is set to auto-negotiate RJ45 UTP forced mode is enabled Note: DIP switch 2 is reserved, as it isn’t used on the ET91000SM20 media converter. It does not matter which setting (upward or downward) DIP switch 2 is set to. -
Page 9: Link Fault Pass-Through (Lfp)
The RJ45 port supports Gigabit (1000Base-T) network devices and cables only. It does not support 10/100Mbps copper (RJ45) network devices. The ET91000SM20 is a transparent media converter (it is not a switch). Therefore, the duplex setting of your fiber network equipment must match that of the media converter’s RJ45 copper UTP port. -
Page 10: Troubleshoot The Fiber Link
Troubleshoot the Fiber link The media converter supports Gigabit fiber devices and cables only. It does not support 10/100Mbps fiber network devices or SFPs. • The fiber port supports an auto-negotiate (default) or FORCE (forced) mode setting. When connected to third-party equipment (for example, a Cisco switch) you might encounter fiber link problems. -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
