StarTech.com DVI2HDMIA User Manual

StarTech.com DVI2HDMIA User Manual

Dvi to hdmi video converter with audio

Advertisement

Quick Links

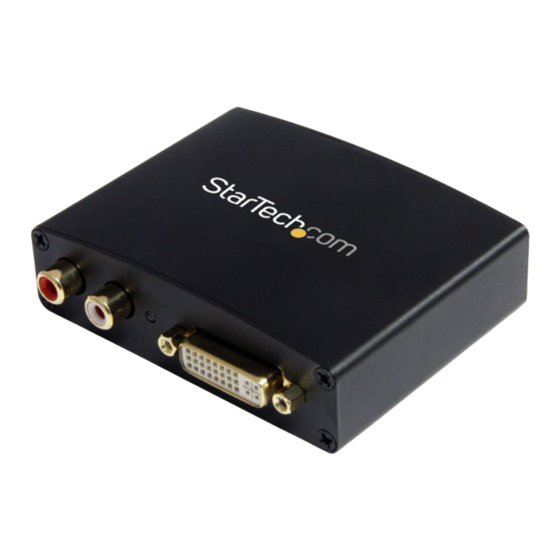

DVI to HDMI Video Converter with Audio
DVI2HDMIA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/13/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVI2HDMIA and is the answer not in the manual?

Questions and answers

Summary of Contents for StarTech.com DVI2HDMIA

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/13/2013...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Hardware Installation ..........................2 Driver Installation ............................2 Supported Video Resolutions ..............2 Troubleshooting ..................3 Microsoft Windows® ..........................3 Mac OSX® ..............................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual...
  • Page 4: Introduction

    Introduction Packaging Contents • 1 x DVI to HDMI converter • 1 x Power Adapter • 1 x Instruction Manual System Requirements • DVI enabled video source (i.e. computer, DVR/PVR, etc.) • HDMI enabled display device (i.e. monitor, projector, HDTV, etc.) •...
  • Page 5: Installation

    Side View 1 Side View 2 Installation Hardware Installation 1. Ensure all devices are powered off, before starting. 2. Connect the included power adapter to the video adapter. The Power LED next to the connector should light up solid. 3. Connect a standard male/male DVI cable from the video source (i.e. computer, DVR/ PVR, etc.) to the DVI input on the video converter.
  • Page 6: Troubleshooting

    If you are experiencing a shaky or jittery image on screen please make sure that DVI2HDMIA is set to output at 60Hz. The instructions below detail how to setup this unit to operate at 60Hz for Microsoft Windows®, and Mac OSX®.
  • Page 7: Mac Osx

    4. The List All Modes window will appear, change the selection from the current (Interlaced) mode, to: 1920x1080, True Color (32bit), 60 Hertz and click the “OK” button. Mac OSX® 1. Open Display Settings from the system preferences menu. 2. Place a bullet in “Scaled” and select “1080p” from the drop down menu. Instruction Manual...
  • Page 8: Specifications

    Specifications Input: DVI (digital) revision 1.0 Video Signal Output: HDMI 1.2 1 x 29-pin DVI female 2 x RCA audio female External Connectors 1 x HDMI type A female 1 x DC power LEDs 1 x Power Maximum Video Resolution 1080p / 1920x1080 (50 / 60Hz) Bandwidth 225 MHz / 2.25 Gbps (per channel)
  • Page 9: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
  • Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
