StarTech.com ST124HD4K Instruction Manual

Instruction Manual
Split an HDMI audio/video source to multiple HDMI Displays simultaneously, with
support for resolutions up to 4K
ST124HD4K / ST122HD4K
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1x HDMI Audio/Video Splitter (ST122HD4K/ST124HD4K)
• 1x Power Adapter (NA/EU/UK/AUS)
• 1x Instruction Manual

System Requirements

• 1x HDMI-enabled Video Source Device w/ HDMI cable
(i.e. Blu-ray player, computer, etc.)
• 4x HDMI-enabled Display Device w/ cable (i.e. Television,
projector, etc.)

Product Overview

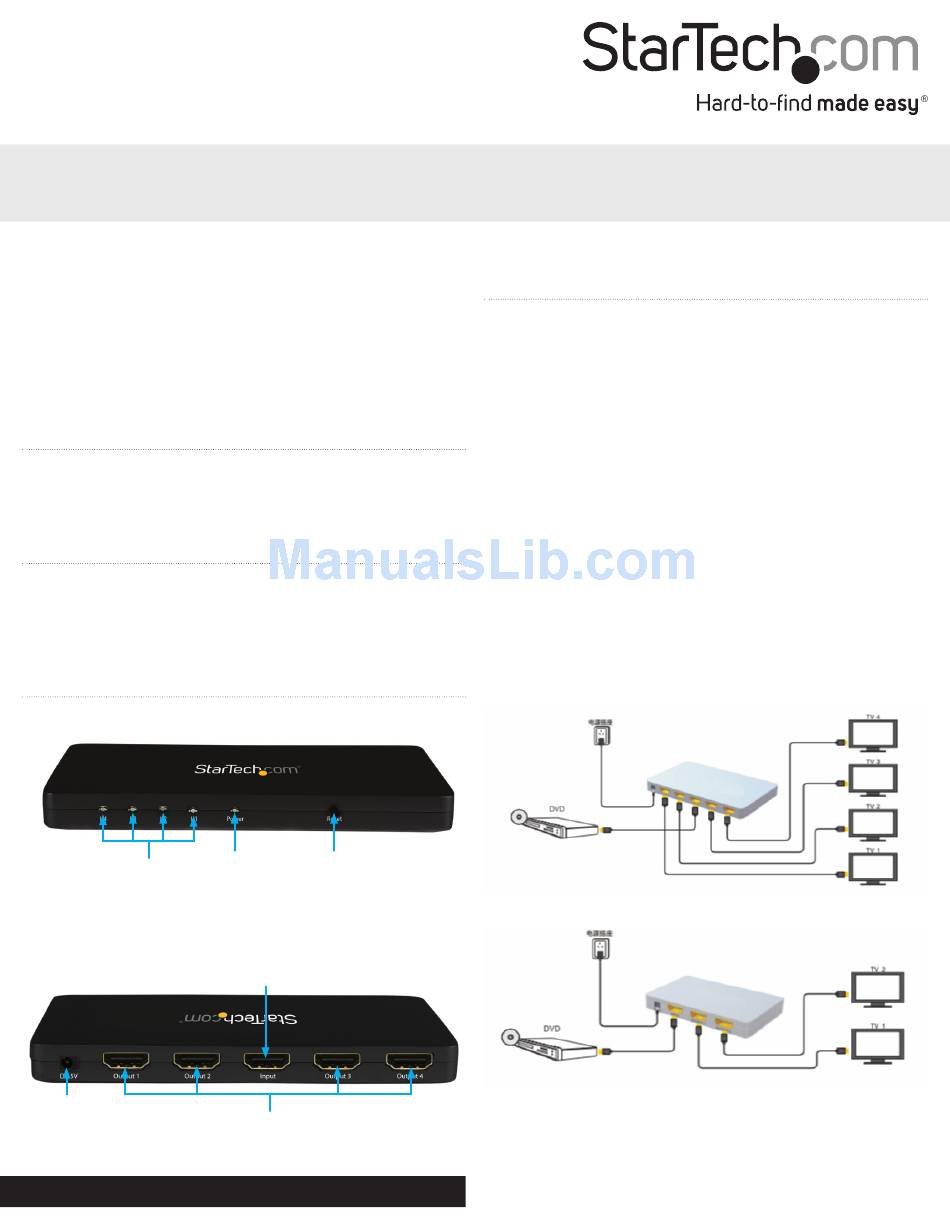

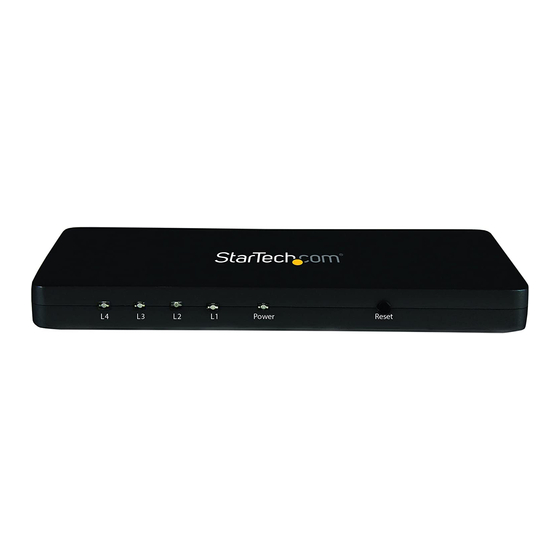

Front View - ST124HD4K
Power LED
Port
activity LEDs
Rear View - ST124HD4K
Power
adapter port
For the most up-to-date information, please visit: www.startech.com
Reset Button
A/V input
port
A/V output
ports
*actual product may vary from photos

Hardware Installation

Note: Ensure your HDMI-enabled video source device, and the
HDMI-enabled Display Devices are powered off before you begin
installation.
1. Connect an HDMI cable (not included) from the A/V output of
your HDMI-enabled Video Source Device to the A/V input Port
on the HDMI Audio/Video Splitter.
2. Connect an HDMI cable (not included) from the output ports on
the HDMI Video Splitter to each desired HDMI-enabled Display
Device (up to 2 on ST122HD4KS) (up to 4 on ST124HD4KS).
Note: Each port is numbered, please take note of which number
is assigned to each HDMI-enabled display device.
3. Power on each HDMI-enabled Display Device, followed by your
HDMI-enabled Video Source Device.
4. Connect the included power adapter from an available power
source to the power adapter port on the HDMI Audio/Video
Splitter.
5. Your Video source device A/V output will now appear on each
attached HDMI-enabled display device.
ST124HD4KS
ST122HD4KS
Manual Revision: 03/13/2015
