Mixing Valve Controller (HM80)

Central
Controller
If you are NOT following
GUIDED CONFIGURATION
follow these steps on your
Central Controller display
once the Mixing Valve
Controller and sensor have
been installed:
1. On the Central
Controller press and
hold "Settings" for 3
seconds
2. Press the green tick
3. Select ADD A ZONE
4. Select the zone you're
adding the controller
to then select MIXING
VALVE
5. If you want to control the
zone temperature with
your Central Controller
(the Central Controller
needs to be located
in that zone) YES,
otherwise press NO and
bind the sensor.
evohome Installation Guide
Power up and bind a Mixing Valve
Controller (HM80)
A Mixing Valve Controller should only be fitted by a qualified
fitter. Unless you're using the Central Controller as a sensor,
you need to install a sensor (HCW82, HCF82 or DTS92)
before binding the controller to the Central Controller.

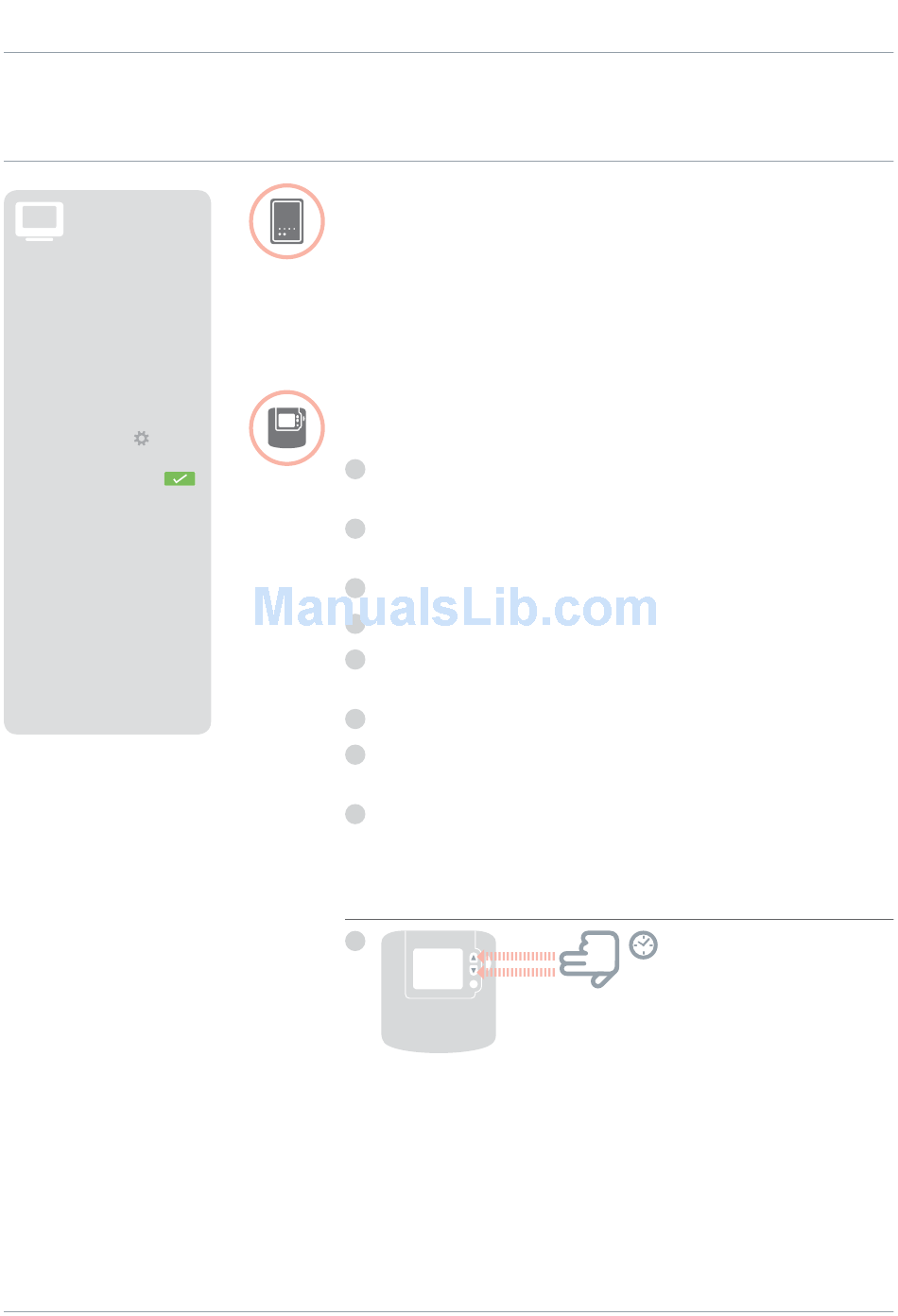

To bind the Digital Room
Temperature Sensor (DTS92)
Press and hold the power button for 2
1
seconds to put the unit into standby
Press the up and down arrows together for
2
three seconds – it should say INst
Press the down arrow – it should say COnt
3
Press the up arrow three times – it should say CLr
4
Press the power button once to clear
5
any previous binding data
Press the up arrow – it should say COnt
6
Press the power button once to send the
7
binding signal to the Central Controller
You should receive a SUCCESS message on the
8
Central Controller (if not go back and re-bind)
2
HOlD
3 SEC
CONTINUED ON NExT PAGE
