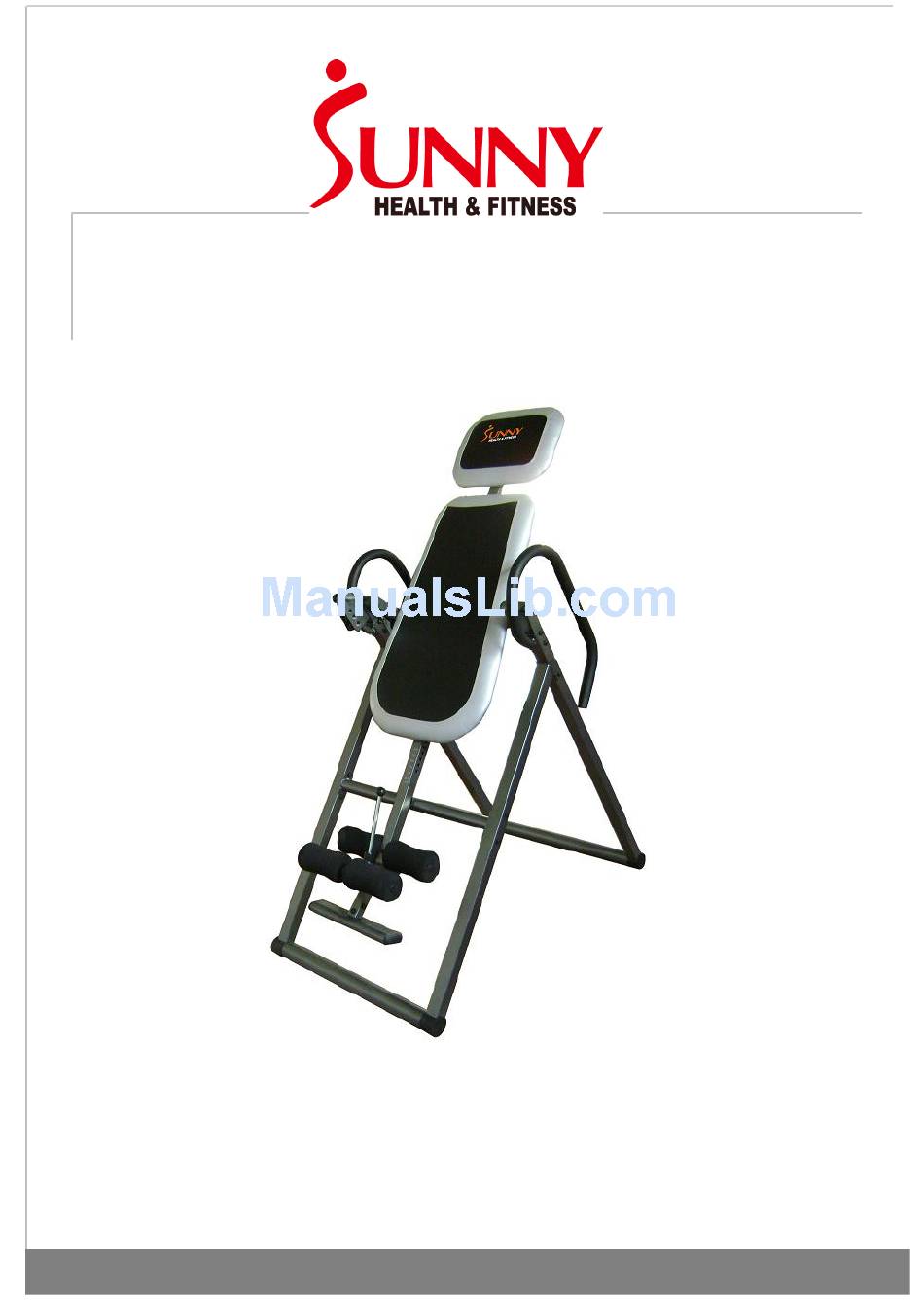

Deluxe Inversion Table
SF-1118
Take a few moments to familiarize yourself with the specific parts and hardware included with your
product. Make sure all the parts and hardware are included in the carton and examine them for any
damage that may have occurred in transport. Some parts may be pre-assembled and pre-installed.

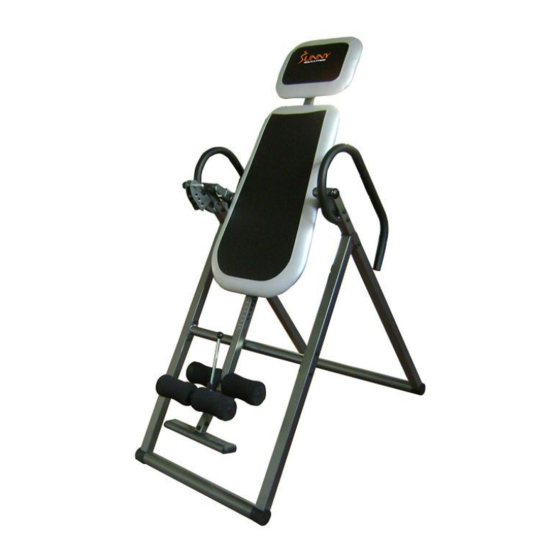

Photo may differ from actual product
1
Owner's Manual
Version:1304

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-1118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-1118

Summary of Contents for Sunny SF-1118

  • Page 1 Deluxe Inversion Table SF-1118 Take a few moments to familiarize yourself with the specific parts and hardware included with your product. Make sure all the parts and hardware are included in the carton and examine them for any damage that may have occurred in transport. Some parts may be pre-assembled and pre-installed.
  • Page 2 WARNING • Do not use this inversion table without approval from your physician. • Read all instructions carefully before using. • Leave adequate space to properly invert. Tighten all bolts before using equipment. • Do not let children use the inversion table unsupervised.

  • Page 3: Parts List

    PARTS LIST Parts Listing: SF-1118 Inversion Table Part# Description Check Bottom Tube Backrest Support Tube Body Height Adjustment Tube Foot Rest Plate Adjustable Leg Hold Tube Handlebar-RIGHT Handlebar-LEFT Base-frame-REAR-LEFT Base-frame-REAR-RIGHT Base-frame-FRONT-LEFT Base-frame-FRONT-RIGHT Leg Tube-REAR Connecting Bracket Cross Bar Foam leg Rollers Incline Adjustment Bolt 13.8X88mm...

  • Page 4: Exploded View

    EXPLODED VIEW...

  • Page 5: Step 1 - Base Frame

    STEP 1 - Base Frame Unpack Base frame from Carton. Attach the Front Bottom Tube (1) to the Front Baseframe (9) using 2-Bolts (32). Then insert end cap (31) onto the Tube (1). Note: While doing this step please Right face the open side of the end cap Left (31) upward.

  • Page 6: Step 2 - Handlebar Assembly

    STEP 2 - Handlebar Assembly Parts Needed Note: Handlebar Right(6) Attach the Handlebars (6) and (7) to the Base Frame Rear (8L and 8R) using 4 Bolts (20), 4 Flat Washers (19), and 4 Nuts (21). Use Bolt (22) and Flat Washer (19) to fix the Right Handlebar (6) to the Base frame Rear (8R) .
  • Page 7 STEP 3 - Backrest Assembly to Base Frame Right Left Parts Needed Front Back Attach the completed Backrest Pad and Head Pad Assembly to the Base Frame Unit using 4 Bolts (29), 4 Flat Washers (19) and 4 Lock Nuts (21). Install Incline Adjustment Bolt (14) into Incline Position 20 Hole and Tighten.
  • Page 8 STEP 4 - Body Height Adjustment Tube and Rollers Install Foot Rest Plate (4) into Adjustment Tube (3) using Hexagonal Bolt (50), Metal Bushing (49) Flat Washer (19) and Lock Nut (21). Pull out Adjustable Leg Hold Tube (5) and turn 90 degrees to make sure the holes are on top, then position horizontally as shown.

  • Page 9: Step 5 - Final Assembly

    STEP 5 - Final Assembly Slide Height Adjustment Tube (3) into Backrest Support Tube ( 2) and lock into place using Height Adjustment Knob (38), then fully insert the ball pin (26) . Note: This product is designed to adjust from 5’1” to 6’6” with a Maximum User Weight of 300 LBS.
  • Page 10 Final Assembly Make Sure All Nuts, Bolts and Screws are Completely Tightened Before Use.

  • Page 11: Usage Guidelines

    USAGE GUIDELINES INVERSION SELECTOR PIN Familiarize yourself with the Inversion Selector Pin located on the Right Side of the Inversion Table. The positioning of the pin will determine the degree of Inversion that you are comfortable with. The 4 selections are: 20- Slight Inversion 40- Moderate Inversion 60- Enhanced Inversion...
  • Page 12 USAGE GUIDELINES - Securing Feet and Ankles WARNING: ALWAYS WEAR ATHLETIC SHOES WITH LACES TO HELP SECURE YOUR FEET IN THE INVERSION SYSTEM, AND FOR FOOT PROTECTION WHILE EXERCISING. ALWAYS MAKE SURE THAT THE ANKLE LOCK IS SECURED SNUGLY AGAINST YOUR ANKLES AND THAT THE LONG KNOB IS FULLY TIGHTENED BEFORE YOU USE THE INVERSION SYSTEM.
  • Page 13 USAGE GUIDELINES Finding the Proper Height and Weight Adjustment With head flat on back pad, slowly raise one arm up toward the ceiling. If the bed starts to invert backward, the height adjustment should be correct. If the bed does not start to invert, adjust the Body Height Adjustment Tube (3) upward one hole at a time, until the bed starts to invert backward.
  • Page 14 To reduce the risk of serious injury, read all important precautions instructions and warnings in this manual before using the Inversion Table. Sunny Distributor assumes no responsibility for personal injury or property damage sustained by or through the use of the Inversion Table.
