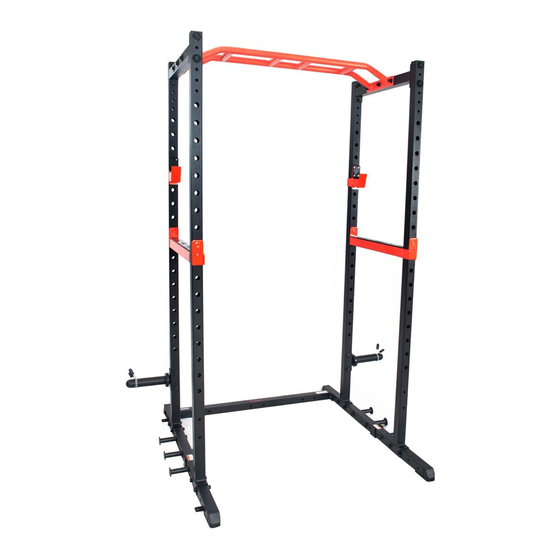

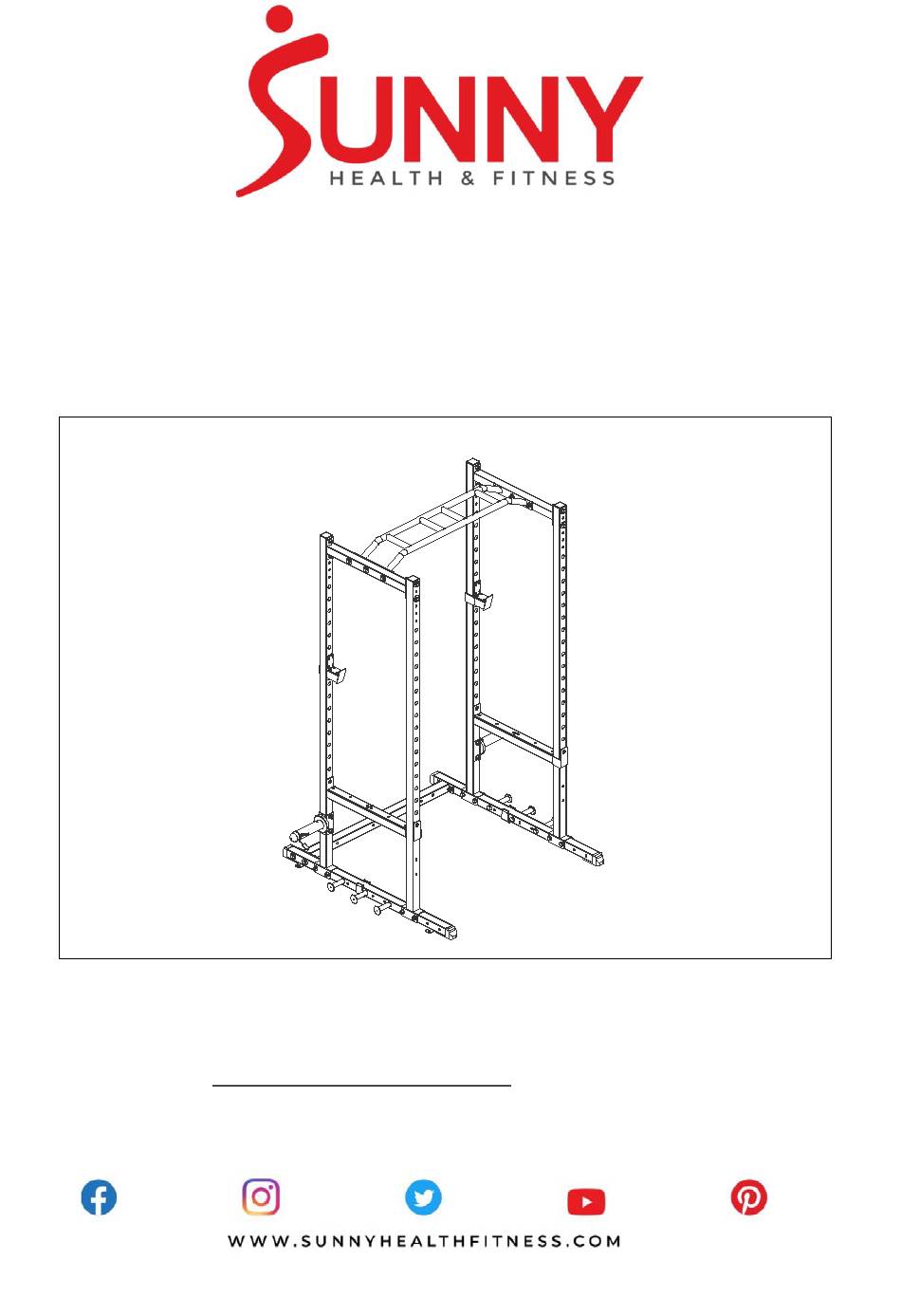

- Page 1 POWER ZONE STRENGTH RACK SF-XF9925 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 21 21 22 22 24 24 21 21 21 21 22 22 22 22 HARDWARE PACKAGE #21 M12*75 30PCS #23 ￠13*￠24*t2.5 42PCS #24 ￠13*￠37*t3.0 18PCS #22 M12 30PCS #25 S16-S18 2PCS... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Stabilizer Square End Cap 50*50*t2.0 Top Connecting End Cap 115*50 Frame Bottom Connecting ￠80*￠50*16 Crash Pad Frame ￠48 Right Safety Bar Spring Clip Left Safety Bar U Shape Foot Strap 50*50*t5.0 ￠ Round End Cap Pull Up Bar Cross Recessed... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: #21 M12*75 4PCS Attach 2 Stabilizers (No. 1) onto Bottom #22 M12 4PCS Connecting Frame (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). #21 M12*75 6PCS STEP 3: #22 M12 6PCS #25 S16-S18 2PCS #23 ￠13*￠24*t2.5 6PCS Attach Pull Up Bar (No. 6) onto 2 Top #24 ￠13*￠37*t3.0...
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: Insert Right Safety Bar (No. 4) into Upright Post (No. 8) on the left. Turn the Right Safety Bar (No.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 6: WARNING: Please ensure sufficient weights are on the power zone strength rack and the power zone strength rack is bolted to the ground before using the resistance bands.
- Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE PULL UP BAR The height of Pull Up Bar (No. 6) can be adjusted by changing the position of Top Connecting Frame (No. 2). Adjustment step: repeat the installation steps of Top Connecting Frame (No. 2) in STEP 2 &...
-
Page 10: Maintenance Instructions
MAINTENANCE INSTRUCTIONS DAILY MAINTENANCE Inspect and tighten all parts (Nuts, Bolts, Rubber Pads, Steel Brackets, etc.) regularly. Replace any worn or torn parts immediately. Check and ensure the equipment is levelled at all time. Check and tighten all adjustment pins/knobs regularly. WEEKLY MAINTENANCE Use damp cloth on plastic parts only, use dry cloth on metal frames.
