Tera Gear PC22B Manual

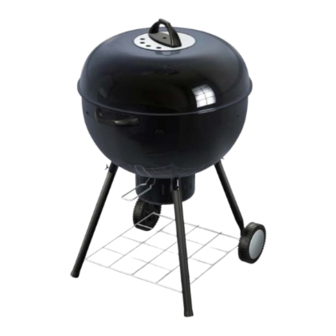

Ter 23in classic charcoal grill
Hide thumbs

Advertisement

Quick Links

Download this manual
DANGER!
DO NOT use charcoal briquettes for
indoor cooking or heating. TOXIC
carbon monoxide fumes can
accumulate and cause asphyxiation.
DO NOT USE on boats or
recreational vehicles. Live hot
charcoal could create a fire hazard
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO
SAVE FOR FUTURE REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO SERVICE@BBQTEK.COM OR CALL 1-877-630-5396 (TOLL-FREE),
07:00 A.M. – 16:00 P.M. (PST), MONDAY-FRIDAY.
PC14 Owner's Manual
TER 23IN CLASSIC CHARCOAL GRILL
.
Model# PC22B
TG 1401 3016
WARNING
For Outdoor Use Only
(Outside any enclosure)

Advertisement

loading

Related Manuals for Tera Gear PC22B

Summary of Contents for Tera Gear PC22B

  • Page 1 Model# PC22B TG 1401 3016 TER 23IN CLASSIC CHARCOAL GRILL DANGER! WARNING DO NOT use charcoal briquettes for For Outdoor Use Only indoor cooking or heating. TOXIC (Outside any enclosure) carbon monoxide fumes can accumulate and cause asphyxiation. DO NOT USE on boats or recreational vehicles.

  • Page 2: Table Of Contents

    11. Keep all combustible items and surfaces at least 12 in. (30 cm) away from the grill at all times. DO NOT use this grill or any charcoal product under any enclosure near any unprotected combustible constructions. PC22B Owner’s Manual...
  • Page 3 3. Do not alter grill in any manner. 4. Do not repair or replace any part of the grill unless specifically recommended in this manual. All other service should be referred to a qualified technician. PC22B Owner’s Manual...

  • Page 4: Illustrated Parts List

    Bowl insulator Left back leg………1PC handle …………1PC cushion ……………….1PC Lid………………………1PC Vent……………………….1PC Right back leg…1PC Lid hook…………………1PC Ash receiver………….1PC Bottom grid………………1PC Cooking grid……………1PC Vent handle…………….1PC Wheel……………………2PCS Charcoal gird……………1PC Vent handle retainer…….1PC Wheel cap………………2PCS Lid vent………………1PC Name plate. …………. 1PC PC22B Owner’s Manual...
  • Page 5 Hardware List AAA:4PCS BBB:1PC CCC:5PCS Bolt(M6X25) Bolt(M6X12) M6 Flat washer DDD:1PC EEE:4PCS FFF:2PCS Nut M6 M8 Flat washer M8 Nut GGG:4PCS HHH:2PCS III:2PCS Butterfly Bolt (M5X10) M5 Flat washer M5 Nut JJJ:2PCS KKK:1PC LLL:1PC Nut M5 Screwdriver Wrench PC22B Owner’s Manual...

  • Page 6: Assembly Instructions

    Align the holes on the handle (A) with the holes on the bowl insulator cushion (H)and the bottom bowl(G), then insert one M6x25 bolt (AAA) and one M6 flat washer (CCC) into each pre- drilled hole, tighten the bolts by hand and screwdriver provided. PC22B Owner’s Manual...
  • Page 7 (K) and the M 5 nut (JJJ) into the hole. Tighten the nuts by hand. Step 6 Slide the ash assembly into the guide underneath the bottom bowl. PC22B Owner’s Manual...
  • Page 8 Step 7 A) Place the charcoal grid (F) in the bottom bowl. B) Place the cooking grid (E) upon the charcoal grid, Fully Assembled View PC22B Owner’s Manual...

  • Page 9: Lighting Your Grill

    For warranty claims or questions related to the product, please call our service center at 1-877-630-5396 , 7:00AM to 4:00PM (PST), Monday through Friday. Manufactured by: Lucas BBQ Co., Ltd. Printed in China PC22B Owner’s Manual...
