GSF3916N
Owner's Manual

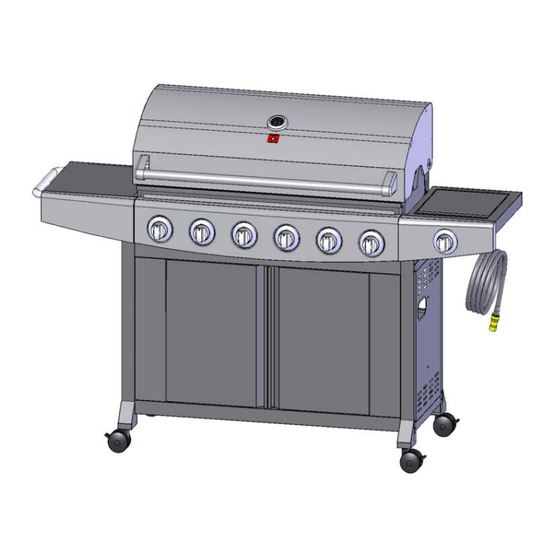

Weekend Warrior Natural Gas Grill
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE,
GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE
REFERENCE.
FOR CUSTOMER SERVICE, PLEASE CALL 1-877-630-5396
(TOLL-FREE), 10:00 A.M. – 19:00 P.M. (EST), MONDAY-FRIDAY.
Service Center: 1-877-630-5396
0
TG 1201 2602
NG 936654
Advertisement
Table of Contents
Related Manuals for Tera Gear Weekend Warrior GSF3916N
Summary of Contents for Tera Gear Weekend Warrior GSF3916N
- Page 1 NOT use in or on boats or FOR CUSTOMER SERVICE, PLEASE CALL 1-877-630-5396 recreational vehicles. (TOLL-FREE), 10:00 A.M. – 19:00 P.M. (EST), MONDAY-FRIDAY. WARNING: FOR YOUR SAFETY: For Outdoor Use Only (outside any enclosure) Service Center: 1-877-630-5396 GSF3916N Owner’s Manual...
-
Page 2: Grill Operation
Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this manual before attempting to use this gas barbecue grill to prevent possible bodily injury or property damage. NOTE: This grill must be used with natural gas only. Installer: Leave this manual with the consumer. Consumer: Retain this manual for future reference. GSF3916N Owner’s Manual... -
Page 3: Table Of Contents
Fuel Gas Code, ANSI Z223.1/ NFPA54. Reference to Natural Gas and Propane Installation code CSA B149.1 or Propane Storage and Handling code B149.2 IMPORTANT NOTICE: READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY AND USE. Safety First! Read and understand all warnings and precautions prior to operating your grill. GSF3916N Owner’s Manual... - Page 4 Always confirm that the installation of this grill conforms with the requirements of all local codes or, in the absence of applicable local codes, with either the National Fuel Gas Code, ANSI Z223. NFPA 54 or CAN/CGA-B149.2. GSF3916N Owner’s Manual...
-
Page 5: General Information
*** A clogged tube can lead to a fire beneath the grill. *** Step 3. Ensure that the valve nozzle is pointing straight and completely inserted into the venturi tube. General Information A natural gas hose is required for operation. This gas grill is NOT intended for commercial use. GSF3916N Owner’s Manual... -
Page 6: Package Contents
Side burner knob seat Cart fill panel 2PCS Cooking grid(S) Side burner knob Left door Heating plate 6PCS Upper rear beam Right door Grease cup Upper front beam Heat insulator Grease cup holder Back panel Left side shelf Bottom panel GSF3916N Owner’s Manual... -
Page 7: Hardware Contents
Hardware List Spanner Hardware listed above is not scaled to exact size. (A screwdriver is required for assembly and is included for your convenience) GSF3916N Owner’s Manual... -
Page 8: Assembly Instructions
(AA), one spring washer (CC) and one flat washer (DD) into each pre-drilled hole. Tighten by hand until secure. b) Repeat the procedure for the right hand side. Go back and tighten all the bolts using the screwdriver provided. GSF3916N Owner’s Manual... - Page 9 (CC) and one flat washer (DD) into each pre-drilled holes. Tighten bolts by hand until secure. Repeat the procedure for the heat insulator with cart front beam. d) Go back and tighten all the bolts using the screwdriver provided. GSF3916N Owner’s Manual...
- Page 10 (LL) on the bolt between the side shelf and the body assembly. Tighten by hand until secure. Repeat the procedure for the right side shelf (L) assembly. d) Go back and tighten all the bolts using screwdriver provided. GSF3916N Owner’s Manual...
- Page 11 Insert and screw the stopper (JJ) into the hole on the upper rear beam. Step 12 (Natural gas hose) a) Join the natural gas hose, quick release connector and gas supply connection securely, as shown in diagram. Then connect the gas hose with the tube of burners. GSF3916N Owner’s Manual...
-
Page 12: Operating Your Grill
Pipe sealing compound or pipe thread tape of the type resistant to the action of natural gas must be used on all male pipe threads. Apply compound or tape to at least the first three to four threads when making connections. Never store or use gasoline or other volatile substance in the vicinity of this grill. Natural Gas Connection GSF3916N Owner’s Manual... -
Page 13: Checking For Leaks
After burner is lit, repeat the procedure with any other burner desired. Adjust valve knob(s) to desired cooking temperature. Using the Lighting Stick to Light the Main Burners 1. Insert a match into the end of lighting stick. Light the match. GSF3916N Owner’s Manual Turn... - Page 14 FIG. B FIG. C Poor combustion: Wavy, yellow Normal: Soft blue flames with yellow Out of adjustment: Noisy hard blue flames- too little air. tips between I inch - 2 inches high. flames – too much air. GSF3916N Owner’s Manual...
-
Page 15: Excess Flow Safety Valve Reset Procedure
After the first front burner is lit, turn on the other control knob(s) to the HIGH position. If you have more than two burners, turn them on only ONE AT A TIME. When all front burners are lit, close the grill lid. Wait for 10-15 minutes; the temperature should reach 400 – 450°F GSF3916N Owner’s Manual... -
Page 16: Care And Maintenance
Clean wire and /or electrode with igniter. cooking residue. rubbing alcohol. Electrode and burners are wet. Wipe dry with cloth. Electrode cracked or broken – Replace electrode. sparks at crack. GSF3916N Owner’s Manual Reconnect wire or replace electrode/ Wire loose or disconnected. wire assembly. - Page 17 Burner and /or burner tubes are Flashback [fire in burner tubes]. locked Inside of lid is peeling – like paint The lid is stainless steel, not painted. Baked on grease buildup has turned to peeling. carbon and is flaking off. Clean thoroughly. GSF3916N Owner’s Manual...
-
Page 18: Waranty Program
If you have any questions related to the product or warranty, please call our customer service center at 1-877-877-630-5396, 10:00 A.M. to 19:00 P.M. (EST), Monday through Friday. Printed in China GSF3916N Owner’s Manual...
