User Manual
M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual
8x2 MultiVideo Matrix Switcher Series
Thank you for purchasing the SB-3877 MultiVideo Matrix Switcher. You will find this unit easy to install
and highly reliable but it is essential that you read this manual throughly before attempting to use
8x2 multivideo switcher.

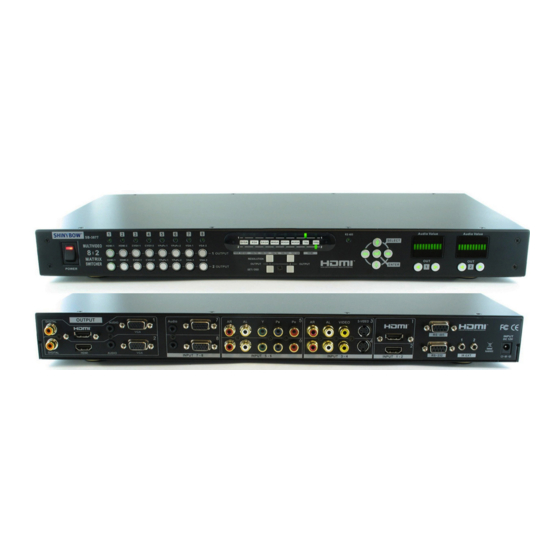

8x2 MultiVideo Matrix Switcher
HIGH-DEFINITION MULTIMEDIA INTERFACE
V E R S I O N L E V E L : V 1 . 3
MODEL : SB-3877
Part No.: ENCL003877000A0
T M
T M
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-3877
Summary of Contents for Shinybow USA SB-3877
- Page 1 8x2 MultiVideo Matrix Switcher 8x2 MultiVideo Matrix Switcher Series Thank you for purchasing the SB-3877 MultiVideo Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x2 multivideo switcher.
-
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. -
Page 3: Introduction And Table Of Contents
Control is provided via Front panel buttons with LED readout, IR remote controller, or RS1232. An RS-232 interface is provided for interfacing with third party control or with the provided Windows program. Control of the SB-3877 from a PC. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN... -
Page 4: Front Panel
To select separate output resolution per Adjust output-2 Audio Value via LED display. Output 1 and 2. OSD / SET SETUP BUTTONS SET : Setup the button resolution selections. OSD-1 & OSD-2 push selection buttons. PAGE 4 SB-3877 INSTRUCTION & OPERATION MANUAL... -
Page 5: Rear Panel
Input 5 is a stereo audio(AR/AL) with input 5 component DC POWER INLET Input 6 is a stereo audio(AR/AL) with input 6 component The SB-3877 is fitted with a DC power plug-park input connector. Please ensure that the plug-park used is of an approved type and is of sufficient INPUT 5&... -
Page 6: Remote Control
Or through the RS 232 / RS 485 serial communications port. > Avoid powering equipment within a system from multiple power sources that may be separated by large distances > Upon power up the SB-3877 will return to its last used setting before Powered down. REMOTE CONTROL... -
Page 7: Ir Extender Package
MULTIVIDEO 8:2 MX SWITCHER SW-3877 SW-3877 IR EXT.-1 output-1 IR EXT.-2 output-2 IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS Step 1 Step 1 Step 2 Step 2 Step 3 Step 3 PAGE 7 SB-3877 INSTRUCTION & OPERATION MANUAL... - Page 8 - Where X is Output Number (1-8) and Y is Number (1-2) Unit will respond with SBUD0XOY - Where X is Output Number (1-2) and Y is Input Number (1-8) Example : Send Input 7 to Output 2 SBI07O02 -Send SBUD07O2 -Rcvd PAGE 8 SB-3877 INSTRUCTION & OPERATION MANUAL...
-
Page 9: Rs-232 Serial Commands
- Reset every output to Input 1 Unit will respond with SBRSTACK - Unit has reset each Output to Input 1 Example : Reset all outputs to Input 1 SBALLRST -Send SBRSTACK -Rcvd PAGE 9 SB-3877 INSTRUCTION & OPERATION MANUAL... -
Page 10: Limited Warranty
Replace any cable exhibiting these problem. You also must use the highest quality cables if you want to achieve the best results. Poor quality cables provide will poor quality signals. PAGE 11 SB-3877 INSTRUCTION & OPERATION MANUAL... - Page 11 M U L T I M E D I A A U D I O A N D V I S U A L 1399 Wildfire Lane Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
