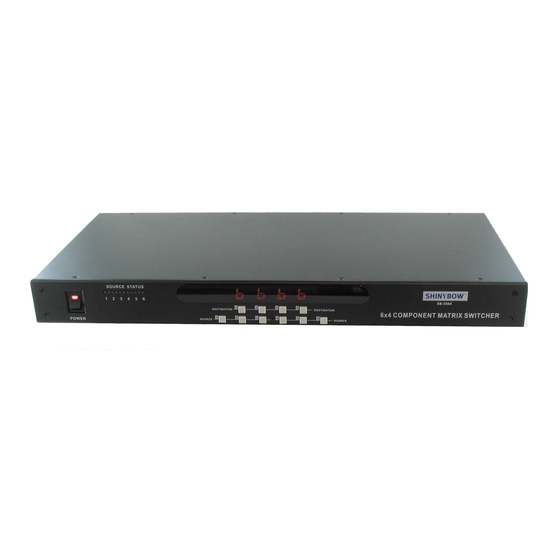

- Page 1 SB-5564 6x4 Component Video/Stereo Audio Matrix Routing Switcher...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
Component/Audio Matrix Switcher Series Thank you for purchasing the SB-5564 Component/Audio Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Supports 6x inputs to 4x outputs Component Video (YPbPr) Matrix Switcher • Input/Output signals via Component Video (YPbPr) & Stereo Audio (AR/AL) • Higher Video Bandwidth 325MB each path signals. • Supported HDTV high definition resolutions 408p, 576i/p, 720p, 1080i/1080p •... -
Page 5: Front Panel
If the input signals to the SB-5564 are appropriate, switch the power switch to <ON> and you should see and hear the signals on the devices you have connected to the various output connectors of the SB-5564. -
Page 6: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The switcher is fitted with a DC power plug input connector. Please ensure that the plug used is of an approved type DC Jack - Inner OD Ø 2.1 mm (+) and is of sufficient current carrying capacity with the correct voltage Outside OD Ø... -
Page 7: Remote Control
REMOTE CONTROL Before making any connections to the SB-5564 Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. -
Page 8: Ir Extender
IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 9: Rs-232 Serial Interface
- Rcvd SBUD06O4 - Rcvd FRONT PANEL LOCK MORE STUFF FOR SB-5564 Note: Hard resetting the unit will unlock the Front Panel controls. SBSYSMLK Note: Turning the unit System Power Off over RS-232 will - When front panel is locked, changes can only extinguish the LED channel display leaving only the Power switch LED on. -
Page 10: Typical Application
OUTPUT 1 ~ 4 PORT HDTV DISPLAY SIGNALS: COMPONENT VIDEO - Component Video (YPbPr), connector with RCA AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5564 SUPPORT COMPONENT (6) INPUTS MATRIX TO (4) SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 11: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 12 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
