Infinity Focus Inspection & Adjustment - Nikon D3 VBA18001 Repair Manual

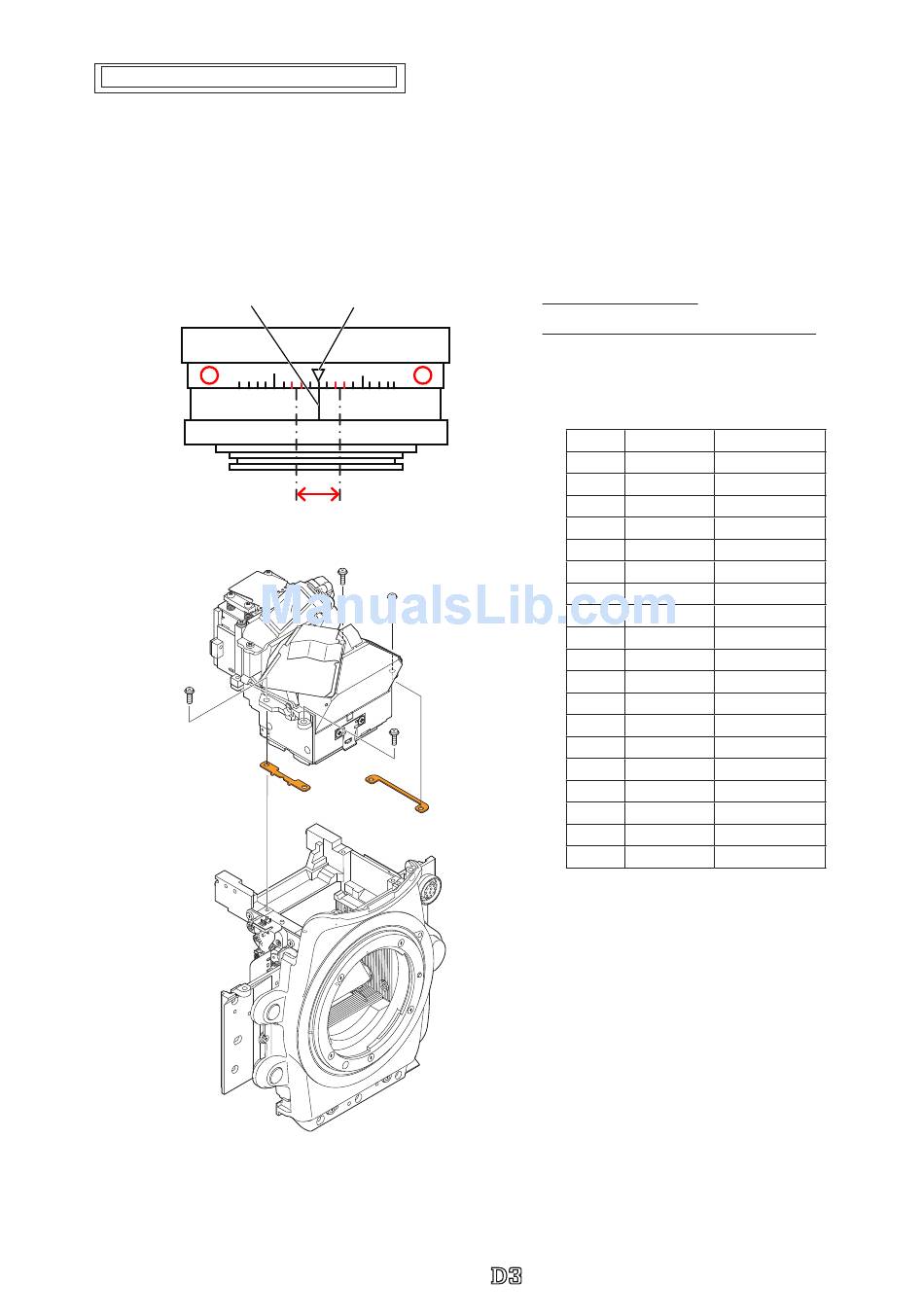

∞ Infinity focus inspection & adjustment
・ Replace the finder screen with the infinity focus adjustment screen (J63099), and use the reference lens (J18010)
then read the value. In case it is out of standard, increase or decrease washers for adjustments.
Caution: For the replacement, put [J63099] with the silver spacers upward, which are attached on both sides.
Reference line
J18010
－
±2.5 scale markings
#1180A-D, F-H, J-L
"0" position
＋
#1181A-D, F-H, J-L
- Ａ  ･
logo Q0440 forGraphic
070518 Gdesign ito
Standard: ±0.025mm
("mm" scales in "0.01mm" increments)
1180A 1K603-125 washer
1180B 1K603-126 washer
1180C 1K603-127 washer
1180D 1K603-128 washer
1180F 1K603-129 washer
1180G 1K603-130 washer
1180H 1K603-131 washer
1180J 1K603-132 washer
1180K 1K603-133
washer
1180L 1K603-134 washer
1181A 1K603-135
washer
1181B 1K603-136 washer
1181C 1K603-137
washer
1181D 1K603-138 washer
1181F 1K603-139
washer
1181G 1K603-140 washer
1181H 1K603-141 washer
1181J 1K603-142 washer
1181K 1K603-143 washer
1181L 1K603-144 washer
-
INC
VBA18001-R.3719.A
T=0.05
T=0.06
T=0.07
T=0.08
T=0.2
T=0.3
T=0.4
T=0.5
T=0.6
T=0.7
T=0.05
T=0.06
T=0.07
T=0.08
T=0.2
T=0.3
T=0.4
T=0.5
T=0.6
T=0.7
