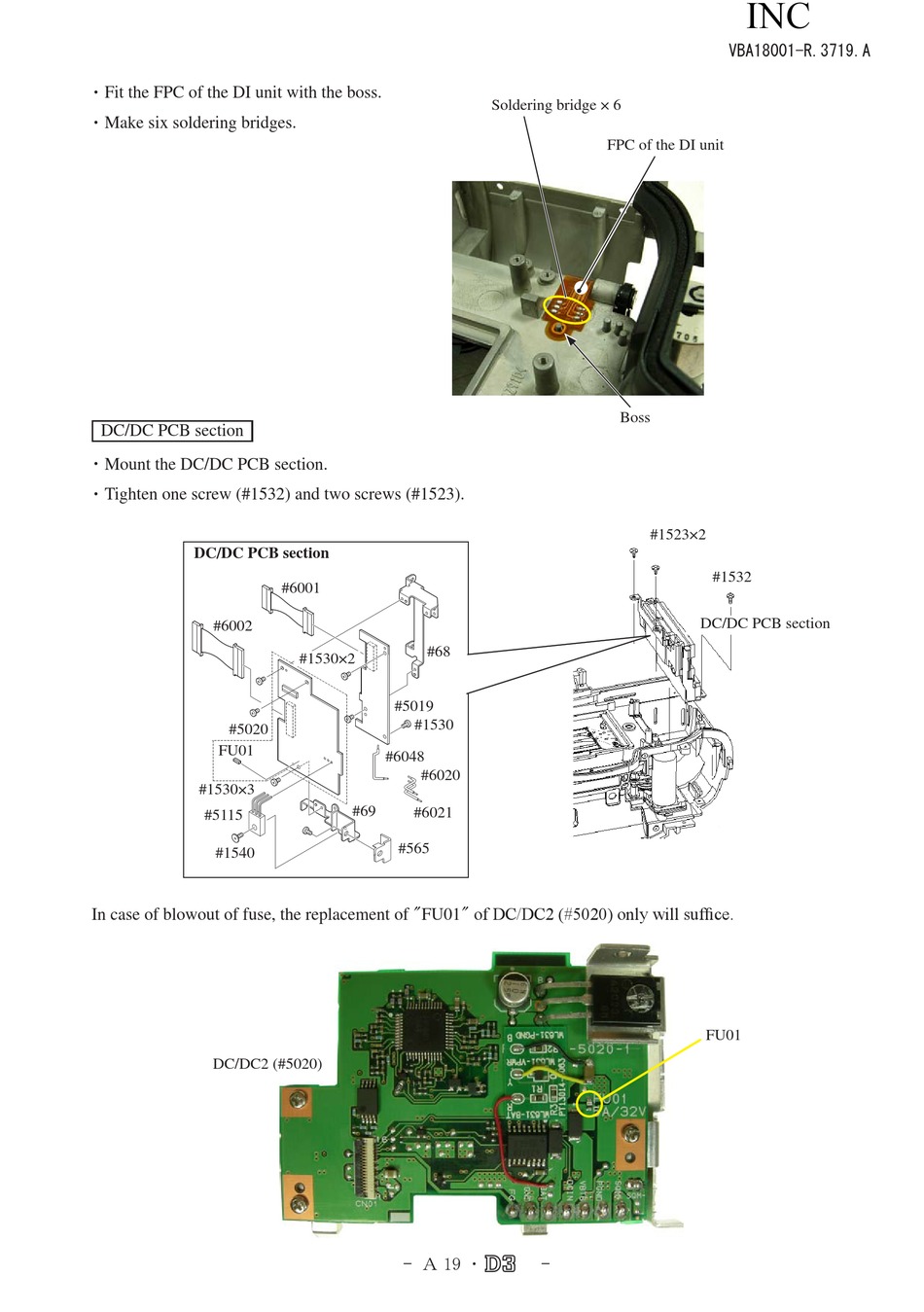

・Fit the FPC of the DI unit with the boss.
・Make six soldering bridges.
DC/DC PCB section
・Mount the DC/DC PCB section.
・Tighten one screw (#1532) and two screws (#1523).
DC/DC PCB sec�i��
#6002
#5020
FU01
#1530×3
#5115
#1540
In case of blowout of fuse, the replacement of "FU01" of DC/DC2 (#5020) only will suffice.

DC/DC2 (#5020)

#6001
#68
#1530×2
#5019
#1530
#6048
#6020
#69
#6021
#565
- A  ・
Soldering bridge × 6
FPC of the DI unit
Boss
#1523×2
-
logo Q0440 forGraphic
070518 Gdesign ito
INC
VBA18001-R.3719.A
#1532
DC/DC PCB section
FU01
