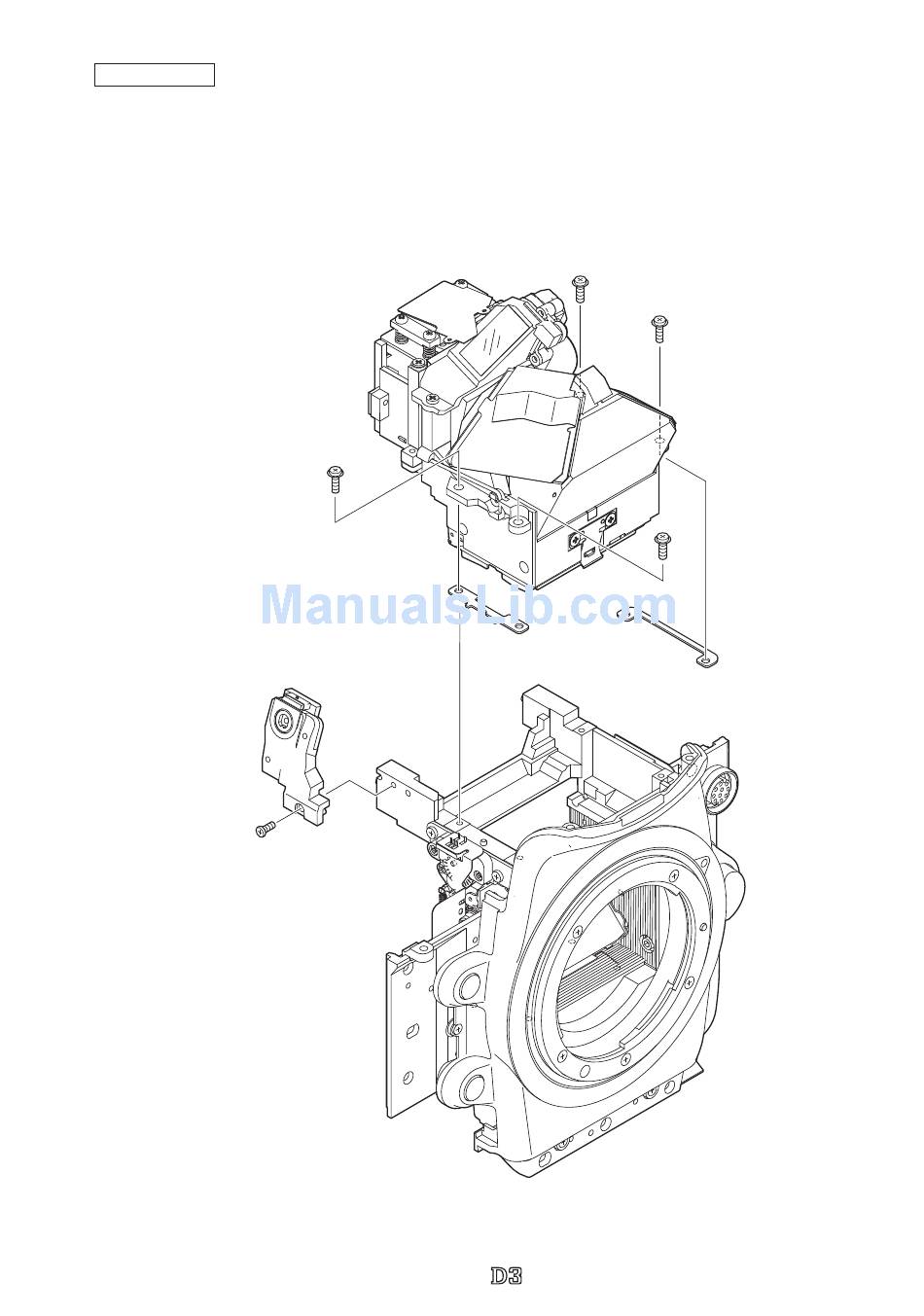

P-BOX section
・Put the washers (#1181 and #1180).
・Mount the P-BOX section and tighten four screws (#1188).
・Mount the diopter adjustment base unit (#B1122).
・Tighten the screw (#1189).
#1188×4
P-BOX section
#1180
#1181
#B1122
#1189
