3. Installation
CAUTION
The machine must not be plugged in and the power switch must
be in the OFF position until assembly is complete.
3.1 INSTALLING TOOL REST AND BASE ON
LATHE BED
- Remove the tailstock assembly by releasing the locking
handle and sliding the assembly off the end of the lathe bed.
- Slide the tool rest base onto the lathe bed and reinstall the
tailstock assembly.
- Loosen locking arm and insert tool rest into tool rest base,
adjust height up or down and tighten locking arm. (See FIG. 1)
3.2 ATTACHING SPUR CENTER ON THE
HEADSTOCK
- Insert spur center, with a No.2 Morse Taper shank, into the
headstock spindle. (See FIG.2)
3.3 ATTACHING LIVE CENTER ON THE
TAILSTOCK
- Insert the live center, with a No.2 Morse Taper shank into the
tailstock spindle. (See FIG.3)

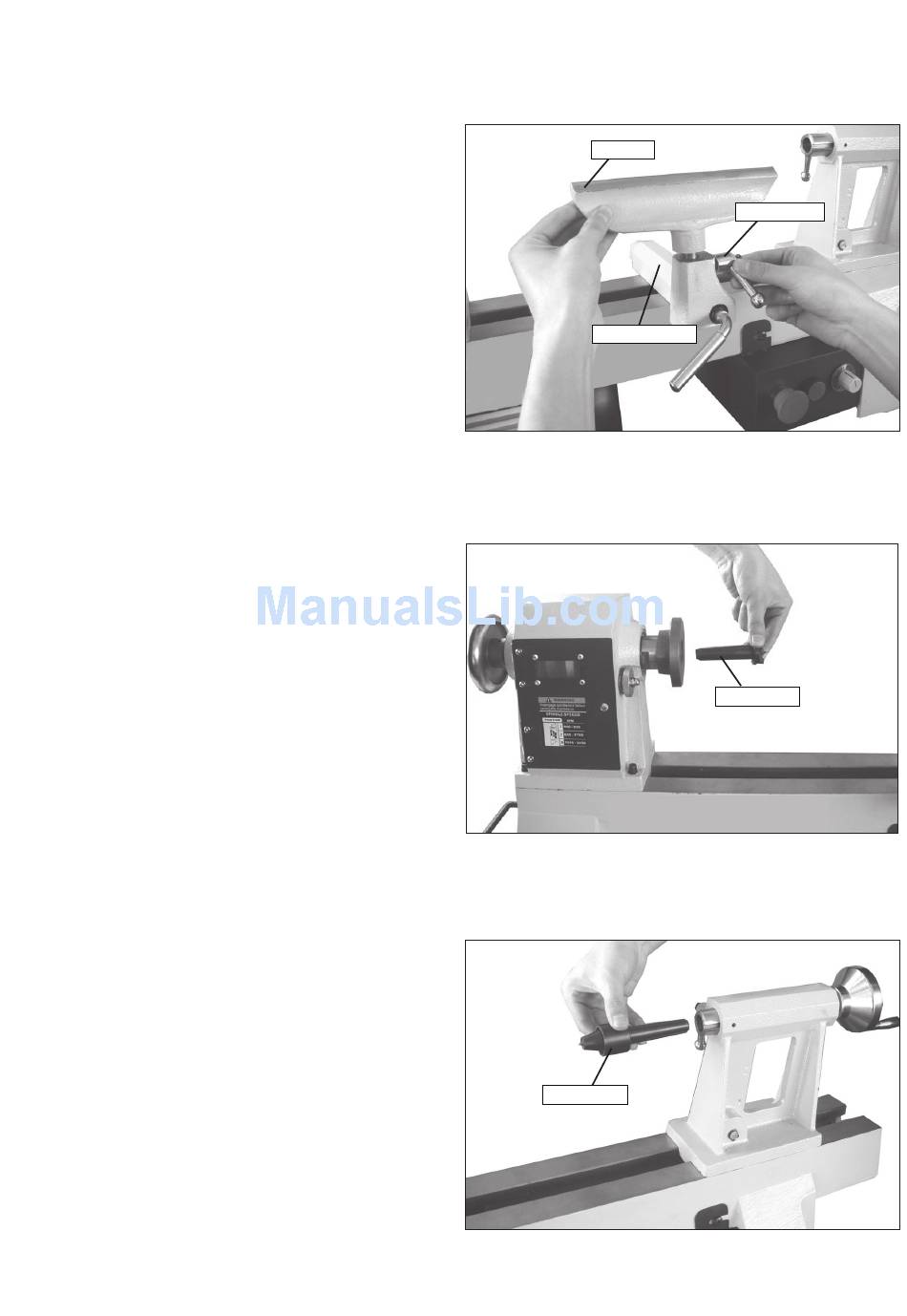

FIG. 1
Tool rest
Tool rest base
FIG. 2
FIG. 3
Live center
6
Locking arm
Spur center
