70-105

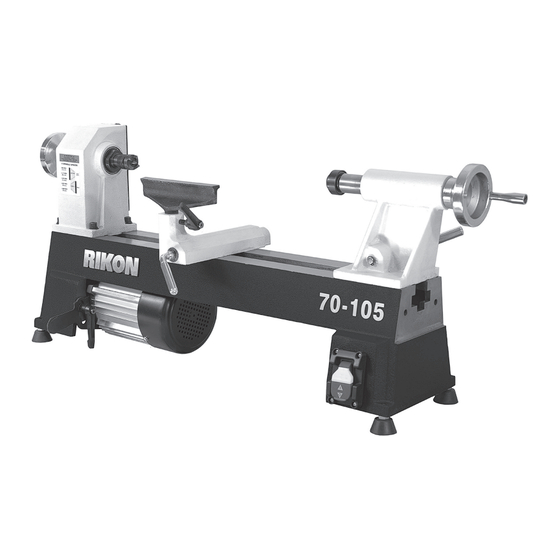

10" x 18" Mini Lathe
4001824
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________
Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
www.rikontools.com
70-105M3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 70-105
Summary of Contents for Rikon Power Tools 70-105
- Page 1 70-105 10” x 18” Mini Lathe 4001824 Operator’s Manual Record the serial number and date of purchase in your manual for future reference. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167 www.rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed. - Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
-
Page 5: Electricals & Wiring Diagram
SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK. - Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR WOOD LATHES This machine is intended for the shaping, smoothing and finishing of solid woods and composite materials made specifically for lathe work. The permissible work piece dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.
-
Page 7: Getting To Know Your Machine
Tool rest base Spindle pulley & cover CONTENTS OF PACKAGE Model #70-105 Mini Lathe is shipped complete in one box. Unpacking and Clean-up 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. -
Page 8: Installation
CONTENTS OF PACKAGE LIST OF LOOSE PARTS Lathe Bed with Headstock, Tailstock and Motor Assemblies Tool Rest Base Assembly 6” Tool Rest Spur Center Live Center Knockout Bar 32mm Wrench TOOLS NEEDED FOR ASSEMBLY Rubber Feet with mounting screw (4) 3mm &... -
Page 9: Assembly
ASSEMBLY NOTE: Pending packaging changes at the factory, THE MACHINE MUST NOT BE some lathe parts may already be pre-assembled PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE. on the machine. The assembly steps listed should none-the-less be reviewed for information on the lathe parts and their adjustments. - Page 10 ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. INSTALL THE SPUR CENTER Insert the spur center into the headstock spindle. The spur center (A) has a No. 2 Morse Taper shank, that matches the taper on the inside of the headstock spindle for a secure, friction fit.
-
Page 11: Adjustments
ASSEMBLY INSTALLING A FACEPLATE The 70-105 lathe is designed with pen turning in mind, and DOES NOT include a faceplate which is used for mounting wood for the making of plates, dishes, small trays and bowls up to 10” diameter. Faceplates with 1”x8 TPI threading are available separately. - Page 12 ADJUSTMENTS ADJUSTING THE TAILSTOCK Loosen the locking lever (A) to move the tailstock along the lathe bed to the desired position for holding your work piece. Then tighten the locking Tailstock lever to secure the tailstock on the bed. FIG. 11. Lathe Bed To adjust the clamping action of the tailstock on the bed, adjust the lower locking nut.
- Page 13 ADJUSTMENTS CHANGING THE DRIVE BELT To change the belt, the whole spindle shaft needs to be shifted right, out of the headstock, towards the tailstock. This will allow the new belt to be slipped over the spindle and onto the spindle pul- ley.
-
Page 14: Operation
ADJUSTMENTS Changing the Bearings 4. Carefully knock out the spindle towards the tailstock. Use a block of wood or big dowel If the bearings ever need to be changed, the whole against the spindle end to prevent any damage spindle shaft needs to be shifted right, out of the when it is hit with a mallet/hammer. -
Page 15: Maintenance
MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance. 1. -
Page 16: Troubleshooting
TROUBLESHOOTING REMEDY PROBLEM PROBABLE CAUSE Motor will not start 1. Machine is not plugged in 1. Plug in machine 2. Low voltage 2. Check fuses 3. Loose connection 3. Check plug and all connections Motor fails to develop full power. 1. -
Page 17: Accessories
70-906 21” LATHE BED EXTENSION 70-920 LATHE STAND Made of heavy cast iron, it bolts to the right end of the 70-105 Mini Lathe to extend the lathe’s working spindle Universal, all-steel length capacity to 39”. Includes Stand adjusts from adjustable rubber feet to 23-1/4”... -
Page 18: Parts Diagram
PARTS DIAGRAM 70-105 Mini Lathe... -
Page 19: Parts List
PARTS LIST 70-105 10” x 18” Mini Lathe DESCRIPTION PART DESCRIPTION PART Screw M5X10 P70-105-1 Motor P70-105-33 Switch P70-105-34 Stationary Knob P70-105-2 Screw M4X30 P70-105-35 Moving Knob P70-105-3 Screw M4X25 P70-105-36 Back Lid P70-105-4 Plate P70-105-37 Washer P70-105-5 Screw M5X25... - Page 20 70-105 For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com 70-105M3...
