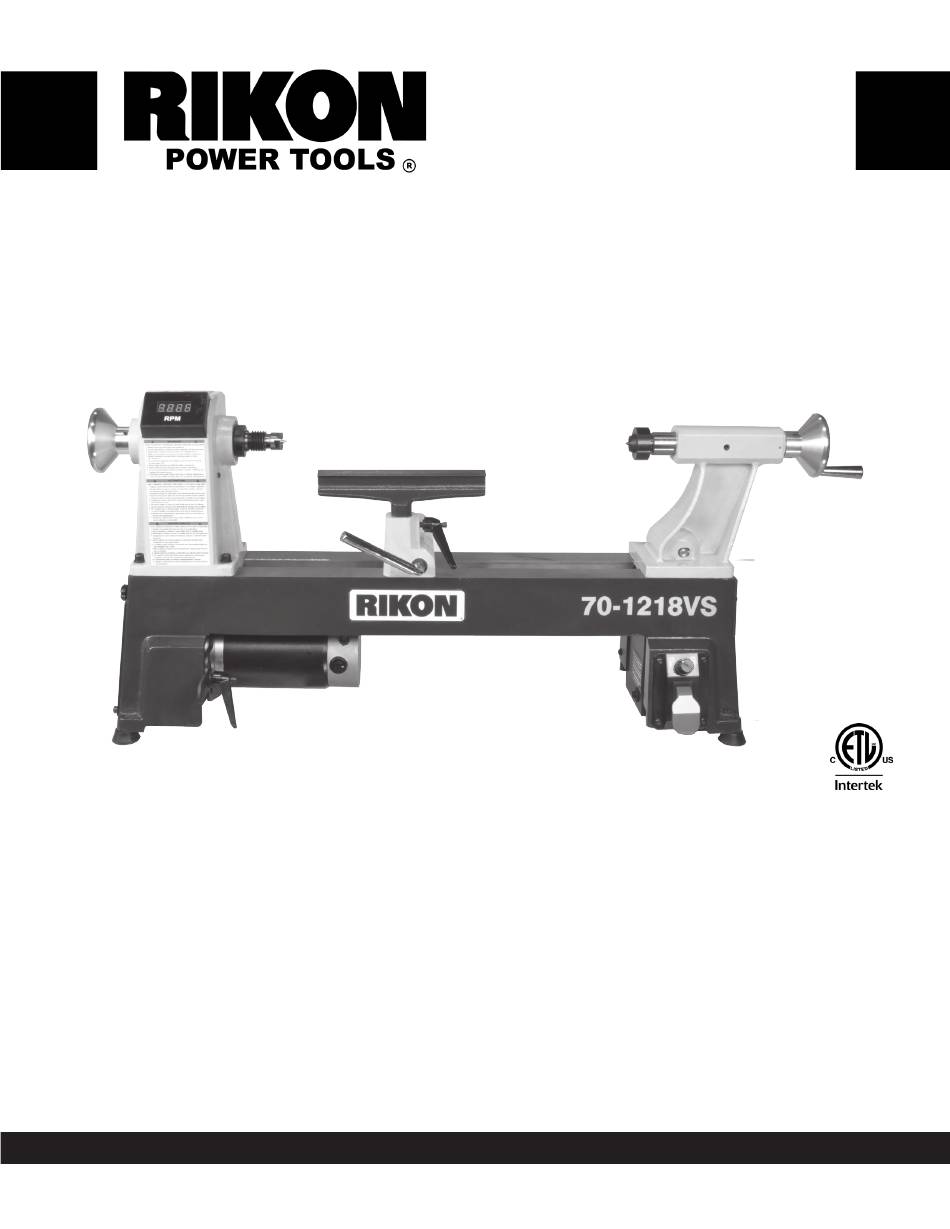

70-1218VS
12" x 18" Midi Lathe
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the specification label on the rear of your machine.
Serial Number: _________________________
Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
www.rikontools.com
70-1218VSM1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rikon Power Tools 70-1218VS
Summary of Contents for Rikon Power Tools 70-1218VS
- Page 1 70-1218VS 12" x 18" Midi Lathe Operator’s Manual Record the serial number and date of purchase in your manual for future reference. The serial number can be found on the specification label on the rear of your machine. Serial Number: _________________________ Date of purchase: _________________________ For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed. - Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
-
Page 5: Electricals & Wiring Diagram
SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS 120V TOOL MUST BE GROUND- WITH THIS MACHINE IS NOT RECOMMENDED. For ED WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK. - Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR WOOD LATHES This machine is intended for the shaping, smoothing and finishing of solid woods and composite materials made specifically for lathe work. The permissible work piece dimensions must be observed (see Technical Specification). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.
-
Page 7: Getting To Know Your Machine
VIEW Tailstock locking lever CONTENTS OF PACKAGE Model #70-1218VS Midi Lathe is shipped complete in one box. UNPACKING AND CLEAN-UP 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. -
Page 8: Installation
CONTENTS OF PACKAGE LIST OF LOOSE PARTS Lathe Bed with headstock, tailstock, tool rest base & motor assemblies Tool rest 8” Handle for tailstock hand wheel Handle screw Faceplate 3” Live center Spur center Knockout bar Wrench Tool holder 5mm hex wrench 3mm hex wrench TOOLS NEEDED FOR ASSEMBLY - Slotted Screwdriver... -
Page 9: Assembly
ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE. INSTALL THE TAILSTOCK HANDLE 1. With a slotted screwdriver (not supplied) attach the tailstock Handle (A) to the hand wheel with the Screw provided (B). - Page 10 ASSEMBLY THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. INSTALL THE SPUR CENTER Spur Center Insert the spur center into the headstock spindle. The spur center has a No. 2 Morse Taper shank, that matches the taper on the inside of the headstock spindle for a secure, friction fit.
-
Page 11: Adjustments
FIG. 9. Tailstock ADJUSTING THE SPEED Tailstock Locking Lever The 70-1218VS Lathe has 3 variable speed FIG. 9 ranges - 450-1100, 960-2400, 1400-3500 RPM. See the speed chart on Spindle Speed Display page 12. - Page 12 Locking Lever Handle FIG. 13 & 14. FIG. 15 70-1218VS-spindle-speed EFS.pdf 1 5/11/2018 3:01:07 PM Label Size 60mm x 55mm 1. With the access covers open, loosen the Locking Lever Handle that secures the motor in...
- Page 13 ADJUSTMENTS CHANGING THE DRIVE BELT 1. Unplug the lathe from the power source. To change the belt, the whole spindle shaft needs 2. Remove any accessories from the spindle - to be shifted right, out of the headstock, towards spur & live centers, faceplate, chuck, etc.. Loosen the tailstock.
-
Page 14: Operation
ADJUSTMENTS 4. Carefully knock out the spindle towards the Changing the Bearings tailstock. Use a block of wood or big dowel against the spindle end to prevent any damage If the bearings ever need to be changed, the whole when it is hit with a mallet/hammer. The spindle spindle shaft needs to be shifted right, out of the pulley, now loose, will slide along the spindle. -
Page 15: Maintenance
MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance. 1. -
Page 16: Troubleshooting
TROUBLESHOOTING REMEDY PROBLEM PROBABLE CAUSE Motor will not start 1. Machine is not plugged in 1. Plug in machine 2. Low voltage 2. Check fuses 3. Loose connection 3. Check plug and all connections Motor fails to develop full power. 1. -
Page 17: Accessories
ACCESSORIES 70-902 23-5/8” LATHE BED EXTENSION 70-920 LATHE STAND Made of heavy cast iron, it bolts to the right end of the 70-1218VS Midi Lathe to extend the lathe’s working Universal, all-steel Stand adjusts from spindle length capacity to 41-5/8”. -
Page 18: Parts Diagram
PARTS DIAGRAM 70-1218VS 12” x 18” Midi Lathe NOTE: Please reference the Manufacturer’s Part Number when calling for Replacement Parts. For Parts under Warranty, the Serial Number of your machine is required. -
Page 19: Parts List
PARTS LIST KEY # DESCRIPTION PART # KEY # DESCRIPTION PART # Hand wheel P70-1218VS-1 Foot P70-1218VS-60 6-1.0x8mm Set screw P70-1218VS-2 6-1.0x8mm Set screw P70-1218VS-61 6004zz Ball bearing P70-1218VS-3 Motor pulley P70-1218VS-62 42mm Internal Retaining ring P70-1218VS-4 P70-1218VS-63 Head P70-1218VS-5 6-1.0x16mm Socket head screw P70-1218VS-64 Digital display label... - Page 20 70-1218VS For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com LINK TO RIKON WEBSITE www.rikontools.com 70-1218VSM1...
