Summary of Contents for Rikon Power Tools 70-100

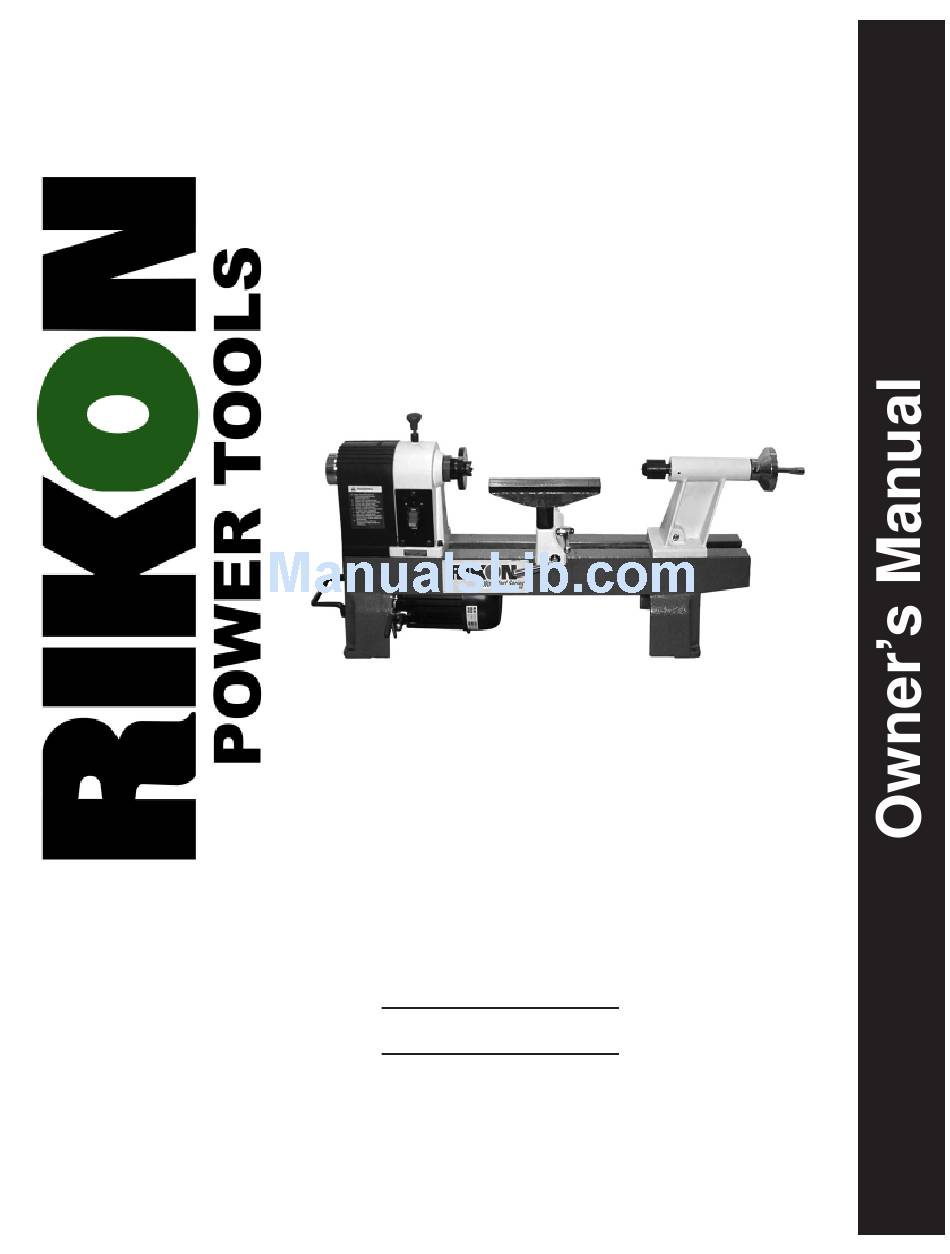

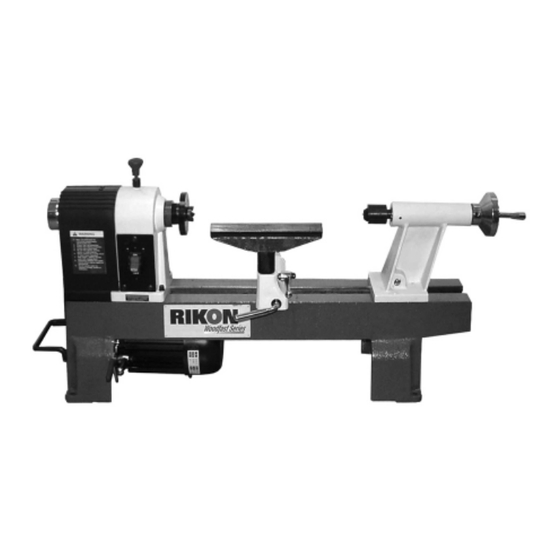

- Page 1 Mini Lathe Model: 70-100 Record the serial number and date of purchase in your manual for future reference. Serial number: Date of purchase: For more information: www.rikontools.com info@rikontools.com For Parts or Questions: techsupport@rikontools.com 877-884-5167 Part # 70-100M2...
-
Page 2: Safety Warnings
Safety Warning IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. -
Page 3: Lathe Safety Rules
ALWAYS DISCONNECT TOOLS. Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters. ALWAYS AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in cord. NEVER LEAVE TOOLS RUNNING UNATTENDED. ALWAYS CHECK FOR DAMAGED PARTS. Before initial or continual use of the tool, a guard or other part that is damaged should be checked to assure that it will operate properly and perform its intended function. -
Page 4: Table Of Contents
Indexing /Spindle Lock............................10 Maintenance.................................10 Electrical Requirements...............................11 Wiring Diagram............................12 Troubleshooting..............................13 Explosion Diagram..............................14 Parts List................................15 Warranty.................................16 Notes..................................17 Specifications Model Number 70-100 Swing Over Bed 12” Swing Over Tool Rest Base 9-1/2” Working Distance Between Centers 16” Motor 1/2HP, 1Ph, 115V only Speeds Speed Ranges... -
Page 5: Unpacking And Contents
Contents of Package Unpacking and Checking Contents Unpack your lathe from its carton and check to see that you have all of the following items. Do not turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to your machine. -
Page 6: Getting To Know Your Lathe
Getting to Know Your Lathe Item Description Item Description Tailstock spindle locking arm Lifting handle Tool rest base Switch Spindle lock Handwheel Tool holder Face plate Motor Spur center Lathe bed Tool rest Tailstock locking lever Live center Tool rest seat locking lever Tail stock Tailstock handwheel Assembly... -
Page 7: Installing Spindle Lock
Spindle lock Installing Spindle Lock Locate the spindle lock assembly from the carton, and install it onto the head with an adjustable wrench. (See Fig.02) Warning: Disengage spindle lock before turning the machine on. Fig.02 Attaching Spur Center On The Headstock Headstock spindle Insert spur center, with a No. -
Page 8: Installing The Faceplate
Installing The Faceplate to the Headstock Spindle lock Thread the faceplate clockwise on to the headstock spindle. Next, engage the spindle lock and stop the spindle from turning, and tighten Faceplate faceplate with supplied wrench. (See Fig.07) Warning: Disengage spindle lock before turning the machine on. -
Page 9: Adjusting The Tailstock
Adjusting Tailstock Loosen locking lever to move the tailstock along the lathe bed to desired position. Tighten lever. To adjust clamping action of the tailstock, remove it from lathe bed and adjust nut clockwise to tighten and counterclockwise to loosen.(See Fig.12) To adjust tailstock arm in or out, loosen locking Fig.12 arm and turn handwheel. -
Page 10: Indexing/Spindle Lock
The lathe can be set up for a faceplate turning operation. The work piece should be “rough cut” as close as possible to finished shape before mounting. (See Fig.16) Indexing/Spindle Lock The dual purpose indexing/spindle lock is positioned on the top of the headstock for ease of Fig.16 use. -
Page 11: Electrical Requirements
Electrical Requirements In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 12: Wiring Diagram
Wiring Diagram WARNING:This machine must be grounded. Replacement of the power supply cable should only be done by a qualified electrician. Switch Plug Motor... -
Page 14: Explosion Diagram
Explosion Diagram... -
Page 15: Parts List
Parts List KEY No. Description Part No. KEY No. Description Part No. 70-100 70-100 Ring retaining 12mm 1-CLP12GB894D1B Center point 1-JL93010001 70-100 70-100 Clamp bolt cover 1-JL93020005 Spur center 1-JL93010002 70-100 70-100 Position plate 1-JL93030012 Faceplate 1-JL93010003-001Y 70-100 70-100 Lock nut M10... -
Page 16: Warranty
Warranty 5-Year Limited Warranty RIKON Power Tools, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. -
Page 17: Notes
Notes:... - Page 18 For more information: 16 Progress Rd. Billerica, MA. 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com www.rikontools.com Copyright RIKON Power Tools, Inc. 2006 Printed in China 5/06...
