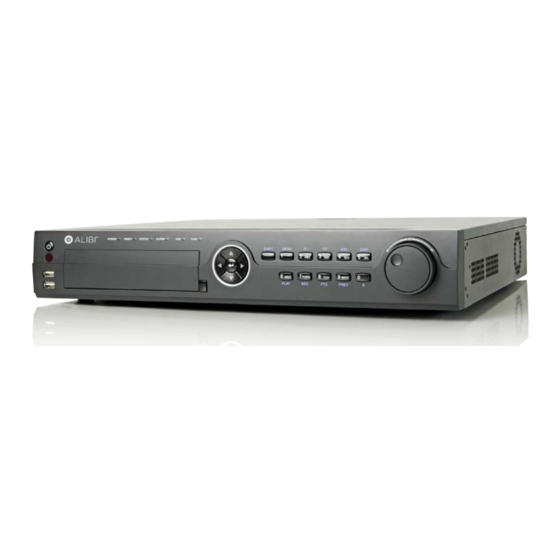

Alibi ali-hvr5016h 16-channel hd-tvi digital video recorder
Hide thumbs Also See for ALI-HVR5016H:
Table of Contents

Advertisement

Quick Links

Download this manual

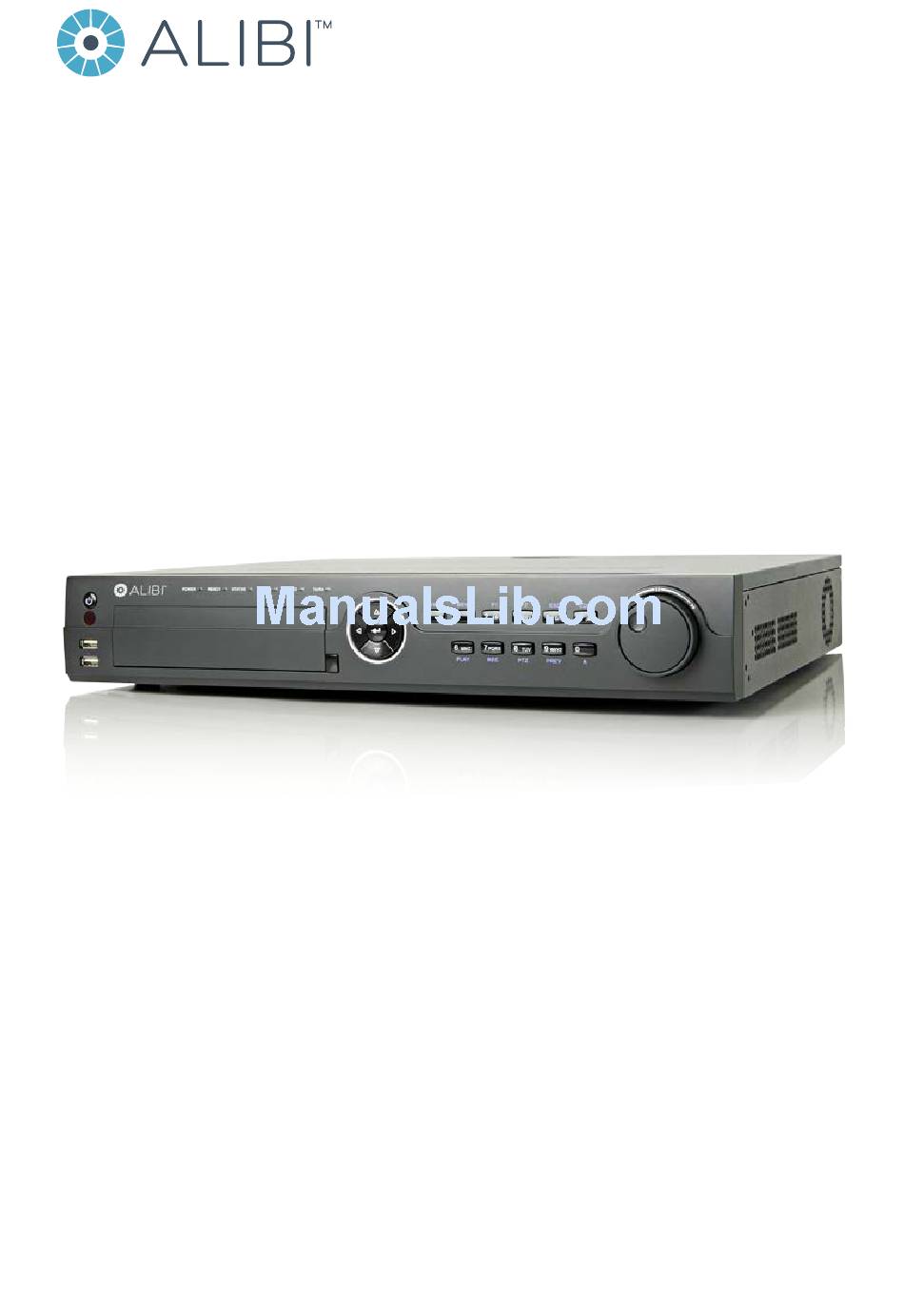

ALI-HVR5016H 16-Channel HD-TVI
Digital Video Recorder User Manual
Products: ALI-HVR5016H
PLEASE READ THIS MANUAL BEFORE USING YOUR SECURITY SYSTEM, and always follow the instructions for safety
and proper use. Save this manual for future reference.
ALI-HVR5016P_RM
10/02/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALI-HVR5016H and is the answer not in the manual?

Questions and answers

Related Manuals for ALIBI ALI-HVR5016H

Summary of Contents for ALIBI ALI-HVR5016H

  • Page 1 ALI-HVR5016H 16-Channel HD-TVI Digital Video Recorder User Manual Products: ALI-HVR5016H PLEASE READ THIS MANUAL BEFORE USING YOUR SECURITY SYSTEM, and always follow the instructions for safety and proper use. Save this manual for future reference. ALI-HVR5016P_RM 10/02/14...

  • Page 2: Legal Notice

    Alibi and the Alibi logo are trademarks of Observint. Microsoft, Windows, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 3: Regulatory Information

    Use the appliance at temperatures between 14 °F ~ 131 °F (-10 °C ~ +55 °C) and relative humidity below 90%. The input • power source for this appliance is between 100 ~ 240 Vac, 47 ~ 63 Hz. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 4 Install the unit away from heat sources such as radiators, heat registers and stoves. • Installation of the unit near consumer electronics devices, such as stereo receiver/amplifiers and televisions, is permitted as • long as the air surrounding the terminal does not exceed the above mentioned temperature range. Handle hard disk drives with care.

  • Page 5: Table Of Contents

    2.11 Configuring Exception Alarms ............50 ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 6 TABLE OF CONTENTS SECTION 3 Startup, Shutdown, Reboot............52 3.1 Starting Up, Shutting Down and Rebooting the DVR .
  • Page 7 9.3.6 Calling Patterns ............. . .139 ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 8 TABLE OF CONTENTS 9.4 Setting Linear Scan Limit ............140 9.4.1 Calling a Linear Scan .

  • Page 9: Systems Overview

    Supports HD-TVI and analog cameras through backpanel connectors • Connectable to the Coaxitron camera/dome with long transmission distance • Supports Alibi IP cameras across a LAN • Each video channel supports dual-stream. Main stream supports up to 1080p resolution. Substream supports up to 960H •...

  • Page 10: Recording And Playback

    SECTION 1: SYSTEM OVERVIEW Recording and Playback Holiday recording schedule configurable • Cycle and non-cycle recording modes • Normal and event video encoding parameters • Multiple recording types: manual, normal, alarm, motion, motion or alarm, motion and alarm • 8 recording time periods with separated recording types •...

  • Page 11: Dvr Controls, Connectors And Indicators

    Your new security system is easy to use and easy to setup. This section includes the function and use of the components included with a DVR system. For installation instructions, refer to Section 2. Advanced control and configuration procedures are included in Sections 3 through 9. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 12: Front Panel

    SECTION 1: SYSTEM OVERVIEW ALI-HVR5016D Front Panel Status Composite Jog Shuttle Power and USB ports (2) indicators Control Buttons keys control Front panel Name Function / Description POWER Turns green when DVR is powered up. Status Indicators READY Ready indicator is normally green, indicating that the DVR is functioning properly. Indicator is green when DVR is controlled by an IR remote control with the address from 1~254;...
  • Page 13 In PTZ control mode, it can control the movement of the PTZ camera. POWER ON/OFF Power on/off switch. USB Interfaces Universal Serial Bus (USB) ports for additional USB devices such as a mouse or Hard Disk Drive (HDD). IR Receiver Receiver for IR remote control. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 14 SECTION 1: SYSTEM OVERVIEW ALI-HVR5016H Backpanel CVBS, VGA Audio Out CVBS Video Out) eSATA Camera Audio In Audio Line In RS-232 RS-485, Alarms IN/OUT Power connector Fan outlet HD-TVI video inputs Video Out - HDMI, VGA Ground ON / OFF switch...
  • Page 15 ALARM IN (1 through 16) for more information. ALARM OUT Alarm outputs 1 - 4 with ground terminations. See “2.3.2 Wiring alarm outputs to the DVR” on page 13 for more information. (1-G through 4-G) ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 16: Remote Control

    SECTION 1: SYSTEM OVERVIEW 1.1.1 Remote control The enter key on the remote control or the front panel has the same function as a mouse left click. The IR Range of the remote control is 10 meters. The buttons on the remote control correspond with the buttons on the front panel. Item Name Function...

  • Page 17: Mouse Control

    Live view: Drag channel/time bar Live view: Show menu. Right click Menu: Exit current menu to upper level menu. Scroll up: Live view: Previous screen. Menu: Previous item. Scroll wheel Scroll down: Live view: Next screen. Menu: Next item. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 18: Soft Keyboard

    SECTION 1: SYSTEM OVERVIEW 1.1.3 Soft keyboard One of two on-screen keyboards appears when you click in a field that accepts a entry, such as a password or name or a numerical value. The QWERTY keyboard, for alphanumeric entries, is shown in the following picture. Some control keys toggle their function when they are clicked.

  • Page 19: Installing The System

    Uninterruptible power supply (UPS). This device is used to ensure system stability during voltage surges, sags, and outages. If a • UPS is not available, a power strip with strong surge protection is highly recommended. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 20: Dvr Installation General Guidelines

    SECTION 2: INSTALLING THE SYSTEM 2.2 DVR installation general guidelines 2.2.1 Installing an HDD in the DVR If you purchased your DVR without an internal HDD, you must install one for the DVR to function properly. Follow the procedure in “APPENDIX C HDD Installation” on page 158. If your HDD has an HDD, skip this procedure and continue installing the system with step “2.2.2 DVR Placement”...

  • Page 21: Connecting Alarm Devices To The Dvr

    Example: If you connect an AC load to the alarm output 3 of the DVR, then you must remove the JP 3. To remove a jumper for AC load alarm circuits: 1. Disconnect all cabling from the DVR. 2. Remove the DVR top cover. See “APPENDIX C HDD Installation” on page 158 for instructions. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 22: Install A Monitor, Mouse, Power

    SECTION 2: INSTALLING THE SYSTEM 3. Locate the jumper associated with the alarm output you are using for an AC load alarm, then remove it. Save the jumper for use later, if needed. 4. Reinstall the DVR top cover. DC load alarm output circuits DC loads must operate within the limitation of 12V/1A.

  • Page 23: Camera Installation

    Weatherproof cameras can be mounted in any open area, such as on a telephone pole or on the side of a building. For best results, we recommend you mount your cameras in a sheltered area, such as under the eave or roof of a building, if possible. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 24: Install Cameras

    SECTION 2: INSTALLING THE SYSTEM Weatherproof cameras compatible with your DVR may have cables attached to the camera body and not routed through the camera base. If these cameras are installed in a moist environment, a drip loop should be constructed in the drop cable such that moisture will tend to flow away from the camera and drop cable connectors.

  • Page 25: Using The Wizard For Basic Configuration Setup

    SECTION 2: INSTALLING THE SYSTEM 2.6.1 Using the Wizard for basic configuration setup 1. Power on the DVR. Normally, an Alibi logo splash screen appears within 2 minutes. A secondary flash screen will appear showing the status of the HDDs installed in the DVR. 2. After the initial Alibi loading window (see above), a menu language screen may appear. Select the preferred language from the drop-down list, then click Apply.
  • Page 26 SECTION 2: INSTALLING THE SYSTEM The configuration settings presented in the setup Wizard can also be made and changed using the Menu system. See Chapters 5 - 7 NOTE for more information. 4. Enter the admin password in the appropriate field. To do that, click inside the Admin Password field to open the virtual keyboard.
  • Page 27 7. In the Network setup Wizard window, click the field value you want to change, then use the pop-up aid to enter a new value. By default, the DVR uses DHCP (Dynamic Host Configuration Processor) to acquire compatible (dynamic, changeable) network settings from a network DHCP server. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 28 SECTION 2: INSTALLING THE SYSTEM Generally, it is preferable to setup the DVR with a fixed network settings, if possible, to assure the DVR has an unchanging IP address for remote login. To enable fixed network settings, un-check the Enable DHCP box, then edit the appropriate fields to change the settings.
  • Page 29 When the initialization is complete, click Next to continue. 10. In the next window, the DVR will display all Alibi IP cameras it can find on the LAN. You can add any of these cameras to your DVR if the number of cameras plugged into the BNC connectors on the backpanel plus the number of IP cameras you add here does not exceed 16 channels.
  • Page 30 SECTION 2: INSTALLING THE SYSTEM To add the IP camera shown in the screen below, click the box for the camera in the list you want to add to check mark it, then click the Add button. Click Next to continue. 11.
  • Page 31 Click OK when the recording mode for each camera is selected. The Wizard will close and the DVR will present the Live View display. For more information about the Live View display, see “SECTION 4 Live View Interface” on page 54. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 32 SECTION 2: INSTALLING THE SYSTEM Live View display 12. While viewing video from each cameras in the Live View display, adjust the direction of each camera to aim it at its surveillance target. Follow the manufacturer’s recommended procedures for aiming the cameras. Live View display after camera adjustments...

  • Page 33: Access The Menu System

    If ID Authentication is not disabled (see the Menu | Configuration | General settings), a login window will open. In the Login window, select a User Name with administrative privileges, enter its password, then click OK. NOTE: A window of Menu icons will open. The default user “admin” has the default password of “1111”. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 34: Customize Camera Configurations

    SECTION 2: INSTALLING THE SYSTEM 2.8 Customize camera configurations The Camera menu lists all cameras configured in the DVR, and shows the channel, name, timestamp, etc. of each. Using this menu, you can assign names to each camera for easy recognition, select areas for motion detection and privacy blocking, and configure alarm features (if supported by the camera).
  • Page 35 4. To enter the camera password, click the Admin Password field, then use the soft keyboard to click in the password of the camera, click the Enter key, and then click OK to close the window. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 36: Adding Analog (Cctv And Hd-Tvi) Cameras To The Dvr

    SECTION 2: INSTALLING THE SYSTEM 5. Repeat this method for other cameras that show an alert status. 6. In the screen shown above, notice that the icon in the Status column changed to a round, blue icon with a “u” symbol. Click this icon to display live video from the camera.
  • Page 37 Click Apply to save your settings for the camera. h. On the Camera line, open the drop down list and select a different camera you want to configure. Repeat steps 2.a through 2.h above until the OSD for all analog cameras are setup. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 38: Image Setup

    SECTION 2: INSTALLING THE SYSTEM Image setup Using the Camera Image submenu, you can adjust several aspects of the image (brightness, contrast, etc) to improve the visual quality of the video. You can configure two different camera image setups to adjust the camera for two different lighting conditions, such as day and night.

  • Page 39: Motion Setup

    To change the area of the video image you want to sense for motion, click the Clear button, then drag the mouse across the area of the video where you want to sense for motion. An example of the result is shown below. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 40 SECTION 2: INSTALLING THE SYSTEM d. In the screen shown above, notice that motion is detected in the cells of the grid where motion was sensed. You can adjust the sensitivity slider as needed for more or less detection sensitivity. e.
  • Page 41 Select the actions you want to occur, then click Apply to save your settings, and OK to return to the Motion Detection menu. The Notify Surveillance Center and Send Email options require additional network settings. See “SECTION 7 Network Settings” NOTE on page 108 for more information. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 42 SECTION 2: INSTALLING THE SYSTEM k. Repeat step 2.a above for a different camera, then repeat steps 2.b through 2.j to setup motion detection for that camera. Repeat this step until all analog cameras are configured as needed. Privacy Mask setup The Privacy Mask feature allows you to block areas (zones) of the video image for privacy consideration.

  • Page 43: Camera Video Tampering Setup

    A Video Tampering alarm is created when the lens (an area of the image) is covered. The alarm can cause the NVR to initiate several actions. 1. Click Video Tampering in the left frame to open the Video Tamper Detection Settings submenu. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 44 SECTION 2: INSTALLING THE SYSTEM 2. In the Camera field drop down list, select the camera you want to configure. In the example shown, IP Camera 1 is selected. 3. Check or un-check the box to Enable Video Tampering Detection. If you checked the box, drag a rectangle across the area of the video that you want to monitor.

  • Page 45: Camera Video Loss Setup

    Test your settings during broad conditions to ensure that your tamper-proof settings trigger an action. You may need to return to NOTE this menu later to adjust the Sensitivity slider to ensure the feature is working properly. 2.8.4 Camera Video Loss setup 1. Click Video Loss in the left frame to open the Video loss submenu. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 46 SECTION 2: INSTALLING THE SYSTEM 2. In the Camera field drop down list, select the camera you want to configure. In the example shown, IP Camera 1 is selected. 3. Check or un-check the box to Enable Video Loss. If you checked the box, do the following: a.
  • Page 47 In the window shown above, check the boxes of the camera channels you want to copy your settings too, and then click OK. 6. Repeat sub-steps 2 through 4 above for each camera managed by the DVR, if necessary. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 48: Video Quality Diagnostics

    SECTION 2: INSTALLING THE SYSTEM 2.9 Video Quality Diagnostics The video quality of analog cameras can be quickly analyzed using the Video Quality Diagnostics feature. This feature allows you to configure thresholds for Blurred Image, Abnormal Brightness, and Color Cast and configure the DVR to perform actions on a schedule when these aspects are above threshold.
  • Page 49 108 for more information. h. Repeat step 2.a above for a different camera, then repeat steps 2.b through 2.g to setup video quality diagnostics for that camera. Repeat this step until all analog cameras are configured as needed. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 50: Check Video Quality Manually

    SECTION 2: INSTALLING THE SYSTEM 2.9.1 Check video quality manually After configuring video quality thresholds using the Video Quality Diagnostics menu, you can check your settings using the Manual Video Quality menu. To use this menu: 1. Open the manual Video Quality Diagnostics menu. Go to Main menu | Manual | Manual Video Quality Diagnostics 2.

  • Page 51: Configuring Hdd Settings

    The Add button on the HDD Information screen (see “2.10.1 Checking HDD status” on page 43 above) will be used to add additional network storage devices (NAS or IP SAN) to the recorder. This feature is reserved for future enhancement. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 52: Configuring The Hdd

    SECTION 2: INSTALLING THE SYSTEM 2.10.3 Configuring the HDD By default, all cameras will record to the one partition of the internal HDD. However, you can configure the partition to allocate a set portion of the partition to each the recordings of each camera. If multiple disks (internal HDD and network drives) are installed, individual cameras or groups of cameras can be configured to save their recordings to assigned areas on those drives.

  • Page 53: Configuring Hdd Group Mode

    Storage Mode menu (see below), the DVR must be restarted for new settings to be applied. NOTE: Example screens shown in this section do not include multiple HDDs. 1. Open the Storage Mode menu. Go to Menu | HDD | Advanced 2. On the Mode line, open the drop down list and select Group. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 54 SECTION 2: INSTALLING THE SYSTEM 3. On the Group line, open the drop down list and select the group number you want to create. 4. Select the analog and IP cameras you want to assign to the group. (Deselect the cameras that are not part of the group.) 5.

  • Page 55: Hdd Detect

    Reporting Technology) data, and Bad Sector Detection. These methods can be used to assure the normal functioning of the disk, and anticipate failures. S.M.A.R.T. Display 1. Open the S.M.A.R.T. display menu. Go to Maintenance | HDD Detect ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 56: Bad Sector Detection

    SECTION 2: INSTALLING THE SYSTEM 2. To execute a self-evaluation test on an HDD (see above): a. On the HDD line, open the drop down list to select the HDD to test. b. On the Self-test Type line, open the drop down list to select the type of test to execute. You can choose either Short Test, Expanded Test or Conveyance Test.
  • Page 57 4. Click the Detect button to start the detection. Bad sectors are identified in the array as red colored cells. The screen below shows the Key Area Detection test executing. Click Pause to temporarily stop the scan, and click Cancel to end the scan. Click Error info (if errors were found) to see the “Damaged” information. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 58: Configuring Exception Alarms

    SECTION 2: INSTALLING THE SYSTEM 2.11 Configuring Exception Alarms The DVR monitors for and respond to certain system-related alarm conditions (exception alarms). Monitoring for and response to these exceptions are configurable. Exception alarm conditions include: HDD Full: The HDD is full. •...
  • Page 59 4. Select either or both of the following response options: Audible Warning or Send Email. 5. Click Apply to save your settings. 6. Repeat these steps 3 through 5 for another Exception Type you want to configure. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 60: Startup, Shutdown, Reboot

    SECTION 3: STARTUP, SHUTDOWN, REBOOT SECTION 3 Startup, Shutdown, Reboot After the DVR and cameras are installed, the DVR system must be configured to function in the surveillance mode(s) that best serve your needs. This chapter includes the essential steps to get your system running, including configuring the DVR date and time, and setting up the LAN interface, cameras and recording modes.

  • Page 61: Rebooting The Dvr

    In the Shutdown menu, you can also reboot the DVR. 1. Open the Shutdown menu by clicking Menu | Shutdown. 2. In the Menu window, click the Shutdown icon, then click Reboot in the pop-up window. 3. Click Yes in the Attention window. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 62: Live View Interface

    SECTION 4: LIVE VIEW INTERFACE SECTION 4 Live View Interface The Live View interface is the primary camera viewing and monitoring mode. It can be configured to present video from the cameras configured in the system singularly or in multi mode, or using a “patrol” feature wherein video from each of a select group of cameras is displayed singularly and sequentially, with each camera view shown for a preset duration (dwell).

  • Page 63: Quick Setting Toolbar

    Instant Playback: Plays what was recorded in the previous five minutes. Nothing is played if a recording was not made at that time. PTZ Control: PTZ control is supported for PTZ cameras only. When this icon is selected, the video image expands to full screen and the PTZ pop-up menu opens. See below. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 64: Live View Pop-Up Menu

    SECTION 4: LIVE VIEW INTERFACE Digital Zoom: The Digital Zoom select box is shown in the lower right corner of the video image. It shows the selected portion of the camera image in full-screen mode. To select an area, left-click and drag to form a rectangle across the area to expand. See the figure below.

  • Page 65: Live View Settings

    1. Open the Live View Settings menu. Go to Menu | Configuration | Live View ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 66 SECTION 4: LIVE VIEW INTERFACE Adjust the settings in the screen as needed: Video Output Interface: Designates the output to configure the settings for. Option includes only VGA/HDMI. — Live View Mode: Designates the display mode (screen split) to be used for Live View. —...

  • Page 67: Channel-Zero Encoding

    This features allows you to decrease the bandwidth requirement without affecting the image quality. To use Channel-Zero Encoding: 1. Open the Channel-Zero Encoding menu. Go to Menu | Configuration | Live View | Channel-Zero Encoding ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 68 SECTION 4: LIVE VIEW INTERFACE 2. Check the box to Enable Channel Zero Encoding. 3. Configure the Frame Rate, Max. Bitrate Mode and Max. Bitrate as needed. 4. Click Apply. After setting Channel-Zero Encoding, you can see up to 16 channels of live video on one screen of the remote client.

  • Page 69: Record, Playback And Video Backup

    OK. A window of Menu icons will open. NOTE: When the system option Enable ID Authentication is disabled (see the Configuration - General settings submenu), the Login window to open the Menu does not appear. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 70: Configuring Record Settings

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 5.1 Configuring record settings 5.1.1 Setting camera Record Parameters In the Record Parameters screen you can configure the camera performance for Mainstream (Continuous) and Mainstream (Event) recording. Each camera video channel also includes a substream channel that is configured separately. 1.
  • Page 71 4 connects to a non-HD-TVI camera, you can copy the settings made for channel 1 to channel 2 and 3, but not to channel 4. 6. Repeat steps 2 through 4 for each camera installed on the system. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 72: Configuring Record Schedule

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 7. Open the Sub-stream tab page. a. Configure the sub-\stream parameters for each camera as needed. b. Click Apply to save the settings. 8. Repeat steps 2 through 5 above for each camera in the system. 5.1.2 Configuring Record schedule The record schedule can be used to automatically start and stops recording at preset times.
  • Page 73 Repeat the steps above to schedule recording for other days of the week. If the same schedule can also be — applied to other days, click Copy (see the window below), select the days you want to copy the schedule to, then click OK. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 74 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP To use the graphical method to draw the schedule: In the right column, click the color icons for the type of recording you want to perform. You can choose either — Continuous, Motion, Alarm, M | A (Motion or Alarm), M & A , or none. Drag the mouse pointer across the area of the chart (day of the week, hours of the day) where you want to —...

  • Page 75: Configuring Motion Detection Recording

    (or not detect) motion in the video image. To adjust the motion detection parameters of a video channel: 5. Open the Camera Motion menu. Go to Main menu | Camera | Motion ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 76 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 6. To change the motion detection settings for a camera: a. On the Camera line, open the drop down list and select the camera you want to configure. b. On the Enable Motion Detection line, click the box to check mark it. c.
  • Page 77 Time periods cannot overlap. h. Click Apply to save the settings. You can also click Copy to copy the Arming Schedule setup in the window to other days of the week. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 78: Manual Record

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP Click the Action tab. In the Action tab, you can cause certain actions to occur when motion triggered recording occurs. Select the actions you want to occur, then click Apply to save your settings, and OK to return to the Motion Detection menu.
  • Page 79 Select Record on the left menu frame. b. Click the status button before camera number to change the label from ON to OFF. c. Click the icon after Normal or Motion Detection. d. When the Attention window opens, click No. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 80: Configuring Hdd Group For Recording

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP Green “ON” icon means that the channel is configured with a record schedule. NOTE If the DVR is rebooted, manual record operations are canceled. 5.1.5 Configuring HDD Group for Recording You can form a group of cameras and save the record files from them to a specific HDD. You must have multiple HDDs installed in the system to use this configuration.

  • Page 81: Files Protection

    7. In the window shown above, select the Group number you want to assign to the HDD, then click OK. 5.1.6 Files Protection You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten. 1. Open the Export menu. Go to Menu | Export ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 82 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 2. Check the box(es) for the channel(s) you want to investigate. 3. Configure the record type, File Type (locked or unlocked), and Start Time and End Time. 4. Click Search to show the results. 5.

  • Page 83: Playback

    In Live View mode, click the channel you want to playback, then click the playback icon on the Quick Setting toolbar. In the instant playback mode, only recordings made during the previous five minutes on the channel are played. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 84: Playing Back Video By Channel

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP During playback, the menu changes to a playback control bar you can use to pause and cancel playback. 5.2.2 Playing back video by channel 1. Open the Playback menu. Go to Menu | Playback. You can also open single channel playback mode by viewing a single channel in Live view mode, then pressing the Play button on the front panel.
  • Page 85 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP Playback controls are shown below. Zoom Start/stop default custom Smart Mute clip management Start/end time of timeline Playback speed Recorded video clips Playback timestamp Playback motion controls Timeline Playback toolbar icons ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 86: Playing Back By Time

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP NOTES: In the “Recorded video clips” markings, blue marks represent Normal recording, red marks indicate event recording (motion, • alarm, motion | alarm, motion & alarm). Timeline: Use the mouse to click any point of the timeline bar to locate special frames, and drag the cursor to show the •...

  • Page 87: Playback By Event Search

    5.2.4 Playback by Event Search Play back record files on one or several channels searched out by restricting event type (e.g. alarm input and motion detection). 1. Open the Playback interface. Go to Menu | Playback ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 88 SECTION 6: RECORD, PLAYBACK AND VIDEO BACKUP 2. Open the drop-down list in the upper-left corner of the screen, then select Event. 3. Open the Type drop down list (in the upper right corner), then select the kind of event you want to search for. In the example above, only Alarm Input and Motion type events are available.
  • Page 89 6. Select an entry in the list (camera channel and the time), then click the Play icon in the playback toolbar to show the video associated with the event. For the definition of icons in the playback toolbar, see “5.2.2 Playing back video by channel” on page 76. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 90: Playback By Tag

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 5.2.5 Playback by Tag Video tags provide a convenient way to identify video clips, then find and replay them later. Tags are associated with video clips during playback using the icons in the lower left corner of the screen. 1.
  • Page 91 Tag management window. In the example below, two tags are shown. 1. Click the In the Tag management window, click the Edit icon to edit the Tag Name, or click the Del... icon to delete it. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 92 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP Search for tagged video clips 2. In the Playback interface window, open the drop-down list in the upper-left corner of the screen, then select Tag. 3. Select the camera channels that contain tags you want to search for. 4.

  • Page 93: Playback Using System Logs

    In the Playback window, you can change the Pre-play and Post-play values to see more video around the tag. 5.2.6 Playback using System logs You can play back record file(s) associated with channels after searching system logs. 1. Open the Log Information menu. Go to Menu | Maintenance | Log Information ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 94 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 2. Select a Start Time, End Time, Major Type and Minor Type., then click Search. In the example below, the search criterion specified are “All” (Major Type) entries. 3. Find the entry in the search results list that is associated with a Play icon. See the example above. 4.

  • Page 95: Playing Back An External File

    4. Peruse the list, then highlight the file you want to play. If the file is in a directory on the device, click the icon to the left of the directory name to show the contents of the directory. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 96: Auxiliary Functions - Playback Frame By Frame

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 5. Click the Play icon associated with the file you want to play. 5.2.8 Auxiliary Functions - Playback frame by frame Play video files frame by frame, in case of checking image details of the video when abnormal events happen.

  • Page 97: Auxiliary Functions - Reverse Playback Of Multi-Channel

    3. Double-click the date on the calendar to select the day when video was recorded. On the calendar, days when video was recorded for the cameras selected is marked in blue. The day selected is bordered in yellow. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 98: Digital Zoom

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP Video recorded Date selected (blue, red fill) (yellow border) For the definition of icons in the playback toolbar, see “5.2.2 Playing back video by channel” on page 76. 5.2.10 Digital Zoom 1. Click the magnifier button on the playback control bar to enter Digital Zoom screen. The video image will expand to full- screen, with an inset box in the lower right corner.

  • Page 99: Backing Up Record Files - Export

    USB device. 1. Attach an USB storage device, such as a USB flash drive or USB disk drive, to the DVR USB port. 2. Open the Export menu. Go to: Menu | Export | Normal ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 100 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 3. Check the boxes for the camera channels you want to back up. 4. Select the Start Time and End Time of the period when the video clips of interest were recorded. To change the time, click on the field, then select the target date or time from the pop-up menu.
  • Page 101 8. Close the playback window, then click Export. 9. In the Export window, select the directory where you want to copy the files, or create a New Folder. 10. Click the Export button to start the Export. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 102 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 11. In the pop-up window that appears, you can export the file and player (upper option), or just the player. Choose the option you prefer, and then click OK. 12. Allow the Export process to finish, and then click in the status window. 13.

  • Page 103: Export By Event Search

    5. Select the Start Time and End Time of the period when the video clips of interest were recorded. To change the time, click on the field, then select the target date or time from the pop-up menu. 6. Click Search to list the video clips recorded during the selected time span. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 104 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 7. Click the file you want to export, then click the select box on the left to check mark it. 8. To playback the video file you selected, click Details. In the Events Detail window, click the play icon to watch the file. When finished, close the Playback window.
  • Page 105 11. In the pop-up window that appears, you can export the file and player (upper option), or just the player. Choose the option you prefer, and then click OK. 12. Allow the Export process to finish, and then click in the status window. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 106: Exporting Video Clips During Playback

    SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 13. Verify that the file you exported can be played from the flash device. 5.3.3 Exporting Video Clips during playback Segments of video recordings can be backed up (exported) during playback. These files exported to a USB storage device such as a USB flash drive or USB disk drive, or USB optical drive.
  • Page 107 5. Right click anywhere in the video window, then select Exit. The Attention pop-up window shown below will appear. 6. Click Yes to save the video clip you marked. A Clips Export window will open ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 108 SECTION 5: RECORD, PLAYBACK AND VIDEO BACKUP 7. In the Clips Export window, click the clip you created to highlight it, then check mark the box to the left. 8. Insert a USB flash drive with sufficient capacity (see the file size above) into one of the USB ports on the DVR. 9.
  • Page 109 (upper option), or just the player. Choose the option you prefer, and then click OK. 11. Allow the Export process to finish, and then click OK in the status window. 12. Verify that the file you exported can be played from the flash device. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 110: Managing User Accounts

    SECTION 6: MANAGING USER ACCOUNTS SECTION 6 Managing User Accounts User accounts are created to control access to the system both at the DVR and when logging into the DVR from a remote computer. Each account has a User Name, Password, and a selection of permissions granted to the user. By default, one user, named “admin”, is provided.
  • Page 111 4. Click the OK to save the settings and go back to the User Management interface. The added new user will be displayed on the list. See the screen shown below. 5. Select the user from the list and then click the button to enter the Permission settings interface. In the example above, user “01” was selected. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 112 SECTION 6: MANAGING USER ACCOUNTS 6. Set the operating permission of Local Configuration, Remote Configuration and Camera Configuration for the user. Local Configuration options: Local Log Search: Searching and viewing logs and system information of DVR. — Local Parameters Settings: Configuring parameters, restoring factory default parameters and importing/exporting —...
  • Page 113 Local PTZ Control: Locally controlling PTZ movement of the selected camera(s). — Remote PTZ Control: Remotely controlling PTZ movement of the selected camera(s). — Local Video Export: Locally exporting recorded files of the selected camera(s). — ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 114: Deleting A User Account

    SECTION 6: MANAGING USER ACCOUNTS 7. Click OK to save your settings and exit the User menus. NOTE Only the admin user account has permission to restore the DVR to factory default settings. 6.1 Deleting a user account 1. Enter the User Management interface. Go to Menu | Configuration | User 2.
  • Page 115 Change Password box, enter the old (current) admin password, then enter the new password in the Password and Confirm fields. Record your new password and save it in a secure location. 5. Click OK to save the settings and exit the menu. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 116: Network Settings

    SECTION 7: NETWORK SETTINGS SECTION 7 Network Settings 7.1 Configuring General Settings Network settings must be properly configured before you connect the DVR to cameras on network, or access it remotely. By default, the DVR will use DHCP (Dynamic Host Configuration Processor) to acquire network settings from the network’s Domain Name Server (DNS).

  • Page 117: Configuring Extranet Access

    2. Check the Enable DDNS box to enable this feature. 3. Open the DDNS Type drop down list and select one of five options: SimpleDDNS, IPServer, DynDNS, NO-IP. IPServer: Enter Server Address for IPServer. — DynDNS: — ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 118: Configuring Ntp Server

    SECTION 7: NETWORK SETTINGS Enter Server Address for DynDNS (i.e. members.dyndns.org). In the DVR Domain Name text field, enter the domain obtained from the DynDNS website. iii. Enter the User Name and Password registered in the DynDNS website. NO-IP: Enter the account information in the corresponding fields. Refer to the DynDNS settings. —...

  • Page 119: Configuring Multicast

    2. Set the Multicast IP address. When adding a device to the Network Video Surveillance Software, the multicast address must be the same as the DVR’s multicast IP. 3. Click Apply to save your settings and close the menu. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 120: Configuring Rtsp

    SECTION 7: NETWORK SETTINGS NOTE The multicast function must be supported by the network switch to which the DVR is connected. 7.5 Configuring RTSP The RTSP (Real Time Streaming Protocol) is a network control protocol designed for use in communication systems to control streaming media servers.

  • Page 121: Configuring Email

    2. Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway and the Preferred DNS Server in the Network Settings menu. See “7.1 Configuring General Settings” on page 108 for more information. 3. Click Apply to save your settings and close the menu. 4. Click the Email tab to open the email settings men. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 122 SECTION 7: NETWORK SETTINGS 5. Configure the following Email settings: Enable Server Authentication (optional): Check the checkbox to enable the server authentication feature. — User Name: The user account of sender’s Email for SMTP server authentication. — Password: The password of sender’s Email for SMTP server authentication. —...

  • Page 123: Configuring Upnp

    3. In the UPnP menu, you can click the icon in the Edit column to change the External Port number associated with the Port Type. When finished, click Refresh, and then click Apply to save your settings. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 124: System Maintenance

    SECTION 8: SYSTEM MAINTENANCE SECTION 8 System Maintenance The Maintenance menus provide several displays that report system device information, log information, and network traffic. Features also include the export and import of the system configuration file, firmware upgrade, and factory reset. 8.1 System Information The System Information displays include status reports of the DVR, cameras, record settings, the network and the HDDs.
  • Page 125 In the example below, the search criterion specified are “All” (Major Type) entries with “All” (Minor Type). 3. Click Search. If the search didn’t find a file matching your search criteria, the message No matched log file. will appear. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 126: Log Export

    SECTION 8: SYSTEM MAINTENANCE 4. You can Export the result of the log search (click Export), choose a log entry with record file and click the playback button to play the file, or click the icon in the Details column to see more information about the entry. The Log Information Details screen is shown below.

  • Page 127: Import / Export System Configuration

    You can export the DVR configuration, then import the file later to restore the earlier configuration. 1. Attach an USB storage device, such as a USB flash drive or USB disk drive, to the DVR USB port. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 128 SECTION 8: SYSTEM MAINTENANCE 2. Open the Import/Export menu. Go to Menu | Maintenance | Import/Export Export configuration file 3. On the Device Name line, open the drop down list and select the destination for the exported configuration file. 4. Click the Export button to start the export. Allow the operation to finish before continuing. When the export operation is successful, an “Attention”...

  • Page 129: Upgrade Firmware

    DVR firmware. Firmware upgrade should only be performed when recommended by your DVR support organization. 1. To check the current firmware version, open the System information display. Go to Menu | Maintenance | System Info ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 130 SECTION 8: SYSTEM MAINTENANCE 1. If the firmware needs to be upgraded, attach an USB storage device, such as a USB flash drive or USB disk drive, that contains the firmware upgrade file to a DVR USB port. 2. Click the Upgrade tab on the left. 3.

  • Page 131: Default

    MTU, NIC working mode, default route and server port), all other configuration parameters are restored to factory default settings. To restore the factory default configuration: 1. Open the Log Information menu. Go to Menu | Maintenance | Default 2. Click OK, then allow the DVR to reboot before continuing. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 132: Net Detect

    SECTION 8: SYSTEM MAINTENANCE 8.6 Net Detect 8.6.1 Checking Network Traffic You can see real-time information of your DVR network traffic, such as linking status, MTU, sending/receiving rate, etc. The traffic data is refreshed every 1 second. Open the Network Traffic menu. Go to Menu | Maintenance | Net Detect You can view the sending rate and receiving rate information on the interface.

  • Page 133: Exporting Network Packet

    Note: Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, verify that it is compatible with the DVR. Format the backup device if the format is incorrect. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 134: Checking The Network Status

    SECTION 8: SYSTEM MAINTENANCE Note: Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, verify that it is compatible with the DVR. Format the backup device if the format is incorrect. 7.
  • Page 135 3. Click the Status button at the bottom of the screen to report the status. 4. If the message box shows shows an error, click the Network button to open the Network parameters menu. After changing parameters, click Apply, and then click OK to save your settings. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 136: Checking Network Statistics

    SECTION 8: SYSTEM MAINTENANCE 8.6.5 Checking Network Statistics Use the following procedure to view real time network status of your DVR. 1. Open the Network Traffic menu. Go to Menu | Maintenance | Net Detect 2. Click the Network Stat. tab to open the Network status report. Use this display to check the bandwidth of the IP Camera, bandwidth of Remote Live View, bandwidth of Remote Playback, bandwidth of Net Receive Idle and bandwidth of Net Send Idle.

  • Page 137: Ptz Controls

    2400 baud 8 data bits 1 stop bit Protocol: Self Adaptive To see the PTZ communication settings in the DVR for Analog camera 3: 1. Open the PTZ menu. Go to: Menu | Camera | PTZ ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 138 SECTION 9: PTZ CONTROLS 2. On the camera line, open the drop-down menu and select the camera you want to access. In this example, we are using Analog 3 (see above). 3. Click the PTZ Settings button to open the RS-485 Settings menu. 4.

  • Page 139: Ptz Control Panel

    From the Live View window of the PTZ camera by clicking the PTZ Control icon on the quick setting toolbar. To open the • control panel: a. Click on the Live View video from the PTZ Camera. b. Click on the PTZ Control icon ( ) in the quick setting bar. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 140: The Ptz Live View Menu

    SECTION 9: PTZ CONTROLS c. To close the PTZ menu and the full screen camera video in the Live Video window, click the icon in the upper right corner of the PTZ window. From the Camera | PTZ menu by selecting the PTZ camera, and then clicking the PTZ button: •...

  • Page 141: Setting Ptz Presets, Patrols And Patterns

    The presets, patrols and patterns you configure must be supported by the PTZ protocols. 9.3.1 Customizing Presets Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 142 SECTION 9: PTZ CONTROLS 1. Open the PTZ settings menu. Go to: Menu | Camera | PTZ Camera control buttons 2. Use the PTZ control - directional buttons to point the camera at the position where you want to create a preset. 3.

  • Page 143: Calling Presets

    2. On the third line down, click the right arrow ( u ) to access the General tab (see above). 3. Enter the preset number in the preset field. 4. Click Call Preset to move the camera. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 144: Customizing Patrols

    SECTION 9: PTZ CONTROLS The camera will move to the pre-configured preset position. 5. To close the PTZ menu and the full screen camera video in the Live Video window, click the icon in the upper right corner of the PTZ window. 9.3.3 Customizing Patrols Patrols can be set to position a PTZ camera to a KeyPoint (Preset number) and hold it there for a set duration (dwell) before moving on to another KeyPoint (Preset number).

  • Page 145: Calling Patrols

    2. Display the General tab by clicking the u icon on the tab bar. 3. On the Patrol line, click the right-most field to open the patrol number select list, and then select the number for the patrol you want to use. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 146: Customizing Patterns

    SECTION 9: PTZ CONTROLS 4. Click Call Patrol to execute the patrol. To stop the patrol, click the Stop Patrol button. 5. To close the PTZ menu and the full screen camera video in the Live Video window, click the icon in the upper right corner of the PTZ window.

  • Page 147: Calling Patterns

    2. Display the General tab by clicking the u icon on the tab bar. 3. On the Pattern line, click the right-most field to open the patrol number select list, and then select the number for the patrol you want to use. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 148: Setting Linear Scan Limit

    SECTION 9: PTZ CONTROLS 4. Click Call Pattern to execute the pattern. To stop the patrol, click the Stop Pattern button. 5. To close the PTZ menu and the full screen camera video in the Live Video window, click the icon in the upper right corner of the PTZ window.

  • Page 149: Calling A Linear Scan

    After the scan limits are set, you can use this feature to scan the area. The Linear Scan is executed using the PTZ Control menu. 1. Open the PTZ Control panel (see “9.2 PTZ Control Panel” on page 131 above). 2. Click the One-touch tab to select it. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 150: One-Touch Park

    SECTION 9: PTZ CONTROLS 3. Click Linear Scan to begin the pre-configured scan. To stop the scan, click the Restore button. 4. To close the PTZ menu and the full screen camera video in the Live Video window, click the icon in the upper right corner of the PTZ window.

  • Page 151: Remote Access

    1. Open an Internet browser on your remote compute and enter the IP address of the DVR in the URL field. In the example below, the IP address of the DVR is 192.168.75.8. Select language ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 152 SECTION 10: REMOTE ACCESS 2. In the login window, enter your User Name and Password in the appropriate fields, then click Login. The default User Name and Password for the DVR is admin and 1111. 3. If this is the first time you are logging into a camera at this IP address AND you are using Internet Explorer 10 or newer, you must configure it for Compatibility mode: a.
  • Page 153 4. If this login is the first login to the DVR from your computer and browser, continue with the following sub-steps: a. After a successful login to the DVR, a message will appear at the bottom of the screen requesting to Allow the add-on WebVideoActiveX. Click Allow to continue. b. Close Internet Explorer. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 154: Remote Live View Screen

    SECTION 10: REMOTE ACCESS c. In the Setup - Web Components window, click Next to continue. d. Allow the plug-in installation to complete. When the following window appears, click Finish. 10.2 Remote Live View screen The Live View window initially appears in a multi-screen configuration with no live view images shown. You can: Change the viewing screen layout by clicking the multi-screen select button and selecting the icon for a 1 screen or a 2 x 2 •...
  • Page 155 To view video from a camera in the Live View screen: Click a viewing frame to select it. When selected, the frame is surrounded by a bright box. — Double click the camera channel you want to see. — ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 156: Remote Playback Screen

    SECTION 10: REMOTE ACCESS To expand the image to full frame, double click the image in the viewing frame. To return to normal viewing mode, press — ESC (keyboard escape key). You can control many Live View functions quickly with the Live View toolbar. The function of the toolbar icons are similar to •...
  • Page 157 At the bottom of the screen, drag the timeline left or right to find when video was recorded for the camera selected. The • condition that caused video to be recorded is indicated by a colored band on the timeline. The color legend is shown below. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 158: Remote Log Screen

    SECTION 10: REMOTE ACCESS Click the Play button to begin playing video. • To Download recorded video: The location where recorded video downloads and captures during playback are saved is shown on the NOTE Configuration | Location Configuration screen. 1. Click the Download icon. 2.

  • Page 159: Remote Configuration Screen

    Options in the configuration menu are identical to those in the embedded DVR Menu system. For more information on how to use these options, refer to the DVR Menu descriptions in previous sections of this manual. After making configuration changes click Save to apply your changes. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 160 SECTION 10: REMOTE ACCESS The location of local files is defined on the Configuration | Local Configuration screen.

  • Page 161: Cleaning

    Do not use benzene, thinner or other chemical products on the camera assembly; these may dissolve the paint and  promote damage of the surfaces. Before using any chemical product, read the instructions carefully. CAUTION ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 162: Specifications

    SECTION 12: SPECIFICATIONS SECTION 12 Specifications Model ALI-HVR5016H Video compression H.264 16-ch HD-TVI video input HD-TVI interface (800 mVp-p, 75 Ω) Video/Audio input Supported cameras types Cameras with an HD-TVI video interface Audio compression G.711u Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ) Two-way audio in 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Page 163 General Working humidity 10% ~ 90% Chassis 19-inch rack-mounted , 1.5U chassis Dimensions (W × D × H) 17.5" × 15.3" × 2.7" (445 × 390 × 70 mm) Weight without HDDs ≤ 11 lb ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 164: Appendix A Glossary

    APPENDIX A: GLOSSARY Glossary APPENDIX A Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.

  • Page 165: Appendix Bfaq

    Q Why doesn’t the DVR detect my USB export device for exporting recorded files? There’s a chance that the DVR and your USB device is not compatible. Please refer to our company’s website to view a list of compatible devices. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 166: Appendix Chdd Installation

    APPENDIX C: HDD INSTALLATION HDD Installation APPENDIX C The following procedures illustrate hard disk drive (HDD) installation in DVRs without an HDD, and installation of additional HDD(s). If you purchased your DVR without a HDD, or you want to replace the HDD installed in your DVR, use this procedure as a guideline. C.1 DVR compatible HDDs For the best performance of your system, install only a high-reliability security grade HDDs in your DVR.
  • Page 167 HDD 2 bay HDD 3 bay HDD 4 bay Shown are the HDD mounting screw locations and the SATA and power cable connectors on the HDD. HDD mounting screw holes SATA cable connector Power cable connector ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 168 APPENDIX C: HDD INSTALLATION The photo below shows the locations of the HDD mounting screws for HDD 1 through HDD 4. Back HDD bay mounting screw holes Front HDD 4 bay HDD 3 bay HDD 2 bay HDD 1 bay 4.
  • Page 169 HDD in place. Tighten the screws until snug. Be careful not to overtighten the screws. 8. Turn the chassis top side up and verify that the HDD cables connectors are seated properly at both ends. 9. Install additional HDDs, as needed, following steps 4 - 8 above. ALI-HVR5016H HD-TVI DVR User Manual...
  • Page 170 APPENDIX C: HDD INSTALLATION DVR with 4 HDDs 10. Reinstall the DVR cover. 11. After you power on the DVR with newly installed HDDs, they must be initialized before they can be used. Refer to the procedure in “2.6.1 Using the Wizard for basic configuration setup” on page 17.

  • Page 171: Appendix D Troubleshooting

    1. Verify at least one HDD is installed in the DVR. a. If not, install a compatible HDD. If you do not want to install a HDD, select Menu |Configuration | Exceptions, and then un-check the Audible Warning checkbox for HDD Error. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 172: Live View Freezes When Video Outputs Locally

    APPENDIX D: TROUBLESHOOTING 2. Verify the HDD is initialized. a. Select Menu | HDD | General. b. If the status of the HDD is Uninitialized, check the box of corresponding HDD and click the Init button. 3. Verify the HDD is detected or is in good condition. a.

  • Page 173: Image Freezes During Playback Of Single Or Multiple Cameras

    Select Menu | Record | Encoding | Record c. Set the resolution and bitrate to a lower level. 3. Reduce the number of local playback channels a. Select Menu | Playback b. Un-check the select boxes for unnecessary channels. ALI-HVR5016H HD-TVI DVR User Manual...

  • Page 174: No Record File Found" Message Appears After Search

    APPENDIX D: TROUBLESHOOTING 4. If the fault is not solved by the steps above, contact your product supplier for technical support assistance. 12.1.6 “No record file found” message appears after search Possible Reasons: The time setting of system is incorrect. • The search condition is incorrect. •...
  • Page 175 4. Enter the DVR ID# in step 2. 5. Press the ENTER button on the remote. If the remote still cannot function properly, replace the remote control and try again, or contact your device supplier. ALI-HVR5016H HD-TVI DVR User Manual...
