ALIBI ALI-HVR5016H Quick Setup Manual

ALI-HVR5016H 16-Channel HD-TVI Digital Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use the ALI-HVR5016H digital video recorder (DVR). For additional
information on the extensive capabilities of your DVR, refer to the ALI-HVR5016H 16-Channel HD-TVI Digital Video Recorder User
Manual provided electronically with your system.
Front Panel
Power and USB Ports (2) Status indicators

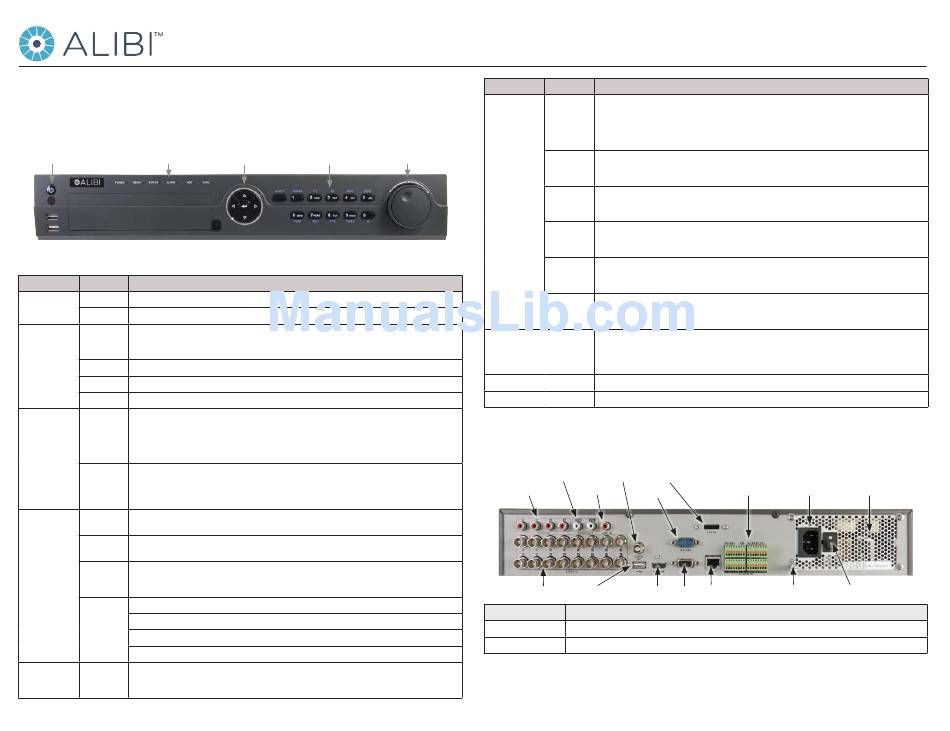

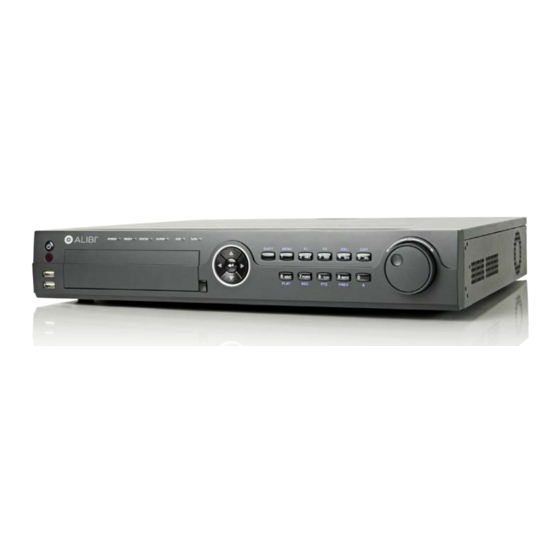

ALI-HVR5016H DVR front panel
Name Function / Description
POWER Turns green when DVR is powered up.
Status Indicators
READY The indicator is green when the device is running normally.
The light is green when the IR remote control is enabled;
STATUS The light is red when the function of the composite keys (SHIFT) are used;
The light is out when none of the above condition is met.
Status Indicators
ALARM The light is red when there is an alarm occurring.
(cont.)
HDD Blinks red when HDD is reading/writing.
Tx/Rx Blinks green when network connection is functioning normally.
In menu mode, the direction buttons are used to navigate between different fields and items and select setting parameters.
In playback mode, the Up and Down buttons are used to speed up and slow down record playing, and the Left and Right buttons
DIRECTION are used to move the recording 30s forwards or backwards.
In the image setting interface, the up and down button can adjust the level bar of the image parameters.
In live view mode, these buttons can be used to switch channels.
Control Buttons
The Enter button is used to confirm selection in menu mode; or used to check checkbox fields and ON/OFF switch.
In playback mode, it can be used to play or pause the video.
ENTER
In single-frame play mode, pressing the Enter button will play the video by a single frame.
In auto sequence view mode, the buttons can be used to pause or resume auto sequence.
Switch between the numeric or letter input and functions of the composite keys. (Input letter or numbers when the light is out;
SHIFT
Realize functions when the light is red.)
Enter numeral "1";
1/MENU
Access the main menu interface.
Enter numeral "2";
2/ABC/F1 Enter letters "ABC";
Composite Keys
The F1 button when used in a list field will select all items in the list.
Enter numeral "3";
Enter letters "DEF";
3/DEF/F2
The F2 button is used to change the tab pages.
In PTZ control mode, it zooms in the image.
Enter numeral "4";
Composite Keys
4/GHI/ESC Enter letters "GHI";
(cont.)
Exit and back to the previous menu.
1
Control Buttons Composite keys Jog Shuttle control
Name Function / Description
Enter numeral "5";
Enter letters "JKL";
5/JKL/EDIT Delete characters before cursor;
Check the checkbox and select the ON/OFF switch;
Start/stop record clipping in playback.
Enter numeral "6";
6/MNO/PLAY Enter letters "MNO";
Playback, for direct access to playback interface.
Enter numeral "7";
7/PQRS/REC Enter letters "PQRS";
Composite Keys
Open the manual record interface.
(cont.)
Enter numeral "8";
8/TUV/PTZ Enter letters "TUV";
Access PTZ control interface.
Enter numeral "9";
9/WXYZ/
Enter letters "WXYZ";
PREV
Multi-channel display in live view.
Enter numeral "0", or letter "A"
0/A Shift the input methods in the editing text field. (Upper and lowercase, alphabet, symbols or numeric input).
Pess the button twice to switch the main and auxiliary output.
Move the active selection in a menu. It will move the selection up and down.
In Live View mode, it can be used to cycle through different channels.
JOG SHUTTLE Control
In the Playback mode, it can be used to jump 30s forward/backward in video files.
In PTZ control mode, it can control the movement of the PTZ camera.
POWER ON/OFF Power on/off switch.
USB Interfaces Universal Serial Bus (USB) ports for additional USB devices such as a mouse or Hard Disk Drive (HDD).
Backpanel
CVBS, VGA Audio Out CVBS Video Out) eSATA
Camera Audio In
Audio Line In RS-232
HD-TVI video inputs USB Video Out - HDMI, VGA
Item Description
eSATA Connects external SATA HDD, CD/DVD-RW
RS-232 Interface DB9 (male) connector for RS-232 devices
RS-485, Alarms IN/OUT Power connector Fan outlet
LAN Ground ON / OFF switch
ALI-DVR5016H_SQ
10/02/14
