ALI-DVR3000H Series 960H Digital Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use your new digital video recorder. For additional information on the
extensive capabilities of your DVR, refer to the ALI-DVR3000H Series 960H Digital Video Recorder User Manual provided on CD with
your system.

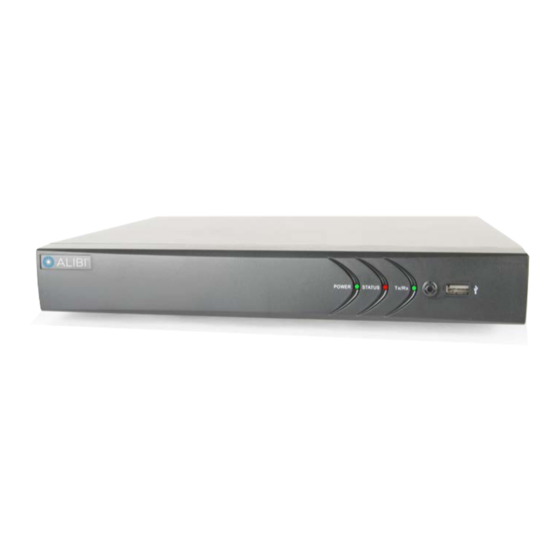

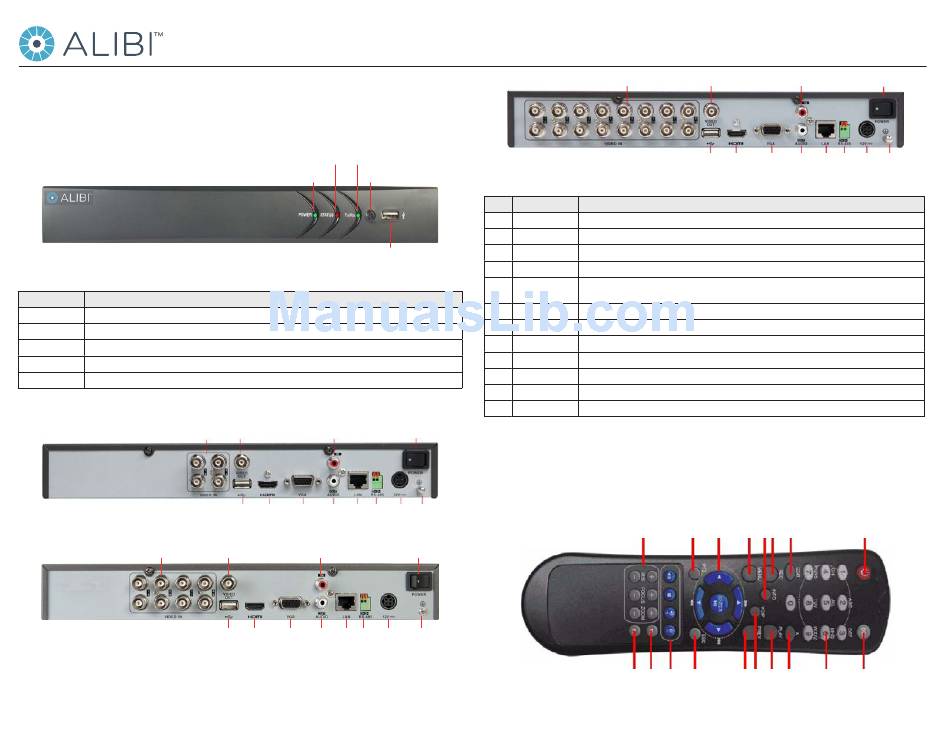

DVR Front Panel
ALI-DVR3000H series DVR front panel
Item
Usage
Power LED
Indicator turns green when DVR is powered up.
Status
STATUS indicator lights in red when HDD is reading/writing.
TX / RX
LED indicator blinks green when network connection is functioning properly.
IR Receiver
Sensor for the remote control.
USB Interface
This port can be used for a USB mouse or USB flash memory devices.
DVR Backpanels
1
1
Status
TX / RX
Power LED
IR Receiver
USB Interface
1
2
3
5
6
7
8
9
10
ALI-DVR3004H backpanel
2
3
5
6
7
8
9
10
ALI-DVR3008H backpanel
Item
1
VIDEO IN
2
Monitor Out (CVBS)
3
AUDIO IN
4
ON / OFF switch
5
USB
6
HDMI
7
VGA
8
AUDIO OUT
9
LAN
10
RS-485 terminations
11
12 Vdc
12
GND terminal
4
Remote Control
The enter key on the remote control or the front panel has the same function as a mouse left click. The IR Range of the remote control is 10
11
12
meters. The buttons on the remote control correspond with the buttons on the front panel.
4
11
12
1
2
5
6
ALI-DVR3016H backpanel
Description
BNC connectors for camera video channels in. Number of channels is dependent on the model of the DVR.
BNC connector for CVBS video monitor.
RCA connector for audio in cable.
Switch for powering the DVR on and off
This port can be used for a USB mouse or USB memory device such as a flash drive or DVD burner. An additional USB port is located on
the front panel.
Connector HDMI monitor cable.
Connector VGA monitor cable.
RCA connector for audio out cable.
RJ-45 connector for Ethernet drop cable.
Connector for RS-485 devices. Connect the D+ and D- terminals to T+ and T- of PTZ receiver respectively.
Plug for 12 Vdc power adapter.
Ground terminal post.
17
13
12
10
8
18 16
15
14
11
9
3
4
7
8
9
10
11
12
6
4
1
7
5
3
2
ALI-DVR30xxH_SQ
1/22/14
Advertisement
Table of Contents
Related Manuals for ALIBI ALI-DVR3000H Series
Summary of Contents for ALIBI ALI-DVR3000H Series
- Page 1 This quick setup guide provides instructions to initially setup and use your new digital video recorder. For additional information on the extensive capabilities of your DVR, refer to the ALI-DVR3000H Series 960H Digital Video Recorder User Manual provided on CD with your system.
-
Page 2: Soft Keyboard
Item Name Function Action Effect Live view: Show menu. POWER Power on/off the device. Right click Menu: Exit current menu to upper level menu. Enables/Disables Remote Control. Single click: Live view: Select channel and show the quick set menu. Alphanumeric Buttons Switching to the corresponding channel in Live view or PTZ Control mode. -
Page 3: Step 2. Install Cameras
Click the appropriate icons to enter the password, then click the Enter icon. The default admin password is 1111. After the initial Alibi loading window (see above), a monitor resolution selection screen appears. The DVR will offer the optimal resolution for your monitor, but you can select another resolution if you prefer. At this screen, select the preferred resolution, then click Next, or allow the setup Wizard to open. - Page 4 Observint strongly recommends that you change the default admin user password to improve the security of your surveillance system. To change the admin password, check the New Admin Password box, then enter the new password in the New Password and Confirm fields.
-
Page 5: Step 4. Using The Menu System
In the camera setup wizard, you can initially select the recording mode for each camera attached to the camera input BNC connectors. To use this menu: Click here to open the camera graphical menu Click OK when the recording mode for each camera is selected. The Wizard will close and the DVR will present the Live View display. For more information about the Live View display, refer to the user manual. -
Page 6: Specifications
Capacity Up to 4TB SATA 1 SATA interface For additional information about using your system, refer to the ALI-DVR3000H Series 960H Digital Video Recorder User Manual External Interface Network Interface 1, RJ-45 10M/100M adaptive Ethernet provided on CD with your system.
