ALIBI ALI-TVR7032H Quick Setup Manual

ALI-TVR7032H 32-Channel IP/HD-TVI/Analog Network Digital Video Recorder Quick Setup Guide
This quick setup guide provides instructions to initially setup and use the ALI-TVR7032H digital video recorder (DVR). This device can record
video from IP, HD-TVI and analog (CCTV) cameras. For additional information on the extensive capabilities of your DVR, refer to the ALI-
TVR7032H 32-Channel HD-TVI Digital Video Recorder User Manual provided electronically with your system.

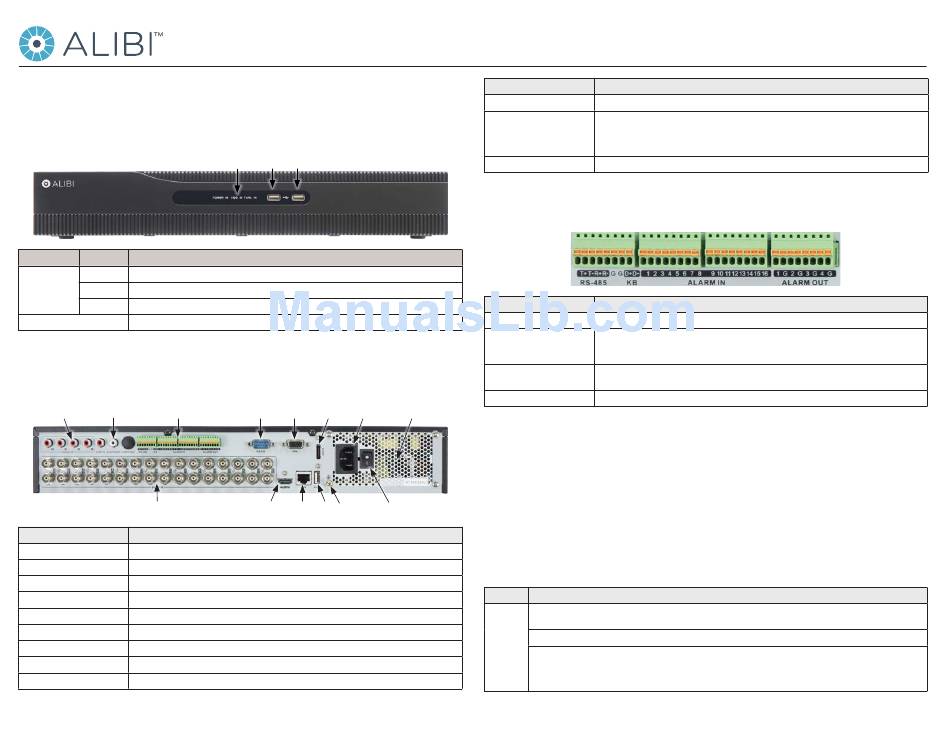

Front Panel
Name Function / Description
POWER Indicator is green when the unit is powered on. When the unit is off, the LED is red if power is available.
Status Indicators HDD HDD indicator blinks red when data is being read from or written to an HDD.
TX/RX Blinks green when the network connection is functioning normally.
USB Interfaces Universal Serial Bus (USB) ports for additional USB devices such as a mouse or Hard Disk Drive (HDD).
Backpanel
Audio In Audio Out RS-485, Alarms IN/OUT
HD-TVI/Analog camera video inputs (32)
Item Description
AUDIO IN RCA connector for audio channel input (1 .. 4)
AUDIO OUT BNC connector for audio line output. This connector is synchronized with VGA video output
Chassis Gnd Terminal for chassis ground. Connect to earth ground before powering on the DVR.
eSATA Connects external SATA HDD, CD/DVD-RW
HD-TVI/Analog video inputs HD-TVI interface for video input (32)
LAN Interface 10/100/1000BASE-T Ethernet network interface
ON / OFF Switch Switch for powering the device on or off
Power In AC 100V ~ 240V power supply.
RS-232 DB9 (male) connector for RS-232 devices
1
Status
indicators USB ports (2)
RS-232 VGA Out eSATA Power In Fan outlet
HDMI Out LAN USB Chassis Gnd ON / OFF switch
Item Description
RS-485, ALARMS IN/OUT See below, next topic
VGA - DB15 connector for VGA compatible monitor. Supports 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz,
1280 × 720 @ 60 Hz/, 1024 × 768 @ 60 Hz
VGA, HDMI Out
HDMI - HDMI connector for an HDMI compatible monitor. Supports 1920 × 1080 @ 60 Hz, 1280 × 1024 @ 60 Hz,
1280 × 720 @ 60 Hz/, 1024 × 768 @ 60 HzH
USB interface Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
RS-485, ALARMS IN/OUT
Item Description
RS-485 (T+, T-, R+. R-) T+ and T- pins connect to R+ and R- pins of PTZ receiver respectively.
Controller port:
KB D+, D- pin connects to Ta, Tb pin of controller.
For cascading devices, the first DVR's D+, D- pin should be connected with the D+, D- pin of the next DVR
Alarm inputs 1 - 16. Alarm input is tied to ground through the alarm sensor. See "Step 1. Connecting alarm devices to the DVR"
ALARM IN (1 through 16)
on page 2.
ALARM OUT (1-G through 4-G) Alarm outputs 1 - 4 with ground terminations. See "Step 1. Connecting alarm devices to the DVR" on page 2.
Mouse control
A standard 3-button (left/right/scroll-wheel) USB mouse can also be used with this DVR. To use a USB mouse:
1. Plug USB mouse into the either a front panel or backpanel USB connector of the DVR.
2. The mouse will be automatically detected. If the mouse is not detected, the mouse may not be compatible with the DVR. Please refer
to the recommended device list from your provider.
The operation of the mouse:
Action Effect
Single click: Live view: Select channel and show the quick set menu.
Menu: Select and enter.
Double click: Live view: Switch between single-screen and multi-screen.
Left click
Click and drag: PTZ control: pan, tilt and zoom.
Tamper-proof, privacy mask and motion detection: Select target area.
Digital zoom-in: Drag and select target area.
Live view: Drag channel/time bar
