ALI-QVR3100H Series Digital Video Recorder Quick Setup Guide
This guide provides instructions to initially setup the ALI-QVR3104H (4 channel), ALI-QVR3108H (8 channel) and ALI-QVR3104H (16 channel)
digital video recorders (DVR). The DVR supports these advanced features:
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS signal input
•
H.265+/H.265/H.264+/H.264 encoding
•
Supports real-time 1080p lite
•
Simultaneous HDMI / VGA / CVBS monitor output
•
4/8/16-channel synchronous playback
•
Supports VCA (Video Content Analytics) events for both analog and smart IP cameras, plus video quality diagnostics
•
DDNS and Guarding Vision P2P remote connectivity
•
For more information, refer to these documents - available at http://www.alibisecurity.com/resources.html:
Alibi Embedded Digital Video Recorder Firmware V3.4.x User Manual
•
ALIBI™ Tools Utility Installation and User Manual
•
ALIBI™ Witness 2.0 Smartphone App for Android - Quick Start Guide
•

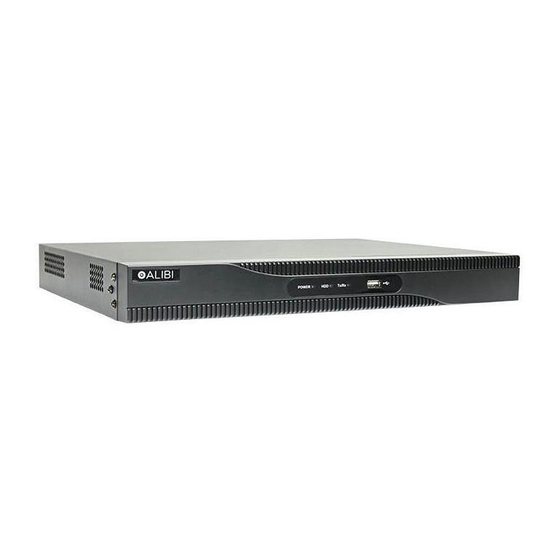

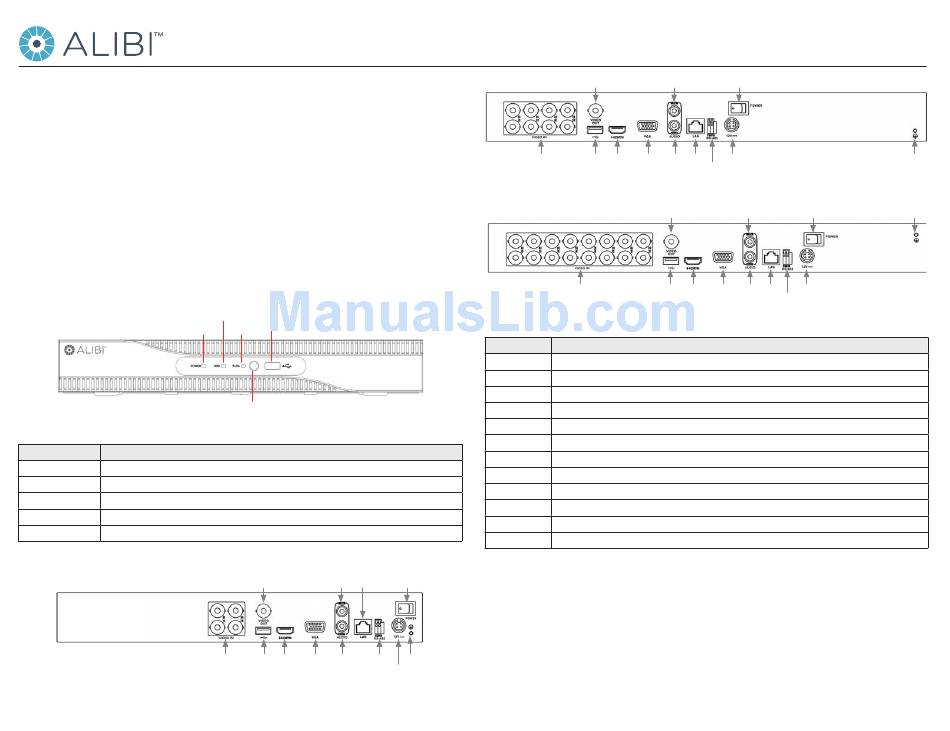

DVR Front Panel
Power LED
ALI-QVR3104H, ALI-QVR3108H and ALI-QVR3116H front panel features
Item Usage
Power LED Indicator turns green when DVR is powered up.
Status Indicator turns red when HDD is reading / writing.
TX / RX Indicator blinks green when network connection is functioning properly.
IR Receiver Sensor for the remote control.
USB Interface This port can be used for a USB mouse or USB flash memory devices.
DVR Back Panels
1
Status USB Interface
TX/RX
IR Receiver
Monitor Out (CVBS) Audio In LAN
RS-485
Video In USB HDMI, VGA Audio
Monitor Out Out
Power In (adapter)
ALI-QVR3104H back panel
Monitor Out (CVBS)
Video In
Item Description
VIDEO IN BNC connectors for camera video channels in. Number of channels is dependent on the model of the DVR.
Monitor Out (CVBS) BNC connector for CVBS video monitor.
AUDIO IN RCA connector for audio in cable.
ON / OFF switch Switch for powering the DVR on and off
USB Use this port for a USB mouse or USB memory device such as a flash drive or DVD burner. A USB port is also located on the front panel.
HDMI Connector HDMI monitor cable.
VGA Connector VGA monitor cable.
AUDIO OUT RCA connector for audio out cable.
LAN RJ-45 connector for Ethernet drop cable.
RS-485 terminations Connector for RS-485 devices. Connect the D+ and D- terminals to T+ and T- of PTZ receiver respectively.
12 Vdc Plug for 12 Vdc power adapter.
GND terminal Ground terminal post.
Mouse control
Power switch
A standard 3-button (left / right / scroll-wheel) USB mouse can also be used with this DVR. To use a USB mouse:
1. Plug the USB mouse into the either the front panel or back panel USB connector of the DVR.
2. The mouse will be automatically detected. If the mouse is not detected, the mouse may not be compatible with the DVR. Please refer
to the recommended device list from your provider.
Ground
Audio In Power switch
USB HDMI, VGA Audio LAN Power In (adapter)
Monitor Out Out RS-485
ALI-QVR3108H back panel
Monitor Out (CVBS) Audio In
Video In USB HDMI, VGA Audio
Monitor Out Out
ALI-QVR3116H back panel
Ground
Power switch Ground
LAN Power In (adapter)
RS-485
