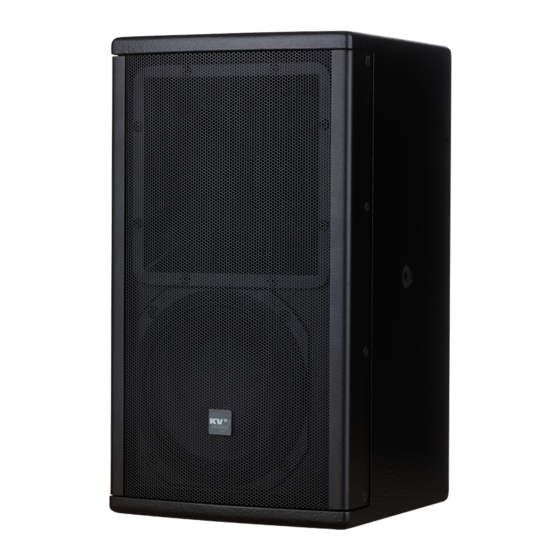

ESD6
ESD36
ESD10
ESD12
ESD15
The future of sound.
Made perfectly clear.
At KV2 Audio our vision is to constantly develop
technologies that eliminate distortion and
loss of information providing a true dynamic
representation of the source.
Our aim is to create audio products that absorb
you, place you within the performance and deliver
a listening experience beyond expectation.
ESD Series
User Guide
Advertisement
Table of Contents
Related Manuals for KV2 Audio ESD6
Summary of Contents for KV2 Audio ESD6
-
Page 1: User Guide
ESD12 ESD15 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation. -
Page 3: Table Of Contents
Contents ESD6 Overview Installation Frequency characteristics Specifications ESD36 Overview Installation Frequency characteristics Specifications ESD10 Overview Installation Frequency characteristics Specifications ESD12 Overview Installation Frequency characteristics Specifications ESD15 Overview Installation Frequency characteristics Specifications Accessories, Warranty Accessories Warranty... -
Page 4: Overview
Overview ESD6 ESD6 Application: KVV 987 206 Description: Connection: 16 Ohms / 175Watts 16 Ohms / 175Watts 16 Ohms / 175Watts 16 Ohms / 175Watts FULL RANGE FULL RANGE FULL RANGE FULL RANGE PARALLEL PARAL L EL PA R A L L E L... -
Page 5: Installation
M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. The ESD6 also features a 35mm speaker pole mount adapter housed at the bottom of the cabinet for use with conventional speaker stands and poles. -
Page 6: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 7: Specifications
Specifications ESD6 Specifications: System Acoustic Perfomance Max SPL Long-term 117dB Max SPL Peak 120dB -3dB Response 68Hz - 20kHz Recommended Power 175W Sensitivity 92dB Impedance 16Ω Crossover Point 2.0kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 8: Overview
KVV 987 224 design. It is designed according to KV2 Audio's philosophies and offers enhanced dynamic range, increased resolution and high output with incredibly low distortion figures. The ESD36 has a very good balanced frequency response and exceptional phase characteristics achieved by its electronic and acoustic design. -
Page 9: Installation
Installation Installation: Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 10: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 11: Specifications
Specifications ESD36 Specifications: System Acoustic Perfomance Max SPL Long-term 122dB Max SPL Peak 125dB -3dB Response 65Hz - 25kHz Recommended Power 350W Sensitivity 94dB Impedance 8Ω Crossover Point 600Hz, 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 12: Overview
It is designed according to KV2 Audio’s philosophies and offers enhanced dynamic range, increased resolution and high output with exceptionally low distortion figures. The ESD10 has a very good balanced frequency response and accurate phase characteristics achieved by its electronic and acoustic design. -
Page 13: Installation
Installation Installation: Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 14: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 15: Specifications
Specifications ESD10 Specifications: System Acoustic Perfomance Max SPL Long-term 125dB Max SPL Peak 128dB -3dB Response 65Hz - 20kHz Recommended Power 500W Sensitivity 96dB Impedance 4Ω Crossover Point 1.8kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 16: Overview
3” NVPD large format compression driver found in KV2 Audio’s flagship VHD products, makes the ESD12 one of the most balanced, phase coherent and accurate compact, 2-way passive boxes on the market today. -
Page 17: Installation
Installation Installation: Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 18: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 19: Specifications
Specifications ESD12 Specifications: System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 55Hz - 22kHz Recommended Power 500W Sensitivity 98dB Impedance 4Ω Crossover Point 1.2kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°... -
Page 20: Overview
Overview ESD15 ESD15 Application: KVV 987 313 Description: Connection: PARALLEL CONNECTION OF THE ESD15 (4Ω) - TOTAL IMPEDANCE 2Ω FULL RANGE 600Watts FULL RANGE 600Watts AUTO RESET PROTECTION AUTO RESET PROTECTION PARALLEL INPUTS PARALLEL INPUTS 4 Ohms 4 Ohms + (1+, 2+) + (1+, 2+) + (1+, 2+) + (1+, 2+) -
Page 21: Installation
Installation Installation: Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 22: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 50 Hz 500Hz 4 kHz 100 Hz 1kHz 8 kHz 200 Hz 2 kHz 16 kHz Vertical Polarplots 4 kHz... -
Page 23: Specifications
Specifications ESD15 Specifications: System Acoustic Perfomance Max SPL Long-term 126dB Max SPL Peak 129dB -3dB Response 48Hz ÷ 18kHz Recommended Power 500W Sensitivity 97dB Impedance 4Ω Crossover Point 500Hz, 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°... -
Page 24: Accessories
(Also available in white, RAL9003) HEAVY - DUTY HORIZONTAL BRACKET. BLACK HEAVY - DUTY VERTICAL BRACKET. BLACK PART NAME: PART NAME: ESD6 “U” HORIZONTAL BRACKET EX6, ESD6 “U” VERTICAL BRACKET PART NUMBER: PART NUMBER: KVV 987 222 KVV 987 148 PART NAME: PART NAME: ESD36 “U”... - Page 25 (with M20 screw thread) PART NUMBER: PART NUMBER: KVV 987 090 KVV 987 130 PADDED HEAVY DUTY COVERS PART NAME: PART NAME: COVER ESD6 COVER ESD10 PART NUMBER: PART NUMBER: KVV 987 210 KVV 987 211 PART NAME: PART NAME:...
-
Page 26: Warranty
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. - Page 28 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
