User Manual

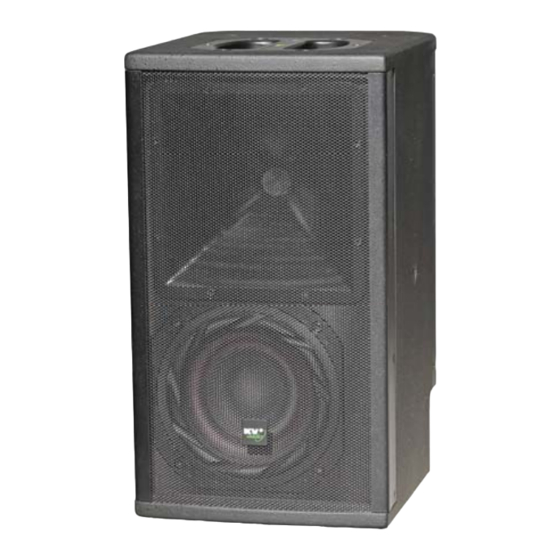

EX6
User Guide
The future of sound.
Made perfectly clear.
At KV2 Audio our vision is to constantly develop
technologies that eliminate distortion and
loss of information providing a true dynamic
representation of the source.
Our aim is to create audio products that absorb
you, place you within the performance and deliver
a listening experience beyond expectation.
Advertisement
Table of Contents
Related Manuals for KV2 Audio EX6
Summary of Contents for KV2 Audio EX6
-

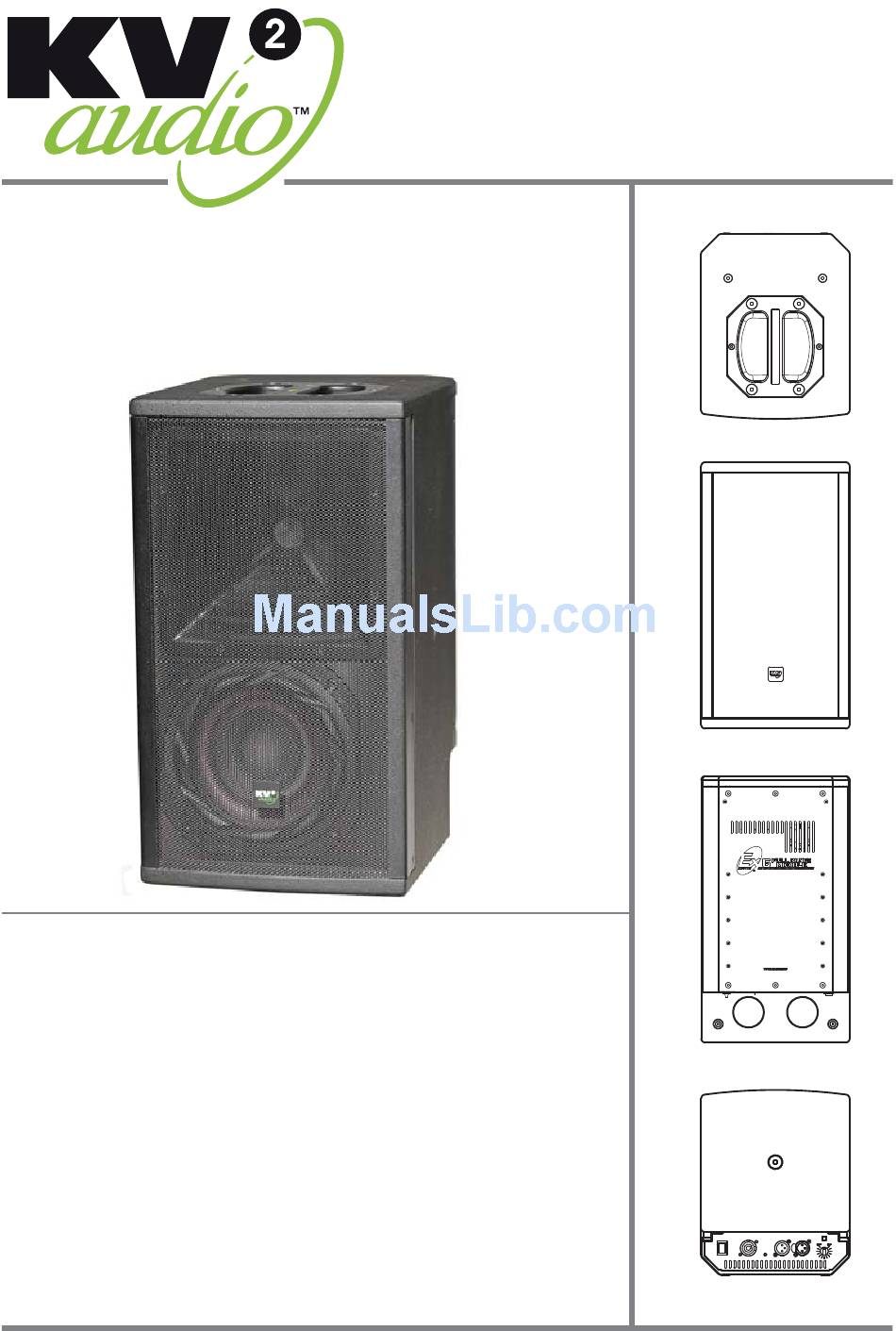

Page 1: User Guide
User Guide The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation. -
Page 2: Table Of Contents
Appendix A EX6 Specifications and Data Service In the unlikely event that your EX6 develops a problem, it must be returned to an authorised distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel. -
Page 3: How To Use This Manual
12. The device must be plugged into a mains socket NOTE the topic under discussion. outlet with a protective ground conductor. 13. Only use accessories specified by KV2 Audio. 14. Install the product only with rigging specified “TIP” offers a helpful by KV2 Audio, or sold with the loudspeaker. -
Page 4: Introducing The Ex6
Introducing the EX6 Acoustic Components The EX6 is a 2-way high output, active, KV2 Audio has developed a revolutionary compact, full-range speaker system. Design woofer technology called Trans-Coil™. The objectives for the EX6 were focused on the woofer has two coils, a standard voice coil expansion of KV2 Audio’s primary philosophy... -
Page 5: Enclosure Design
The handle’s M10 point is used alongside a Enclosure Design similar M10 point on the bottom of the box The EX6 is a very compact, asymmetrical when utilising an EX6 Horizontal Bracket geometry enclosure design allowing it Four principal mounting bolts also provide to be used in a variety of applications. -
Page 6: Chapter 1 Ac Power
AC Power voltage window. This ensures that NOTE The EX6 uses a PowerCon 3-pole AC main AC voltage variations from the service entry - system with locking connectors to prevent or peak voltage drops due to cable runs - do accidental disconnection. -
Page 7: Current Requirements
115V AC for proper operation. correspond to the terminals in your plug, use This allows up to six EX6’s to be powered the following guidelines: Connect the blue wire from one 15 A breaker at 115V and up to to the terminal marked with a N or coloured twelve EX6’s at 230V. -
Page 8: Chapter 2 Audio Signal
EX6 speakers with a paralleled input loop. The EX6 Control Panel If you are driving multiple EX6’s make certain The EX6 features an easy to use control panel that the source device can drive the total featuring AC power in, audio input and... -
Page 9: Audio Input And Output
Low Cut Switch output level of the speaker. The EX6 features a 90 Hz High Pass Filter. As temperature increases, so does fan speed. Pressing the button engages this filter As audio level increases, fan speed also... -
Page 10: Using Multiple Boxes
KV2 exploits the additional vertical tolerance It is very important not to use KV2 Audio that the brain has by only stacking multiple Mid-High boxes directly side by side. (Fig. A) -
Page 11: Ex6 Specifications And Data
System Acoustic Performance Specifications -3dB Response 68Hz – 20kHz and Data -10dB Response 62Hz – 28kHz Max SPL Long-term 117dB Max SPL Peak 120dB Crossover Point 2.0kHz High Frequency Section Throat Exit Diameter / Diaphragm Size 1” / 1.75” Diaphragm Material Nitride Titanium Magnet Type Neodymium... - Page 12 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
