EX10

User Guide

The future of sound.
Made perfectly clear.
At KV2 Audio our vision is to constantly develop
technologies that eliminate distortion and
loss of information providing a true dynamic
representation of the source.
Our aim is to create audio products that absorb
you, place you within the performance and deliver
a listening experience beyond expectation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX10 and is the answer not in the manual?

Questions and answers

Related Manuals for KV2 Audio EX10

Summary of Contents for KV2 Audio EX10

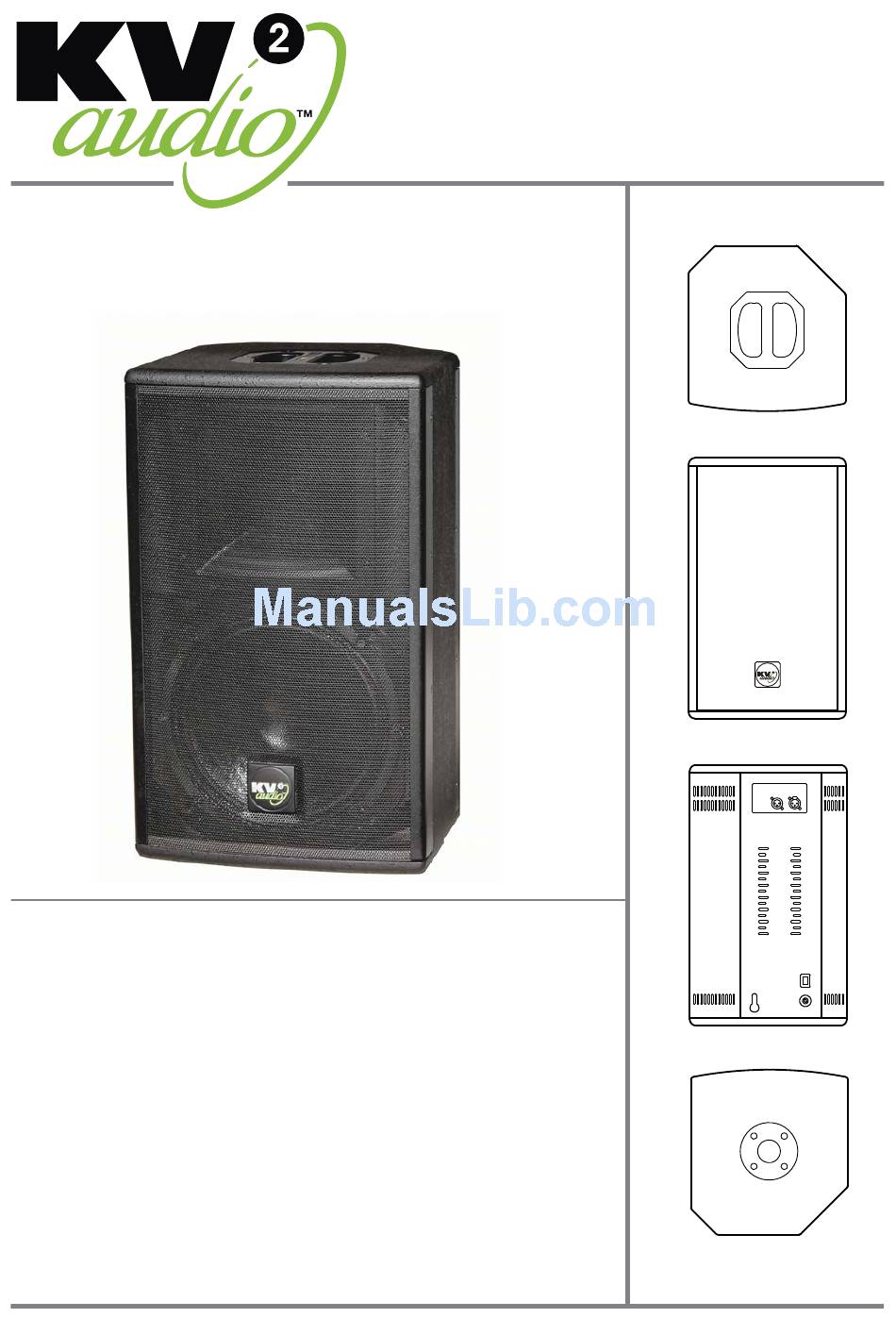

  • Page 1: User Guide

    EX10 User Guide The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.

  • Page 2: Table Of Contents

    Chapter 2: AUDIO SIGNAL Amplifiers and Acoustic Filters LED Status Lights Power On / Limiter LED Signal / Thermal LED Stage Monitor Filter Chapter 3: ROTATING THE EX10 HORN Appendix A: EX10 SPECIFICATIONS AND DATA Appendix B: EX10 ACCESSORIES EX10 DRAWING...

  • Page 3: Introduction

    An improved version of KV2 Audio’s against improper or potentially harmful activities. switch mode, current enhancing low frequency amplifi- Icons used include: er has been developed for the EX10. The new configu- ration improves overall system efficiency and increases “NOTE” identifies an impor-...

  • Page 4: Acoustic Components

    An extensive set of professional hardware fea- tures enables the EX10 to be used in a variety of envi- ronments using an array of industry standard hardware. These facilitate both portable and fixed installations EX10 USER GUIDE P.

  • Page 5: Chapter 1: Ac Power Requirements

    115V AC for proper operation. This allows up to three storage circuits are depleted. How long the loudspeak- EX10’s to be powered from one 15 A breaker at 115V er will continue to function during brownout depends on and up to 6 loudspeakers at 230V or 250V.

  • Page 6: Ac Cable Color Coding

    E readily accessible for operation. or colored green or green and yellow. 12. Only use accessories specified by KV2 Audio. 13. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker.

  • Page 7: The Ex10 Control Panel

    EX10 speakers with a paralleled input loop. If you are driving multiple EX10’s in an ar - The EX10 employs a protection system based on ray, make certain that the source device can drive the rms limiting of the amplifiers.

  • Page 8: Led Status Lights

    Signal / Thermal LED This LED turns green when there is audio signal pres- ent in the EX10. This signal indicator can be used to troubleshoot wiring problems. The LED will change from green to yellow under a thermal condition result- ing from overheating of the amplifier system.

  • Page 9: Chapter 3: Rotating The Ex10 Horn

    CHAPTER 3: ROTATING THE EX10 HORN The EX10 horn can be rotated ninety degrees in order to accommodate applications where the speaker will be used or installed horizontally. This can be accomplished by removing the front grill. Removing the horn, rotating and replacing the horn.

  • Page 10: Appendix A: Ex10 Specifications And Data

    APPENDIX A: EX10 SPECIFICATIONS AND DATA System Acoustic Perfomance Max SPL Long-term 126dB Max SPL Peak 129dB -3dB Response 65Hz - 20kHz -10dB Response 55Hz - 28kHz Crossover Point 1.6kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°...

  • Page 11: Appendix B: Ex10 Accessories

    APPENDIX B: EX10 ACCESSORIES, DRAWING EX10 ACCESSORIES Heavy duty cover for EX10 Top Hat Adapter for EX Brackets COVER EX10 Top Hat Adapter part name: part name: KVV 987 068 KVV 987 090 part number: part number: including connection bolts...
  • Page 12 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
