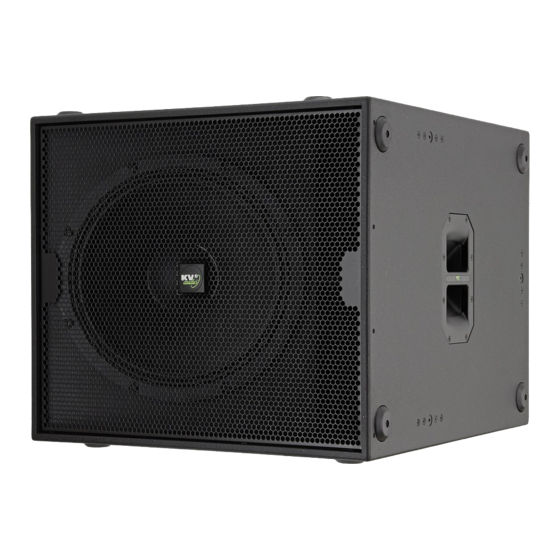

ES Series
User Guide
· ES1 .0 · ES1 .5 · ES1 .8 · ES2 .5 · ES2.6
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Related Manuals for KV2 Audio ES1.0
Summary of Contents for KV2 Audio ES1.0
-
Page 1: User Guide

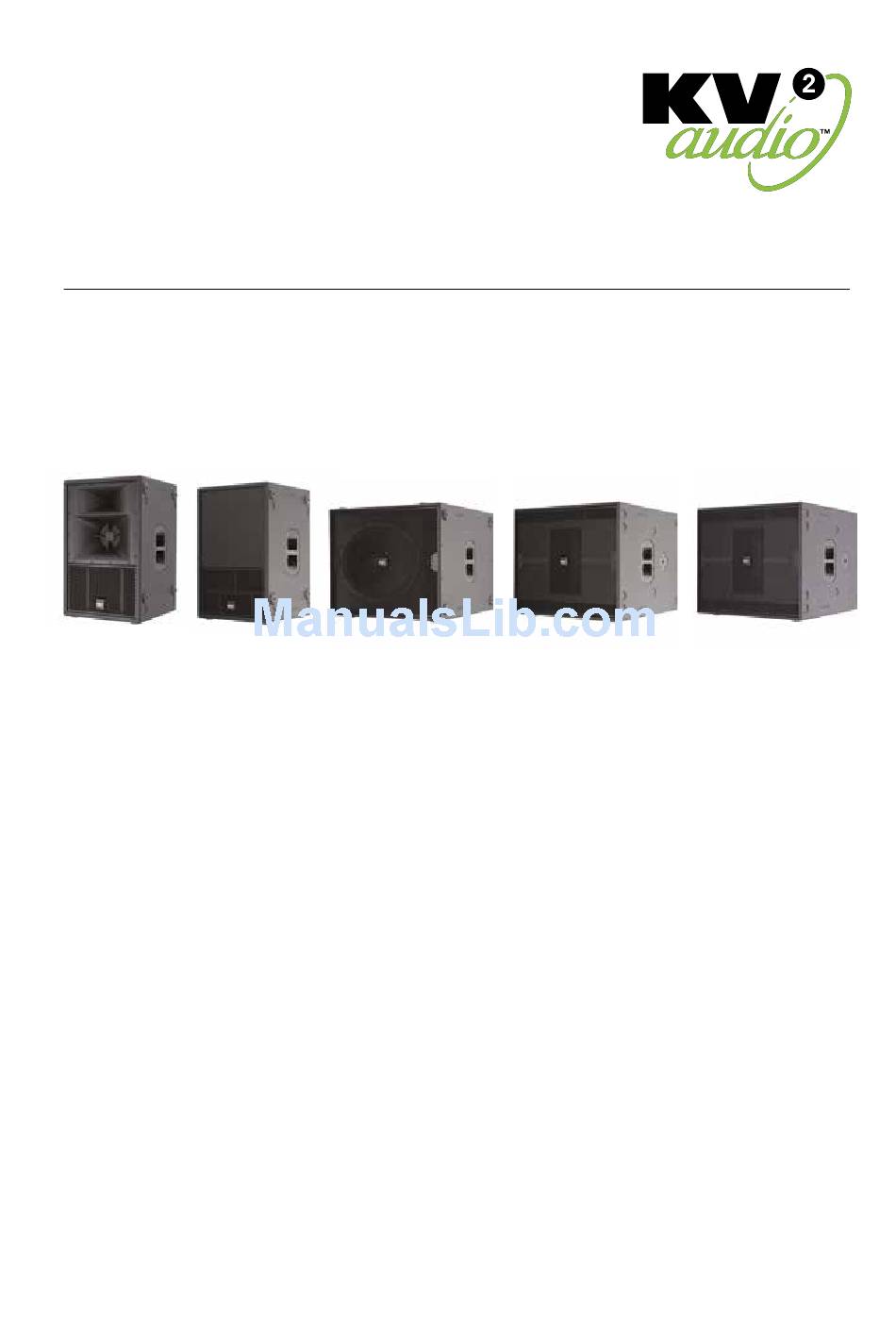

· ES1 .0 · ES1 .5 · ES1 .8 · ES2 .5 · ES2.6 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. -
Page 2: Table Of Contents
ES Series · Contents Contents ES1.0 ∙ Mid/High Module Overview Technology Specifications Frequency characteristics Drawing Accessories ES1.5 ∙ Compact Bass Module Overview Technology Specifications Drawing Accessories ES1.8 ∙ Bass Module Overview Technology Specifications Drawing Accessories ES2.5 / ES2.6 ∙ Bass Module... - Page 3 ES Modular Sound System Benefits Total flexibility Choose the active driven subwoofer combination you need for each application and venue. Rotate the ES1.0 horn to operate the system in either a horizontal or vertical stack. Lightest-weight compact active SR system yet All the benefits of active sound reinforcement technology but with the electronics in a separate module.
-
Page 4: Technology
Exclusive KV2 rotatable horn design for maximum flexibility The ES1.0 features a mid/high integrated horn design with a number of unique features. First, the horn can be rotated 90°, allowing for complete flexibility in selection of vertical, horizontal and left / right system set up. The horn design is based on constant-directivity geometry with an emphasis on maintaining low transducer compression ratios, high output and wide dispersion (90 x 40). -
Page 5: Specifications
ES1 .0 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 131dB Max SPL Peak 134dB -3dB Response 130Hz to 20kHz -10dB Response 85Hz to 28kHz Impedance Low 16Ω Mid 8Ω High 8Ω Crossover Point 130Hz, 500Hz, 2.5kHz High Frequency Section High Horn Coverage Horizontal / Vertical 90°... -
Page 6: Frequency Characteristics
ES1 .0 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz... -
Page 7: Drawing
The speaker system shall connect to the Amplifier/Controller Module via proprietary cables terminated in Amphenol AP-6 connectors. The three-way mid/high loudspeaker system shall be the KV2 Audio ES1.0. -
Page 8: Accessories
- 4 pcs in pack plate and two connection bolts Vertical bracket for ES1.0 Extended Joining Bracket for ES1.0 or ES1.5 + ES1.8 or ES2.5 part name: ES1.0 Vertical Bracket or ES2.6 part number: KVV 987 032 part name: BRCKT-02... -
Page 9: Es1.5 ∙ Compact Bass Module
Total flexibility Use one unit with the ES1.0 Mid/High enclosure, for small systems, or scale up to a maximum of three units for larger applications. Operate in either a horizontal or vertical stack with same dimensions and footprint as ES1.0. -
Page 10: Technology
Power for the system is provided by the EPAK unit Amplifier/Controller ensuring fast, easy set up and complete control. Together with the ES1.0 and EPAK 2500/R, they deliver the highest dynamic range of any system currently available providing new levels of clarity, depth and resolution. -
Page 11: Specifications
ES1 . 5 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 127dB (134dB - 3x ES1.5) Max SPL Peak 130dB (137dB - 3x ES1.5) -3dB Response 40Hz to 130Hz -10dB Response 36Hz to 130Hz Impedance 16Ω Crossover Point 130Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading... -
Page 12: Drawing
The speaker system shall connect to the Amplifier/Controller Module via proprietary cables terminated in Amphenol AP-4 connectors. The bass module shall be the KV2 Audio ES1.5. -
Page 13: Accessories
KVV 987 027 - 4 pcs in pack, (rotating), (blue) - 4 pcs in pack Extended Joining Bracket Horizontal bracket for ES1.0 or ES1.5 + ES1.8 or ES2.5 for ES1.0 or ES1.5 or ES2.6 part name: ES1.0 Horizontal Bracket part name: BRCKT-02... -
Page 14: Es1.8 ∙ Bass Module
ES Modular Sound System Benefits Total flexibility Use two units coupled horizontally or vertically with single ES1.0 Mid /High Module. Lightest-weight compact active SR system yet All the benefits of active sound reinforcement technology but with the electronics in a separate module. -
Page 15: Technology
Power for the system is provided by the EPAK unit Amplifier/Controller ensuring fast, easy set up and complete control. Together with the ES1.0 and EPAK/R unit, they deliver the highest dynamic range of any system currently available providing new levels of clarity, depth and resolution. -
Page 16: Specifications
ES1 . 8 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 131dB (136dB - 2x ES1.8) Max SPL Peak 134dB (139dB - 2x ES1.8) -3dB Response 37Hz to 130Hz -10dB Response 33Hz to 130Hz Impedance 8Ω Crossover Point 130Hz Low Frequency Section Acoustic Design Horn reflex loaded... -
Page 17: Drawing
The speaker system shall connect to the Amplifier/Controller Module via proprietary cables terminated in Amphenol AP-4 connectors. The bass module shall be the KV2 Audio ES1.8. -
Page 18: Accessories
WHL - KVV 987 128 part number: KVV 987 116 - 4 pcs in pack, (rotating), (blue) Extended Joining Bracket Heavy duty telescopic speaker for ES1.0 or ES1.5 + ES1.8 or ES2.5 pole for ES/EX series or ES2.6 part name: KV2-H part name: BRCKT-02... -
Page 19: Es2.5 / Es2.6 ∙ Bass Module
ES Modular Sound System Benefits Total flexibility Use one ES2.5 module or two ES2.6 modules to accompany a single ES1.0 Mid/High module. These can be placed vertically or horizontally. Lightest-weight compact active SR system yet All the benefits of active sound reinforcement technology but with the electronics in a seperate module. -
Page 20: Technology
Part of the matched, modular EPAK™ System Power for the system is provided by the EPAK amplification and control system from KV2 Audio ensuring fast, easy set up and complete control. Together with an ES Series Mid/High module and an EPAK system, they deliver the highest dynamic range of any system currently available providing new levels of clarity, depth and resolution. -
Page 21: Specifications
ES2 . 5 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 134dB Max SPL Peak 137dB -3dB Response 38Hz to 130Hz -10dB Response 34Hz to 130Hz Impedance 4Ω Crossover Point 130Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading Number of drivers Subwoofer Amplifier Requirement 1600W / ES2.5 from EPAK2500/R... -
Page 22: Specifications
ES2 . 6 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 132dB (137dB - 2x ES2.6) Max SPL Peak 135dB (140dB - 2x ES2.6) -3dB Response 38Hz to 130Hz -10dB Response 34Hz to 130Hz Impedance 8Ω Crossover Point 130Hz Low Frequency Section Acoustic Design Twin Asymmetrical loading... -
Page 23: Drawing
The speaker system shall connect to the Amplifier/Controller Module via proprietary cables terminated in Amphenol AP-4 connectors. The bass module shall be the KV2 Audio ES2.5 or ES2.6. -
Page 24: Accessories
CRT - 0009 - 4 pcs in pack, (rotating), (blue) part number: KVV 987 114 Extended Joining Bracket Heavy duty telescopic speaker for ES1.0 or ES1.5 + ES1.8 or ES2.5 pole for ES/EX series or ES2.6 part name: KV2-H part name: BRCKT-02... -
Page 25: Warranty · Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. - Page 26 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120070-00-06-0...
