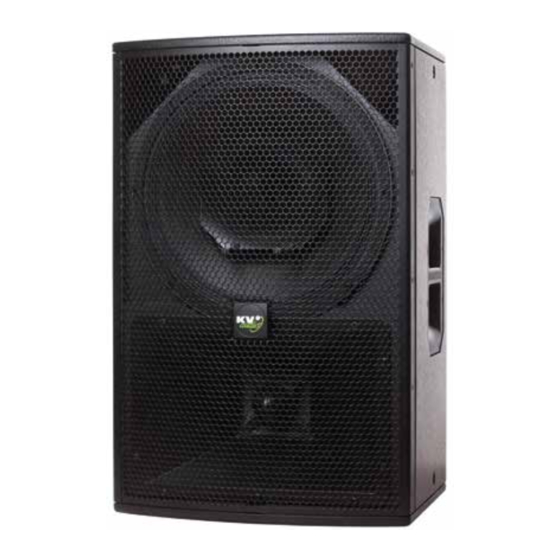

KV2 Audio EX28 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

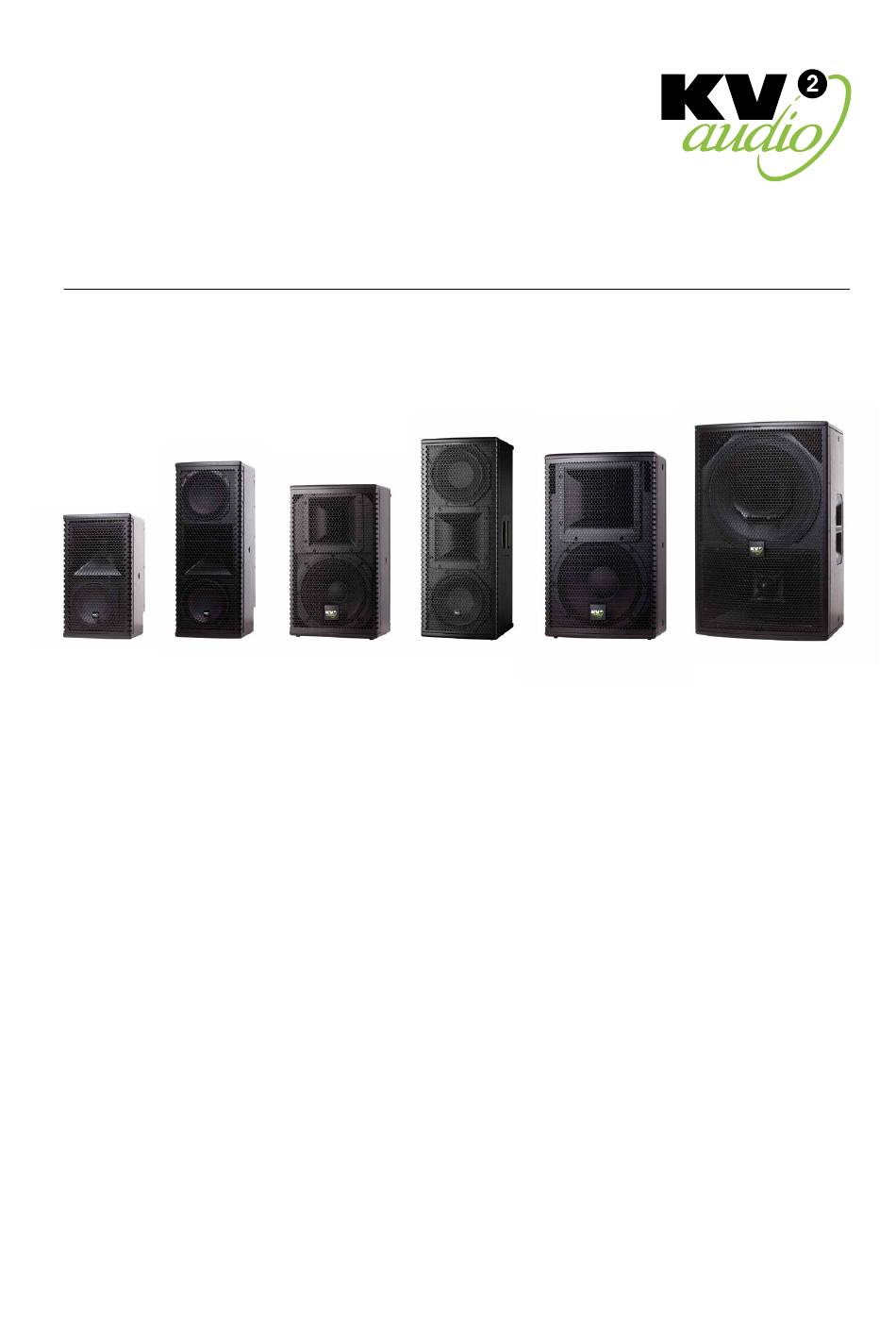

EX Series Speakers
User Guide
· EX6 · EX26 · EX10 · EX28 · EX12 · EX15
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KV2 Audio EX28

Summary of Contents for KV2 Audio EX28

  • Page 1 EX Series Speakers User Guide · EX6 · EX26 · EX10 · EX28 · EX12 · EX15 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source.
  • Page 2 The AC mains plug or appliance coupler shall remain readily accessible for operation. 12. Only use accessories specified by KV2 Audio. 13. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 14. Unplug this loudspeaker during lightning storms or when unused for long periods of time.

  • Page 3: Table Of Contents

    EX10 Overview 24 - 25 AC Power Requirements 26 - 27 Audio Signal 28 - 29 Specifications Frequency characteristics Drawings EX28 Overview 33 - 34 AC Power Requirements 35 - 36 Audio Signal 37 - 38 Specifications Frequency characteristics Drawings...

  • Page 4: Ex6

    The EX6 is a 2-way high output, active, compact, full-range speaker system. Design objectives for the EX6 were focused on the expansion of KV2 Audio's primary philosophy of speakers systems with increased dynamic range, very high output and a consistent sound character no matter what the output level. The EX6 sets new levels of performance for compact cabinets achieved through the integration of new amplifier, transducer and electronic control technologies that are closely tied to a passion for taking performance to the next level.
  • Page 5 EX6 · Overview Acoustic Components KV2 Audio has developed a revolutionary woofer technology called Trans-Coil™. The woofer has two coils, a standard voice coilassembly and a second coil placed directly onthe neodymium magnetic circuit's pole piece.This technology eliminates voice coil inductance resulting in a flat impedance response above the resonance point and achieves faster transient response through increased force and control of the moving mass.

  • Page 6: Ac Power Requirements

    EX6 · AC Power Requirements AC Power The EX6 uses a PowerCon 3-pole AC main system with locking connectors to prevent accidental disconnection. The main AC connector (blue) serves as the power input. The EX6 operates in either 115V or 230V modes. Althoug pre-configured at the factory, the unit's operating voltage mode can bechanged in the field.
  • Page 7 EX6 · AC Power Requirements Current Requirements Each EX6 requires approximately 2.5 Amps max at 115V AC for proper operation. This allows up to six EX6's to be powered from one 15 A breaker at 115V and up to twelve EX6's at 230V. The EX6 presents a dynamic load to the AC mains, which causes the amount of current to fluctuate depending on quiet or loud operating levels.

  • Page 8: Audio Signal

    EX6 · Audio Signal The EX6 Control Panel The EX6 features an easy to use control panel featuring AC power in, audio input and output, level control, LED status light and a High Pass filter. EX6 Rear panel Audio Input and Output The EX6 uses a balanced, female XLR connector for the audio input connector, and a male XLR connector to provide through output signal.
  • Page 9 Please contact KV2 Audio or a local service representative should the system enter a thermal condition under normal operating conditions. Transportation To keep your EX6 speakers in optimum condition we recommend transportation in an optional KV2 Audio EX6 padded nylon cover (EX6CVR) or a professional road case.

  • Page 10: Specifications

    EX6 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 117dB Max SPL Peak 123dB -3dB Response 68Hz to 20kHz -10dB Response 62Hz to 28kHz Crossover Point 2.0kHz High Frequency Section High Horn Coverage Horizontal / Vertical 100° x 100° Throat Exit Diameter / Diaphragm Size 1"...

  • Page 11: Frequency Characteristics

    EX6 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz...

  • Page 12: Using Multiple Boxes

    This very defined phase accuracy comes into play when trying to stack the speakers. It is very important not to use KV2 Audio Mid-High boxes directly side by side. (Fig. A) This will produce a poor quality sound cancelling out perfectly, which reduces overall output. Defined by the way our ears work, their position on our heads and the brain's understanding of the signals they produce, each ear will hear two sources in the horizontal plane very close together, but very slightly misaligned in arrival time.

  • Page 13: Drawings

    EX6 · Drawings Drawings...

  • Page 14: Ex26

    The EX26 is a 2-way high output, active, compact, Vocal speaker system. Design objectives for the EX26 were focused on the expansion of KV2 Audio's primary philosophy of speakers systems with increased dynamic range, very high output and a consistent sound character no matter what the output level. The EX26 sets new levels of performance for compact cabinets achieved through the integration of new amplifier, transducer and electronic control technologies that are closely tied to a passion for taking performance to the next level.
  • Page 15 EX26 · Overview Acoustic Components The EX26's patent pending NVPD neodymium compression driver is loaded on a constant directivity horn designed for smooth, wide dispersion performance. More importantly, it has also been designed to precisely match the power response of the woofers at the crossover frequency, a crucial design objective that ensures smooth transition and minimizes anomalies.

  • Page 16: Ac Power Requirements

    EX26 · AC Power Requirements AC Power Requirements The EX26 is an advanced self-powered loudspeaker with on-board amplification and control systems. Understanding power distribution, voltage and current requirements, as well as electrical safety issues, is critical to the safe operation of the EX26.
  • Page 17 EX26 · AC Power Requirements Current Requirements Each EX26 requires approximately 4 Amps max at 115V AC for proper operation. This allows up to three EX26's to be powered fromn one 15 A breaker at 115V and up to seven EX26's at 230V. The EX26 presents a dynamic load to the AC mains, which causes the amount of current to fluctuate depending on quiet or loud operating levels.

  • Page 18: Audio Signal

    EX26 · Audio Signal The EX26 Control Panel The EX26 features an easy to use control panel featuring AC power in, audio input and through output, level control, LED status light and a High Pass filter. EX26 Rear panel Audio Input and Output The EX26 uses a balanced, female XLR connector for the audio input connector, and a male XLR connector to provide through output signal.
  • Page 19 Please contact KV2 Audio or a local service representative should the system enter a thermal condition under normal operating conditions. Transportation To keep your EX26 speakers in optimum condition we recommend transportation in an optional KV2 Audio EX26 padded nylon cover (EX26CVR) or a professional road case.

  • Page 20: Specifications

    EX26 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 124dB Max SPL Peak 130dB -3dB Response 80Hz to 20kHz -10dB Response 65Hz to 28kHz Crossover Point 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°...

  • Page 21: Frequency Characteristics

    EX26 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz...

  • Page 22: Using Multiple Boxes, Drawings

    This very defined phase accuracy comes into play when trying to stack the speakers. It is very important not to use KV2 Audio Mid-High boxes directly side by side. (Fig. A) This will produce a poor quality sound cancelling out perfectly, which reduces overall output. Defined by the way our ears work, their position on our heads and the brain's understanding of the signals they produce, each ear will hear two sources in the horizontal plane very close together, but very slightly misaligned in arrival time.
  • Page 23 EX26 · Drawings Drawings...

  • Page 24: Ex10

    EX10's amplifier module. On-board electronics ensures fast, easy set up and complete control. An improved version of KV2 Audio's switch mode, current enhancing low frequency amplifier has been developed for the EX10. The new configuration improves overall system efficiency and increases...
  • Page 25 EX10 · Overview Acoustic Components KV2 Audio has developed a revolutionary woofer technology called Trans-Coil™. The woofer has two coils, a standard voice coil assembly and a second coil placed directly on the neodymium magnetic circuit's pole piece. This technology eliminates voice coil inductance resulting in a flat impedance response above the resonance point and achieves faster transient response through increased force and control of the moving mass.
  • Page 26 EX10 · AC Power Requirements AC Power The EX10 uses a PowerCon 3-pole AC main system with locking connectors to prevent accidental disconnection. The main AC connector (blue) serves as the power input. The EX10 operates in either 115V, 230V or 250V modes. Although pre-configured at the factory, the unit's operating voltage mode can be changed in the field.
  • Page 27 EX10 · AC Power Requirements Current Requirements Each EX10 requires approximately 5 Amps max at 115V AC for proper operation. This allows up to three EX10's to be powered from one 15 A breaker at 115V and up to 6 loudspeakers at 230V or 250V. The EX10 presents a dynamic load to the AC mains, which causes the amount of current to fluctuate depending on quiet or loud operating levels.
  • Page 28 2000 ohms (20kOhms divided by 10). The source equipment should have an output impedance of 200 Ohms or less. This is also true when connecting EX10's in parallel (loop out) with other KV2 Audio amplifiers and active speakers and subwoofers.
  • Page 29 Under normal operating conditions, the fan noise remains inaudible. Please contact KV2 Audio or a local service representative should the system enter a thermal condition under normal operating conditions.
  • Page 30 EX10 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 126dB Max SPL Peak 132dB -3dB Response 68Hz to 20kHz -10dB Response 55Hz to 28kHz Crossover Point 1.6kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°...
  • Page 31 EX10 · Frequency characteristics Frequency response Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz...
  • Page 32 EX10 · Drawings Drawings...
  • Page 33 Introduction The EX28 is a 2.5-way full-range active loudspeaker system that builds on the success of the EX26 whilst adding further low frequency extension. Its compact profile makes it ideal for a multitude of FOH and infill applications in Theatres, Leisure venues, Houses of Worship and Concert Halls, where the ultimate quality from a discreet loudspeaker solution is required.
  • Page 34 Enclosure Design The EX28 is a very compact, asymmetrical geometry enclosure design allowing it to be used in a variety of applications. A specially moulded aluminium handle was designed and fitted to the top of the cabinet. It functions as the principle...

  • Page 35: Ac Power Requirements

    The EX28 uses a PowerCon 3-pole AC main system with locking connectors to prevent accidental disconnection. The main AC connector (blue) serves as the power input. The EX28 operates in either 115V or 230V modes. Although pre-configured at the factory, the unit's operating voltage mode can be changed in the field.
  • Page 36 EX28 · AC Power Requirements Current Requirements Each EX28 requires approximately 4 Amps max at 115V AC for proper operation. This allows up to three EX28's to be powered fromn one 15 A breaker at 115V and up to seven EX28's at 230V.

  • Page 37: Audio Signal

    The input impedance for a single loudspeaker is 20 kΩ. If "n" represents the number of EX28 loudspeakers in a system, paralleling the inputs of n loudspeakers will produce a balanced input load of 20 kΩ divided by "n".
  • Page 38 2-3 minutes depending on the ambient temperature and whether the system is being exposed to direct sun light. The EX28 features a fin-less heatsink that allows it to operate in any position. There is also an internal fan located inside the amplifier module. The fan speed is dependent on two factors; the temperature of the heat sink and the output level of the speaker.

  • Page 39: Specifications

    EX28 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 126dB Max SPL Peak 132dB -3dB Response 62Hz to 20kHz -10dB Response 52Hz to 28kHz Crossover Point 2kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°...

  • Page 40: Frequency Characteristics

    EX28 · Frequency characteristics Frequency response Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz...

  • Page 41: Drawings

    EX28 · Drawings Drawings...

  • Page 42: Overview

    The EX12 is a 2-way high output, active, compact, fullrange speaker system. Design objectives for the EX12 were focused on the expansion of KV2 Audio's primary philosophy of speakers systems with increased dynamic range, very high output and a consistent sound character no matter what the output level. The EX12 sets new levels of performance for compact cabinets achieved through the integration of new amplifier, transducer and electronic control technologies that are closely tied to a passion for taking performance to the next level.
  • Page 43 EX12 · Overview Acoustic Components KV2 Audio has developed a revolutionary woofer technology called Trans-Coil™. The woofer has two coils, a standard voice coil assembly and a second coil placed directly on the neodymium magnetic circuit's pole piece. This technology eliminates voice coil inductance resulting in a flat impedance response above the resonance point and achieves faster transient response through increased force and control of the moving mass.

  • Page 44: Ac Power Requirements

    EX12 · AC Power Requirements AC Power The EX12 uses a PowerCon 3-pole AC main system with locking connectors to prevent accidental disconnection. The main AC connector (blue) serves as the power input. The EX12 operates in either 115V, 230V or 250V modes. Although pre-configured at the factory, the unit's operating voltage mode can be changed in the field.
  • Page 45 EX12 · AC Power Requirements Current Requirements Each EX12 requires approximately 5 Amps max at 115V AC for proper operation. This allows up to three EX12's to be powered from one 15 A breaker at 115V and up to 6 loudspeakers at 230V or 250V. The EX12 presents a dynamic load to the AC mains, which causes the amount of current to fluctuate depending on quiet or loud operating levels.

  • Page 46: Audio Signal

    For example, cascading an array of 10 units consisting of EX12 speakers produces an input impedance of 2000 ohms (20kOhms divided by 10). The source equipment should have output impedance of 200 ohms or less. This is also true when connecting EX12's in parallel (loop out) with other KV2 Audio amplifiers and active speakers and subwoofers.
  • Page 47 Under normal operating conditions, the fan noise remains inaudible. Please contact KV2 Audio or a local service representative should the system enter a thermal condition under normal operating conditions.

  • Page 48: Specifications

    EX12 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 133dB -3dB Response 55Hz to 22kHz -10dB Response 45Hz to 30kHz Crossover Point 1.1kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°...

  • Page 49: Frequency Characteristics

    EX12 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz...

  • Page 50: Drawings

    EX12 · Drawings Drawings...

  • Page 51: Overview

    EX15's amplifier module. On-board electronics ensure fast, easy set up and complete control. An improved version of KV2 Audio's switch mode, current enhancing low frequency amplifier has been developed for the EX15. The new configuration improves overall system efficiency and increases output allowing passive radiation of heat to take place through a unique "fin-less"...
  • Page 52 EX15 · Overview Acoustic Components The new EX15 incorporates a unique coaxial 15" transducer with a 1.75" Nitride Titanium Neodymium Compression. Driver on a wide dispersion 80 x 60 degree horn. Whilst most coaxial speakers will try to cover the full frequency response, the EX15's coaxial driver only covers bass and highs leaving the all important mid-range to a 6"...

  • Page 53: Ac Power Requirements

    EX15 · AC Power Requirements AC Power The EX15 uses a PowerCon 3-pole AC main system with locking connectors to prevent accidental disconnection. The main AC connector (blue) serves as the power input. The EX15 operates in either 115V, 230V or 250V modes. Although pre-configured at the factory, the unit's operating voltage mode can be changed in the field.
  • Page 54 EX15 · AC Power Requirements Current Requirements Each EX15 requires approximately 5 Amps max at 115V AC for proper operation. This allows up to three EX15's to be powered from one 15 A breaker at 115V and up to 6 loudspeakers at 230V or 250V. The EX10 presents a dynamic load to the AC mains, which causes the amount of current to fluctuate depending on quiet or loud operating levels.

  • Page 55: Audio Signal

    2000 ohms (20kOhms divided by 10). The source equipment should have an output impedance of 200 Ohms or less. This is also true when connecting EX15's in parallel (loop out) with other KV2 Audio amplifiers and active speakers and subwoofers.
  • Page 56 Under normal operating conditions, the fan noise remains inaudible. Please contact KV2 Audio or a local service representative should the system enter a thermal condition under normal operating conditions.

  • Page 57: Specifications

    EX15 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 129dB Max SPL Peak 135dB -3dB Response 44Hz to 18kHz -10dB Response 38Hz to 22kHz Crossover Point 500Hz, 2.7kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°...
  • Page 58 EX15 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz...

  • Page 59: Drawings

    EX15 · Drawings Drawings...
  • Page 60 EX Series Speakers · Accessories PADDED HEAVY DUTY COVERS Cover for EX6 Cover for EX26 part name: part name: Cover EX6 Cover EX26 part number: part number: KVV 987 159 KVV 987 209 description: description: - heavy duty - heavy duty - padded - padded Cover for EX10...
  • Page 61 - for EX10, ESD10 - black - black - including two - including two connection bolts connection bolts and bracket Horizontal Bracket for EX28 Vertical Bracket for EX28 part name: part name: EX28 Horizontal Bracket EX28 Vertical Bracket part number: part number:...
  • Page 62 EX Series Speakers · Accessories Horizontal bracket for EX12 Vertical bracket for EX12 part name: part name: EX12 Horizontal Bracket EX12 Vertical Bracket part number: part number: KVV 987 058 KVV 987 488 description: description: - for EX12 - for EX12, ESD12 - black - black - including two...
  • Page 63 EX Series Speakers · Accessories Grill fine options for EX6, EX26, EX10 and EX12 Grill - fine for EX6 part name: EX6 Grill - fine part number: KVV 987 350 description: - elegant design - suitable for installations Grill - fine for EX26 part name: EX26 Grill - fine part number:...

  • Page 64: Rotating The Ex10 / Ex12 Horn

    EX Series Speakers · Accessories Speaker pole - universal description: part name: KV2-H - Heavy duty telescopic min - max part number: speakerpole 735 mm - 1230 mm 28,937" - 48.425" KVV 987 130 - 0,735 to 1,23 m - diameter 35 mm - weight 2,2 kg - max.

  • Page 65: Warranty · Service

    If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.
  • Page 66 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120118-00-03-0...
