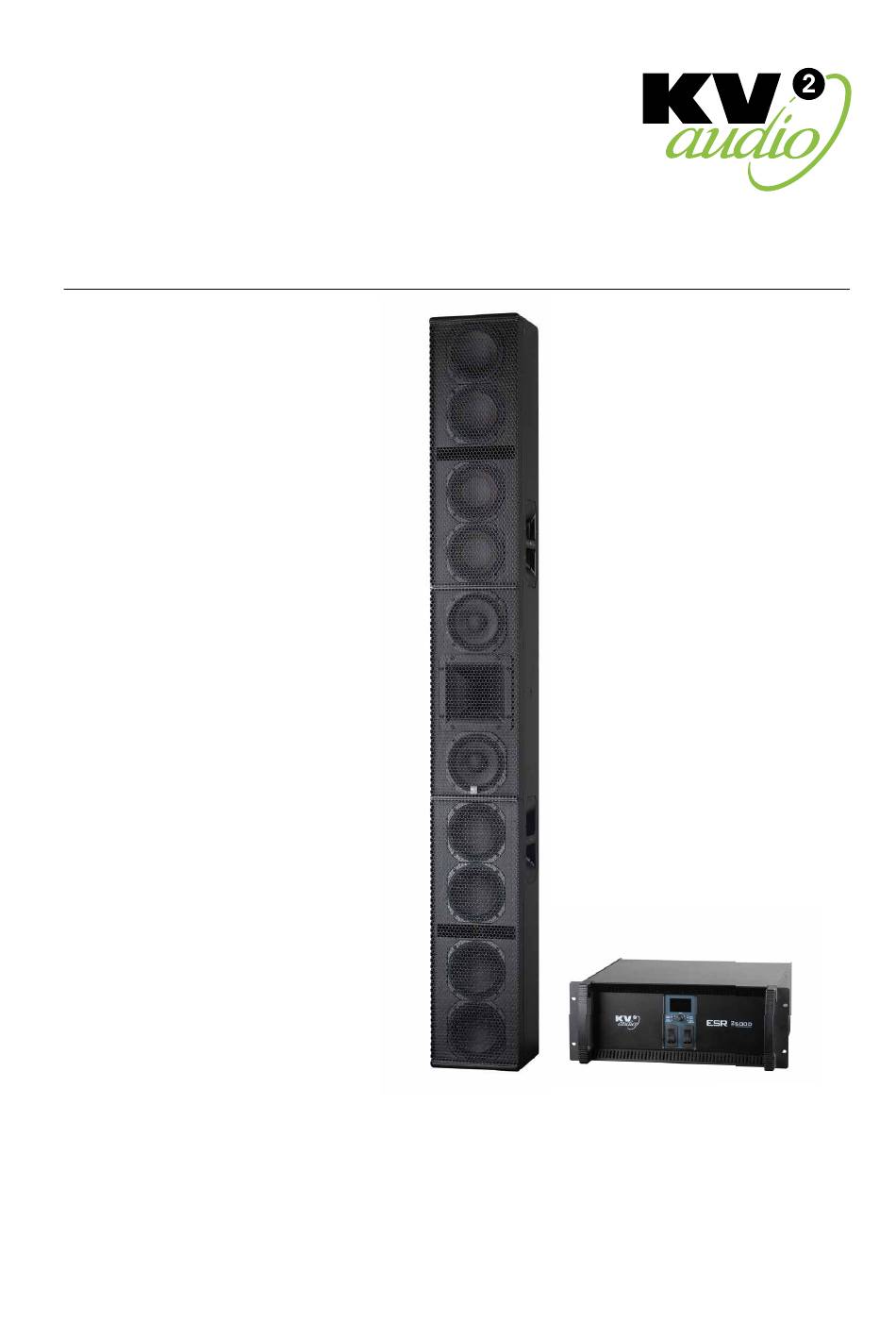

ESR Series
User Guide

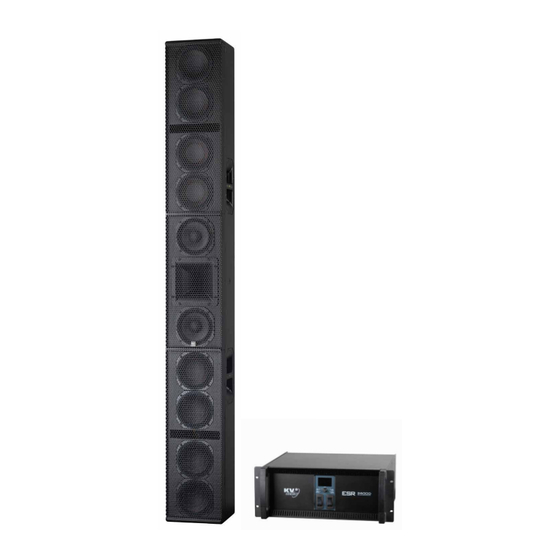

ESR106 · ESR2600D
The Future of Sound. Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss
of information providing a true dynamic representation of the source.
Our aim is to create audio products that absorb you, place you within the performance and deliver
a listening experience beyond expectations.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KV2 Audio ESR106
Summary of Contents for KV2 Audio ESR106
- Page 1 ESR106 · ESR2600D The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver...
- Page 2 The AC mains plug or appliance coupler shall remain readily accessible for operation. 12. Only use accessories specified by KV2 Audio. 13. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 14. Unplug this loudspeaker during lightning storms or when unused for long periods of time.
-
Page 3: Table Of Contents
ESR Series · Content Content Introduction ESR Series / ESR Brackets and Flybars / Warning Introduction ESR106 Introduction Specifications Frequency characteristics Drawing ESR2600D Introduction Getting Started - Unpacking / Amplifier rack mounting / Cooling / AC Requirements 11 - 12... -
Page 4: Introduction Esr Series / Esr Brackets And Flybars / Warning
Rigging configurations as executed in practice by users. It is expressly the sole responsibility of the user to ensure that at all times any KV2 Audio product, or system is Ground stacked, suspended and rigged in accordance with current International and local regulations. -
Page 5: Esr106
• ALWAYS used in a vertical orientation Introduction The ESR106 is an active driven 3 way system employing a unique column array of multiple 6“ woofers for unparalleled high quality vocal and music reproduction in challenging acoustical spaces and ambient environments. -
Page 6: Specifications
ESR106 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 131dB Max SPL Peak 134dB -3dB Response 60Hz to 20kHz -10dB Response 52Hz to 28kHz Crossover Point 450Hz, 2.4kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 7: Frequency Characteristics
ESR106 · Frequency characteristics Frequency response Horizontal Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz Vertical Polarplots 73Hz - 250Hz 500Hz - 2kHz 4kHz - 16kHz 73Hz 500Hz 4kHz... -
Page 8: Drawing
The speaker system shall connect to the Amplifier/Controller Module via proprietary cables terminated in Amphenol AP-6 connectors. The three-way loudspeaker system shall be the KV2 Audio ESR106. -
Page 9: Esr2600D
The ESR2600D is a two channel (stereo) three-way, active control and amplification system specially designed for the KV2 Audio ESR106 full range loudspeaker system. It houses all signal processing and amplification, as well as providing control and crossover functions for adding external subwoofer cabinets if required, utilizing external amplifiers. The ESR26000D is now configurable via the front panel or remotely using the KV2 Control &... -
Page 10: Getting Started - Unpacking / Amplifier Rack Mounting / Cooling / Ac Requirements
ESR2600D · Getting Started Unpacking Unpack the ESR2600D Amplifier and check for any damage. If you find any damage, notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials for the carrier's inspection. - Page 11 ESR2600D · Getting Started AC Requirements Two PowerCon cables are provided to connect the ESR2600D Amplifier to suitable AC power supplies. Each cable powers each separate amplifier channel for sufficient current delivery. THE ESR2600D REQUIRES A GROUND CONNECTION. ALWAYS USE A GROUNDED OUTLET AND PLUG. The PowerCon is a connector without any circuit breaking capability, i.e.
-
Page 12: Front Panel
ESR2600D · Front panel Front Panel 1) AC Mains Switch The ESR2600D has combination AC mains switch/circuit breakers on the front panel. If either of the switches shut off during normal use, push it back to the ON position once. If it will not stay on you should take the unit to qualified service personnel to have it serviced. - Page 13 ESR2600D · Rear panel Rear Panel ESR2600D 1) Main Input / Through Out These are the input XLR connectors for channel A & B with associated 'Through Output' connectors for sending signal to other devices. 2) Sub out Balanced XLR output connector Sub out Balanced XLR output connector, crossed over LPF, used to connect additional subwoofers.
-
Page 14: Rear Panel
LED is activated. When Ethernet communication is in progress, the orange LED flashes. 8) Speaker AP6 Connectors Accepts a standard AP6 terminated loudspeaker cable for connecting up to a single ESR106 cabinet. We recommend using 2.5mm/six core cables. -
Page 15: Display Menu Description
Switches in the summing of SUB OUTs A & B to produce a summed mono sub output. FULL RANGE When ON, full range signal is reproduced by the ESR106 cabinets, when OFF the ESR 106’s will only operate down to 70Hz, requiring an additional external subwoofer for enhanced low frequency reproduction. - Page 16 ESR2600D · Web-server ESR2600D Web-server The ESR2600D web-server is accessible using a standard web browser on PC or mobile device. The appropriate ESR2600D network address must be set to access web-server. The web-browser device IP address must be set from the same network range and must be connected into the same network.
-
Page 17: Web-Server
ESR2600D · Remote management Web-server page Open the ESR2600D web-server, use the ESR2600D IP address, which is shown on display - section NET, or can be obtained using the KV2 diagtool software. 2600 Overview Shows the amplifier basic information. Basic Information Shows the information assigned by user of the amplifier: Description, Amplifier name, Location, Contact, Uptime. - Page 18 ESR2600D · Remote management Channels Shows the amplifier control parameters and amplifier diagnostics information. Control Changes the amplifier A&B control parameters, Full range (ON or OFF) , SUB Mono (ON or OFF), Mute (RED = amplifier muted), Input level (-24 to +6 dB), SUB level (-24 to +6 dB), Band mute (SUB, LOW, MID, HI mute ON or OFF) Diagnostics Shows amplifier diagnostics information.
- Page 19 ESR2600D · Remote management Diagnostics Shows the ESR2600D amplifier and its components diagnostics information. Dual colour - Green = OK / Red = no power or some problem occurs. Device Sums ESR2600D diagnostics together Channel A & B Sums amplifier channel diagnostics information: Power source, Temperature, Health (amplifiers A / B LOW, MID, HI working OK with dedicated gain) Temperature Displays amplifiers heat sinks A &...
- Page 20 ESR2600D · Remote management Settings Shows and sets the device information, web-server password, network address. Device identification Shows and sets the device local information, Device name, Location, Contact. Security Sets name and password for web-server security (default User name: admin, default Password: admin) Network Sets the Ethernet IP mode.
-
Page 21: Specifications
ESR2600D · Specifications Specifications Output Channels Number of Channels 2 (stereo) Total Output Power 2x 1300W High Frequency Amplifier Specification Type Class AB - Push Pull - Low IM Design, Transformer balanced output Rated Continuous Power 100W Distortion <0.02% Operating Bandwidth 2.4kHz to 40kHz Mid Frequency Amplifier Specification Type... - Page 22 ESR2600D · Using the System Full range setup ESR106 ESR106 Set ESR2600D Amplifier to FULL RANGE ON mode. ESR106 cabinets plays full range signal.
-
Page 23: Using The System - Full Range Setup / External Subwoofer Setup
ESR2600D · Using the System External subwoofer setup ESR106 ESR106 Set ESR2600D Amplifier to FULL RANGE OFF mode. Signal is crossed over at Hi/Mid for ESR106 cabinets and SUB for external subwoofer. SUB SET UP LEVEL setting depends on which subwoofer unit is used. -
Page 24: Accessories
ESR Series · Accessories Mid/Hi speaker cable MH15 part name: Cable MH15 part number: KVV 987 147 description: - 6 wire speaker cable - AP6 connectors - 1,5 m (5ft) length - daisy-chaining - Mid/Hi Module connection or for Mid/Hi Module Mid/Hi speaker cable MH60 part name: Cable MH60... - Page 25 ESR Series · Accessories Cable KIT part name: CABLE-KIT part number: KVV 987 047 description: - 2 pcs LF15 - 1pc LF40 - 1pc MH60 - consist of four - high-quality Amphenol AP cable assemblies Amphenol AP6 connector part name: AP-6-11 part number: KA031...
- Page 26 ESR Series · Accessories Parts & Components The ESR BRACKETS and FLYBARS consist of Vertical Bracket for ESR106. Vertical Bracket for ESR106 part name: Vertical Bracket ESR106 part number: KVV 987 516 description: - 1 pc allen key - 3 pcs M10 x 35 Hex screws...
-
Page 27: Warranty · Service
In the unlikely event that your ESR Series develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to the KV2 Audio factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel. -
Page 28: Notes
ESR series · Notes... - Page 29 ESR series · Notes...
- Page 30 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120158-00-01-0...
