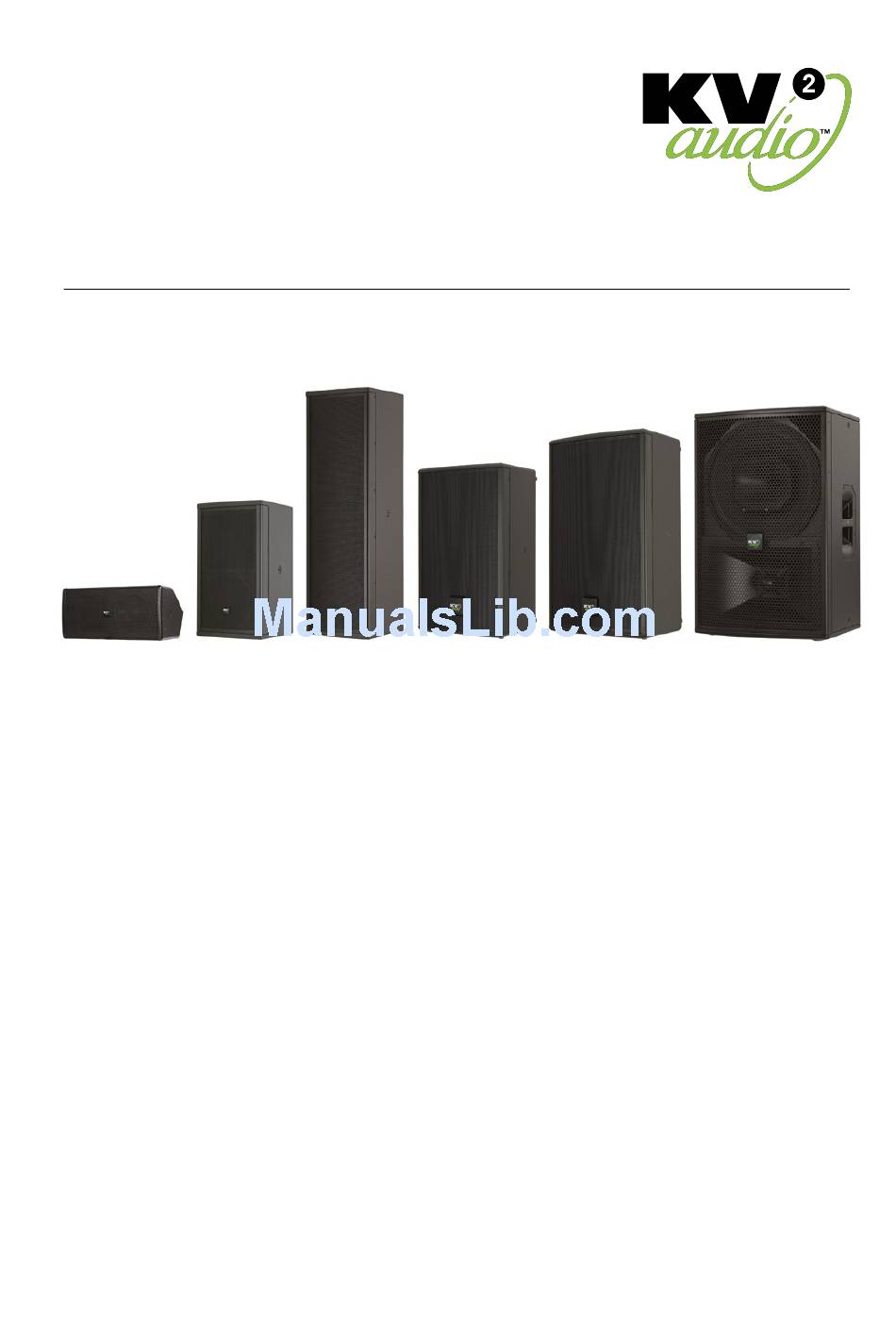

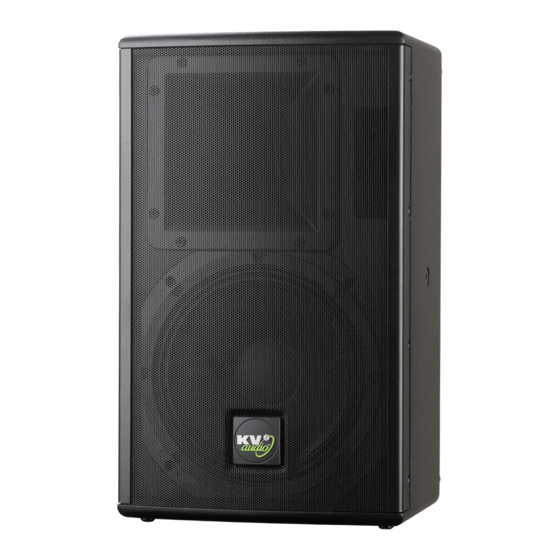

ESD Series
User Guide
· ESD5 · ESD6 · ESD36 · ESD10 · ESD12 · ESD15
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KV2 Audio ESD5
Summary of Contents for KV2 Audio ESD5
-
Page 1: User Guide
ESD Series User Guide · ESD5 · ESD6 · ESD36 · ESD10 · ESD12 · ESD15 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. -
Page 2: Table Of Contents
Contents CONTENTS ESD5 Overview Installation Frequency characteristics Specifications ESD6 Overview Installation Frequency characteristics Specifications ESD36 Overview Installation Frequency characteristics Specifications ESD10 Overview Installation Frequency characteristics Specifications ESD12 Overview Installation Frequency characteristics Specifications ESD15 Overview Installation Frequency characteristics Specifications ACCESSORIES ACCESSORIES - WARRANTY - SERVICE... -
Page 3: Overview
The ESD5’s high impedance capability means that up to sixteen units can be run from a single suitable quality stereo amplifier, to provide a high fidelity background program throughout a venue. -
Page 4: Installation
ESD5 Wall Bracket. To enable fixing to a ceiling or alternatively to the wall, measure out the center point of the ESD5 Wall bracket. There are two extra holes on the Wall Bracket, designed to accept locking screws - this side belongs on the rear side of the ESD5 cabinet. -
Page 5: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots Vertical Polarplots... -
Page 6: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 114dB Max SPL Peak 117dB -3dB Response 130Hz - 22kHz Recommended Power 100W Sensitivity 89dB Impedance 16Ω Crossover Point 3.0kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 90°... -
Page 7: Overview
Overview ESD6 - part number KVV 987 206 The Ultimate Compact Passive System Applications • Specifically designed as a passive loudspeaker for reprodu- ction of recorded music in small areas • Suitable in Fixed installations as full range stand-alone or with subwoofers •... -
Page 8: Installation
Installation Installation Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 9: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 10: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 117dB Max SPL Peak 120dB -3dB Response 68Hz - 20kHz Recommended Power 175W Sensitivity 92dB Impedance 16Ω Crossover Point 2.0kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 11: Overview
Domestic and Professional studio monitoring Introductions One of the more unique loudspeakers offered by KV2 Audio the ESD36 is a passive, full-range 3-way speaker system for speech and music reproduction. The ESD36 features a 6” driver dedicated to high-quality mid-range reproduction and a further two low frequency 6” drivers for enhanced bass extension. -
Page 12: Installation
Installation Installation Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 13: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 14: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 122dB Max SPL Peak 125dB -3dB Response 65Hz - 25kHz Recommended Power 350W Sensitivity 94dB Impedance 8Ω Crossover Point 600Hz, 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 15: Overview
Multi-purpose fixed installations • Personal monitoring • Infill for larger main KV2 Audio systems Introductions The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10” trans-coil woofer and a wide dispersion rotatable horn. The ESD10 provides a smooth hi fidelity response and delivers sound quality and level that is superior to many larger competing products. -
Page 16: Installation
Installation Installation Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 17: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 18: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 125dB Max SPL Peak 128dB -3dB Response 65Hz - 20kHz Recommended Power 500W Sensitivity 96dB Impedance 4Ω Crossover Point 1.8kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 100°... -
Page 19: Overview
Overview ESD12 - part number KVV 987 199 The Ultimate Passive System Applications • Designed as a passive loudspeaker for the highest quality vocal and full range live performance in medium areas • Suitable for medium to large conference, Theatre and small to medium scale concerts •... -
Page 20: Installation
Installation Installation Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 21: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 500 Hz - 2 kHz, 6 dB/div 50 Hz - 200 Hz, 6 dB/div 4 kHz - 16 kHz, 6 dB/div 0° 0° 0° 30° -30° 30° -30° 30° -30° 60° -60° 60° -60° 60°... -
Page 22: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 55Hz - 22kHz Recommended Power 500W Sensitivity 98dB Impedance 4Ω Crossover Point 1.2kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°... -
Page 23: Overview
Overview ESD15 - part number KVV 987 313 The Full Range Passive System Applications • Specifically designed as a true full-range, passive loudspea- ker for high quality, high output portable music playback and live performance in small areas • High quality fixed installations without subwoofer Introductions The new ESD15 incorporates a unique coaxial 15”... -
Page 24: Installation
Installation Installation Installations should be carried out using KV2 Audio’s horizontal or vertical U brackets. They are mounted vertically using M10 points located on the side of the cabinet or in the top handle and bottom M10 plate (supplied with horizontal bracket) for horizontal fixing and to a mounting post with a diameter of 35mm using a support flange. -
Page 25: Frequency Characteristics
Frequency characteristics Frequency response Horizontal Polarplots 50 Hz - 200 Hz, 6 dB/div 500 Hz - 2 kHz, 6 dB/div4 kHz - 16 kHz, 6 dB/div 0° 0° 0° -30° 30° -30° 30° -30° 30° -60° 60° -60° 60° -60° 60°... -
Page 26: Specifications
Specifications System Acoustic Perfomance Max SPL Long-term 126dB Max SPL Peak 129dB -3dB Response 48Hz - 18kHz Recommended Power 500W Sensitivity 97dB Impedance 4Ω Crossover Point 500Hz, 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical 80°... - Page 27 Accessories Cover for ESD6 Cover for ESD36 part name: part name: COVER ESD6 COVER ESD36 part number: part number: KVV 987 210 KVV 987 260 description: description: - heavy duty - heavy duty - padded - padded Cover for ESD10 Cover for ESD12 part name: part name:...
- Page 28 - 4 wire speaker cable - 4 wire speaker cable - Speakon NL4 connectors - Speakon NL4 connectors - 1,5m (5ft) - 4m (13ft) Wall Mount Bracket ESD5 part name: WALL MOUNT BRACKET ESD5 (included with the product) part number: KVV 987 344...
- Page 29 If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer.
- Page 30 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120050-00-13-0...
