ESM Series
User Guide
· ESM26 · ESM12 · ESM312
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KV2 Audio ESM312
Summary of Contents for KV2 Audio ESM312

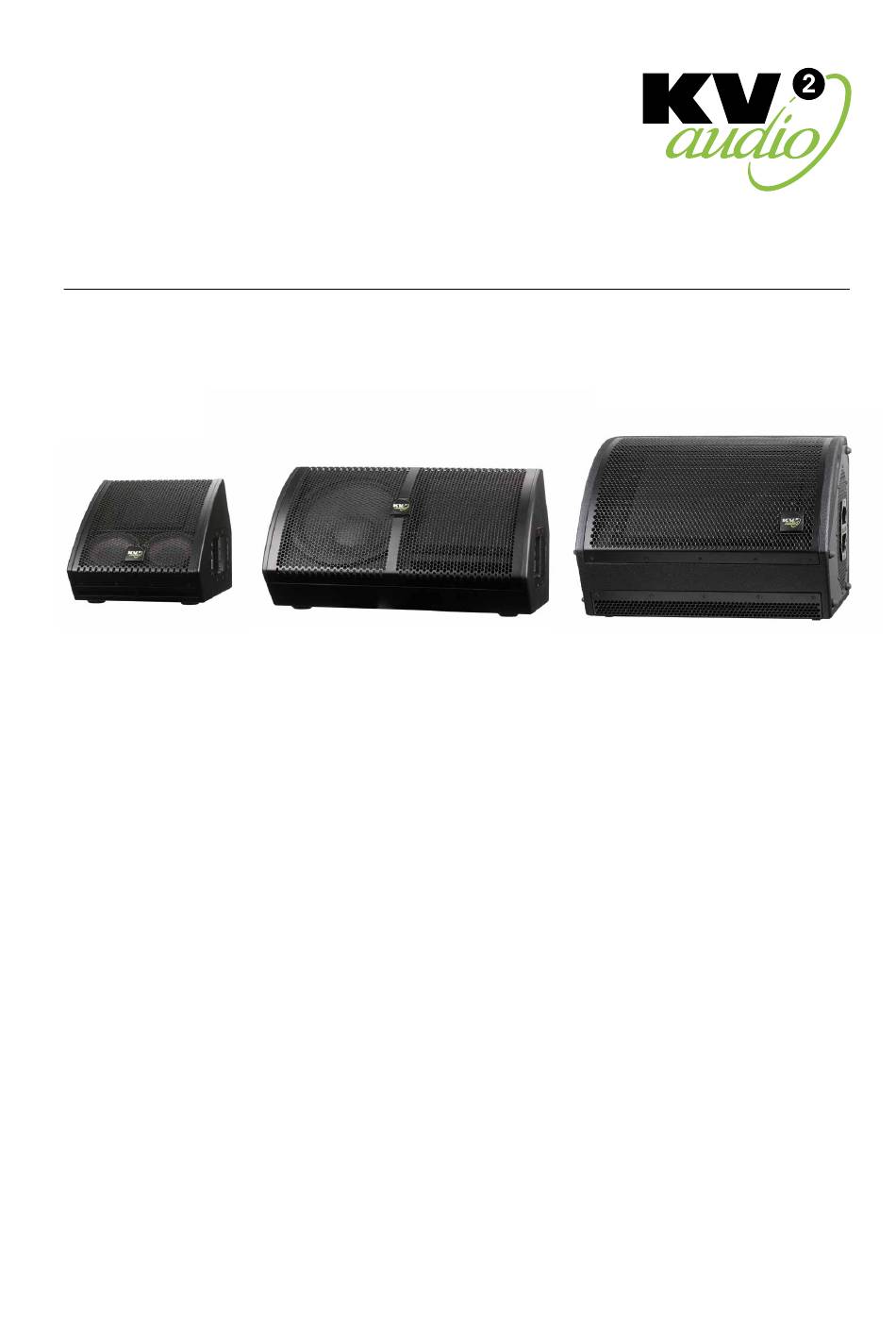

- Page 1 · ESM26 · ESM12 · ESM312 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
- Page 2 7. Install in accordance with KV2 Audio's recommended installation instructions. 8. Only use accessories specified by KV2 Audio. 9. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 10. Unplug this loudspeaker during lightning storms or when unused for long periods of time.
-
Page 3: Table Of Contents
ESM26 - The Ultimate compact Passive Monitor Overview Drawing Specifications ESM12 - The Ultimate Passive Monitor Overview Drawing - ESM12L Drawing - ESM12R Specifications ESM312 - High Output Full-range 3-Way Monitor Overview Connection · ESM312 Wiring Drawing Specifications Accessories 15 - 16 Warranty · Service... -
Page 4: Esm26 - The Ultimate Compact Passive Monitor
ESM26 · Overview ESM26 - part number KVV 987 263 The Ultimate compact Passive Monitor Application Specifically designed as an extremely compact-low profile passive-vocal floor monitor • Live performance • Concert venues • Portable PA • Fixed installations Introduction The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the all important vocal range. Incorporating two high quality 6"... -
Page 5: Drawing
ESM26 · Drawings Drawings... -
Page 6: Specifications
ESM26 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 123dB Max SPL Peak 126dB -3dB Response 70Hz to 16kHz -10dB Response 54Hz to 28kHz (half space) Recommended Power 275W Sensitivity 98dB Impedance 8Ω Crossover Point 2.5kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical... -
Page 7: Esm12 - The Ultimate Passive Monitor
ESM12 · Overview ESM12L - part number KVV 987 216 ESM12R - part number KVV 987 218 The Ultimate Passive Monitor Application Specifically designed as an extremely high output, full range-low profile passive vocal and music floor monitor • Live performance • Concert venues • Portable PA • Fixed installations... -
Page 8: Drawing - Esm12L
ESM12L · Drawings Drawings... -
Page 9: Drawing - Esm12R
ESM12R · Drawings Drawings... -
Page 10: Specifications
ESM12 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 127dB Max SPL Peak 130dB -3dB Response 55Hz to 22kHz -10dB Response 41Hz to 30kHz (half space) Recommended Power 500W Sensitivity 98dB Impedance 4Ω Crossover Point 1.2kHz High Frequency Section Acoustic Design Horn Loaded High Horn Coverage Horizontal / Vertical... -

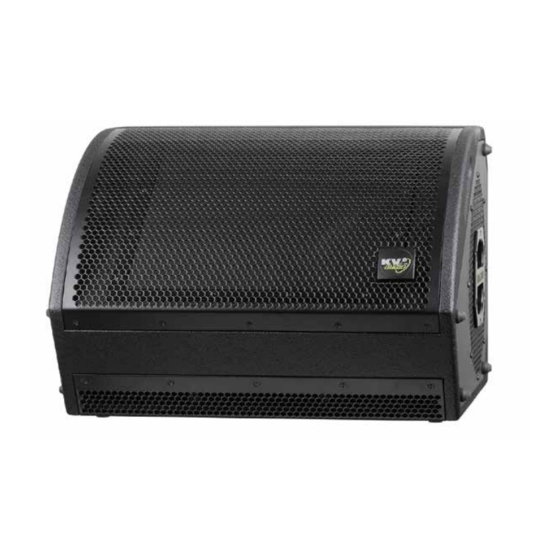

Page 11: Esm312 - High Output Full-Range 3-Way Monitor
Introduction The ESM312 is a very high output full-range low profile 3-way, passive monitoring solution with two bass reflex loaded 12“ neo woofers, a single horn loaded 6“ mid range woofer and a 1“ compression driver. Housed in a professional robust Baltic Birch cabinet, with a protective Polymer paint coating and heavy-duty grille, the ESM312 can be utilized for all large scale stage monitoring applications, where quick and easy set up is required. -
Page 12: Connection · Esm312 Wiring
ESM312 · Connection · ESM312 Wiring Connection ESM312 Wiring... -
Page 13: Drawing
ESM312 · Drawings Drawings... -
Page 14: Specifications
ESM312 · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 133dB Max SPL Peak 136dB -3dB Response 40Hz to 20kHz -10dB Response 35Hz to 20kHz (half space) Power Handling 1000W continuous / 4000W peak Sensitivity 100dB Impedance 4Ω Crossover Point 400Hz;... -
Page 15: Accessories
ESM Series · Accessories Covers Cover for ESM26 part name: COVER ESM26 part number: KVV 987 281 description: - heavy duty - padded Cover for ESM12-Left Cover for ESM12-Right part name: part name: COVER ESM12L COVER ESM12R part number: part number: KVV 987 262 KVV 987 261 description:... - Page 16 ESM Series · Accessories Speaker cables Speaker cable 2 x 1,5mm Speakon NL4 part name: part name: 1m - round flexible speaker cable, SPEAKON NL4 cross section 2 x 1.5mm part number: part number: KA 027 WX 002 Speaker cable 4 x 2,5mm part name: part name: 1m - round flexible speaker cable,...
-
Page 17: Warranty · Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. - Page 18 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120075-00-08-0...
