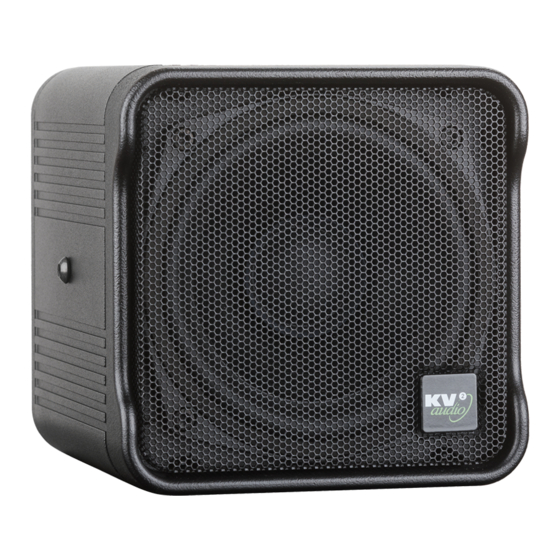

ESD Cube
User Guide
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESD Cube and is the answer not in the manual?

Questions and answers

Related Manuals for KV2 Audio ESD Cube

Summary of Contents for KV2 Audio ESD Cube

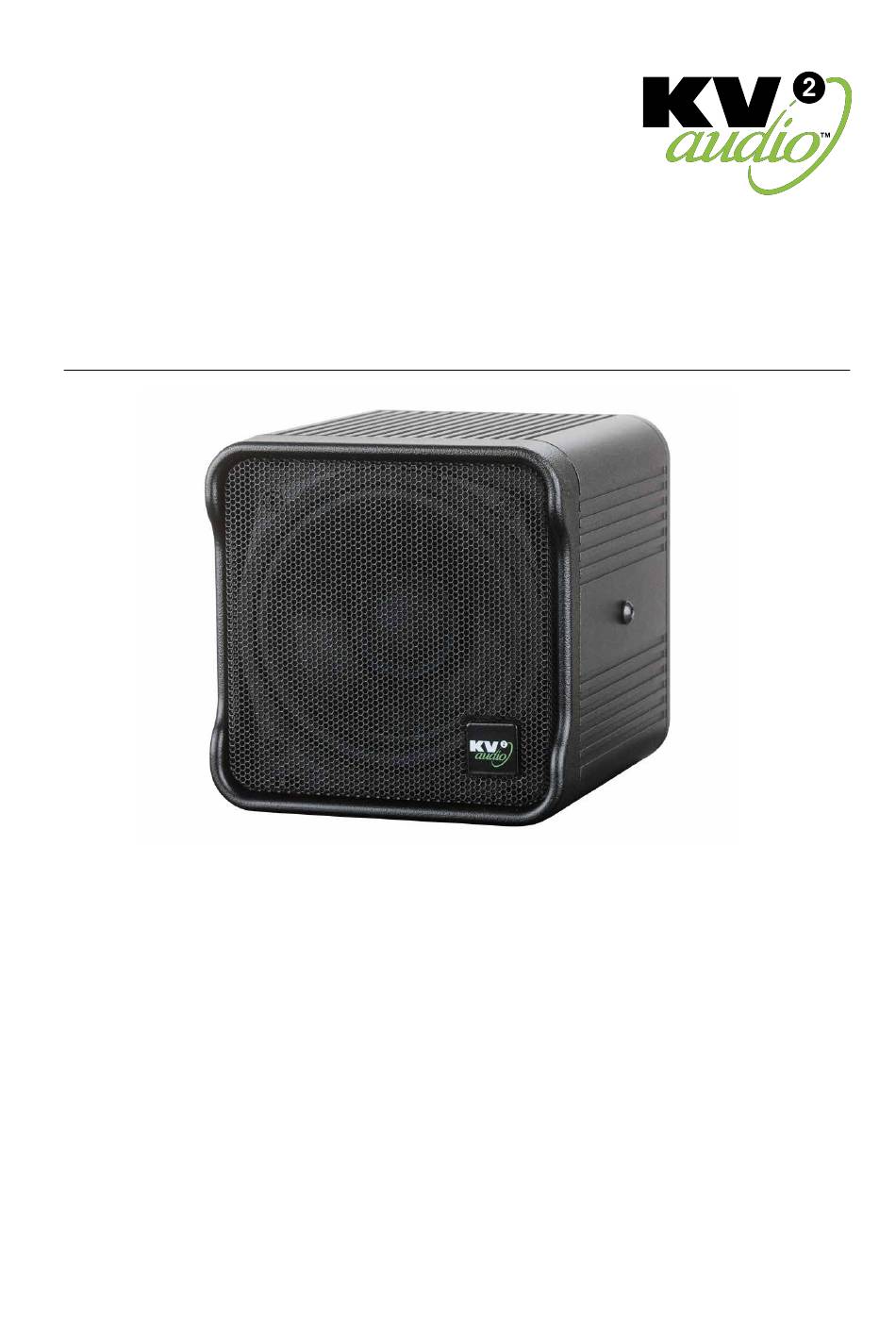

  • Page 1 User Guide The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.

  • Page 2: Table Of Contents

    ESD Cube · Contents Contents ESD Cube Overview Connection Installation Drawings Frequency characteristics Specifications Warranty · Service...

  • Page 3: Esd Cube

    Along with the dedicated ESP1000 amplifier, a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10 subwoofers can be operated.

  • Page 4: Connection

    Connection The ESD Cube features both Speakon (NL4) connectors and a terminal block. Along with the ESP1000 amplifier, a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10. Example of the connection (4 channels and 8 ESD Cubes) - for more see ESP1000 User Manual (KVV 120 136)

  • Page 5: Installation

    To enable fixing to a ceiling or alternatively to the wall, measure out the center point of the ESD Cube Wall bracket. There are two extra holes on the Wall Bracket, designed to accept locking screws - this side belongs on the rear side of the ESD Cube cabinet.

  • Page 6: Drawings

    ESD Cube · Drawings Drawings...

  • Page 7: Frequency Characteristics

    ESD Cube · Frequency characteristics Frequency response Vertical / Horizontal Polarplots 100Hz 500Hz 4kHz 125Hz 1kHz 8kHz 250Hz 2kHz 16kHz...

  • Page 8: Specifications

    ESD Cube · Specifications Specifications System Acoustic Perfomance Max SPL Long-term 116dB Max SPL Peak 119dB -3dB Response 120Hz to 18kHz Recommended Power 100W Sensitivity 90dB Impedance 8Ω Crossover Point no - full range Full Frequency Transducer Acoustic Design Closed box, Front Loaded...

  • Page 9: Warranty · Service

    Refer to your supplier for more details. Service In the unlikely event that your ESD Cube develops a problem, it must be returned to an authorised distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.
  • Page 10 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120143-00-01-0...
