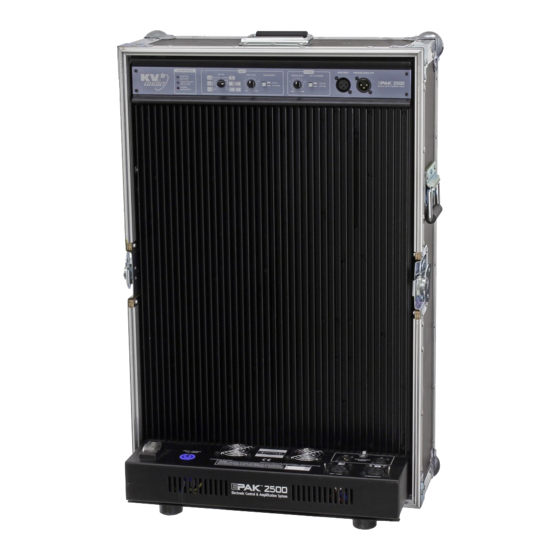

EPAK2500

User Guide

The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPAK2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KV2 Audio EPAK2500

Summary of Contents for KV2 Audio EPAK2500

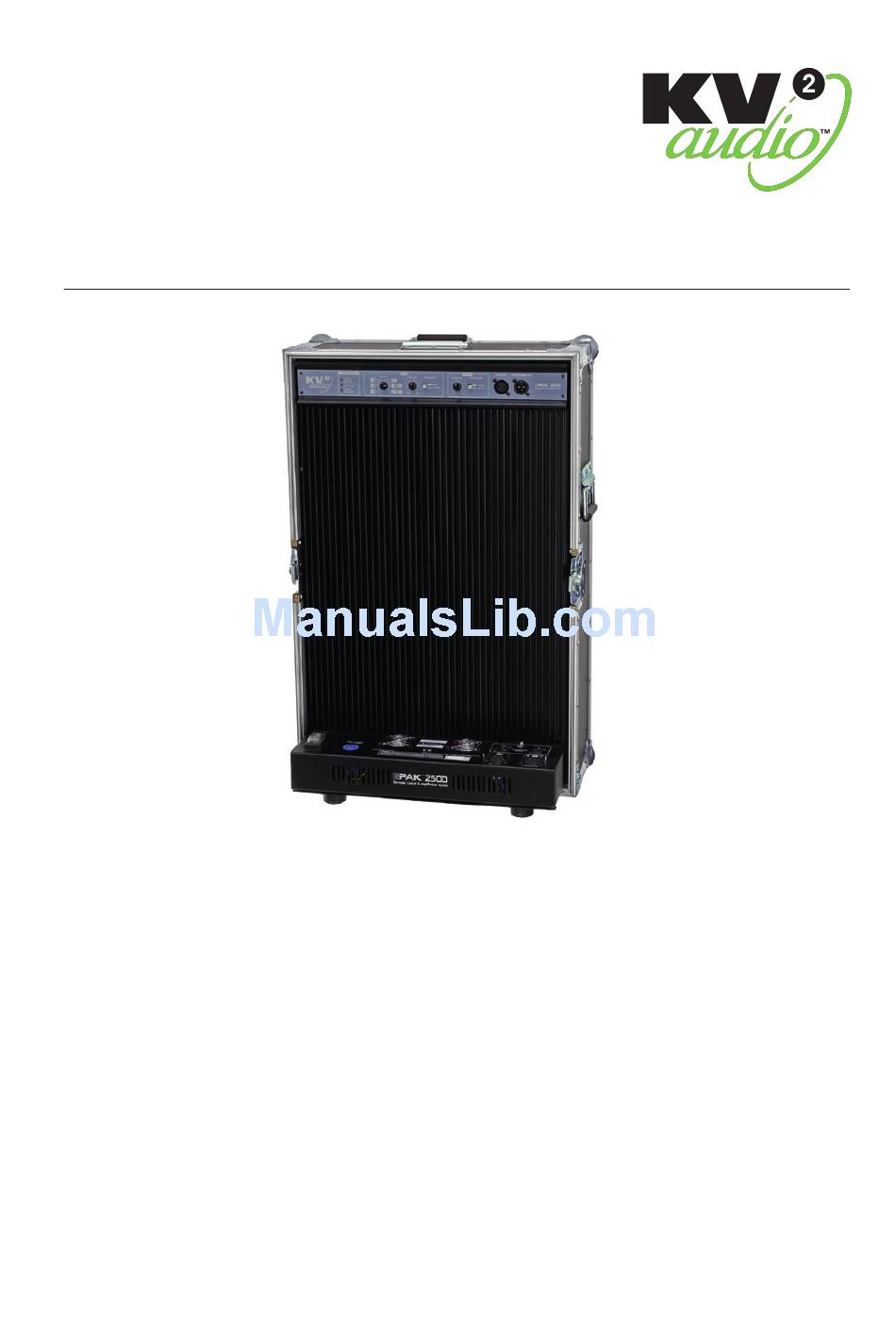

  • Page 1: User Guide

    User Guide The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.

  • Page 2: Important Safety Instructions

    11. Do not use this EPAK2500 if the power cable is broken or frayed. Protect the power cable from being walked upon or pinched particularly at the plugs and the point where it exits from the apparatus.

  • Page 3: Table Of Contents

    EPAK2500 · Contents Contents Introduction Introduction Getting Started Unpacking Mounting AC Power Requirements Voltage Requirements Cooling Features Upper Panel 5 - 6 Bottom Panel Using the system Normal set up Using the subwoofer insert EPAK2500 Dimensions Block Diagram Specification Accessories Warranty ·...

  • Page 4: Introduction

    Mid / High Amplifiers. Both the mid and high frequency amplifiers inside the EPAK2500 are Class AB, Push-Pull amplifier circuits using (MOSFET) Transistors output stage devices. The entire performance strategy for this type of design is based on producing the lowest inter-modulation distortion possible and the highest audio quality in the critical mid and high operating bands.

  • Page 5: Getting Started

    Unpacking Unpack the EPAK2500 and check to see if there is any damage to it. If you find any damage notify your supplier immediately. Only the consignee may institute a claim with the carrier for any damage incurred during shipping. Be sure to save the carton and all packaging materials for the carrier's inspection.

  • Page 6: Features

    When red it indicates that the audio mid-hi amplifier limiter has been activated. Thermal (auto reset) When red it indicates that the thermal limit of the EPAK2500 has been exceeded and the unit has shut down because of this. BASS SECTION Sub Set Up This switch is set according to which combination of subwoofers is being used with the system.

  • Page 7: Main Input

    Through signal out 1 = Ground 'Through Signal Output' connector associated in parrallel with Main 2 = Hot (+) input for sending unprocessed signal to other devices, such as more 3 = Cold (-) EPAK2500's to power more ES1.0's in a system.

  • Page 8: Bottom Panel

    PowerCon Power Connector Accepts a standard PowerCon terminated AC cable. Fans The cooling fans operate continuously while the EPAK2500 is on. An internal temperature sensor increases the speed of the fans during high temperature conditions. SUBWOOFER INSERT Allows you to insert into the subwoofer signal path more components, such as delay lines etc.

  • Page 9: Using The System

    Using the System Normal set up The EPAK2500 is designed to actively power one ES1.0 cabinet and associated subwoofer systems. For Normal Mode operation signal is applied to the 'Main Input' connector and the 'Insert' switch would be in the 'Disengage' position.

  • Page 10: Using The Subwoofer Insert

    EPAK2500 · Using the System Using the System Using the subwoofer insert The subwoofer insert point gives you the ability to 'insert' a signal processing device into the ES subwoofer signal chain. For instance in some instances it may be necessary to 'delay' the signal going to the subwoofer using a delay line. The Main Input is used as the system input, as per Normal Mode, but the subwoofer insert switch is switched to 'Engage' .

  • Page 11: Block Diagram

    EPAK2500 · Block diagram Block diagram...

  • Page 12: Specification

    EPAK2500 · Specifications Specifications High Frequency Amplifier Specification Type Class AB Push-Pull low inter-modulation Mosfet design with transformer balanced output Rated Continuous Power 100W Distortion <0.05% Operating Bandwidth 2.5kHz to 28kHz Mid Frequency Amplifier Specification Type Class AB Push-Pull low inter-modulation Mosfet design...

  • Page 13: Accessories

    KVV 987 122 - 4 m (13ft) - for ES Bass Module hook-up ES Bass speaker cable LF100, EPAK2500 Wall mounting kit AP4 connectors - 10 m part name: WALLMNT - BRCKT part name: LF100 part number: KVV 987 332...

  • Page 14: Warranty · Service

    Service In the unlikely event that your EPAK2500 develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.

  • Page 15: Notes

    The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120000-00-02-0...
