Summary of Contents for Winnebago 2016 Adventurer

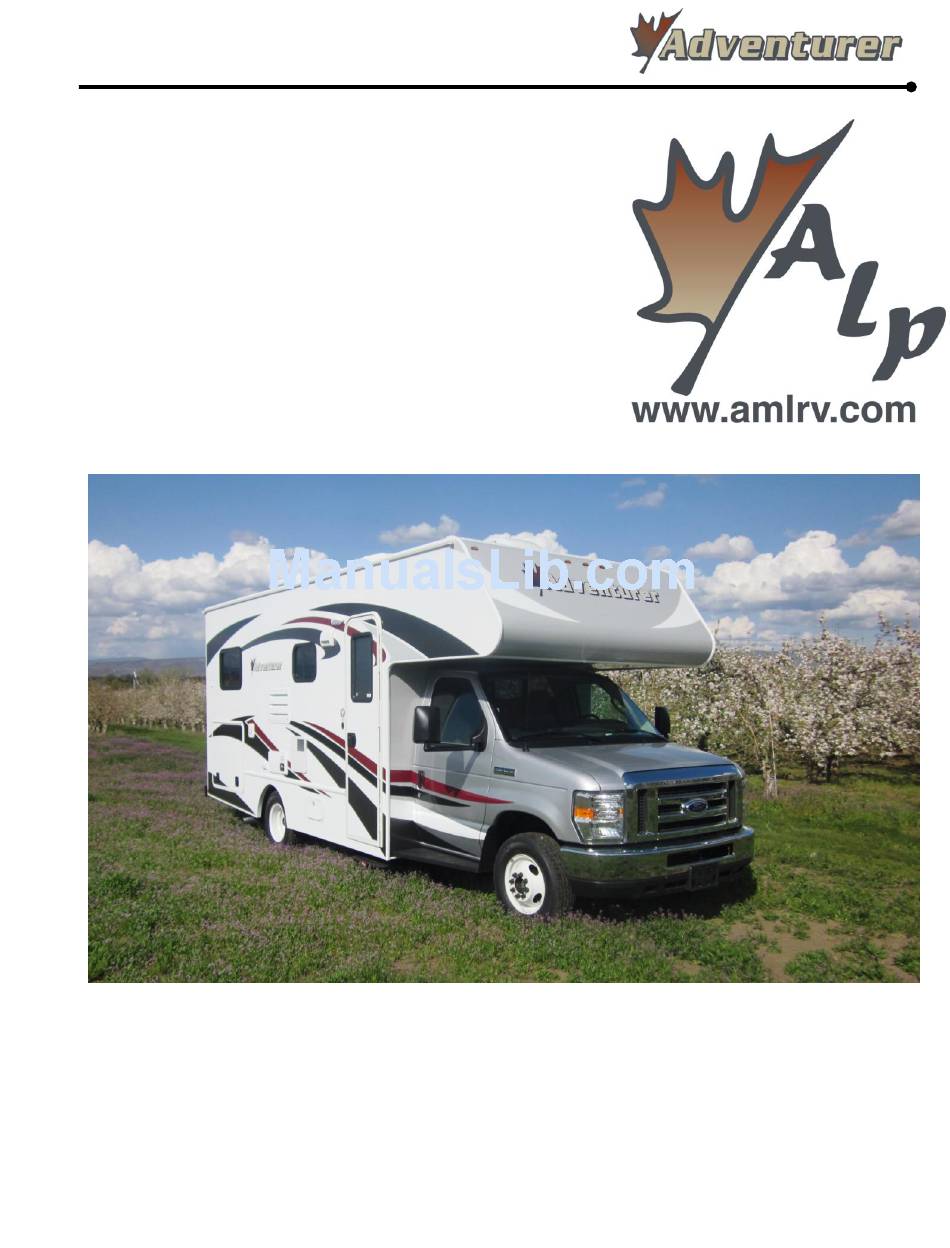

- Page 1 2016 Motor Home Owner’s Manual...
-
Page 3: Table Of Contents
Table Of Contents Introduction ..........................................1 Information In This Manual ....................................... 1 About This Manual ........................................1 Chassis Operating Guide ......................................2 Owner’s Infocase........................................2 Options And Equipment ........................................ 2 Before Driving .......................................... 2 Service and Assistance ......................................2 Warranty ..........................................2 Exterior Feature Identification –... - Page 4 Loading The Vehicle ........................................20 Front Axle Tire Alignment ......................................20 Weighing Your Loaded Vehicle ....................................20 Maximum Occupancy ........................................21 Roof Loading ..........................................21 Car Or Trailer Towing ........................................21 Pre-Travel Check List ........................................22 Travel Tips ..........................................23 Severe Weather Information ....................................
- Page 5 Start-Up Instruction – Gas Mode ....................................43 Start-Up Instructions – Auto Mode ................................... 44 Start-Up Instructions – Manual Mode ..................................44 AUTO and MANUAL Modes – Gas Operation Only............................... 44 Backup Operating System (“BOS”) ................................... 44 Humidity – Storage Switch ...................................... 45 Operating Tips ........................................
- Page 6 Cold Weather Storage Procedure (Winterizing) ................................ 57 Removal From Storage ....................................... 59...
-
Page 7: Introduction
About This Manual INTRODUCTION Please read this operator’s manual completely to understand how everything in your coach works Congratulations! We welcome you to the exciting before taking it on its “maiden voyage.” world of motor home travel and camping. You will find it convenient and enjoyable to have all the This manual is a guide to safe operation of the comforts of home and still enjoy the great... -
Page 8: Chassis Operating Guide
you can observe posted clearance limits. Also, Chassis Operating Guide remember that some bridges, old ones in Throughout this manual, frequent reference is particular, may not support the weight of your made to the vehicle chassis-operating guide. The motor home. Know the weight of your unit and chassis guide is the operator’s manual provided by observe any posted weight limits. -
Page 9: Exterior Feature Identification - Class Cmotor Homes
EXTERIOR FEATURE IDENTIFICATION – CLASS C MOTOR HOMES Typical model shown for illustration purposes only. Actual location of features depends on your model and option combinations. NOTE: Some equipment shown may be Roof Access Ladder Underbed Storage Compartment optional Assist Handle Water Heater Access* *CAUTION: Be careful. -
Page 10: Safety Precautions
Safety Concerns and Precautions traffic, or in any other traffic situation where a constant speed cannot be maintained. Use care when accelerating or decelerating on a slippery surface. Abrupt speed changes can cause SAFETY PRECAUTIONS skidding and loss of control. Read and understand all instructions and Driving through water deep enough to wet the precautions in this manual before operating your... -
Page 11: Lp Gas Leaks
system after filling. Make sure valve is closed and Shut off the gas supply at the tank door latched securely. valve(s) or gas supply connection. Never connect natural gas to the LP gas system. Open doors and other ventilating ... -
Page 12: Electrical
instructions on nuisance alarms and care and Other Combustible Fumes or Vapors testing of the LP gas detector. This alarm is designed to detect the presence of LP gas, however there are other combustible fumes or ELECTRICAL vapors, which may be detected by the sensor. These include: alcohol, liquor, deodorants, Careless handling of electrical components can be colognes, perfumes, wine, adhesives, lacquer,... -
Page 13: Formaldehyde Information
Do not remove the radiator cap while engine and The best protection against carbon monoxide entry radiator are still hot. Always check coolant level into the vehicle body is a properly maintained visually at the see-through coolant reservoir. engine exhaust and ventilation system. It is recommended that the exhaust system and body Never get beneath a vehicle that is held up by a be inspected by a qualified motor home service... -
Page 14: Fire Extinguisher
meets CSA Standard for operation of smoke Monthly Testing detection devices. Press the TEST button on the face of the alarm The smoke alarm should be tested for correct periodically (at least monthly) to check the operation each time the vehicle is brought out of function of the alarm and condition of the battery. -
Page 15: Before Entering Your Vehicle
Section 3 Driving Your Motorhome (See also Safety Precautions, Section 1 of this 4. Check around your vehicle in all directions to assure that you have proper clearance. manual.) 5. Lower TV antenna. NOTE: See your Chevy or Ford chassis operator’s 6. -
Page 16: Motor Home Keys
Be sure hood and all compartment CAUTION doors are latched securely before Continuing to fill above this level may driving vehicle. cause damage to the fuel/evaporative emission system. KEYS Replacement Fuel Caps Your motor home is supplied with several sets of To protect gasoline system from excessive keys. -
Page 17: Parking Brake
added security and should be used as a security occurrence, the fuel pump shut-off switch night lock. may need to be reset. Consult your Ford chassis operating guide for additional Lubricate the locks periodically with graphite to information. maintain good working condition. PARKING BRAKE CAUTION When releasing security night lock, be... -
Page 18: Lap Belts
To recline the seats: Lift the reclining lever, lean Only seats equipped with seat belts are back to desired incline and release the lever. To to be occupied while vehicle is in return to the upright position, lift the lever and motion. -
Page 19: Child Restraints
complete assembly even if damage is not WARNING apparent. Do not operate the cruise control on icy or extremely wet roads, winding roads, CHILD RESTRAINTS in heavy traffic, or in any other traffic situation where a constant speed cannot A properly installed and secured child restraint be maintained. -
Page 20: To Extend Slideout Room
WARNING If Slide-out Room Will Not Operate Keep all persons clear of the slide out (Trouble-shooting) room and moving parts while extending The chassis battery may be low on charge. or retracting. Do not occupy the slide The circuit breaker may be tripped. The out room while it is being extended or circuit breaker is located on panel on the retracted. -
Page 21: Hazard Warning Flasher
Section 4 In Case Of Driving Emergency HAZARD WARNING FLASHER The hazard-warning flasher provides additional safety when the vehicle must be stopped on the side of the roadway and presents a possible hazard to other motorists. When the flasher is on, it serves as a warning to the other drivers to approach and overtake your vehicle with caution. -
Page 22: Motor Home Jacking And Tire Changing Procedure
Motor Home Jacking and Tire Changing Procedure Follow the chassis manufacturer’s recommendations for jacking and tire changing. These instructions are found in the chassis-operating guide in your Owner Info Case. A jack is designed for use as a tool for changing tires only, not for use as a leveling device or as a support for service purposes. -
Page 23: Recovery Towing
RECOVERY TOWING (See chassis operating guide for proper recovery towing procedures.) Adventurer Manufacturing Ltd. does not assume responsibility for damage incurred while towing this vehicle. WARNING Stay out from beneath the motor home while the towing assembly suspends it unless the vehicle is adequately supported by safety stands. -
Page 24: Connecting A Battery Charger
8. Start the engine of the vehicle with the charged battery, and allow it to run for a few minutes at moderate r.p.m. Then tart the engine of the vehicle with the discharged battery. 9. Reverse the above sequence EXACTLY when removing the jumper cables. Start by removing the cable from the ground location on the engine first, and then continue in reverse sequence. - Page 25 If the temperature does not drop within a minute or two: Pull the vehicle over to the roadside as soon as it is safe to do so. Place the transmission in P (Park) and press the accelerator to increase engine speed (r.p.m.’s) to twice that of normal idle speed, and hold it there for approximately two or three minutes.
-
Page 26: Loading The Vehicle
Section 5 Traveling With Your Motor Home (See also SAFETY PRECAUTIONS, Section 1 of this manual.) LOADING THE VEHICLE When loading the vehicle, distribute the cargo load equally so that you do not exceed either the Front or Rear Gross Axle Weight Rating (GAWR) or the Gross Vehicle Weight Rating (GVWR). The Gross Axle Weight Rating (GAWR) means the weight value specified by the chassis manufacturer as the load carrying capacity of a single axle system as measured at the tire-to-ground interfaces. -
Page 27: Maximum Occupancy
To determine the weight on either the front or rear axle, drive that axle only onto the scale. Neither axle weight should exceed the corresponding maximum axle weight rating specified on the certification label. MAXIMUM OCCUPANCY The following label is placed in a visible location in the driver compartment. Belted seating positions may exceed sleeping capacity of this vehicle. -
Page 28: Pre-Travel Check List
Before descending a steep or long grade when towing a trailer, reduce speed and shift into a lower gear to control vehicle speed. Avoid prolonged or frequent applications of brakes, which could cause overheating and brake failure. WARNING For safety towing and vehicle handling, maintain proper trailer weight distribution. The total weight of the motor home and the vehicle towed must not exceed the Gross Combined Vehicle Weight rating. -
Page 29: Travel Tips
TV Antenna – Make certain the TV antenna is lowered and seated in its support cradle. Loose Items Inside the Motor Home – Store or secure items. Pilot Lights – Make sure all pilots are off. Fuel Tanks –... -
Page 30: Severe Weather Information
15. Become familiar with the fire extinguisher and made sure it is always fully charged. Remove and replace it and read instructions so you know the correct operating procedure before an emergency happens. 16. Make a list of all groceries, fresh meats, vegetables, newspapers, etc. that you may need and try to pick them up during your last fuel stop of the day. -
Page 31: Blocking
and costly. Also, water and holding tank level indicators may give false readings because water level is greater at one side of the tank than the other. Blocking A motor home can be leveled using several methods, including sophisticated electronic-hydraulic systems. The most common and inexpensive method, however, is “blocking.”... -
Page 32: Lp Gas Supply
Section 6 LPGAS System LP GAS SUPPLY The LP gas system supplies fuel for the range, water heater, furnace and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel. -
Page 33: Lp Tank System
LP TANK SYSTEM The storage reservoir for the LP gas system is a horizontally mounted tank, which is permanently attached to the vehicle frame. The tank is accessible only from the outside of the vehicle. REFILLING LP TANK There are many LP gas refueling stations located throughout the country. These stations are listed in the telephone directory Yellow Pages under “Gas –... -
Page 34: Regulator
REGULATOR The pressure regulator is protected from the elements by a plastic cover that should be left in place at all times. Only your dealer or a qualified LP gas service should remove the regulator cover for adjustments. WARNING Inspect the pressure regulator vent hole periodically for blockage. If any obstruction is apparent, have the regulator serviced by your dealer or a qualified LP gas service center. -
Page 35: Winter Use Of Lp Gas
WARNING Never use an open flame to test for gas leaks. When testing for gas line leaks with a soapy water solution, DO NOT use a detergent containing ammonia or chlorine. These substances may generate a chemical reaction causing corrosion to gas lines, resulting in dangerous leak conditions. WINTER USE OF LP GAS Due to vaporization characteristics of LP gas, it is important that the winter camper knows how to most efficiently use the LP system. -
Page 36: 110-Volt Ac System
Section 7 Electrical Systems Your motor home is equipped with an electrical system consisting of two separate voltages; a 12-volt DC system and a 110-volt AC system. The 12-volt system consists of two internal power sources, while the 110- volt system is operated from an outside power source or the optional 110-volt generator. All systems operate through a single power converter control center to provide electrical power to the motor home. -
Page 37: Power Center
Most campgrounds are equipped with a fuse or circuit breaker at the receptacle. This protects the park’s wiring, as well as the power cord on your vehicle, from electrical damage. If electrical power fails, contact the park attendants and have them check the fuse or breaker for your supply receptacle. After disconnecting the power cord, roll it up and neatly replace it in the storage compartment. -
Page 38: 110-Volt Circuit Breakers
110-VOLT CIRCUIT BREAKERS The breaker panel protects all 110-volt components in the motor home from either an overload on the circuit or a short in the wiring or component itself. When an overload or short develops, the breaker will open preventing any further flow of electricity and, therefore, damage to the system. -
Page 39: Auxiliary 110-Volt Generator Optional
AUXILIARY 110-VOLT GENERATOR OPTIONAL WARNING Careless handling of the generator and electrical components can be fatal. Never touch electrical leads or appliances when your hands are wet, or when standing in water or on wet ground. Do not attempt to repair the generator yourself. Service should be performed by an authorized service center. - Page 40 Approximate Power Requirements of Common Appliances Appliance or Tool Approximate Power Consumption (Watts/Amps) Vacuum cleaner 200-500W/1.7-4.3A Coffee Maker 550-700W/4.8-6.1A Hair dryer 800-1500W/7.0-13A Electric clothes iron 500-1200W/4.3-10.4A Electric blanket 50-200W0.4-1.7A Television 80-100W/0.7A Electric drill 250-750W/2.2-6.5A Air conditioner 1400-2000W/13-19A Converter 300-500W2.6-4.3A Microwave Oven 700-1500W/6.0-13.0A Generator Hour meter (If Equipped) NOTE: While the generator is running it is normal for the hour meter to make a periodic “ticking”...
-
Page 41: 12-Volt Dc System
12-Volt DC System The DC voltage system consists of the chassis battery and the 12-volt motor home auxiliary (house) Automotive (Starting) Battery The chassis battery is used solely to operate the engine starter and all automotive accessories and controls found on the instrument panel. This includes the horn, speed control, all exterior lights, radio, windshield wipers, etc. - Page 42 WARNING Refasten the retainer strap when returning the battery to the compartment. Lead-acid type batteries are electro-chemical devices for storing and releasing electrical charge. As such, they are simply an electrical reservoir, not an electrical source. As soon as energy is removed from the battery, it should be replaced by the engine alternator or the RV converter system.
-
Page 43: Battery Condition Meter
WARNING To prevent damage to batteries or wiring, always observe battery polarity. Always attach positive (+) cable to positive terminal and negative (-) cable to negative terminal. The battery terminals are marked (+) and negative (-). Disconnect both battery cables before connecting a “booster” battery charge to a battery inside the battery compartment. -
Page 44: Fresh Water System
Section 8 Plumbing Systems FRESH WATER SYSTEM The fresh water system provides water to the galley sink, shower, bathroom lavatory, toilet and water heater. Water may be supplied by either of two sources: a water tank located within the motor home, or ... -
Page 45: Disinfecting Fresh Water Systems On Recreation Vehicles
8. Pump is now ready for automatic operation. Pump will start when a faucet is opened and stop when the faucet is closed. Disinfecting Fresh Water Systems on Recreation Vehicles To assure complete disinfecting of your fresh water system, it is recommended that the following procedure be followed on a new system, one that has not been used for a period of time, or one that may have become contaminated. -
Page 46: Shower Valve Pressure Bleed-Off
To disconnect from the external source: 1. Turn the external source off. 2. Open a faucet inside the vehicle to relieve line pressure. 3. Disconnect the hose from the vehicle and replace the cap on the connection. SHOWER VALVE PRESSURE BLEED-OFF After using the shower, you may notice water dripping from the shower faucet assembly. -
Page 47: Using On-Site Sewer Hook-Ups
7. It is advisable to add an odor control chemical to the sewage holding tank. These chemicals are available at most R.V. stores. 8. Rinse sewer hose thoroughly with water and stow. NOTE: We recommend that you dump all holding tanks before traveling to avoid carrying unnecessary weight. Using On-Site Sewer Hook-Ups The drain hose may remain attached to the dump outlet and be routed out the bottom of the compartment while the motor home is parked and connected to an on-site sewage hook-up. - Page 48 NOTE: Leave by-pass valve handle in NORMAL FLOW position if draining water and blowing out water lines. Place in BYPASS position ONLY when using antifreeze solution in water lines. NOTE: Because this manual covers several sizes and floor plans and tank capacities vary model to model. Note your tank capacities below for future reference, your dealer or sales person can help you with this.
-
Page 49: Refrigerator
Section 9 Appliances & Interior Features (See also Safety Precautions, Section 1 of this manual.) NOTE: Because this model is available in several sizes and floor plans, some items described may be optional or unavailable on your coach. The appliance installed in your motor home are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances. -
Page 50: Start-Up Instructions - Auto Mode
temperature settings are shown in the form of LED’s. The illuminated LED indicates the temperature setting, with COLD on the left and COLDEST on the right. The temperature LED turns off after 10 seconds. Quickly press and release any button to display the temperature setting. Start-Up Instructions –... -
Page 51: Humidity - Storage Switch
and freezer compartment temperatures should be monitored to prevent over-freezing or thawing of refrigerator contents when operating in the BOS mode. If the refrigerator temperature is too cold, adjust the thermostat to the left in single LED increments. If the refrigerator temperature is too warm, adjust the thermostat to the right in single LED increments. -
Page 52: Range And Oven
RANGE AND OVEN The range and oven in your motor home are operated on LP gas and will provide nearly all of the functions that the range in your home does. The range has a “Pilot Off” position on the oven control which allows the oven pilot to be turned off when traveling or refilling the LP tank. -
Page 53: Microwave Oven
MICROWAVE OVEN For complete operating instructions, refer to the manufacturer’s information provided with the oven. RANGE HOOD The range hood vent draws cooking odors and airborne grease particles into the filtration grid and recirculates the air or vents it to the outside of the coach depending on model. A light on the underside of the hood provides better illumination for food preparation. -
Page 54: Water Heater Switch
Water Heater Switch Be sure the water heater is filled with water before pressing this switch. To fill the water heater, turn the water pump switch on and open a hot water faucet until water begins to flow. On electronic ignition models, the “W.H. Pilot” light will glow for about 10-15 seconds after the water heater switch is turned on, then it will go off. -
Page 55: Water Heater By-Pass Valve
3. Pull the handle of the P-T valve straight out and allow water to flow until it stops. 4. Let the handle of the P-T valve snap shut. 5. Close the faucet and turn on the water supply before switching the water heater on. Manually operate the pressure temperature relief valve at least once a year. -
Page 56: Cable Tv-Hook-Up
CABLE TV-HOOK-UP Some models are equipped with external connections for cable television. The connector is located on the driver’s side near the detachable 30amp power cord. NOTE: For coaches without the video control center option, be sure the TV antenna amplifier switch is turned OFF while connected to cable. -
Page 57: Power Roof Vent - Bath Area
See instruction in Section ????10 to prepare the toilet for storage in freezing conditions. POWER ROOF VENT – BATH AREA Some models are optionally equipped with a powered roof vent in the bath area. A push button switch for the vent fan is located up on the vent. The vent dome can be raised and lowered using the crank handle. SLIDER WINDOWS Lift the latch handle straight out from the window. -
Page 58: Roof
Section 10 Care & Maintenance CAUTION Sealants must be inspected every 6 months and resealed if necessary. Roof The roof is made of a Truss System. It will support the weight of an average adult should it become necessary to repair the roof or roof mounted components. It is not recommended, however, that very large or heavy objects be carried on the roof while the vehicle is in motion. -
Page 59: Interior
Keep high-pressure wash nozzles at least 1 ½ feet from edge of decals. High-pressure water spray may cause edge lifting of decals. Test any cleaning solution on a small section of decal before using. Do Not use any aromatic solvents such as acetone, MEK, toluene, xylene, etc., on decals. Any solvent including alcohol may soften or smear colors. -
Page 60: Draperies, Curtains And Bedspreads
Draperies, Curtains and Bedspreads These items may be woven from a variety of fabrics. We recommend that these be professionally dry cleaned only, a Five- percent shrinkage may occur when you have these items dry cleaned. VINYL WALLBOARD Decorative vinyl covered wallboards may be cleaned with a mild solution of water and isopropyl (rubbing) alcohol or a mild soap solution. -
Page 61: Vehicle Maintenance
Door locks and hinges should be lubricated periodically with powdered graphite to ensure trouble-free operation and to protect against freeze-up. VEHICLE MAINTENANCE (See also Safety Precautions, Section 1 of this manual). Chassis Service & Maintenance Consult the appropriate sections in your chassis-operating guide for specific information regarding operating safety, service recommendations and maintenance schedules for the chassis section of your motor home. -
Page 62: Windshield Washers And Wipers
Alignment can be affected by worn steering/suspension parts or by incidents, which happen during driving, such as hitting a curb, pothole or railroad track, etc. Improper alignment can cause tires to roll at an angle and wear unevenly. It may also cause the vehicle to “pull” to the right or left. Have your dealer inspect your vehicle’s suspension and steering components periodically for misalignment or wear. -
Page 63: Preparing Vehicle For Storage
SECTION 11 STORING YOUR MOTOR HOME PREPARING VEHICLE FOR STORAGE Properly preparing your vehicle for storage will lessen the possibility of damage to your vehicle. Prepare the motor home for vacancy just as you would if you were leaving your house for an extended period: ... - Page 64 CAUTION Limit air pressure to 30 psi to avoid damage to pump or water lines. NOTE: DO NOT burst air into the system. This can damage the water pump. It is better to let air in slowly. 10. Let air flow for five minutes until water is completely drained out of faucets and drain valves. Then close faucets one at a time.
-
Page 65: Removal From Storage
21. Clean the interior of the coach. Dirt and stains are more easily removed when fresh. 22. Remove all foods and items that may cause odors. 23. Clean and defrost the refrigerator. Leave the door slightly ajar to allow any odors to dissipate. Place an open box of baking soda inside the refrigerator to help absorb odors. - Page 66 compounds are available from your dealer. Also inspect weather seals around doors, etc., and if necessary, have a dealer replace immediately. Notes:...
