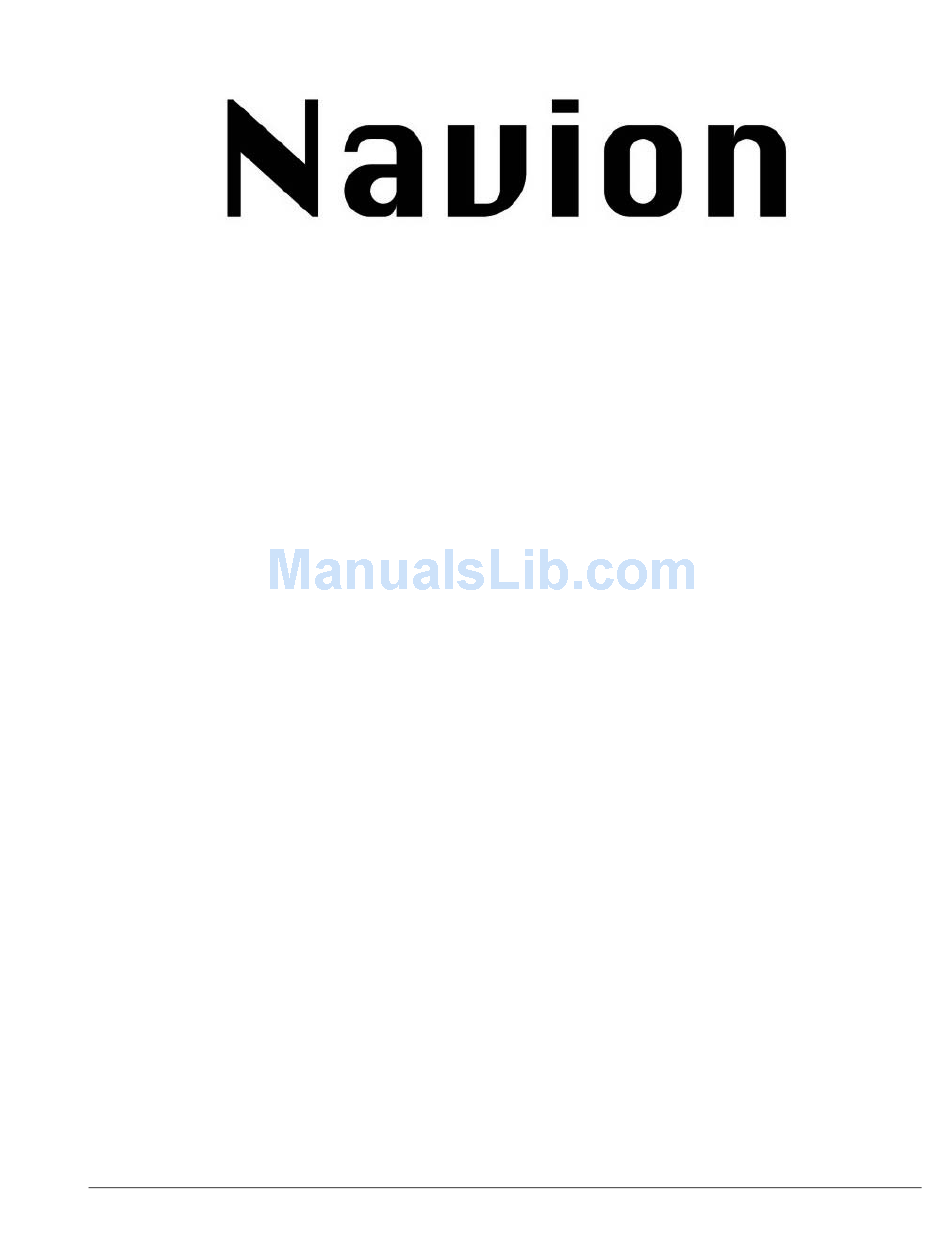

  • Page 1 Rev. 1511150406 Part No. 161500-15-009 Copyright 2014 Winnebago Industries, Inc. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 – INTRODUCTION About this Manual ..........................1-1 Safety Messages Used in this Manual ....................1-1 Pre-Delivery Inspection ........................1-2 Front Axle Tire Alignment ....................... 1-2 Service and Assistance ........................1-2 Reporting Safety Defects ........................1-2 Occupant and Cargo Carrying Capacity Label ................. 1-3 Vehicle Certification Label .......................
  • Page 4 Table Of Contents Remote Keyless Entry ........................3-3 Hazard Warning Flashers ........................3-3 Air Conditioner/Heater – Automotive (Dash) .................. 3-3 Radio In-Dash/Rearview Monitor System ..................3-3 Radio In-Dash/Rearview Monitor System ..................3-5 Infotainment Center/GPS ........................3-6 Battery Boost Switch ........................3-8 Engine Cooling System ........................
  • Page 5 Table Of Contents Electrical System – House 12-Volt DC .................... 6-7 House/Coach Battery Disconnect Switch ..................6-8 Battery Access ..........................6-8 Battery Care ............................6-9 Circuit Breakers and Fuses – House 12-Volt DC ................6-11 7 – PLUMBING Fresh Water System .......................... 7-1 Water Pump ............................
  • Page 6 Table Of Contents 10 – SLIDEOUT ROOMS Slideout Room Lock System ......................10-1 Slideout Room Keylock ........................10-1 Slideout Room Operation – Electric ....................10-1 Slideout Room – Extreme Weather Precaution ................10-3 Slideout Room Troubleshooting (Lippert) ..................10-4 Slideout Emergency Retraction (Lippert) ..................10-5 General Slideout Care ........................

  • Page 7: Introduction

    The instructions included in this manual are intended as a guide, and in no way DANGER indicates a hazardous situation extend the responsibilities of Winnebago which, if not avoided, will result in death or Industries beyond the standard written serious personal injury.

  • Page 8: Pre-Delivery Inspection

    National Highway Traffic Safety Administration delivery inspection of the chassis and all (NHTSA) in addition to notifying Winnebago motorhome components. Industries, Inc. As a part of the pre-delivery inspection...

  • Page 9: Occupant And Cargo Carrying Capacity Label

    SECTION 1 – INTRODUCTION or go to their website at http://www.safercar.gov or write to: Administrator, NHTSA 1200 New Jersey Avenue S.E. Washington, D.C. 20590 You can also obtain other information about motor vehicle safety from the NHTSA website at http://www.safercar.gov OCCUPANT AND CARGO CARRYING CAPACITY LABEL This label is affixed in the driver’s area next to...

  • Page 10: Vehicle Certification Label

    These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation.

  • Page 11: Specifications And Capacities

    ( 26.4 gal.) Notes: All information is based upon the most recent data available. Visit the Winnebago Industries, Inc. web page – www.winnebagoind.com – for the most current product information. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.

  • Page 12: Owner And Vehicle Information

    Motorhome Serial Number ___________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER...

  • Page 13: Safety And Precautions

    SECTION 2 – SAFETY AND PRECAUTIONS GENERAL WARNINGS DRIVING SAFETY • Only seats equipped with seat belts are to be occupied while the vehicle is moving. WARNING • Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs.

  • Page 14: Fuel And Propane Gas

    SECTION 2 – SAFETY AND PRECAUTIONS • Do not adjust tilt steering in a moving vehicle. • Do not operate the cruise control on icy or WARNING extremely wet roads, winding roads, in heavy traffic, or in any other traffic situation where a constant speed cannot be maintained.

  • Page 15: Propane Gas Leaks

    SECTION 2 – SAFETY AND PRECAUTIONS DAN GE R DAN GE R Do not use gas cooking appliances for IF YOU SMELL PROPANE comfort heating. Can lead to carbon 1. Extinguish any open flames and all monoxide poisoning, which can lead to smoking materials.

  • Page 16: Carbon Monoxide Warning

    RV application. We recommend obtaining a replacement from your ® CARBON MONOXIDE ALARM Winnebago Industries dealer. Your coach is equipped with a Carbon Further Information Monoxide (CO) Alarm, which has a sensor that is See the manufacturer’s user guide provided in...

  • Page 17: Smoke Alarm

    RV application. We injury. recommend obtaining a replacement from your ® Winnebago Industries dealer. Replacement When replacing this alarm, we recommend Further Information replacing only with the same model, or with one Please read the information provided by the that is also listed for RV application.

  • Page 18: Fire Extinguisher

    Extinguisher, the replacement must be the same weight rating for either axle. type and size as the one originally supplied in your coach. We recommend obtaining a replacement only from your Winnebago ® Industries dealer or a reliable RV parts supplier.

  • Page 19: Maintenance

    SECTION 2 – SAFETY AND PRECAUTIONS MAINTENANCE • Do not remove the radiator cap while engine and radiator are still hot. Always check coolant level visually at the see-through coolant reservoir. • Never get beneath a vehicle that is held up by a jack only.

  • Page 20: Slideout Rooms

    SECTION 2 – SAFETY AND PRECAUTIONS WARNING Keep all persons clear of the slideout room and moving parts while extending or retracting. Do not occupy the slideout room while it is being extended or retracted. Failure to observe can result in death or serious injury.

  • Page 21: Mold, Moisture, And Your Motorhome

    Because ® Winnebago Industries of the nature of the use of a motorhome, it is If Winnebago Industries determines that mold natural for a motorhome to be introduced into an ® ® is present in the Winnebago...

  • Page 22: Roof And Ladders

    SECTION 2 – SAFETY AND PRECAUTIONS • Make sure you are physically capable to ROOF AND LADDERS safely use the ladder. Strength, flexibility, and stability are required. –If Equipped • Be aware that the vehicle may sway as you climb the ladder. Do not use the ladder in high WARNING winds.

  • Page 23: Wheel Mounting Nuts (Lug Nuts)

    SAFETY AND PRECAUTIONS ® • Let the vehicle coast to a stop, gently steering Winnebago Industries does not assume to a safe stopping place off the traffic lanes of responsibility for damage incurred while towing the road. Do not worry about damaging the this vehicle.

  • Page 24: Wheel Trim - Standard

    SECTION 2 – SAFETY AND PRECAUTIONS Steel Wheel Lug Nut and Washer (Hex Flange Nut with Split Cone Washer) WHEEL TRIM – STANDARD Valve Stem Clearance Notch ® (Mercedes-Benz Sprinter Chassis) Note: Reference the chassis manufacturer’s user Valve Stem guide provided in your InfoCase for complete instructions and cautions on changing a wheel.

  • Page 25: Wheels - Stylized Chrome

    SECTION 2 – SAFETY AND PRECAUTIONS When re-installing the front liner, make sure Chrome Lug Nut to align the stem clearance notch on the back of Chrome Washer the liner with the valve stem. WARNING Chrome Adapter If the notch is not aligned with the valve stem, the valve stem may be damaged which could deflate the tire causing steering or handling problems.

  • Page 26: Jump Starting

    SECTION 2 – SAFETY AND PRECAUTIONS 2. Slide the lug wrench onto the adapter and • Once the vehicle is prepared for stylized rotate counter-clockwise to loosen the lug wheel installation, use the chrome washer, nuts. chrome lug nut, and chrome adapter with lug wrench to re-install the stylized chrome Note: Do not place the wheel nuts in sand or wheel.

  • Page 27: Engine Overheat

    SECTION 2 – SAFETY AND PRECAUTIONS NOTICE Do not attempt to push start this vehicle. Damage to the transmission or other parts of the vehicle will occur. ENGINE OVERHEAT If you see or hear steam escaping from the engine compartment or have any other reason to suspect an extreme engine overheating condition, pull the vehicle over to the roadside as soon as it is safe to do so, stop the engine, and get all...

  • Page 29: Driving Your Motorhome

    Winnebago damaged by pinching them in the doors or in the ®...

  • Page 30: Child Restraints

    SECTION 3 – DRIVING YOUR MOTORHOME may have a greater chance of being injured in an accident if they are seated in a child restraint system which is not properly secured. WARNING A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap Snug and low belt positions are essential.

  • Page 31: Keys

    SECTION 3 – DRIVING YOUR MOTORHOME Make a habit of having the keys with you when you exit the vehicle and if opening the cab door first before opening the entry door whenever unlocking with the keyless remote. Further Information Refer to the chassis manual provided in your InfoCase for complete operating instructions on using the Remote Keyless Entry system and for...
  • Page 32 SECTION 3 – DRIVING YOUR MOTORHOME Satellite Radio This system is also featured with a rearview camera monitor system, which lets you see what –If Equipped is directly behind your coach for safety and Your coach may be equipped with a maneuvering assistance.

  • Page 33: Radio In-Dash/Rearview Monitor System

    SECTION 3 – DRIVING YOUR MOTORHOME Radio Power Switch This system is also featured with a rearview camera monitor system, which lets you see what The Radio Power switch lets you connect the is directly behind your coach for safety and dash radio to the coach batteries with the ignition maneuvering assistance.

  • Page 34: Infotainment Center/Gps

    SECTION 3 – DRIVING YOUR MOTORHOME Satellite Radio Radio Power Switch –If Equipped The Radio Power switch lets you connect the dash radio to the coach batteries with the ignition Your coach may be equipped with a ® switch turned off for listening while parked. This SiriusXM satellite radio receiver that plays prevents accidental draining of the chassis...
  • Page 35 SECTION 3 – DRIVING YOUR MOTORHOME Basic Operating Instructions Bluetooth Refer to the manufacturer’s owner manual Your coach is equipped with a Bluetooth and/or quick start guide provided in your microphone built into the radio system for hands- InfoCase for a complete explanation of features free cell phone usage.

  • Page 36: Battery Boost Switch

    SECTION 3 – DRIVING YOUR MOTORHOME Radio Power Switch The Radio Power switch lets you connect the dash radio to the coach batteries with the ignition switch turned off for listening while parked. This prevents accidental draining of the chassis battery with prolonged use of the radio.

  • Page 37: Lights

    SECTION 3 – DRIVING YOUR MOTORHOME VALVE STEM ACCESS ® (Mercedes-Benz Sprinter Chassis) Front Wheel Valve Stem Access on 18-Hole Steel Wheel with Push-On Full Wheel Trim –If Equipped 1. Obtain a double angle push/pull truck tire gauge. Diesel Exhaust Fluid Fill (Located under front hood) -Typical installation shown Further Information...
  • Page 38 SECTION 3 – DRIVING YOUR MOTORHOME Inner rear dual Hose extension 4. Using the hose extension as a remote handle, 6. When tire pressure testing is complete, unscrew the valve stem cap (retaining cap in reinstall the valve stem cap (with the cap still the end of the hose extension).

  • Page 39: Tires

    SECTION 3 – DRIVING YOUR MOTORHOME NOTE: If the valve stem cap and valve stem extension unscrew as an assembly, pull the assembly out of the hose extension end, remove valve stem cap, insert valve stem extension into hose extension, and reinstall valve stem extension onto valve stem until snug.
  • Page 40 SECTION 3 – DRIVING YOUR MOTORHOME checked and adjusted after you have fully loaded the motorhome according to your personal needs. Thereafter, the alignment should be periodically inspected to help prevent uneven tire wear. Any excessive or abnormal tire wear may indicate worn or misaligned suspension or steering, unbalanced tire, or other tire/suspension problem.

  • Page 41: Appliances And Systems

    SECTION 4 – APPLIANCES AND SYSTEMS The appliances installed in your motorhome are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances. See Section 2 - Safety and Precautions of this manual for any safety and precautions you need to take regarding the operation of your appliances.

  • Page 42: Refrigerator Service Access Compartment

    SECTION 4 – APPLIANCES AND SYSTEMS Basic Operation Further Information For further information and operating cautions, see the refrigerator operating instructions included in your InfoCase. REFRIGERATOR SERVICE ACCESS COMPARTMENT • ON/OFF Switch (Exterior) The exterior refrigerator service compartment allows access to the rear of the refrigerator for Switch on the Refrigerator inspection, maintenance, and service.

  • Page 43: Refrigerator Service Access Compartment

    SECTION 4 – APPLIANCES AND SYSTEMS Refrigerator Access Compartment Refrigerator Access Compartment *Shown with cover removed -Typical View -Typical View RANGE TOP REFRIGERATOR SERVICE ACCESS COMPARTMENT –If Equipped (Exterior) NOTE: See the appliance manufacturer’s user guide provided in your InfoCase for The exterior refrigerator service compartment complete operating instructions and allows access to the rear of the refrigerator for...

  • Page 44: Microwave Oven

    SECTION 4 – APPLIANCES AND SYSTEMS DAN GE R NOTICE Do not use gas cooking appliances for Turn off the range and allow it to cool comfort heating. Can lead to carbon before closing the range cover. The range monoxide poisoning, which can lead to cover is made of glass and may shatter death or serious injury.

  • Page 45: Oneplace® Systems Monitor Panel

    SECTION 4 – APPLIANCES AND SYSTEMS Water And Holding Tank Levels Press the Tank Levels switch to show approximate levels on the LCD screen. ONEPLACE SYSTEMS ® MONITOR PANEL Tank Levels Switch The OnePlace Systems Monitor Panel provides a convenient, central location for The approximate fluid levels are measured by checking the condition of all utility systems in electronic sensors on the sides of the tanks.

  • Page 46: Water Heater - Gas/ Electric

    SECTION 4 – APPLIANCES AND SYSTEMS Battery Charge Meter Press the Battery Levels switch to check the level of charge (voltage) in the chassis and house batteries. Water Pump Switch Refer to Section 7 - Plumbing for additional information on the water pump and initial start- Battery Levels Switch NOTE: Some models may be equipped with a To get an accurate reading:...

  • Page 47: Pressure-Temperature Relief Valve

    SECTION 4 – APPLIANCES AND SYSTEMS Further Information “Water Heat LP Fail”, it means that the burner has gone into “lockout” mode and must be See the Water Heater manufacturer’s restarted. If this happens, turn the Water Heater operation manual provided in your InfoCase for LP switch off for about 5 minutes, then turn it complete operating instructions, safety warnings, back on.

  • Page 48: Furnace - Propane Gas

    SECTION 4 – APPLIANCES AND SYSTEMS To Replace the Air Gap: 1. Turn off the Water Heater switch and incoming water supply (city water and/or LP Tank demand pump). Valve 2. Open a faucet in the motorhome to relieve Switch water pressure.

  • Page 49: Heat Pump

    SECTION 4 – APPLIANCES AND SYSTEMS If the furnace will not light after three extract heat from the outside air on a cold day and attempts, go to “Shut Down” steps and contact carry it to the inside of the coach to maintain a your dealer or a local RV service center for comfortable temperature.

  • Page 50: Ducted Roof Air Conditioning System

    SECTION 4 – APPLIANCES AND SYSTEMS DUCTED ROOF AIR CONDITIONING SYSTEM The furnace thermostat also controls ducted roof air conditioner operation when the Thermostat switch is placed in “Cool” position. All cooling functions controlling to setpoint have a short cycle protection time delay of three minutes.

  • Page 51: Propane Gas

    SECTION 5 – PROPANE GAS PROPANE GAS SUPPLY The propane gas system supplies fuel for the WARNING gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and Do not alter or remove propane tank handled properly, this system is safe and valves or gauge.
  • Page 52 SECTION 5 – PROPANE GAS NOTE: The propane tank is equipped with an automatic 80% stop-fill device. WARNING Do not fill propane container(s) to more than 80 percent of capacity. A properly filled container contains approximately 80 percent of its volume as liquid propane. Overfilling propane container(s) can result in uncontrolled propane flow, which could lead to a fire or explosion and result...

  • Page 53: Safe Use Of The Propane Gas System

    SECTION 5 – PROPANE GAS Selecting Propane Fuel Types For your safety, there are many safety devices and backup systems installed, such as fill We recommend using straight propane in your overflow valves, an interior propane gas detector/ propane tank. Propane gas is commonly available alarm, and an interior carbon monoxide (CO) at all propane gas outlets in the U.S.

  • Page 54: Propane Gas Warnings And Precautions

    SECTION 5 – PROPANE GAS • Exercise caution when drilling holes or • Avoid inhaling exhaust gases produced by attaching objects to the walls. Gas lines and burned gasoline, diesel fuel, or propane gas in electrical wiring could be seriously damaged items such as the range, chassis engine, and present an extreme safety hazard.

  • Page 55: Propane Vaporization In Cold Weather

    SECTION 5 – PROPANE GAS that the regulator vent faces downward and that the cover is kept in place to minimize vent blockage that could result in excessive propane pressure causing fire or explosion. Only your dealer or a qualified propane gas service should remove the regulator cover for adjustments.
  • Page 56 SECTION 5 – PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

  • Page 57: Electrical

    SECTION 6 – ELECTRICAL Your coach is equipped with an electrical the power converter automatically changes a system consisting of two separate voltages: portion of the 120-volt current to 12-volt DC current. All equipment in the motorhome that is • 12-volt DC system (battery current);...
  • Page 58 SECTION 6 – ELECTRICAL 30 Amp Receptacle WARNING • Swivel cover section to access cord notch This connection is for 110/125 Volt AC, 60 Hz 30 Ampere supply. Do not exceed circuit rating. Exceeding the circuit rating may cause a fire and result in death or serious injury.

  • Page 59: Inverter Unit - 1000W

    SECTION 6 – ELECTRICAL Inverter Control Panel INVERTER UNIT – 1000W –If Equipped –If Equipped The inverter has a wall-mounted monitor/ The inverter changes 12-volt DC battery control panel. It will also display warnings for power into 120-volt AC power for use by 120- overload conditions or other operating failure volt AC equipment inside the coach.

  • Page 60: Circuit Breakers - House 120-Volt Ac

    SECTION 6 – ELECTRICAL condition of the battery. If it is below “full 12-Volt 120-Volt charge”, the charging section will start charging House Fuses Circuit Breakers the batteries. If the house batteries have been extremely discharged, they will accept charge at a relatively high amperage rate.

  • Page 61: Electrical Outlets - House 120-Volt Ac

    SECTION 6 – ELECTRICAL continually tripped and no overload is evident, If the GFCI keeps tripping, have the electrical have the system checked for a short in the wiring system checked and repaired, if necessary, before or the appliances. using again. •...

  • Page 62: Generator Hourmeter

    SECTION 6 – ELECTRICAL To use the 120-volt Generator, plug the power cord into the Generator receptacle within the utility compartment before starting the Generator. LP Generator Start/Stop Buttons (Located on monitor panel) -Typical View Generator Hourmeter The Generator hourmeter registers the total Generator Power Cord number of hours that the Generator has been...

  • Page 63: Electrical System - House 12-Volt Dc

    SECTION 6 – ELECTRICAL To Stop the Generator • Park the vehicle so that the wind will carry the exhaust away from the vehicle. Also, note the • Press the Display ON/Gen OFF button. position of other vehicles to be sure their exhaust will not enter your vehicle.

  • Page 64: House/Coach Battery Disconnect Switch

    SECTION 6 – ELECTRICAL The house batteries supply power to 12-volt equipment located in the living area of the motorhome. This includes the following 12-volt powered components (if equipped): interior 12- volt lighting, range exhaust fan, propane furnace fan, fresh water pump, systems monitor panel, refrigerator, roof vent fans, and 120-volt electrical generator starter.

  • Page 65: Battery Care

    SECTION 6 – ELECTRICAL House Batteries Chassis Battery Connector (Located to the right of the accelerator pedal) CAUTION Further Information Step cover must be closed and latched. See the chassis manual provided in your Failure can cause injury. InfoCase for details on access and servicing. Chassis Battery NOTICE The chassis (starting) battery is located in a...
  • Page 66 SECTION 6 – ELECTRICAL The two best defenses against sulfating Further precautions are: and insufficient charge are to: • Check the state of charge periodically to avoid discharge or sulfating. 1. Turn off the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle To ensure that the battery will always accept discharge caused by directly connected and hold a charge, follow these simple...

  • Page 67: Circuit Breakers And Fuses - House 12-Volt Dc

    Chassis Battery If your coach is going to be unoccupied for ® two weeks or more, Winnebago Industries recommends disconnecting the chassis battery in your coach to avoid battery discharge. Unplug the Chassis Battery Connector Functional...
  • Page 68 SECTION 6 – ELECTRICAL Automotive Chassis 12-Volt Circuit Breakers (Located on outboard side of passenger seat) * Shown with cover removed -Typical View 6-12...

  • Page 69: Plumbing

    SECTION 7 – PLUMBING FRESH WATER SYSTEM The Fresh Water System provides water to the galley sink, shower, bathroom lavatory, toilet, and water heater. Water may be supplied by either of two sources: • A fresh water tank and water pump located within the motorhome, or •...
  • Page 70 SECTION 7 – PLUMBING Fresh Water Valve Fresh Water Valve (Located in water service center) (Located in water service center) -Typical View -Typical View 4. Turn city water supply ON. Using City Water 5. Use the level display on the monitor panel to When connected to an outside source of water, oversee filling of the tank, or when the tank is the water bypasses the water pump and storage...

  • Page 71: Water Pump

    SECTION 7 – PLUMBING Using Tank Water (Gravity Fill) NOTE: Ensure the Fresh Water valve is in NORMAL position to use the water • Turn Water Pump switch ON. While the pump. If the valve is in Tank Fill position, switch is on, the water pump will the pump will run continuously without automatically supply tank water as needed.

  • Page 72: Water Pump Switch

    SECTION 7 – PLUMBING Initial Waterline Priming 1. Ensure that all water drain valves are closed, including water heater valve. 2. Turn Water Pump switch to “OFF” position. 3. Fill water tank. 4. Open all faucets, hot and cold. 5. Turn ON the Water Pump switch. 6.

  • Page 73: Cold Water Filter

    SECTION 7 – PLUMBING COLD WATER FILTER –If Equipped To obtain filtered cold water for drinking or cooking, simply open the galley sink cold water faucet. NOTE: Only the cold water faucet is filtered. The cold waterline flows through an activated carbon filter that removes chlorine and odors for taste-free drinking water.

  • Page 74: Disinfecting Your Fresh Water System

    SECTION 7 – PLUMBING NOTE: After the system has been thoroughly flushed, remove the diverter plug and store for future use. DISINFECTING YOUR FRESH WATER SYSTEM ® (As required by NFPA 1192 Standard on Recreational Vehicles) To ensure complete disinfection of the potable water system, it is recommended that the •...

  • Page 75: Shower Hose Vacuum Breaker

    SECTION 7 – PLUMBING 4. Let the system stand at least 4 hours when disinfecting with 50 ppm residual chlorine. (If a shorter time period is desired, then a 100 ppm chlorine concentration should be allowed to stand in the system for at least 1 hour.) 5.

  • Page 76: Drainage System (P-Traps)

    SECTION 7 – PLUMBING See winterizing instructions at the end of this section to prepare the toilet for storage in freezing conditions. Further Information See the toilet manufacturer’s operation information in your InfoCase for complete operating, care, and maintenance information. DRAINAGE SYSTEM (P-TRAPS) Ensure there is an adequate amount of water in the drainage system p-traps to avoid sewer odor...

  • Page 77: Waste Water System (Waste Pump)

    SECTION 7 – PLUMBING NOTE: DO NOT OPEN BOTH VALVES AT miles to dislodge the solids. A few starts and ONCE. Do not open the Gray Waste Tank stops will aid in the process. Then reconnect the Drain valve until the black tank is hose and drain in the normal manner.

  • Page 78: Dumping Holding Tanks

    SECTION 7 – PLUMBING 2. Remove dust cap from sewage drain outlet and connect sewage drain hose. Be sure it is firmly attached. Waste Pump (Located behind water service center - accessible through utility compartment) -Typical View Sewage Drain Outlet/Dust Cap (Located in driver side compartment) NOTE: If Waste Pump stalls, check breaker in -Typical View...
  • Page 79 SECTION 7 – PLUMBING NOTE: DO NOT OPEN BOTH VALVES AT ONCE. Do not open the Gray Waste Tank Drain valve until the black tank is drained and Black Waste Tank Drain valve is closed to avoid sewage back-up into gray tank. Gray water also rinses any black water solids from the sewage drain hose.

  • Page 80: Holding Tank Heater

    SECTION 7 – PLUMBING miles to dislodge the solids. A few starts and NOTE: The holding tank heater pads are stops will aid in the process. Then reconnect the electrical resistant-type heating hose and drain in the normal manner. elements. This type of heating element typically uses a large amount of current NOTE: Always keep sewage drain outlet capped while operating.

  • Page 81: Water Heater Bypass And Antifreeze Siphon Valves

    SECTION 7 – PLUMBING Water Tank Drain Valve CAUTION Leave bypass valve handle in NORMAL FLOW position if draining water and blowing out waterlines. Place in BYPASS position ONLY when using antifreeze solution in waterlines. WINTERIZING PROCEDURES Waterline Valve You can winterize the water and plumbing system of your coach using one of the following Waterline and Water Tank Drain Valves two methods –...
  • Page 82 SECTION 7 – PLUMBING 5. Open Faucets. Turn on the water pump and open all sink faucets and shower head knobs. Leave open after water stops flowing. Using exterior shower to drain waterline (Typical View - appearance on your 6. Drain Toilet. Press the toilet flush pedal and coach may differ) hold until water stops flowing in the toilet.
  • Page 83 A “blow-out” plug can be Do not add automotive antifreeze or ® ® purchased at any Winnebago or Itasca caustic chemicals such as bleach or dealer. laundry detergents into the toilet bowl or holding tanks. Although these products...
  • Page 84 SECTION 7 – PLUMBING • Place a container beneath the filter to catch any water remaining in the waterlines during Method 2 – Antifreeze Fill filter removal. Procedure • Twist the filter cartridge “counter- (Fill plumbing lines with RV water system clockwise”...
  • Page 85 SECTION 7 – PLUMBING 5. Turn the Winterization valve handle so that it points toward the siphon tube. See “Water System Drain Valve Locations” chart at the end of this section for location on your model. NOTE: Ensure that all drain valves are CLOSED before pumping RV antifreeze into the water system.
  • Page 86 SECTION 7 – PLUMBING Dump and Clean Holding Tanks 17. Completely drain the sewage and waste water holding tanks at an approved waste disposal site. Drain the sewage tank first so the following waste water can rinse any waste solids from the dump outlet and sewer hose. 18.

  • Page 87: Water System Drain Valve Locations

    SECTION 7 – PLUMBING WATER SYSTEM DRAIN VALVE LOCATIONS Model System Drain Valve Locations Waterlines Two (2) valves located in water service center. Water Tank One (1) valve located in water service center. Water Heater Drain plug on outside of coach, behind service door. Use socket to remove drain plug.

  • Page 89: Entertainment

    SECTION 8 – ENTERTAINMENT TV – 12V LED TV – GALLEY (SWING-OUT) –If Equipped –If Equipped (Typical View - your coach may vary in The LED flat panel TV is powered by 12-volt appearance) DC current. Your coach may be equipped with a galley TV The 12-volt current is supplied from the house swing-out mechanism, which allows you to angle batteries, or from the power converter when...

  • Page 90: Audio/Video System Basic Operation

    SECTION 8 – ENTERTAINMENT Further Information Interior Speaker System See the television manufacturer’s user guide provided in your InfoCase for complete operating instructions. AUDIO/VIDEO SYSTEM BASIC OPERATION NOTE: For your convenience, we have also included a handy, tear-out version of this “A/V System Basic Operation”...

  • Page 91: Exterior Speakers

    SECTION 8 – ENTERTAINMENT • Volume is adjusted with the DVD remote. To connect or disconnect the exterior speaker system with the interior stereo system, press TV Sound through Deluxe Sound SPEAKER C (located on your interior stereo Speakers radio) as shown in the following photo. When watching TV programs alone, the TV normally plays sound through its own built-in stereo speakers.

  • Page 92: Tv Signal Amplifier

    SECTION 8 – ENTERTAINMENT 6. Rotate antenna to illuminate the last flickering LED light. 7. Repeat Steps 5 and 6 to pinpoint signal reception. NOTE: Refer to television manufacturer’s instructions to scan for available channels. Further Information See the antenna manufacturer’s user guide Digital Antenna Power Switch provided in your InfoCase for complete operating (Located in an overhead cabinet or...

  • Page 93: Cable Tv And Portable Satellite Connections

    A second connection may be included inside a cabinet in the bedroom for the rear TV (if equipped). ® See your authorized Winnebago Industries dealer for proper installation and sealing of roof mounted components.

  • Page 95: Furniture And Softgoods

    SECTION 9 – FURNITURE AND SOFTGOODS Bunk Ladder SLEEPING FACILITIES The top of the bunk ladder must be hooked onto the brackets on the rear edge of the bunk mattress for use. WARNING CAUTION Sleeping facilities are not intended for use while vehicle is in motion.

  • Page 96: U-Shaped Dinette With Flip-Up Footrests

    SECTION 9 – FURNITURE AND SOFTGOODS • Always store the ladder in a safe and dry location when not in use. Stow properly while in transit. • Do not store items on the ladder. You could damage the ladder. To Use the Bunk Ladder 1.
  • Page 97 SECTION 9 – FURNITURE AND SOFTGOODS 1. To Extend: Pull footrest up until it locks into 1. Turn adjustment handle to loosen table top. position. Lift the table top upward off the support tube and set the table top edgewise onto the floor to remove the table leg tube.

  • Page 98: Dining Table

    SECTION 9 – FURNITURE AND SOFTGOODS 4. Place the front and rear dinette back cushions into place over the table to complete the bed conversion.. Reverse steps to reassemble to dinette configuration. Once the table is reattached to the table leg tube, tighten the handle completely then back off approximately 1/2 turn.

  • Page 99: Fold And Tumble

    SECTION 9 – FURNITURE AND SOFTGOODS 2. Pull sofa back cushion OUT and DOWN. FOLD AND TUMBLE –If Equipped (Typical View – Your coach may differ in appearance) Reverse steps to store bed into sofa position. EXTENDABLE SECTIONAL – L-SHAPED DINETTE –If Equipped (Typical View –...
  • Page 100 SECTION 9 – FURNITURE AND SOFTGOODS notches (one located on each corner of the sectional frame, as shown in the following photo). 2. Flip seat back support upright. 3. Remove seat cushion from sectional extension by using the provided pull strap (located on the back side of the seat cushion).

  • Page 101: Dinette/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS DINETTE/BED CONVERSION –If Equipped (Typical View – Your coach may differ in appearance) 8. Place dinette table onto the pedestal leg, ensuring the receiver on the bottom of the table is fully seated on the pedestal leg. NOTE: The driver seat may be rotated for Dinette to Bed additional dinette seating.
  • Page 102 SECTION 9 – FURNITURE AND SOFTGOODS 3. Release the table leg from the floor support 6. Then lower the table to rest on the cleats bracket. attached to each dinette bench. Lower dinette seat cushions. Floor Support Bracket 4. Release the catch on the table leg brace and fold the leg up against the bottom of the table.

  • Page 103: Flex Bed

    SECTION 9 – FURNITURE AND SOFTGOODS FLEX BED –If Equipped (Typical View – Your coach may differ in appearance) Your coach may feature a Flex Bed system, which sleeps as two twin beds - or you can choose to easily convert them into a queen size bed.

  • Page 104: Roller Shades (Manual) - Solar/Blackout

    CABINETRY –If Equipped People are drawn to the natural beauty of ® wood. At Winnebago Industries , our craftsmen • To return bed to the down position, pull strap work with the art found in each piece of wood to...
  • Page 105 No matter which species you chose for your new Winnebago Industries motorhome cabinetry, please keep in mind that no two pieces of wood are exactly the same.

  • Page 107: Slideout Rooms

    The park brake must be applied Your motorhome may have more than for the room(s) to run. Winnebago recommends one slideout room. Understand which running the engine whenever you run the slideout...
  • Page 108 SECTION 10 – SLIDEOUT ROOMS To Extend Slideout Room Before Extending! • Level the coach and set the Parking Brake. • Ensure exterior compartment doors are closed so that they will not interfere with slideout operation. • Check inside and outside the vehicle to make sure that there are no people who could be harmed or obstacles that could cause damage due to room extension.

  • Page 109: Slideout Room - Extreme Weather Precaution

    SECTION 10 – SLIDEOUT ROOMS • Check inside and outside the vehicle to make • After the room is retracted, Remove and sure that there are no people who could be Secure the Ignition Key and Deactivate the harmed or obstacles that could cause damage Slideout Control Switch with the Slideout due to room retraction.

  • Page 110: Slideout Room Troubleshooting (Lippert)

    SECTION 10 – SLIDEOUT ROOMS Error Codes SLIDEOUT ROOM When an error occurs during slideout room TROUBLESHOOTING operation, the slideout control panel (located in (LIPPERT) passenger side compartment) will use LED display lights to indicate where the problem –If Equipped exists.

  • Page 111: Slideout Emergency Retraction (Lippert)

    SECTION 10 – SLIDEOUT ROOMS • Press the Mode button 6 times, quickly. Press a 7th time and hold for approximately 5 seconds. Red and green LED lights will begin to flash, confirming the override mode. • Release Mode button. •...
  • Page 112 SECTION 10 – SLIDEOUT ROOMS 5. Using a flat-head screwdriver, push bottom of slideout motor UP to disengage (approximately 1/2” from base). Repeat on opposite slideout motor. • Ensure slideout motor is disengaged approximately 1/2” from base. 6. Push slideout room in to travel position, ensuring both sides are relatively even.

  • Page 113: General Slideout Care

    SECTION 10 – SLIDEOUT ROOMS In addition, certain caulks and sealers may include chemicals that may adversely effect the performance of the seals. See your authorized dealer for caulks and sealers recommended for your coach. Slideout Travel Support -Typical installation shown •...

  • Page 115: Maintenance And Storage

    • Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants.

  • Page 116: Exterior Automotive Paint Finish

    SECTION 11 – MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the • Do not scrape ice or snow from the painted amount of cargo you can carry and remain within surface. Brush off gently with a soft-bristled GVWR and GAWR limits.
  • Page 117 SECTION 11 – MAINTENANCE AND STORAGE Washing NOTE:Avoid aiming water flow from a hose or spray from high-pressure washing • Commercial vehicle wash facilities should be equipment into any appliance intake, as strictly avoided! They will scratch your RV! damage or difficulty in operating Truck-style wash centers have high- appliances may occur.

  • Page 118: Exterior Graphic Care

    SECTION 11 – MAINTENANCE AND STORAGE Further Information • Avoid paste waxes. They sometimes have fillers and additives that give a very short term See the manufacturer’s information provided result. Stay away from silicones in polishes in your InfoCase for complete care and and soaps.

  • Page 119: Exterior Lights

    SECTION 11 – MAINTENANCE AND STORAGE EXTERIOR LIGHTS NOTICE ® Most Winnebago Industries vehicles have polycarbonate lenses on exterior lamps, which are very sensitive to a variety of chemical Do not use citrus-based cleaners on solvents and cleaners. polycarbonate finishes. Citric compounds...

  • Page 120: Cabinetry - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE shades should be closed when the motorhome is parked for an extended UltraLeather Cleaning Chart period of time. Detergent/ Cleaner/ Type of Stain Water Degreaser  Coffee, Tea WARNING  Red Wine, Liquor  Cola, Soft Drinks ...

  • Page 121: Decorative Vinyl Wall Paneling - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE Vinyl simulated wood panels may be cleaned Typically, excellent results can be obtained by with a mild, water-based cleaner and a soft cloth. washing stainless steel with mild dishwashing Do not use solvents on vinyl wood panels. liquid and hot water, followed by rinsing thoroughly and drying with a soft cloth.

  • Page 122: Galley Sink

    SECTION 11 – MAINTENANCE AND STORAGE Fingerprints • A high iron content in the water (hard water) may result in a brown or rust-colored stained Use a mild dishwashing liquid and warm appearance. If noticed, dry towel sink after water. Rub delicately with a soft cloth. Window each use.

  • Page 123: Bathroom

    SECTION 11 – MAINTENANCE AND STORAGE Maintenance Tips Varnish, oil paint, and solvents: • Blot up as soon as possible. Do not rub, as this • Install protection (such as pads or casters) on will only spread material further across the furniture with legs or sharp edges.

  • Page 124: Vehicle Storage - Preparation

    SECTION 11 – MAINTENANCE AND STORAGE 9. Inspect all seams and seals around doors, VEHICLE STORAGE – windows, vents, and any other joints. Replace PREPARATION or repair any that are damaged. Sealing materials and compounds can be purchased Properly preparing your vehicle for storage from your dealer.

  • Page 125: Chassis Service And Maintenance

    SECTION 11 – MAINTENANCE AND STORAGE 9. After flushing fresh waterlines, install a new CHASSIS SERVICE AND water filter cartridge on the galley sink water MAINTENANCE filter and/or full-coach water filtration system (if equipped). See appropriate filter Consult the appropriate sections in your installation instructions in Plumbing section.

  • Page 126: Coach Maintenance Chart

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System ...
  • Page 127 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: ...
  • Page 128 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants ...

  • Page 129: Miscellaneous

    SECTION 12 – MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motorhome’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motorhome.
  • Page 130 SECTION 12 – MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motorhome is to weigh each “corner”...

  • Page 131: Car Or Trailer Towing

    SECTION 12 – MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual Because of individual vehicle use and loading set (left rear duals or right rear duals) should not habits, we recommend weighing the vehicle exceed 6,000 lbs. while fully loaded to avoid exceeding any of the listed Gross Weight Ratings.

  • Page 132: Trailer Wiring Connector

    SECTION 12 – MISCELLANEOUS We do not recommend the usage of a “surge- TRAILER WIRING style” braking device. The usage of a surge brake CONNECTOR (especially when coupled with a hitch ball located outside our recommended limits) places Your coach is pre-wired for trailer or car excessive stress on the hitch.

  • Page 133: Step (Entry) - Electric

    (hinge side) of equipped with a Class 3 hitch may have a the screen door. label limiting vertical tongue load to 350 lbs. All Winnebago Industries models equipped with a Class IV hitch have a 12-5...

  • Page 134: Windows

    SECTION 12 – MISCELLANEOUS Automatic Mode - Entry Step This feature is intended to prevent injury or damage by an extended step while the vehicle is Switch ON moving. (Step Operates with Door) With the Step switch in the ON position, the Further Information step is in Automatic Mode.

  • Page 135: Power Roof Ventilator

    SECTION 12 – MISCELLANEOUS POWER ROOF VENTILATOR –If Equipped The vent dome is raised and lowered using the Dome Crank knob on the fan. The turbine fan will start automatically as the vent is raised, and stop as the vent is lowered. Manual Dome Fuse Fan Speed...

  • Page 136: Storage Compartment Doors

    SECTION 12 – MISCELLANEOUS selector on the fan allows you to adjust The ladder on your vehicle is provided for the amount of circulation you need at any limited access to the roof. time. Walking or working on the roof should be left to qualified service personnel using proper safety 5.

  • Page 137: Awning - Power

    SECTION 12 – MISCELLANEOUS Further Information AWNING – POWER For complete operating instructions, features, –If Equipped safety precautions, and maintenance care, refer to The Power Awning and Awning Light the Power Awning manufacturer’s information switches are located near the entrance door. provided in your InfoCase.
  • Page 139 INDEX About this Manual ..........................1-1 Air Conditioner Filter ........................... 4-10 Air Conditioner/Heater – Automotive (Dash) ..................3-3 Audio/Video System Basic Operation ....................8-2 Awning – Power ........................... 12-9 Bathroom .............................. 11-9 Battery Access ............................6-8 Battery Boost Switch ..........................3-8 Battery Care ............................
  • Page 140 Index Exterior Automotive Paint Finish ......................11-2 Exterior Graphic Care ........................... 11-4 Exterior Lights ............................11-5 Exterior Shower/Wash Station ........................ 7-7 Exterior Speakers ............................ 8-3 Fire Extinguisher ............................. 2-6 Flex Bed ..............................9-9 Fold and Tumble ............................. 9-5 Formaldehyde Information ........................2-8 Fresh Water System ..........................
  • Page 141 Index Propane Gas Supply ..........................5-1 Propane Gas Warnings and Precautions ....................5-4 Propane Vaporization in Cold Weather ....................5-5 Radio In-Dash/Rearview Monitor System ....................3-3 Radio In-Dash/Rearview Monitor System ....................3-5 Range and Refrigerator ......................... 11-8 Range Hood ............................4-4 Range Top ...............................
  • Page 142 Index TV – Galley (Swing-Out) ........................8-1 TV Antenna – Digital ..........................8-3 TV Digital Satellite System Wiring ......................8-5 TV Signal Amplifier ..........................8-4 Undercarriage ............................11-1 U-Shaped Dinette With Flip-Up Footrests ..................... 9-2 Valve Stem Access ..........................3-9 Vehicle Certification Label ........................

This manual is also suitable for:

Navion

Table of Contents
