Winnebago 2016 Minnie Winnie Operator's Manual
  1. Manuals
  2. Brands
  3. Winnebago Manuals
  4. Motorhomes
  5. 2016 Minnie Winnie
  6. Operator's manual

Winnebago 2016 Minnie Winnie Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rev. 1607151207
Part No. 161500-16-003
Copyright 2015 Winnebago Industries, Inc. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for Winnebago 2016 Minnie Winnie

Summary of Contents for Winnebago 2016 Minnie Winnie

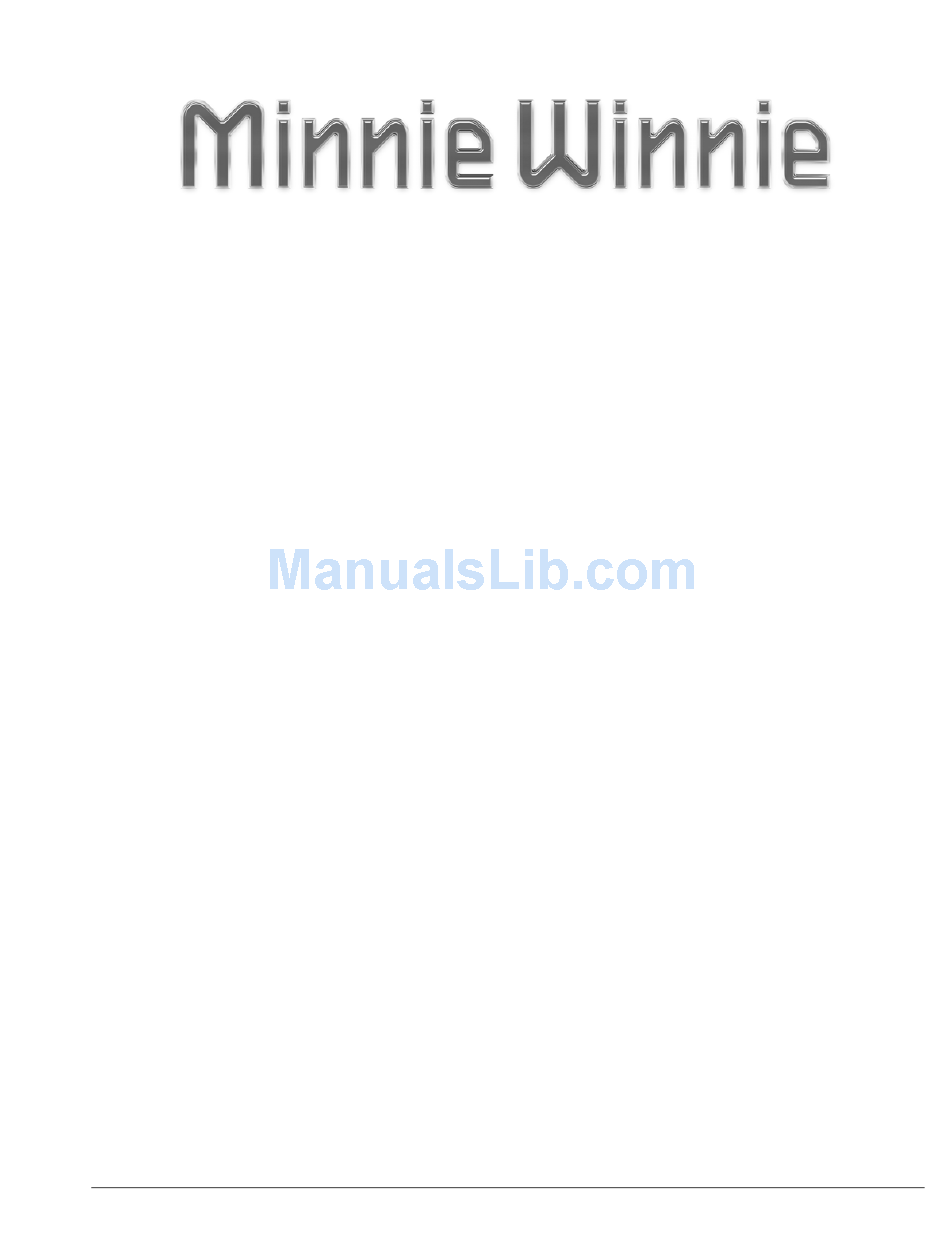

  • Page 1 Rev. 1607151207 Part No. 161500-16-003 Copyright 2015 Winnebago Industries, Inc. All rights reserved.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 – INTRODUCTION About this Manual ..........................1-1 Safety Messages Used in this Manual ....................1-1 Pre-Delivery Inspection ........................1-2 Before Driving ..........................1-2 Front Axle Tire Alignment ....................... 1-2 Service and Assistance ........................1-2 Reporting Safety Defects ........................1-2 Occupant and Cargo Carrying Capacity Label .................
  • Page 4 Table Of Contents Mirrors – Power Sideview Exterior ....................3-4 Mirrors – Power Sideview Exterior ....................3-5 Battery Boost Switch ........................3-6 Air Conditioner/Heater – Automotive (Dash) .................. 3-6 Radio In-Dash/Rearview Monitor System ..................3-6 Engine Access – Interior ........................3-7 Engine Cooling System ........................
  • Page 5 Table Of Contents House/Coach Battery Disconnect Switch ..................6-7 Battery Access ..........................6-7 Battery Care ............................6-8 Circuit Breakers and Fuses – House 12-Volt DC ................6-9 7 – PLUMBING Fresh Water System .......................... 7-1 Water Pump ............................7-2 Disinfecting Your Fresh Water System .................... 7-3 Shower Hose Vacuum Breaker ......................
  • Page 6 Table Of Contents Slideout Room Lock System ......................10-1 Slideout Room Operation – Electric ....................10-1 Slideout Room – Extreme Weather Precaution ................10-3 Slideout Room Troubleshooting (Lippert) ..................10-3 Slideout Emergency Retraction (Lippert) ..................10-4 General Slideout Care ........................10-6 11 –...

  • Page 7: Introduction

    The instructions included in this manual are intended as a guide, and in no way DANGER indicates a hazardous situation extend the responsibilities of Winnebago which, if not avoided, will result in death or Industries beyond the standard written serious personal injury.

  • Page 8: Pre-Delivery Inspection

    National Highway Traffic Safety Administration any problems before delivery. (NHTSA) in addition to notifying Winnebago Industries, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety...

  • Page 9: Occupant And Cargo Carrying Capacity Label

    However, NHTSA cannot become involved in individual problems between you, your dealer, or ® Winnebago Industries To contact NHTSA, you may either call the Vehicle Safety Hotline toll-free at: 1-888-327-4236; (TTY: 1-800-424-9153) or go to their website at http://www.safercar.gov...

  • Page 10: Vehicle Certification Label

    These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation.

  • Page 11: Specifications And Capacities

    55 gal. Notes: All information is based upon the most recent data available. Visit the Winnebago Industries, Inc. web page – www.winnebagoind.com – for the most current product information. The height of each model is measured to the top of the tallest standard feature and is based on the curb weight of a typically equipped unit.

  • Page 12: Owner And Vehicle Information

    Motorhome Serial Number ___________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER...

  • Page 13: Safety And Precautions

    SECTION 2 – SAFETY AND PRECAUTIONS GENERAL WARNINGS DRIVING SAFETY • Only seats equipped with seat belts are to be occupied while the vehicle is moving. WARNING • Make sure all passengers have seat belts fastened. Lap belts should fit low on the hips and upper thighs.

  • Page 14: Fuel And Propane Gas

    SECTION 2 – SAFETY AND PRECAUTIONS • Do not attempt to adjust the driver’s seat while the vehicle is moving. WARNING • Do not adjust tilt steering in a moving vehicle. • Do not operate the cruise control on icy or extremely wet roads, winding roads, in heavy Propane gas containers, gasoline, or other flammable liquids shall not be...

  • Page 15: Propane Gas Leaks

    SECTION 2 – SAFETY AND PRECAUTIONS DANGER DANGER Do not use gas cooking appliances for IF YOU SMELL PROPANE comfort heating. Can lead to carbon 1. Extinguish any open flames and all monoxide poisoning, which can lead to smoking materials. death or serious injury.

  • Page 16: Carbon Monoxide Alarm

    RV application. We - Press the Test/Reset button weekly to test recommend obtaining a replacement from your ® Winnebago Industries dealer. Further Information See the manufacturer’s user guide provided in your InfoCase for further instructions.

  • Page 17: Carbon Monoxide Warning

    Do not run engine in confined areas, such as a recommend obtaining a replacement from your garage, except to move vehicle into or out of the ® Winnebago Industries dealer. area. Further Information Please refer to the manufacturer’s user manual provided in your InfoCase for complete operating instructions and safety precautions.

  • Page 18: Smoke Alarm

    Extinguisher, the replacement must be the same InfoCase for smoke alarm expiration and further type and size as the one originally supplied in instructions. your coach. We recommend obtaining a replacement only from your Winnebago ® Industries dealer or a reliable RV parts supplier.

  • Page 19: Electrical

    SECTION 2 – SAFETY AND PRECAUTIONS ELECTRICAL MAINTENANCE • Careless handling of electrical components • Do not remove the radiator cap while engine can be fatal. Never touch or use electrical and radiator are still hot. Always check components or appliances while feet are bare, coolant level visually at the see-through while hands are wet, or while standing in coolant reservoir.

  • Page 20: Slideout Rooms

    SECTION 2 – SAFETY AND PRECAUTIONS Escape Window (Lift both red safety latch handles UP and push window OUT) -Typical View Slider Window Latch (Lift latch UP and slide window open) -Typical View Most slider windows along the side of any motorhome can also be used as alternate emergency exits, should the need arise.

  • Page 21: Formaldehyde Information

    SECTION 2 – SAFETY AND PRECAUTIONS WARNING WARNING This vehicle, like other vehicles, may Keep all persons clear of the slideout contain small amounts of one or more room and moving parts while extending or substances which are listed by the state retracting.

  • Page 22: Roof And Ladders

    This of footing. is the extent of coverage provided by Winnebago • Never ignore warning labels or weight limits Industries. Winnebago Industries, however, will defined on your ladder.

  • Page 23: Roadside Emergency

    However, if an ® emergency requires you to change the tire Winnebago Industries does not assume yourself, please exercise extreme caution and responsibility for damage incurred while towing read all tire changing information in the chassis this vehicle.

  • Page 24: Jump Starting

    SECTION 2 – SAFETY AND PRECAUTIONS JUMP STARTING If your coach will not start from the chassis battery, try using the Battery Boost switch to divert power from the house batteries to the starter. (See “Battery Boost Switch” in Section 3 - Driving Your Motorhome).

  • Page 25: Driving Your Motorhome

    SECTION 3 – DRIVING YOUR MOTORHOME The information in this section refers only to features installed or adapted to the dash and Folding Dinette Seat Back driver compartment area by Winnebago ® Industries . It also includes passenger seating in the living area of the coach.

  • Page 26: Child Restraints

    SECTION 3 – DRIVING YOUR MOTORHOME protection of the safety belt, never let more than one person use the same safety belt at any one WARNING time, and do not let the safety belts become damaged by pinching them in the doors or in the seat mechanism.

  • Page 27: Keys

    SECTION 3 – DRIVING YOUR MOTORHOME may have a greater chance of being injured in an accident if they are seated in a child restraint system which is not properly secured. A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap belt portion of a lap-shoulder belt.

  • Page 28: Mirrors - Power Sideview Exterior

    SECTION 3 – DRIVING YOUR MOTORHOME Further Information See your chassis manual for instructions on activating, operating, and canceling hazard warning flashers. MIRRORS – POWER SIDEVIEW EXTERIOR –If Equipped Always adjust mirrors for maximum rear visibility before traveling. Make sure the seat is adjusted for proper vehicle control and that you •...

  • Page 29: Mirrors – Power Sideview Exterior

    SECTION 3 – DRIVING YOUR MOTORHOME Further Information Refer to the manufacturer’s user manual provided in your InfoCase for further information. MIRRORS – POWER SIDEVIEW EXTERIOR –If Equipped Always adjust mirrors for maximum rear visibility before traveling. Make sure the seat is •The mirrors can be folded back adjusted for proper vehicle control and that you against the cab doors, if needed.

  • Page 30: Battery Boost Switch

    SECTION 3 – DRIVING YOUR MOTORHOME BATTERY BOOST SWITCH RADIO IN-DASH/REARVIEW MONITOR SYSTEM The Battery Boost switch can be used to draw emergency starting power from the house –If Equipped batteries to start the engine if the chassis battery The radio in your coach can receive AM/FM is discharged.

  • Page 31: Engine Access - Interior

    SECTION 3 – DRIVING YOUR MOTORHOME screen. Press and hold to switch to the camera See the manufacturer’s information in your view mode. For MUTE: Press to switch the InfoCase for operating instructions. mute setting to on or off. Bluetooth •...

  • Page 32: Engine Cooling System

    SECTION 3 – DRIVING YOUR MOTORHOME WARNING Make sure all replacement tires are of the same size and rating as those shown on your Vehicle Certification Label. SUSPENSION ALIGNMENT AND TIRE BALANCE The front suspension and steering system of this vehicle was factory aligned using highly accurate equipment prior to delivery to the Front Engine Latches dealership.

  • Page 33: Air Springs - Rear Helper

    SECTION 3 – DRIVING YOUR MOTORHOME AIR SPRINGS – REAR HELPER LIGHTS (AIR BAGS) All exterior lights should be checked for proper operation each time the vehicle is –If Equipped prepared for a trip. Any bulbs which fail to light The rear air helper springs (air bags) are an should be checked and replaced, when necessary, enhancement to the standard suspension system...

  • Page 35: Appliances And Systems

    SECTION 4 – APPLIANCES AND SYSTEMS Leveling The appliances installed in your motorhome are manufactured by reputable RV appliance Before operating the refrigerator when the makers and have been tested by independent motorhome is stationary, place a small level on laboratories to meet all applicable standards and the bottom of the refrigerator and make certain codes set for RV appliances.

  • Page 36: Refrigerator

    SECTION 4 – APPLIANCES AND SYSTEMS Basic Operation REFRIGERATOR Slide the control switches to the operating –If Equipped positions described and observe the indicator lights. The refrigerator in your coach can operate from either of two energy sources available to the motorhome: •...
  • Page 37 SECTION 4 – APPLIANCES AND SYSTEMS Place bubble level in bottom of refrigerator -Typical View • Press the MODE button to select energy source. There are three settings: LP (Gas Mode) - Refrigerator will operate on gas from the propane tank if the main valve is open and the tank contains gas.

  • Page 38: Refrigerator

    SECTION 4 – APPLIANCES AND SYSTEMS REFRIGERATOR –If Equipped The refrigerator in your coach can operate from either of two energy sources available to the motorhome: • 120-Volt AC Electric • Propane Gas Place bubble level in bottom of refrigerator To be able to use both types of energy, the refrigerator does not have a compressor like household refrigerators.

  • Page 39: Refrigerator Service Access Compartment

    SECTION 4 – APPLIANCES AND SYSTEMS REFRIGERATOR SERVICE ACCESS COMPARTMENT (Exterior) The exterior refrigerator service compartment allows access to the rear of the refrigerator for inspection, maintenance, and service. To Open -Typical View 1. Use a screwdriver or coin to turn the latch •...

  • Page 40: Avoiding Asphyxiation

    SECTION 4 – APPLIANCES AND SYSTEMS To Light Range Top Burners •Depress the desired burner knob and turn Oven Burner Knob counter-clockwise to the ON or LITE position (do –If Equipped NOT attempt to light more than one burner at a •PILOT ON position keeps pilot flame lit for time).

  • Page 41: Microwave Oven

    SECTION 4 – APPLIANCES AND SYSTEMS NOTICE WARNING Do not store items in oven. Gas cooking appliances need fresh air for If oven would turn on stored items can safe operation. ignite resulting in fire and or property Before operating: damage.

  • Page 42: Tank Capacities

    SECTION 4 – APPLIANCES AND SYSTEMS Sensors For example, if the fluid level is 1-2” below the FULL sensor, the monitor will show the level to be only 2/3 even though the tank is nearly full. If a tank is about 1/4 full, the monitor will register an empty tank because the fluid level is At the touch of a button this panel will display below the 1/3 sensor even though there is still...

  • Page 43: Water Heater - Gas

    SECTION 4 – APPLIANCES AND SYSTEMS 1. Both the chassis engine and the generator To fill the Water Heater, turn the Water Pump engine must be shut off and 120-volt AC switch ON and open a hot water faucet anywhere shoreline unplugged.

  • Page 44: Pressure-Temperature Relief Valve

    SECTION 4 – APPLIANCES AND SYSTEMS Read the Water Heater Operation Manual for complete Safety Warnings, Operating Instructions and Maintenance Information before operating the water heater. Be sure the water heater is filled with water before starting either electric or propane gas operation.

  • Page 45: Furnace - Propane Gas

    SECTION 4 – APPLIANCES AND SYSTEMS •Lift handle straight out to open P-T valve when water heater is cold. 4. Let the handle of the P-T valve snap shut. Water Heater Exterior Service Access 5. Close the faucet and turn on the water supply before switching the water heater on.

  • Page 46: Ducted Roof Air Conditioning System

    SECTION 4 – APPLIANCES AND SYSTEMS 2. Move SYSTEM switch from Off to Heat and DUCTED ROOF AIR set the desired temperature using the Temp CONDITIONING SYSTEM Selector slider. 3. Furnace fan should start to blow immediately The furnace thermostat also controls ducted after setting the thermostat.

  • Page 47: Propane Gas

    SECTION 5 – PROPANE GAS PROPANE GAS SUPPLY Tank Gauge & Tank Fill Overflow Sender The propane gas system supplies fuel for the Valve Valve gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel.

  • Page 48: Safe Use Of The Propane Gas System

    SECTION 5 – PROPANE GAS to the National Propane Gas Association, propane gas outlets in the United States do not WARNING offer any other type of liquefied petroleum gas than propane to the general public.) Check local phone directory yellow pages for locations of Do not fill propane container(s) to more local propane gas refilling stations or bulk than 80 percent of capacity.

  • Page 49: Propane Gas Warnings And Precautions

    SECTION 5 – PROPANE GAS Propane gas also contains an odor additive PROPANE GAS WARNINGS that you can smell if propane is present in the air. AND PRECAUTIONS Here are a few precautions to observe that will help you to use the propane gas system safely: It is illegal for vehicles equipped with propane container to travel on certain roadways or •...

  • Page 50: Propane Gas Pressure Regulator

    SECTION 5 – PROPANE GAS WARNING WARNING Do not place propane cylinders inside the Visually inspect the pressure regulator vehicle. vent periodically for blockage by Propane cylinders are equipped with accumulated debris or insect nests, etc. safety devices that relieve excessive Vent obstruction could result in excessive pressure by discharging propane to the pressure causing fire or explosion, which...

  • Page 51: Propane Vaporization In Cold Weather

    SECTION 5 – PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

  • Page 53: Electrical

    SECTION 6 – ELECTRICAL Your coach is equipped with an electrical the power converter automatically changes a system consisting of two separate voltages: portion of the 120-volt current to 12-volt DC current. All equipment in the motorhome that is • 12-volt DC system (battery current);...
  • Page 54 SECTION 6 – ELECTRICAL 30 Amp Receptacle WARNING • Swivel the small cover section upward to access the cord passage. This connection is for 110/125 Volt AC, 60 Hz 30 Ampere supply. Do not exceed circuit rating. Exceeding the circuit rating may cause a fire and result in death or serious injury.

  • Page 55: Power Center

    SECTION 6 – ELECTRICAL WARNING Service inlet access must be closed when utility connections are not in use. Park Fuses or Breakers Most campgrounds are equipped with a fuse or circuit breaker at the receptacle (which we recommend shutting off before engaging or disengaging the power cord.) This protects the park’s wiring, as well as the power cord on your 2.

  • Page 56: Circuit Breakers - House 120-Volt Ac

    SECTION 6 – ELECTRICAL condition of the battery. If it is below “full 12-Volt charge”, the charging section will start charging 120-Volt House Fuses Circuit Breakers the batteries. If the house batteries have been extremely discharged, they will accept charge at a relatively high amperage rate.

  • Page 57: Electrical Outlets - House 120-Volt Ac

    SECTION 6 – ELECTRICAL continually tripped and no overload is evident, If the GFCI keeps tripping, have the electrical have the system checked for a short in the wiring system checked and repaired, if necessary, before or the appliances. using again. •Push to Reset circuit after monthly testing...

  • Page 58: Electrical System - House 12-Volt Dc

    SECTION 6 – ELECTRICAL To use the 120-volt generator, plug the power Refer to the hourmeter to determine when cord into the generator receptacle within the periodic maintenance is due and to record utility compartment before starting the generator. services which have been performed. Operation Warnings and Cautions WARNING The exhaust of all internal combustion...

  • Page 59: House/Coach Battery Disconnect Switch

    SECTION 6 – ELECTRICAL Converter Always leave this switch ON while using the coach. See “Power Center.” NOTE: Some electronic displays and memory Chassis Battery functions may need to be reset after The chassis battery is used to operate the power has been reconnected.

  • Page 60: Battery Care

    SECTION 6 – ELECTRICAL The two best defenses against sulfating and insufficient charge are to: 1. Turn off the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle discharge caused by directly connected components like propane gas detectors or digital clock displays, etc.) 2.

  • Page 61: Circuit Breakers And Fuses - House 12-Volt Dc

    If your coach is going to be unoccupied for supplied, back onto the positive terminal ® two weeks or more, Winnebago Industries after servicing. Care must be taken to recommends disconnecting the chassis battery in avoid pinching the cable between any your coach to avoid battery discharge.
  • Page 62 SECTION 6 – ELECTRICAL affected lights or appliances and reset the breaker or replace the fuse with a new one of equal amperage rating. House 12-Volt Fuses A label on the House 12-Volt Fuse panel states the amperage rating and circuit protected for each fuse.

  • Page 63: Plumbing

    SECTION 7 – PLUMBING The tank is filled through the Tank Fill FRESH WATER SYSTEM Connection located on the side of the vehicle. The Fresh Water System provides water to the City Water Connection galley sink, shower, bathroom lavatory, toilet, and water heater.

  • Page 64: Water Pump

    SECTION 7 – PLUMBING 2. Turn the Water Pump switch(es) OFF. Disconnecting from City Water 1. Turn the city water supply OFF. 2. Disconnect hose from the coach and replace the cap on the City Water Connection. 3. Turn the Water Pump Switch(es) ON. WATER PUMP Unscrew bowl and remove to...

  • Page 65: Disinfecting Your Fresh Water System

    SECTION 7 – PLUMBING Initial Waterline Priming DISINFECTING YOUR FRESH 1. Ensure that all water drain valves are closed, WATER SYSTEM including water heater valve. ® (As required by NFPA 1192 Standard on 2. Turn Water Pump switch to “OFF” position. Recreational Vehicles) 3.

  • Page 66: Shower Hose Vacuum Breaker

    SECTION 7 – PLUMBING Continuous Tank Disinfection 15 gallons of tank capacity). The bleach will be drawn into the tank when the city water is turned (Superchlorination) Some RVers like to ensure continuous 2. Fill the tank completely, then open each faucet sanitation of their fresh water tank by in the coach and run the water until a distinct “superchlorination”–...

  • Page 67: Drainage System (P-Traps)

    SECTION 7 – PLUMBING appropriate waste water disposal site. This means you can use the toilet, sinks, and shower even in areas where utility hookups are not available. The black water holding tank contains the sewage from the toilet and may include bathroom lavatory on some models.
  • Page 68 SECTION 7 – PLUMBING NOTE: Black and Gray tank valve positions may be reversed depending on floorplan and C AU T I ON tank location. 4. Open the Black Waste Tank Drain valve with a quick pull and make sure there are no sags in Do not use the tank flush valve unless the the hose.

  • Page 69: Waste Water System - Waste Pump (Model 27Q)

    SECTION 7 – PLUMBING See “Specifications” in Section 1– Introduction for tank capacities for your model. WARNING Waste Pump The 12-volt Waste Pump disposes gray Service inlet access must be closed when holding tank waste through a small diameter utility connections are not in use. sewer hose, which is then drained through the main sewage drain outlet.
  • Page 70 SECTION 7 – PLUMBING sewage back-up into gray tank. Gray water also rinses any black water solids from the sewage drain hose. 5. Open the Gray Waste Tank Drain valve (located beneath driver side of coach ahead of rear wheel) and press and hold the Waste Pump switch (located near the exterior shower.) Release the Waste Pump switch and Sewage Drain...
  • Page 71 SECTION 7 – PLUMBING 2. Leave Black Waste Tank Drain valve open while flushing tank. 3. Attach a garden hose from a city water hydrant to the Black Waste Tank Flush Inlet fitting on the left sidewall. (This inlet is clearly marked separate from the City Water inlet).

  • Page 72: Holding Tank Heater

    SECTION 7 – PLUMBING leaving solids in the tank. Should this generator must be operating, or the chassis accidentally happen, disconnect the hose, fill the engine must be running (such as when driving tank about half full with water, and drive a few down the road).

  • Page 73: Water Heater Bypass And Antifreeze Siphon Valves

    SECTION 7 – PLUMBING WATER HEATER BYPASS AND ANTIFREEZE SIPHON VALVES –If Equipped Your coach may be equipped with a Water Heater Bypass valve and an Antifreeze Siphon (Winterization) valve for winterizing waterlines using RV antifreeze. Turn the handle as shown to either bypass or flow mode.
  • Page 74 30 psi or less to force air through (Requires socket and ratchet). the system. A “blow-out” plug can be ® purchased at any Winnebago Industries dealer. City Water Connection Water Heater Drain Plug...

  • Page 75: Winterizing Optional Appliances

    SECTION 7 – PLUMBING 8. Drain Toilet. Operate and hold toilet flush Your drainage and fresh water systems are lever until water is completely drained from now winterized. toilet. See instructions for removal from storage in 9. Turn air pressure off. Disconnect water Section 11 - Maintenance and Storage.
  • Page 76 SECTION 7 – PLUMBING 4. Let the refrigerator cool down to ice making temperature. Remember, this can take up to 24 hours. 5. Let the ice maker cycle and dump the first batch of ice. 7-14...

  • Page 77: Water System Drain Valve Locations

    SECTION 7 – PLUMBING WATER SYSTEM DRAIN VALVE LOCATIONS MODEL SYSTEM DRAIN VALVE LOCATIONS Waterlines • Two (2) valves beneath the rear dinette seat. Remove panel to access. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button”...
  • Page 78 SECTION 7 – PLUMBING Waterlines • Two (2) valves in galley. Remove bottom drawer of galley and/or panel under sink. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.

  • Page 79: Entertainment

    SECTION 8 – ENTERTAINMENT TV – (SWIVEL) –If Equipped (Typical View - your coach may vary in appearance according to floorplan) Your coach may be equipped with a TV swivel/telescoping mechanism, which allows you to angle the TV to best suit your viewing needs.

  • Page 80: Cd/Dvd Player

    SECTION 8 – ENTERTAINMENT Set TV Video Input Further Information See the manufacturer’s quick reference guide • Turn TV and DVD player ON. provided in your InfoCase for complete feature • Press the SOURCE button on the TV or the descriptions and operating instructions.

  • Page 81: Tv Antenna - Digital

    SECTION 8 – ENTERTAINMENT ENTER ENTER PLAY/PAUSE • Volume is adjusted with the DVD remote (or volume buttons on DVD player). Digital Antenna Power Switch Antenna (Located in an overhead cabinet or • Turn On antenna booster inside coach. mounted on a wall near the TV) •...

  • Page 82: Tv Antenna

    SECTION 8 – ENTERTAINMENT 5. Rotate Attenuator Dial COUNTER- CLOCKWISE until the last illuminated LED light flickers. • Power 6. Rotate antenna to illuminate the last flickering Switch LED light. 7. Repeat Steps 5 and 6 to pinpoint signal reception. NOTE: Refer to television manufacturer’s instructions to scan for available channels.

  • Page 83: Furniture And Softgoods

    SECTION 9 – FURNITURE AND SOFTGOODS CAB SEAT LOUNGE CUSHION –If Equipped (Typical View – Your coach may differ in appearance) The driver and co-pilot seats may feature a Lounge Seat Cushion which provides increased seat height and added comfort while in the lounge seating position.
  • Page 84 SECTION 9 – FURNITURE AND SOFTGOODS Attaching Bunk Ladder • Keep the rungs of the ladder clean and dry while in use. Do not step onto the rungs if the 1. Remove ladder from travel straps. rungs are wet, or if your shoes are wet or carry 2.

  • Page 85: Sofa/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS SOFA/BED CONVERSION FOLD AND TUMBLE –If Equipped –If Equipped (Typical View – Your coach may differ in Sofa to Bed appearance) • Pull OUT on security latch (located on front of sofa) to release sofa seat. Security Latch (Located on front of sofa) - Pull OUT to release...

  • Page 86: Dinette/Bed Conversion - Dream Dinette

    SECTION 9 – FURNITURE AND SOFTGOODS 2. Pull sofa back cushion OUT and DOWN. 3. Rotate lock rod up to secure table in the lowered position. Reverse steps to store bed into sofa position. DINETTE/BED CONVERSION – DREAM DINETTE ™ –If Equipped Lock Rod (Typical View –...

  • Page 87: Dinette/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS 2. Lift both dinette seat cushions upward. WARNING Failure to engage the lock rod when the table is raised may result in injury. DINETTE/BED CONVERSION –If Equipped (Typical View – Your coach may differ in 3.

  • Page 88: Mini Dinette/Couch Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS 5. Remove the table from the wall support Once the table is reattached onto the wall bracket by lifting the end of the table. support, make sure the table leg is secured into the floor support bracket and the leg brace is Wall locked.
  • Page 89 SECTION 9 – FURNITURE AND SOFTGOODS Couch to Dinette 2. Release the catch on the table leg brace and fold the leg up against the bottom of the table. 1. Reattach the table onto the wall support and lower the table leg. Wall Support 3.

  • Page 90: U-Shaped Dinette/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS Belt with Couch 3. Place the table top onto the ledge of the dinette seat. Use when in couch seating Place table position. top onto ledge. U-SHAPED DINETTE/BED CONVERSION –If Equipped 4. Place the center back dinette cushion into (Typical View –...

  • Page 91: Pleated Blinds

    SECTION 9 – FURNITURE AND SOFTGOODS 4. Arrange cushions to cover bed area. NOTE: Use the back dinette seat cushion and two bolster cushions to cover the dining table. 2. Lift edges of the dinette cushions up and push the dinette table straight down. Make sure the table is lowered as far as it will go so when arranging the cushions to cover the bed area, they are even with the other dinette cushions.

  • Page 92: Roller Shades (Manual) - Solar/Blackout

    SECTION 9 – FURNITURE AND SOFTGOODS A constant-tension cord system holds them at • Raise the blind fully while still damp and let it the desired level without slipping. remain in the raised position for about 24 hours. Tension Adjustment •...

  • Page 93: Wood Furniture And Cabinetry

    People are drawn to the natural beauty of and the wood is considered part of the natural ® wood. At Winnebago Industries , our craftsmen aging process and is not to be considered defect work with the art found in each piece of wood to or damage.

  • Page 95: Slideout Rooms

    The ignition key must be placed in the on or run position to operate the slideout room(s). The park brake must be applied for the room(s) to run. Winnebago recommends running the engine whenever you run the slideout rooms in or out, the engine alternator should insure the rooms have adequate 12-volt DC power to operate correctly.
  • Page 96 SECTION 10 – SLIDEOUT ROOMS To Retract Slideout Room Before Retracting! WARNING • Be sure the coach is level and the Parking Brake is set. CRUSH HAZARD. Keep people and • Ensure exterior compartment doors are closed objects clear of the inside and outside of so that they will not interfere with slideout the slideout room when operating.

  • Page 97: Slideout Room - Extreme Weather Precaution

    SECTION 10 – SLIDEOUT ROOMS • Press the Slideout Room “RETRACT/IN” SLIDEOUT ROOM switch and hold until the room is fully TROUBLESHOOTING retracted, then release the switch. (LIPPERT) • To stop retracting the room during operation, release the button. –If Equipped •...

  • Page 98: Slideout Emergency Retraction (Lippert)

    SECTION 10 – SLIDEOUT ROOMS Error Codes • Press the Mode button 6 times, quickly. Press a 7th time and hold for approximately 5 When an error occurs during slideout room seconds. operation, the slideout control panel (located in Red and green LED lights will begin to flash, passenger side compartment) will use LED confirming the override mode.
  • Page 99 SECTION 10 – SLIDEOUT ROOMS 2. Using a flat-head screwdriver, push it up 5. Using a flat-head screwdriver, push bottom of underneath the screw cover and pull up to slideout motor UP to disengage release the cover. Remove the rest of the cover (approximately 1/2”...

  • Page 100: General Slideout Care

    SECTION 10 – SLIDEOUT ROOMS 8. See your dealer for service of the slideout motors before using again. Further Information Please refer to the slideout manufacturer’s user guide provided in your InfoCase for further instructions and troubleshooting information. GENERAL SLIDEOUT CARE •...

  • Page 101: Maintenance And Storage

    • Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants.

  • Page 102: Exterior Finish

    SECTION 11 – MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the • Wash with cool water out of direct sunlight amount of cargo you can carry and remain within using a quality automotive detergent. Never GVWR and GAWR limits. wash the vehicle in direct sunlight or while the vehicle surface is hot.

  • Page 103: Exterior Graphic Care

    SECTION 11 – MAINTENANCE AND STORAGE If the finish begins to look dull or discolored, • Wash graphics with plain soap and water or it may need to be cleaned with a polishing or any car wash detergent. Rinse thoroughly. cleaning compound formulated for gel-coated •...

  • Page 104: Exterior Lights

    EXTERIOR LIGHTS motorhome is parked for an extended ® period of time. Most Winnebago Industries vehicles have polycarbonate lenses on exterior lamps, which are very sensitive to a variety of chemical solvents and cleaners.

  • Page 105: Cabinetry - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE CABINETRY – CLEANING WARNING Wooden items may be cleaned with a soft cloth and a good quality wood finish cleaning product. When cleaning upholstery and fabric, do Vinyl simulated wood panels may be cleaned not use lacquer thinner, nail polish with a mild, water-based cleaner and a soft cloth.

  • Page 106: Solid Surface Countertop - Corian

    SECTION 11 – MAINTENANCE AND STORAGE surface material is extremely heat resistant, but SOLID SURFACE sudden contact by a very hot material with a cold ® COUNTERTOP – CORIAN countertop surface could cause a crack that would need to be repaired. Likewise, Care and Maintenance concentrated high heat sources in a small area, You can easily maintain the beauty of your...

  • Page 107: Galley Sink

    SECTION 11 – MAINTENANCE AND STORAGE • Do not use rubber mats in the sink bowl. NOTE: Improper use may damage this product Material trapped under mats can complicate and void the warranty. cleaning. RANGE AND REFRIGERATOR NOTE: Improper use may damage this product and void the warranty.

  • Page 108: Bathroom

    SECTION 11 – MAINTENANCE AND STORAGE Pet stains: • Use doormats (that do not contain bitumen) to keep out most of the dirt and dust. • Treat with lukewarm water. If stain remains visible, clean with a soft nylon pad and non- •...

  • Page 109: Vehicle Storage - Removal

    SECTION 11 – MAINTENANCE AND STORAGE Clean and Prep Coach for Storage 10. Close all windows and roof vents. Protect all appliance vent openings from contamination 1. Turn off the propane gas tank. by animals or insects (e.g. bird nest, wasp 2.

  • Page 110: Chassis Service And Maintenance

    SECTION 11 – MAINTENANCE AND STORAGE 14. Replace batteries, if necessary, and check out electrical system to make sure all lights and electrical components operate. 15. Check tires for proper cold inflation pressure. See “Vehicle Certification Label” in Section 1 - Introduction.

  • Page 111: Coach Maintenance Chart

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System ...
  • Page 112 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: ...

  • Page 113: Miscellaneous

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants ...

  • Page 115: Loading The Vehicle

    SECTION 12 – MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motorhome’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available WARNING space when loading your motorhome.
  • Page 116 SECTION 12 – MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motorhome is to weigh each “corner”...

  • Page 117: Car Or Trailer Towing

    SECTION 12 – MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual Because of individual vehicle use and loading set (left rear duals or right rear duals) should not habits, we recommend weighing the vehicle exceed 6,000 lbs. while fully loaded to avoid exceeding any of the listed Gross Weight Ratings.

  • Page 118: Trailer Wiring Connector

    SECTION 12 – MISCELLANEOUS force applied to the motorhome brakes, the more TRAILER WIRING force will be applied to the rear vehicle’s braking CONNECTOR system. We do not recommend the usage of a “surge- Your coach is pre-wired for trailer or car style”...

  • Page 119: Awning - Manual

    350 The tow vehicle brakes may be rated for lbs. Some Winnebago Industries models operation at GVWR, not GCWR. equipped with a Class IV hitch have a...

  • Page 120: Storage Compartment Doors

    SECTION 12 – MISCELLANEOUS NOTE: Actual features and locations may vary depending on model, available C AU T I ON equipment, and storage compartment configuration. Pinch Hazard. Ensure there are no ROOF LADDER people who could be harmed or objects that can be damaged.

  • Page 121: Power Roof Ventilator

    SECTION 12 – MISCELLANEOUS ON/OFF – Press to turn the fan on or off. The • Do not overload. Ladder is intended for one • person. vent lid will open automatically when the fan is turned on and close when the fan is turned •...

  • Page 122: Effects Of Prolonged Occupancy

    SECTION 12 – MISCELLANEOUS EFFECTS OF PROLONGED OCCUPANCY Your motorhome was designed primarily for recreational use and short-term occupancy. If you expect to occupy your coach for an extended period, be prepared to deal with condensation and humid conditions that may be encountered. Humidity and Condensation Moisture condensing on the inside of windows is a visible indication that there is too...
  • Page 123 INDEX About this Manual ..........................1-1 Air Conditioner Filter ........................... 4-12 Air Conditioner/Heater – Automotive (Dash) ..................3-6 Air Springs – Rear Helper ........................3-9 Audio/Video System Basic Operation ....................8-1 Awning – Manual ..........................12-5 Awning – Power ........................... 12-5 Bathroom ..............................
  • Page 124 Index Engine Overheat ............................ 2-12 Exterior Cable TV Connection ....................... 8-4 Exterior Finish ............................11-2 Exterior Graphic Care ........................... 11-3 Exterior Lights ............................11-4 Fire Extinguisher ............................. 2-6 Fold and Tumble ............................. 9-3 Fold-Down Dinette Seat ......................... 3-1 Formaldehyde Information ........................2-9 Fresh Water System ..........................
  • Page 125 Index Propane Gas Leaks ..........................2-3 Propane Gas Pressure Regulator ......................5-4 Propane Gas Supply ..........................5-1 Propane Gas Warnings and Precautions ....................5-3 Propane Vaporization in Cold Weather ....................5-5 Radio In-Dash/Rearview Monitor System ....................3-6 Range and Oven ............................4-5 Range and Refrigerator .........................
  • Page 126 Index Trailer Wiring Connector ........................12-4 TV – (Swivel) ............................8-1 TV Antenna – Digital ..........................8-3 TV Antenna ............................. 8-4 TV Signal Amplifier ..........................8-4 Undercarriage ............................11-1 U-Shaped Dinette/Bed Conversion ......................9-8 U-Shaped Dinette/Bed Conversion ......................9-8 Vehicle Certification Label ........................1-4 Vehicle Storage –...

Table of Contents
