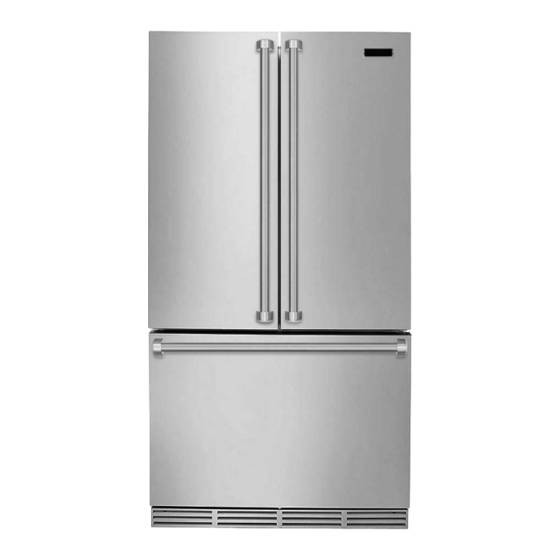

Viking Range 3 Series Use & Care Manual

French door bottom freezer/refrigerator
Hide thumbs Also See for 3 Series:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
Use & Care Guide
Guia de Uso y Cuidado
Guide d'utilisation et d'entretien
3 Series
French Door Bottom Freezer/Refrigerator
Refrigerador con congelador inferior de puerta doble
Réfrigérateur à portes françaises/Congélateur en bas

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viking Range 3 Series

Summary of Contents for Viking Range 3 Series

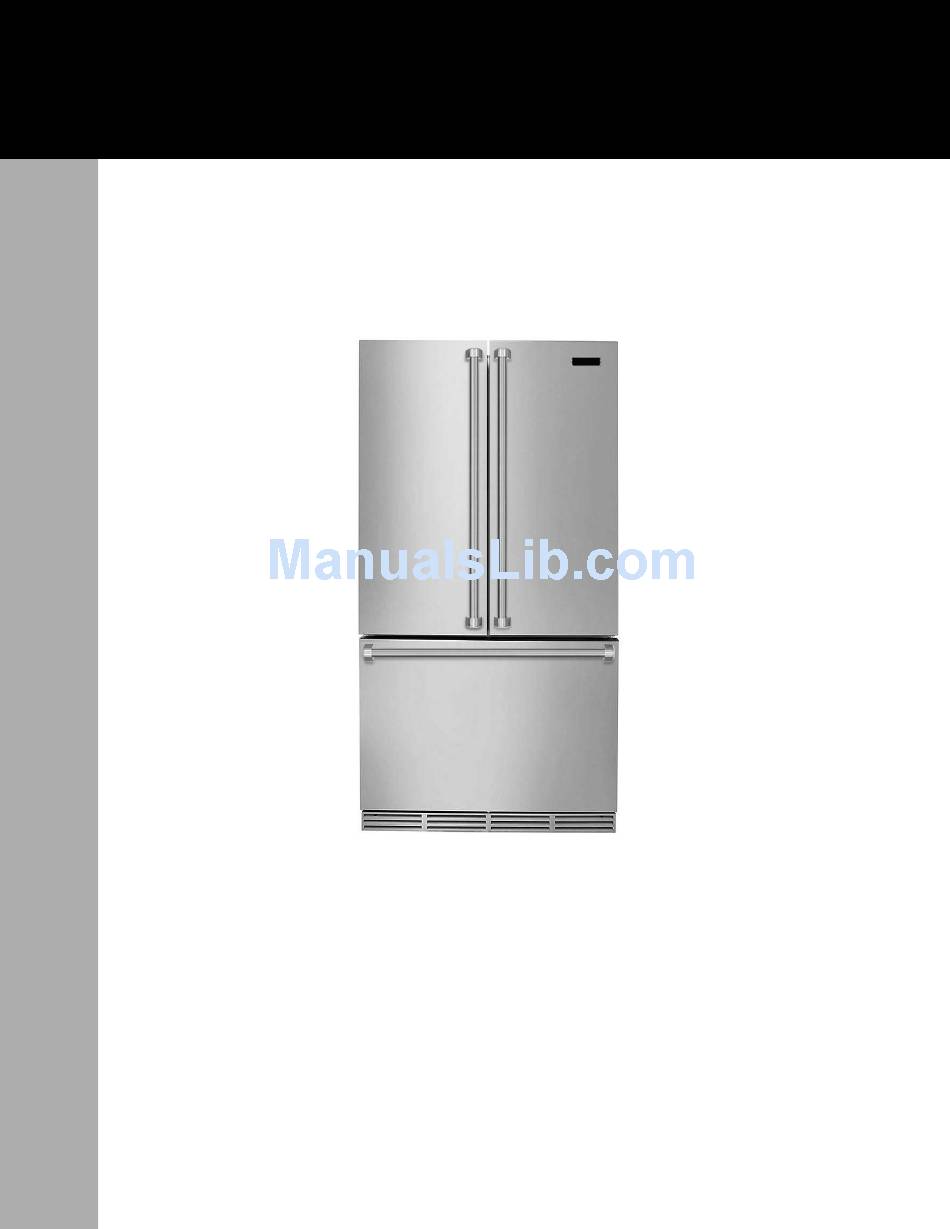

  • Page 1 Use & Care Guide Guia de Uso y Cuidado Guide d’utilisation et d’entretien 3 Series French Door Bottom Freezer/Refrigerator Refrigerador con congelador inferior de puerta doble Réfrigérateur à portes françaises/Congélateur en bas...

  • Page 2: Table Of Contents

    Controls ................13 NOTE Automatic Ice & Water Maker/Dispenser ......15 Registering your product with Viking Range, LLC enhances Storage Features ..............16 our ability to serve you. You can register online at www. vikingrange.com or by sending your Product Registration Storing Food and Saving Energy ........

  • Page 3: Safety

    Safety Important safety instructions Child Safety Safety Precautions Do not attempt to install or operate your unit until you have Packing Materials: read the safety precautions in this manual. Safety items • Packing cartons covered with rugs, bedspreads, plastic throughout this manual are labeled with a Danger, Warning, sheets, or stretch wrap may become airtight chambers or Caution based on the risk type.

  • Page 4: Electrical Information

    Safety Electrical information IMPORTANT WARNING CFC/HCFC DISPOSAL Your old refrigerator may have a cooling system You must follow these guidelines to ensure that that used CFCs or HCFCs (chlorofl uorocarbons or your refrigerator’s safety mechanisms are operating hydrochlorofl uorocarbons). CFCs and HCFCs are believed correctly.

  • Page 5: Feature Overview

    Feature Overview Understanding features and terms Your refrigerator is designed for optimal convenience and storage fl exibility. The illustration below is provided to assist you with familiarizing yourself with product features and terminology. NOTE Features may vary according to model. Model is shown without freezer drawer cover. LED Light Incandescent Light (select models)

  • Page 6: Installation

    Installation Required Tools You will need the following tools: This Use & Care Guide provides general installation and • Allow the following clearances for ease of installation, operating instructions for your model. We recommend using proper air circulation, and plumbing and electrical a service or kitchen contracting professional to install your connections: refrigerator.

  • Page 7: Leveling Freezer Drawer

    Installation Leveling Freezer Drawer Figure 1: Remove screws and then gently pull forward. (if necessary) Check gasket seal around top, bottom, and sides of freezer drawer. If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to allow drawer to rotate (see illustration).
  • Page 8 Installation To adjust the door stop: Re-tighten screw. Door stop is adjustable between 85 to 145 degrees. NOTE View shown is looking up at the bottom of the refrigerator door. Re-tighten Screw Ensure door stops in desired location before resuming normal use.
  • Page 9 Installation To adjust the fl ipper mullion: Lift the door while adjusting the washer. To raise the door, rotate washer clockwise (when viewed from Loosen the screw located on the fl ipper mullion hinge. the bottom). To lower door, rotate washer counter- clockwise (when viewed from the bottom).

  • Page 10: Removing The Doors

    Removing the Doors Getting through narrow spaces Disconnect the harness by grasping both sides of the connector fi rmly, depress the latch, and pull apart. If your refrigerator will not fi t through an entrance area, Remove the two screws from the top hinge. Lift the before installing the door handles, you can remove the door off of the bottom hinge and set it aside.
  • Page 11 Removing the Doors Installing the Door Handles CAUTION There are 6 handle studs on the refrigerator. Drawer is heavy. Use caution when lifting. Installing Freezer Drawer With lower slides pulled out, hang drawer onto slide brackets ensuring pins on each side are fully inserted into slots on each side.

  • Page 12: Connecting The Water Supply

    054414-000 (with a 6 ft. Stainless Steel Water several tubing lines, a water fi lter, a water valve, and a Line) and for homes without an existing valve, Viking Range, LLC water tank. To ensure that your water dispenser works recommends its water line kit 054415-000 (with a 20 ft.

  • Page 13: Controls

    Controls An indicator light will be illuminated above most active features. Touch the icon to activate the options below. fast freeze Activates a faster rate for freezing food. fast ice Increases the production of ice. energy saver Keep this switch set on energy saver (light on) for lowest energy usage. If moisture appears on the cabinet between the doors, pressing this button will turn the light off and enable an electric heater used to reduce moisture on the cabinet between the doors.

  • Page 14: Sabbath Mode

    TruTouch Controls Sabbath Mode NOTE The Sabbath Mode is a feature that disables portions of the Temperature Adjustable Cold Zone Drawer If the refrigerator and its controls in accordance with observance is not turned off prior to putting the unit into Sabbath of the weekly Sabbath and religious holidays within the Mode, it will continue to adjust itself to maintain the set Orthodox Jewish community.

  • Page 15: Automatic Ice & Water Maker/Dispenser

    Automatic Ice Maker Ice maker operation & care • The following sounds are normal when the ice maker is operating: After the refrigerator is installed properly, the ice maker can - Motor running produce ice within 24 hours. It can completely fi ll an ice bin in about three days.

  • Page 16: Storage Features

    Storage Features Shelf features Drawers Your refrigerator includes a variety of storage drawers. These CAUTION drawers are located in fi xed positions at the bottom of the fresh food compartment. To avoid injury from breakage, handle tempered glass shelves carefully. Crispers Crisper drawers are designed for storing fruits, vegetables, and other fresh produce.
  • Page 17 Storage Features To remove Special items the Crisper rack Drawer for (select models) cleaning: The innovative Pull the design of the special items rack drawer allows you to out until store four bottles it stops. of wine or soft Lift the drink bottles.

  • Page 18: Storage Bins

    Storage Features To change the position of an adjustable door bin: IMPORTANT Before adjusting a bin, remove all food. DO NOT clean the display area of the Custom Temp Grip the bin fi rmly with both hands and lift it upward. Drawer with abrasive or caustic cleaners.
  • Page 19 Storage Features Freezer Features To reinstall lower basket, insert basket into retainer clips. (varies by model) Tilt Wire Shelf The freezer tilt wire shelf (located on the inside of the freezer drawer) is not designed to be removed. Dividers Removal Lift up on the front of the upper divider and pull out.

  • Page 20: Storing Food And Saving Energy

    Storing Food and Saving Energy Ideas for storing foods Ideas for saving energy Fresh food storage Installation • Keep the fresh food compartment between 34°F and • Locate the refrigerator in the coolest part of the room, 40°F with an optimum temperature of 37°F. out of direct sunlight, and away from heating ducts or registers.

  • Page 21: Normal Operating Sounds & Sights

    Normal Operating Sounds Understanding the sounds you may hear Your new, high-effi ciency refrigerator may introduce NOTE unfamiliar sounds. These sounds normally indicate your refrigerator is operating correctly. Some surfaces on fl oors, Energy effi cient foam in your refrigerator is not a sound walls, and kitchen cabinets may make these sounds more insulator.

  • Page 22: Changing The Water And Air Filters

    Changing The Water and Air Filters Your refrigerator is equipped with separate water and air Push the fi lter release button above the cartridge to fi ltering systems. The water fi lter system fi lters all the water disconnect it. used to produce ice.
  • Page 23 Changing The Water and Air Filters 4 Push fi rmly until the cartridge snaps into place Air fi lter (you should hear two clicks). When fully engaged, The air fi lter is located under the utility bin. the front of the fi lter cartridge should be fl ush with the fi...

  • Page 24: Care And Cleaning

    Care and Cleaning Protecting your investment Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. NOTE Do not use abrasive cleaners such as window sprays, scouring cleansers, fl ammable fl uids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners.

  • Page 25: Vacation And Moving Tips

    Care and Cleaning Care and cleaning tips Part Cleaning Agents Tips and Precautions Soap and  Use two tablespoons of baking soda in one quart of warm water. Interior & Be sure to wring excess water out of sponge or cloth before Door Liners water Baking soda...
  • Page 26 NOTE Both the freezer and fresh food compartments of your LED lights are in series so if one is bad or unplugged, refrigerator include LED lights. Always use Viking Range parts several lights may not light up. for replacement. To replace LED Lights: Ordering Replacement LED Lights Unplug your refrigerator’s power cord.

  • Page 27: Solutions To Common Problems

    Solutions to Common Problems Before you call... If you experience a concern with your refrigerator or notice a product behavior or condition that you do not understand, you can usually avoid a call to your service representative by referring to this section for an answer. Beginning with the following table, this information includes concerns, potential causes, and common solutions.

  • Page 28: Temperatures Are Too Cold

    Solutions to Common Problems Opening/Closing Of Doors/Drawers Concern Potential Cause Common Solution  Refrigerator is not level. It rocks on the  Ensure fl oor is level and solid, and can adequately Door(s) will not close. fl oor when moved slightly. support the refrigerator.
  • Page 29 Solutions to Common Problems Temperatures Are Too Warm Concern Potential Cause Common Solution  Doors are opened too frequently or too  Warm air enters the refrigerator whenever the door Freezer/Refrigerator temperature is too long. is opened. Open the door less often. ...

  • Page 30: Service Information

    Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range at (888) 845-4641 or write to: VIKING RANGE, LLC...

  • Page 31: Warranty

    Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the fourth through the sixth year from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
  • Page 32 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada Pour toute information concernant le produit, appelez 1-888-845-4641 ou visitez le site Web à www.brigade.ca Para obtener información sobre los productos, llame al teléfono 1-888-(845-4641)
