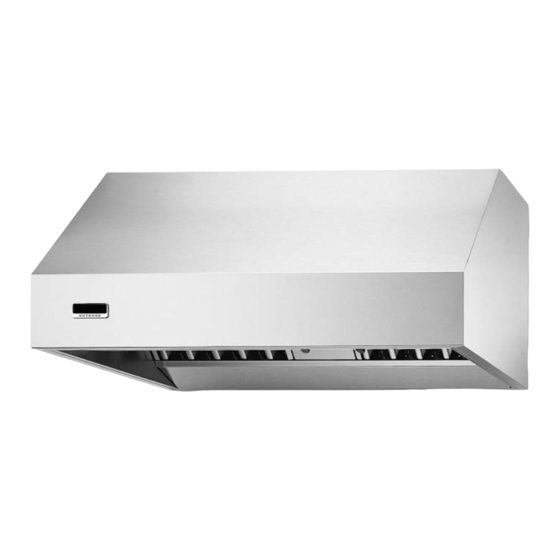

Summary of Contents for Viking Range 3 Series

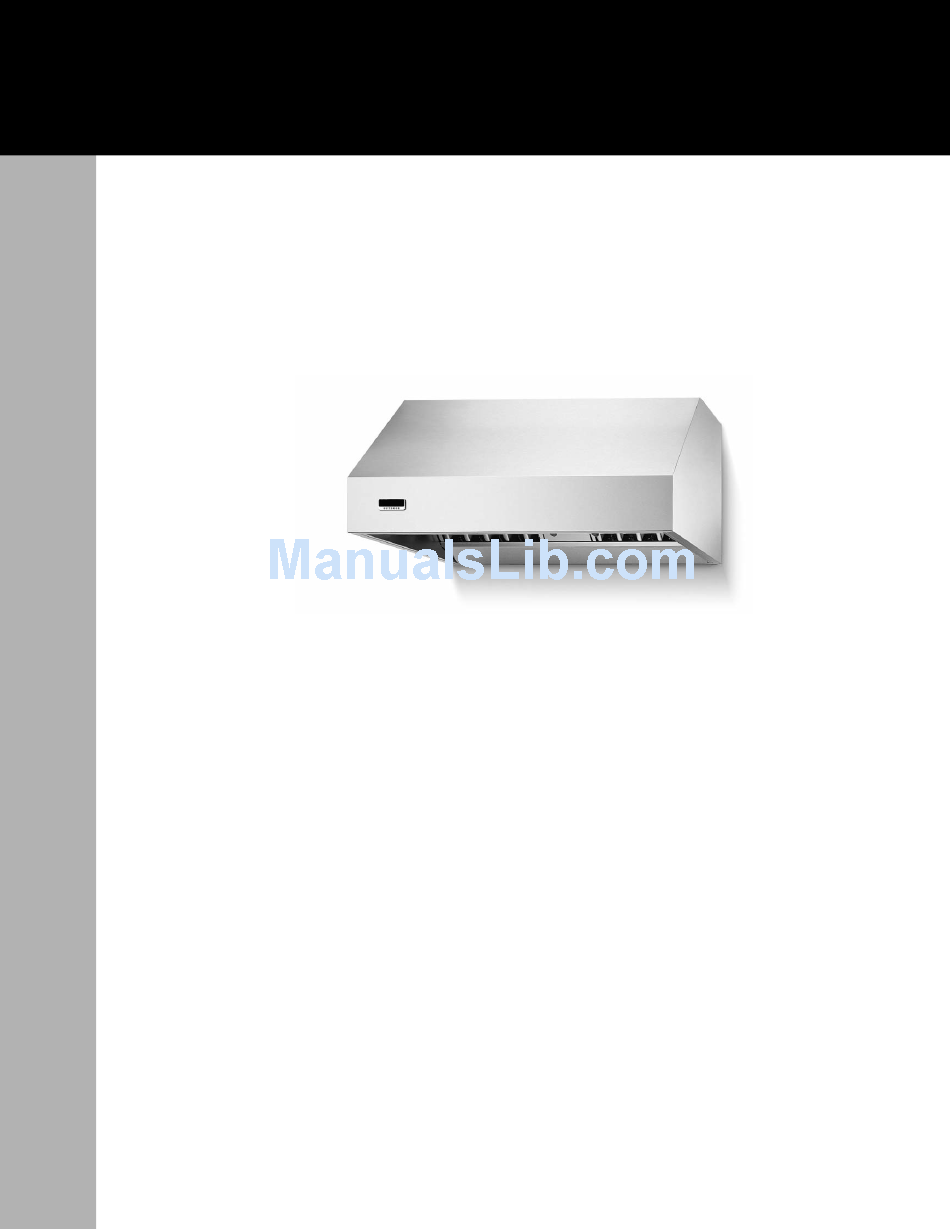

  • Page 1 Installation Guide 3 Series Professional Built-in Hoods...

  • Page 2: Table Of Contents

    Table of Contents Warnings & Important Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 VWH 10”H.
  • Page 3 Viking Range 7. CAUTION!: To Reduce the Risk of Fire and hoods. Use of any non-Viking Range ventilator kit Electric Shock, Install this rangehood only will void the hood warranty.
  • Page 4 IMPORTANT– Please Read and Follow! W A R N I N G W A R N I N G To reduce the risk of fire, electric shock, or To reduce the risk of injury to persons in injury to persons, observe the following: the event of a rangetop grease fire, observe the following.

  • Page 5: Vwh 10"H. Wall Hoods W/Standard Ventilator 30

    Dimensions & Specifications (VWH 10”H. Wall Hoods w/Standard Ventilator 30”, & 36”) ( 3 0 ” 3 ” ( 7 . ( 2 5 ” A (Hood width) ” 30”W. 29-7/8“ (76.2 cm) ( 5 3 36”W. 35-7/8” (91.1 cm) NOTE: Optional duct cover sold separately.

  • Page 6: Clearance Dimensions

    Clearance Dimensions (VWH 10”H. Wall Hoods w/Standard Ventilator) ” m ” m ( 1 5 i n . ( 6 1 i n . 2 . 4 ” m ” m ( 1 6 ( 6 8 0 . 0 ”...

  • Page 7: Interior Ventilator Dimensions

    Interior Ventilator Dimensions (VWH 10”H. Wall Hoods w/Standard Ventilator) Top View 30”W. 29-7/8” (75.9 cm) 36”W. 35-7/8” (91.1 cm) 18” (4.6 cm) 3-4” 1/2” (1.9 cm) (1.3 cm) 30”W. 8-1/4” (20.9 cm) 3-1/2” 4” 36”W. 11-1/4” (28.6 cm) (8.9 cm) (10.2 cm) 3-7/8”...

  • Page 8: Planning Information

    Planning Information Proper installation of ducting is extremely important to ensure maximum performance Interior-power Roof cap typical ductwork from any ventilation product. • All CFMs are based on tests at 0.1 static 7” round duct pressure: without applying static pressure, CFM would be greatly overstated.

  • Page 9: Installation (Vwh 10"H. Wall Hoods W/Standard Ventilator)

    Installation (VWH 10”H. Wall Hoods w/Standard Ventilator) Check damper for unrestricted movement, adjust if Attach transition to damper. Seal with aluminum tape. necessary. W A R N I N G To reduce the risk of fire, electric shock, or injury to persons, observe the following: •...
  • Page 10 CAUTION: If not using a duct cover, using CAUTION: Secure vent hood to wall screws provided, make sure top mounting screws are secured using screws provided. Use additional mounting screws into soffit or cabinet framing. Use additional mounting screws, and wall anchors, if necessary. if necessary.

  • Page 11: Duct Cover Option (Vwh 10"H. Wall Hoods W/Standard Ventilator)

    Slide filter front over front lip. Push filter rear up, then slide back over rear lip. Duct Cover Option (VWH 10”H. Wall Hoods w/Standard Ventilator) Measure distance from ceiling to canopy. Slide the duct cover in place and fasten from inside canopy using the sheet metal screws provided.
  • Page 12 Attach with screws and lock washers provided. Attach with screws. W A R N I N G To reduce the risk of fire, electric shock, or injury to persons, observe the following: • Use this unit only in the manner intended by the manufacturer.
  • Page 13 BARE OR GREEN GREEN BLACK WHITE BLACK WHITE Connect black to black, white to white, and the Replace electrical box cover. Make connection to green/bare wire under the green screw. breaker box. NOTE: Housing wiring must be properly installed for wiring to be correct when wiring unit.

  • Page 14: Service & Registration

    • Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at1-888-(845-4641), or write to:...
  • Page 16 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada F21455 EN (013015)
